SOLID STATE
SLOT TOASTER
MODEL
T2, T4
CT4 & BT4
Installation and
Operation
Instructions
2M-Z11894 Rev. - 8/08/2010
IL1544
BT4


Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the T2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Holman T2

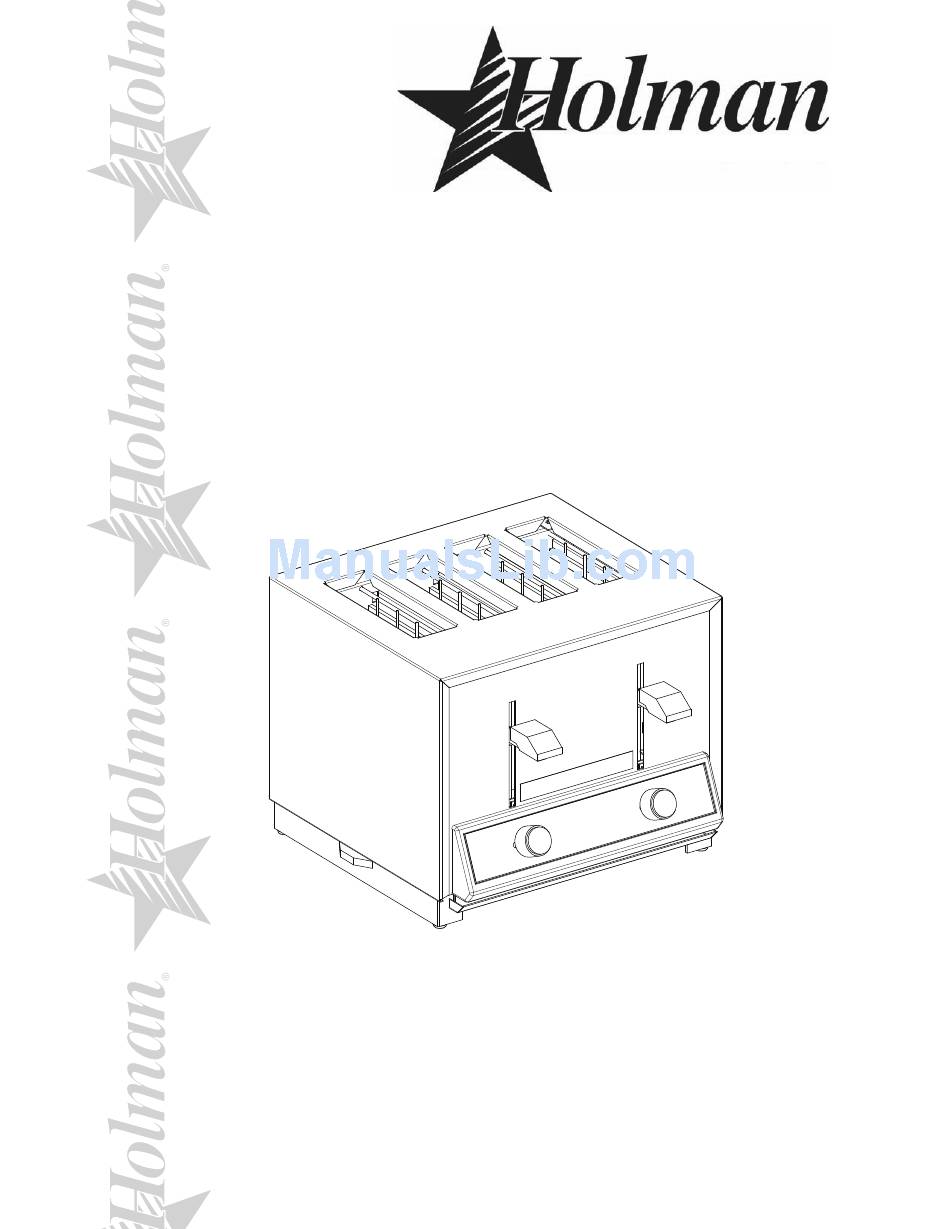

  • Page 1 ® SOLID STATE SLOT TOASTER MODEL T2, T4 CT4 & BT4 Installation and Operation Instructions 2M-Z11894 Rev. - 8/08/2010 IL1544...
  • Page 2: Safety Symbol

    SAFETY SYMBOL These symbols are intended to alert the user to the presence of important operating and maintenance instructions in the manual accompanying the appliance. RETAIN THIS MANUAL FOR FUTURE REFERENCE NOTICE Using any part other than genuine Star factory supplied parts relieves the manufacturer of all liability.
  • Page 3: Specifications

    Elec Width Depth Height Approx. Ship Model Slots per Hr Supply Cord Width Depth “A” “B” “C” Weight T2-120V 120V 5-15P 6-5/8” 12.3lbs / 5.58kg T2-240V 208/240V 4.8 / 5.4 1.0 / 1.3 6-15P T4-120V 120V 18.3 5-20P 1-1/8” T4-208/240V 208/240V 9.6 / 10.8...
  • Page 4: Assembly And Installation

    General Information This equipment is designed and sold for commercial use only by personnel trained and experienced in its operation and is not sold for consumer use in and around the home nor for use directly by the general public in food service locations. CAUTION Before using your new equipment, read and understand all the instructions & labels associated with the unit prior to putting it into operation. Make sure all people associated with its use understand the units operation & safety before they use the unit. INSPECTION UN-CRATING AND INSPECTING Unpack the unit and components from the shipping container. Remove all visible packing material and those from inside the cooking chamber. If damage is discovered, file a claim immediately with the carrier that handled the shipment. Do not operate the unit if it was damaged during shipping. All shipping containers should be checked for freight damage both visible and concealed. This unit has been tested and carefully packaged to insure delivery of your unit in perfect condition. If equipment is received in damaged condition, either apparent or concealed, a claim must be made with the delivering carrier. Concealed damage or loss - if damage or loss is not apparent until after equipment is unpacked, a request for inspection of concealed damage must be made with carrier within 5 days. Be certain to retain all contents plus external and internal packaging materials for inspection. The carrier will make an inspection and will supply necessary claim forms. ASSEMBLY AND INSTALLATION The unit was shipped fully assembled and ready to plug into a standard outlet specified for its voltage and amp draw.
  • Page 5: Operation

    Operating Lever Color Selection Knob IL1545 Crumb Tray OPERATION Color Selection For first toasting, set adjustment knob between "Light and Dark." Drop bread in toasting wells. Press down front handle as far as it will go. This automatically lowers the bread, turns on the heating elements and starts the timing. When toast is finished it will pop up and automatically turn off the elements.
  • Page 6 Visit our Website at: www.star-mfg.com Email: service@star-mfg.com THOROUGHLY INSPECT YOUR UNIT ON ARRIVAL This unit has been tested for proper operation before leaving our plant to insure delivery of your unit in perfect condition. However, there are instances in which the unit may be damaged in transit. In the event you discover any type of damage to your product upon receipt, you must immediately contact the transportation company who delivered the item to you and initiate your claim with same.
  • Page 7: Wiring Diagram

    WIRING DIAGRAM 208/240V SCHEMATIC 120V TIMER TIMER ELEMENTS SWITCH SOLENOID SOLENOID SOLENOID TIMER MICROSWITCH MICROSWITCH COM. N.O. COM. N.O. TIMER COM. N.O. COM. N.O. SOLENOID SWITCH ELEMENTS ELEMENTS ELEMENTS SWITCH SOLENOID TIMER 15 16 ELEMENTS SWITCH TERMINALBOARD SOLENOID TIMER SCHEMATIC 208/240V TERMINAL BOARD WIRING 12OV MODEL AMPERES PER LINE...
  • Page 8 NOTES: WIRING SHOWN AS VIEWED FROM THE REAR OF THE APPLIANCE. WIRING DIAGRAM 208/240V SWITCH SOLENOID TIMER TIMER TIMER ELEMENTS SOLENOID SOLENOID ELEMENTS TIMER MICROSWITCH MICROSWITCH COM. N.O. COM. N.O. SOLENOID SWITCH COM. N.O. COM. N.O. SCHEMATIC 120V ELEMENTS ELEMENTS SOLENOID TIMER SWITCH...
  • Page 9 MODEL NO. VOLTAGE WATTS AMPERES 1100 208/240 1000/1300 4.8/5.4 TERMINAL BOARD 120V 13 21 SOME ITEMS ARE INCLUDED FOR ILLUSTRATIVE PURPOSES ONLY AND IN CERTAIN INSTANCES MAY NOT BE AVAILABLE ® T2 POP-UP TOASTERS SK2395 Rev . - 9/15/2008 WIRING DIAGRAM...
  • Page 10 ILLUSTRATIVE PURPOSES ONLY AND IN CERTAIN INSTANCES MAY NOT BE AVAILABLE ® MODEL: T2, T4, BT4, CT4 POP-UP TOASTERS SK2396 Rev. - 9/15/2008...
  • Page 11: Parts List

    PARTS LIST May , 0, Rev. - T2, T4, CT4, BT4 SOLID STATE SLOT TOASTER MODEL Number Key Part Number Description Application Number Unit A8-35404 ASSY, COVER & INSULATION A8-39295 ASSY, TOP COVER & INSUL A8-39296 ASSY, TOP COVER & INSUL A8-39865 ASSY, TOP COVER & INSUL...
  • Page 12 PARTS LIST May , 0, Rev. - T2, T4, CT4, BT4 SOLID STATE SLOT TOASTER MODELS Number Part Key Description Application Number Number Unit 2E-32323 BOARD, TERMINAL, TU95101 BT4, CT4, T4 2E-35340 BOARD, TERMINAL A8-32524 COVER, REAR ELECTRICAL BT4, CT4, T4 A8-35338 COVER, REAR ELECTRICAL...
