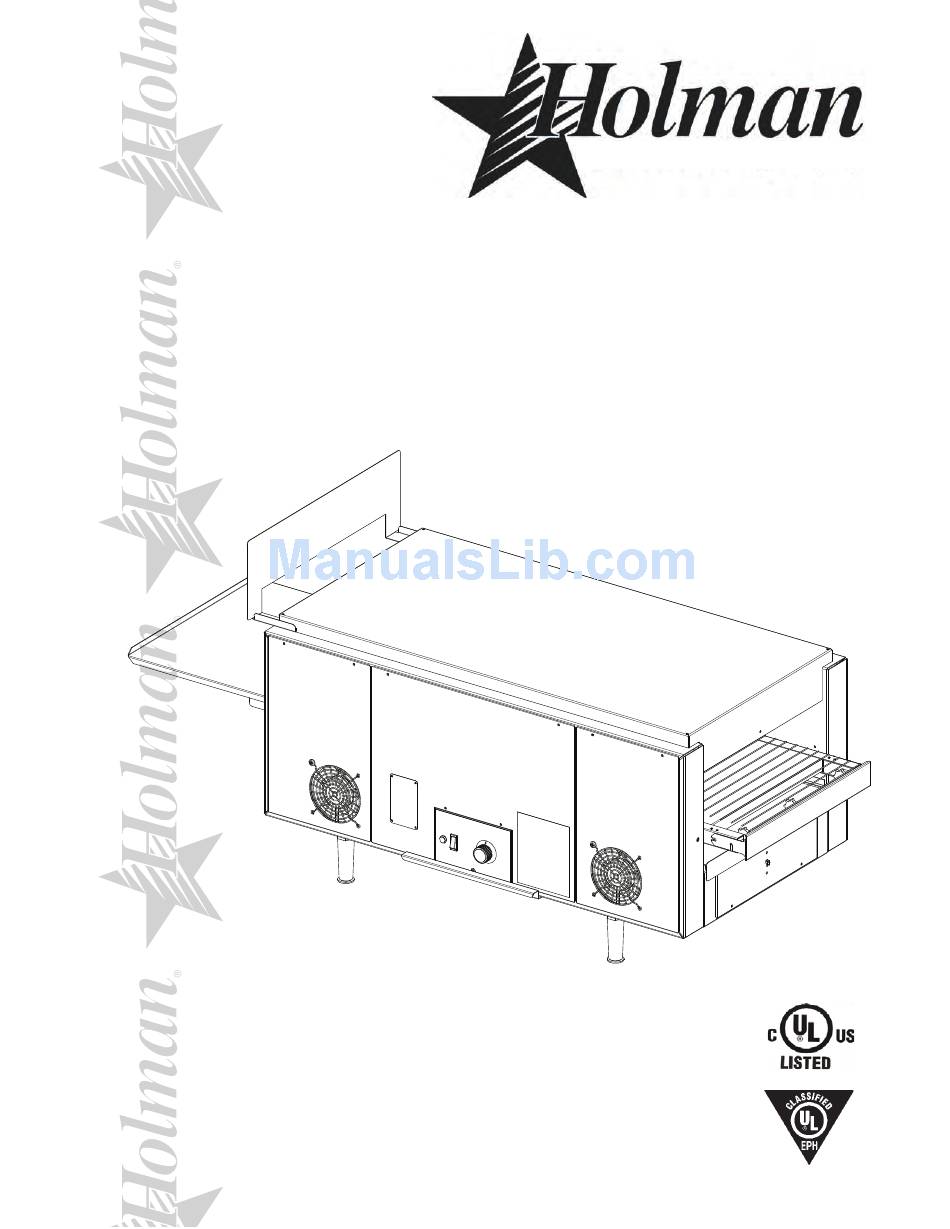

CONVEYOR
SANDWICH TOASTER
MODEL
QT14B, QT14BR,
QT14BW, QT14BWR
Installation and
Operation
Instructions
2M-Z9702 Rev. I 8/19/11
QT14BR


Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the QT14B and is the answer not in the manual?

Questions and answers

Summary of Contents for Holman QT14B

  • Page 1 ® CONVEYOR SANDWICH TOASTER MODEL QT14B, QT14BR, QT14BW, QT14BWR Installation and Operation Instructions 2M-Z9702 Rev. I 8/19/11 QT14BR...
  • Page 2: Star Contact Information

    SAFETY SYMBOL These symbols are intended to alert the user to the presence of important operating and maintenance instructions in the manual accompanying the appliance. RETAIN THIS MANUAL FOR FUTURE REFERENCE NOTICE Using any part other than genuine Star factory supplied parts relieves the manufacturer of all liability.
  • Page 3: Table Of Contents

    Inspection & Assembly Assembly and Installation Electrical Connection Oven Components Stacking Ovens Daily Operation Cleaning Daily Weekly Monthly Maintenance and Repairs 10-11 Troubleshooting Guide Limited Equipment Warranty Wiring Diagrams 14-16 Exploded View Illustration & Parts List 18-21 SPECIFICATIONS QT14B, QT14BR, QT14BW, QT14BWR Rating/Connection: 7,800 Watts NEMA Plug: N/A Electrical Supply: Separate service per toaster - 37.5 Amp, 208 VAC, 1 phase, 60 Hz Separate service per toaster - 32.5 Amp, 240 VAC, 1 phase, 60/50 Hz Separate service per toaster - 21.7 Amp, 208 VAC, 3 phase, 60 Hz Approximate Weight (QT14B Oven with Legs): Installed - 170 Lbs (77.1 kg) Dimensions: Width: 55" (139.7 cm) - Oven with Trays Depth: 24" (60.9 cm) Height: 20" (50.8 cm) - Single Oven with Legs QT14B, QT14BR, QT14BW, QT14BWR Rating/Connection: 7,950 Watts NEMA Plug:...
  • Page 4: General Information Data

    UN CRATING AND INSPECTING Unpack the unit and components from the shipping container. Remove all visible packing material. If damage is discovered, file a claim immediately with the carrier that handled the shipment. DO NOT operate the unit if it was damaged during shipping. The following should be included: Holman Conveyor Sandwich Toaster, Stainless Steel Unload Tray, (four) 4 Stainless Steel Legs, extra Motor, and Magnetic Bake Aid w/Bracket. ASSEMBLY AND INSTALLATION The unit was shipped with certain assembly required. D O NOT PLACE THE UNIT ON ITS SIDE. FAILURE TO COMPLY MAY RESULT IN DAMAGE TO EQUIPMENT.
  • Page 5: Electrical Connection

    ASSEMBLY AND INSTALLATION continued ELECTRICAL CONNECTION Have an electrician connect input power to the unit(s) in accordance with local electrical codes. A connection terminal block is located inside an electrical box on the control side of the unit. CORD & PLUG IS NOT PROVIDED. V ERIFY THE GROUND (EARTH) CONNECTION IS PROPERLY WIRED. NEVER CONNECT UNIT TO POWER WITHOUT PROPER GROUND CONNECTIONS. IMPROPER GROUND MAY RESULT IN SEVERE INJURY OR FATALITY. WARNING MAKE SURE ALL INPUT POWER IS OFF BEFORE INSTALLING/REMOVING ANY PARTS. BEFORE INSTALLING UNIT, HAVE YOUR ELECTRICIAN CHECK WITH LOCAL POWER COMPANY TO DETERMINE ACTUAL VOLTAGE AT THE STORE. Before applying input power to the unit, check elements for breakage. DO NOT apply power to the unit if a any elements are broken. If no broken elements are found, apply input power by switching the ON/OFF toggle to the ON position. Turn conveyor belt speed control to the maximum setting and check all elements and conveyor for proper operation. Allow approximately 5 to 10 minutes for the twin-fan cooling system to come on. Check the air intake fan area shown below, making sure there is a sufficient flow of air into the unit. Restricting the airflow will cause the unit to run hotter then designed causing damage to the unit. If all heater and conveyor systems are operating properly, turn the master ON/OFF switch to the OFF position and allow unit to cool. The fans will continue to circulate cool air throughout the unit until the internal temperatures have been decreased. If a problem is discovered during start up procedures, immediately turn the Master ON/OFF switch to the OFF position and call the Star Service Help Desk at 1-800-807-9054. “The Bake” SIGN “The Bake” Bracket UNLOAD TRAY CRUMB TRAY HI-LIMIT RESET SWITCH...
  • Page 6: Stacking Ovens

    STACKING TOASTERS When stacking two Holman QT14/ QT14B Conveyor Sandwich Toasters a QT14 Stacking Legs Kit (part no. PS-Z8977) MUST be used to prevent overheating of the control box of the top toaster. TOASTER 1. Unplug BOTH UNIT power cords from the wall receptacle, and allow to cool. 2. Once cooled, stand the top unit on end and remove all 4 feet. Save them for possible future use. 3. Take one of the four (4) stacking legs and bolt it in place of previously removed leg. STACKING LEGS Tighten using wrench. Install (QTY 4) the remaining three. DRILL THROUGH 4. Stand unit in its usable position HOLES and verify the legs are stable. TOASTER 5. Place the upper unit on top...
  • Page 7: Cleaning

    CLEANING Preventive maintenance for your toaster consists of the following recommended cleaning procedures. To keep your unit in its top operating condition, these steps should be performed on a daily, weekly or as indicated. Turn power off and allow cooling fans to run until the control box is cooled off. A thermostat in the control box controls the fans. DISCONNECT UNIT FROM POWER SUPPLY OR TURN POWER OFF AT WALL BREAKER. WARNING DAILY 1. Turn main power switch to the OFF position. Disconnect unit from power source and allow to cool. 2. Using a mild detergent, wipe exterior surfaces, clean with a damp cloth. a. For lightly soiled build-up, clean with a damp cloth. b. For heavily soiled build-up, use a soft damp cloth and mild detergent. DO NOT use caustic cleaners. 3. Remove the unload tray by lifting it out of position. Clean using mild detergent and warm water. 4. Remove all three (3) crumb trays. Clean crumb trays by wiping with a damp cloth and mild detergent. DO NOT use caustic cleaners. Place trays back in place prior to putting unit back into operation. 5. Check air intake area for dust and grease. To clean, vacuum and wipe with a dry cloth. (daily) DO NOT spray cleaning fluids into the air intake or cooking chamber. This may result in component failure. 6. If your unit has the glass window, carefully remove and clean the window. Remove the thumbscrews securing the window assembly. Remove the window retainer, spacer, and the piece of glass. Wash with hot, soapy water. Reassemble. 7. Reconnect power. THE GLASS THAT IS SUPPLIED WITH SOME OVENS IS SPECIFICALLY DESIGNED FOR IT. DO NOT SUBSTITUTE ANY OTHER GLASS PRODUCTS IN ITS PLACE. GLASS SPACER RETAINER THUMBSCREWS...
  • Page 8: Weekly

    CLEANING continued WEEKLY 1. Turn main Power switch to the OFF position. Disconnect unit from power source and allow to cool. 2. Perform daily cleaning procedures. 3. Using a damp cloth, wipe clean the fan guard located on the control box cover under the unit. CONVEYOR BELT CLEANING PROCEDURES 4. Reconnect power or turn power back on. 5. Switch the ON/OFF switch to the ON position, and turn conveyor to its fastest setting. 6. With the conveyor turned on and the crumb trays in place, take a wire grill brush or dry abrasive pad, clean the exposed surface of conveyor belt by passing the brush or pad, back and forth across the surface of the conveyor belt as the belt moves past. continue until the entire belt is clean. IL1153 Make sure the crumb tray is installed; this will minimize the amount of particles that fall into the toaster. 7. When the Conveyor Belt is clean, take a damp cloth and wipe the conveyor, removing any loose particles on the belt surface. Turn Conveyor OFF. 8. Remove the Crumb Trays by sliding out from beneath the conveyor belt and discard soiled aluminum foil. If cleaning is necessary, use a damp cloth and mild detergent. DO NOT use caustic cleaners. DO NOT RUN CONVEYOR OVEN WITHOUT CRUMB TRAYS INSTALLED. 9. Cover crumb trays with clean aluminum foil and put back to its correct position. DO NOT IMMERSE OR LET THE UNIT STAND IN WATER.
  • Page 9: Monthly

    CLEANING continued MONTHLY 1. Turn power switch to the OFF position. Disconnect unit from power source and allow to cool. 2. Perform daily & weekly cleaning procedures. 3. Working from the power supply side of the oven, locate the side panel, remove two screws holding panel in place and remove panel. Drive chain is now exposed. 4. Check drive chain tension. a. When properly adjusted, chain will UNLOAD TRAY have about 1/8" play but will not sag. See Chain Tension Illustration on DRIVEN SPROCKET page 12. DRIVE MOTOR b. To adjust drive chain tension, MOUNTING SCREWS locate the drive motor mounting CHAIN screws (see illustration). Loosen screws holding drive motor in DRIVE SPROCKET place and slide drive motor forward or backward to adjust chain tension. With proper chain tension, retighten motor screws.
  • Page 10: Maintenance And Repairs

    MAINTENANCE & REPAIRS A. REPLACING ELEMENT NOTE: Replace one element at a time. 1) DISCONNECT POWER SOURCE. Element 2) Remove both the left and right side panels, b y removing the truss head screws. Pull the top of each panel out slightly and lift up. 3) Remove element wires which are requiring r eplacement from its terminal block connection. 4) Loosen the Element Retainer and move it upward and tighten. 5) Gently, pull defective element out of unit. 6) Slide sipping straws on the element wires for an easier installation. Guiding the wire & element into position IL1157 7) Connect wires to the terminal blocks and tug lightly on the wire to ensure good connection. 8) Loosen screw(s) holding the retainer secure and slide it back into position, to secure element in place. 9) Install each side panel 10) Connect unit to power source and test unit for proper operation. B. REPLACING FAN MOTOR 1) DISCONNECT POWER SOURCE.
  • Page 11 MAINTENANCE PROCEDURES continued 7) Install sprocket on motor shaft & chain after aligning them. See Sprocket Alignment Illustration. NOTE: The two sprockets must line up FLUSH with each other, so the chain does not twist during operation. Also the hub is installed 1/4” closest to the motor. 8) Slide motor until the drive chain has about 1/4” slack when 1/4” l ightly pushed at the center of its top open run. See Chain Tension Illustration. 9) Tighten screws to secure motor. 10) Rewire leads same as removed in step 4. 11) At this time you may plug unit in and test for proper operation prior t o reinstalling previously removed panels. 12) If unit is working correctly, turn unit off and unplug until completed 13) Reinstall side & access panels. CHAIN TENSION Reinstall the crumb trays. 14) Connect unit to power source and test again for proper operation. D. LUBRICATE THE CHAIN & SPROCKETS Bearing EVERY 6 MONTHS 1) DISCONNECT UNIT FROM POWER SOURCE. 1/16”...
  • Page 12: Troubleshooting Guide

    TROUBLESHOOTING GUIDE A. UNIT WILL NOT HEAT, CONVEYOR BELT WILL NOT MOVE. 1) Be sure the main circuit breaker is switched to the ON position and there is power to the outlet. 2) Check to see if the toaster is plugged in and all controls are turned to the ON position. 3) Be sure the Hi-Limit Reset Button is pushed in. 4) Call the Star Service Help Desk at 1-800-807-9054. B. UNIT WILL NOT HEAT, CONVEYOR TURNS PROPERLY. 1) Check to see if the heat controls have been turned to the maximum setting. 2) Press the Hi-Limit Reset Button located on the end under the conveyor belt. If this reactivates the heater tubes, see Hi-Limit Reset Section below. 3) Call the Star Service Help Desk at 1-800-807-9054. C. HI-LIMIT (HEAT) RESET. Your Holman conveyor toaster is equipped with an automatic activated temperature limit switch which interrupts the heater tube connections if the air temperature in the control box exceeds 190°F (88°C) This limit switch can be reset manually by pushing the button in the center of the switch which is located on the right side under the conveyor belt. See Oven Components on Page 7 for location. Unit will not reset until internal temperature has fallen below 190°F (88°C). NOTE: THE HI-LIMIT SWITCH CAN BE ACTIVATED IF THERE IS NOT A PROPER AMOUNT OF AIR FLOW BEING GENERATED BY THE COOLING FAN. IF THIS OCCURS: 1) DISCONNECT UNIT FROM POWER SOURCE. 2) Check to see if the air intake area is free of dust, grease or other obstructions. 3) Check to see if crumb trays (heat reflectors) are in place. If the Hi-Limit Switch can not be reset, call the Star Service Help Desk at 1-800-807-9054. NEVER OPERATE UNIT WITHOUT CRUMB TRAYS IN POSITION AS THIS CAUSES OVERHEATING IN THE CONTROL BOX. CAUTION D. CONVEYOR WILL NOT TURN, UNIT HEATS PROPERLY.
  • Page 13: Limited Equipment Warranty

    Visit our Website at: www.star-mfg.com Email: service@star-mfg.com THOROUGHLY INSPECT YOUR UNIT ON ARRIVAL This unit has been tested for proper operation before leaving our plant to insure delivery of your unit in perfect condition. However, there are instances in which the unit may be damaged in transit. In the event you discover any type of damage to your product upon receipt, you must immediately contact the transportation company who delivered the item to you and initiate your claim with same.
  • Page 14: Wiring Diagrams

    (3 SERIES PAIRS IN PARALLEL) W-10GA B-10GA THIS DRAWING CONTAINS INFORMATION CONFIDENTIAL TO STAR MFG. INT'L. INC. ® NO REPRODUCTION OR DISCLOSURE OF ITS CONTENTS IS PERMITTED. MODEL: QT14B-Window, 208/220/240V, 1Phase STAR MANUFACTURING INTERNATIONAL INC. w/Potentiometer Speed Control SK2185 Rev - 6/05/2006...
  • Page 15 TGGT 14GA DRIVE MOTOR: USE BLK/WHT FOR 208V FAN SWITCH 500 OHM USE BLK/BLU FOR 240V D I O D E TGGT 14GA MOTOR WIRE FUSE 2 W-14GA FAN WIRE IS 18GA IS 18GA W-14GA B-14GA ON/OFF FUSE 1 B-14GA B-14GA W-14GA PILOT LIGHT...
  • Page 16 TGGT 14GA MOTOR WIRE FAN SWITCH IS 18GA 500 OHM TGGT 14GA D I O D E W-14GA FUSE 2 FAN WIRE IS 18GA W-14GA B-14GA B-14GA ON/OFF FUSE 1 DRIVE MOTOR: B-14GA USE BLK/WHT FOR 208V W-14GA USE BLK/BLU FOR 240V PILOT LIGHT 12 W-14GA B-14 GA...
  • Page 17 Nameplate OPTIONAL ACCESSORY PARTS MODEL: QT14B SK2186 Rev. D 4/14/09...
  • Page 18: Exploded View Illustration & Parts List

    QT14B Holman Conveyor Toaster Part Part Quantity Quantity Number Description Number Description GE-100991 TOP COVER GE-Z9636 PANEL - POWER INPUT GE-402709 ELECTRICAL BOX (POWER INPUT) GE-402610 CONVEYOR END GUARD GE120303 CRUMB TRAY 2K-200464 BUSHING, WIRE RING 7/8” SP-115402 TERMINAL BLOCK - MAIN POWER GE-Z9594 PANEL, CONTACTOR SIDE w/RESET 2E-200566 SWITCH, OVERTEMP (RESET) GE-402710 ELECTRICAL BOX COVER GE-101390 WINDOW SPACER 2U-200577 COOLING FAN - 240V HIGH OUTPUT GE-Z9598 PANEL - FAN OFFSET RIGHT 2Q-200588 WINDOW - NEO SARAMA...
  • Page 19 MODEL: QT14B SK2187 Rev. B 12/13/06...
  • Page 20 QT14B Holman Conveyor Toaster Part Part Quantity Quantity Number Description Number Description 2C-200150 WASHER, 3/8” 2E-Z8966 CONTACTOR/RELAY - 1 PHASE PS-Z14660 CONTACTOR 50A 3 PHASE GB-112262 BEARING ASSY. 3/8” FLANGED GE-101254 DRIVE SHAFT ASSY (W/SPROCKETS) 2E-200597 FUSEHOLDER - 2 POSITION, TYPE G 2E-Z8405 FUSE - 15A TYPE G 2P-200652 SPROCKET DRIVEN -17 tooth 3/8 after COQT0307B0001 2P-115362 SPROCKET DRIVEN -11 tooth 3/8 2E-200574 SWITCH, FAN (COOLDOWN) before COQT0301B001 HG-402144 BRACKET, FAN SWITCH 2P-200646 SPROCKET DRIVE - 20 tooth 5/16...
