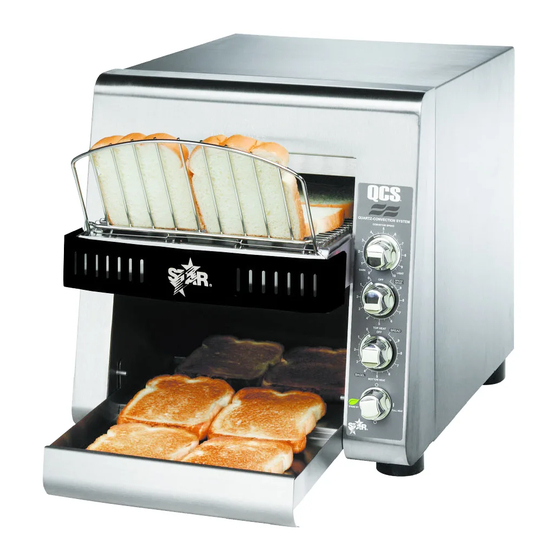

Conveyor toaster
Hide thumbs Also See for QCS2 series:
Table of Contents

Advertisement

Quick Links

®
CONVEYOR
R
TOASTER
MODEL
QCS2, QCSe2, RCS2, R2e SERIES
QCS3, QCSe3 SERIES
Installation and
Operation
Instructions
2M-Z10651 Rev. G 1/26/2015
Q2-600H-208V
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the QCS2 series and is the answer not in the manual?

Questions and answers

Related Manuals for Holman QCS2 series

Summary of Contents for Holman QCS2 series

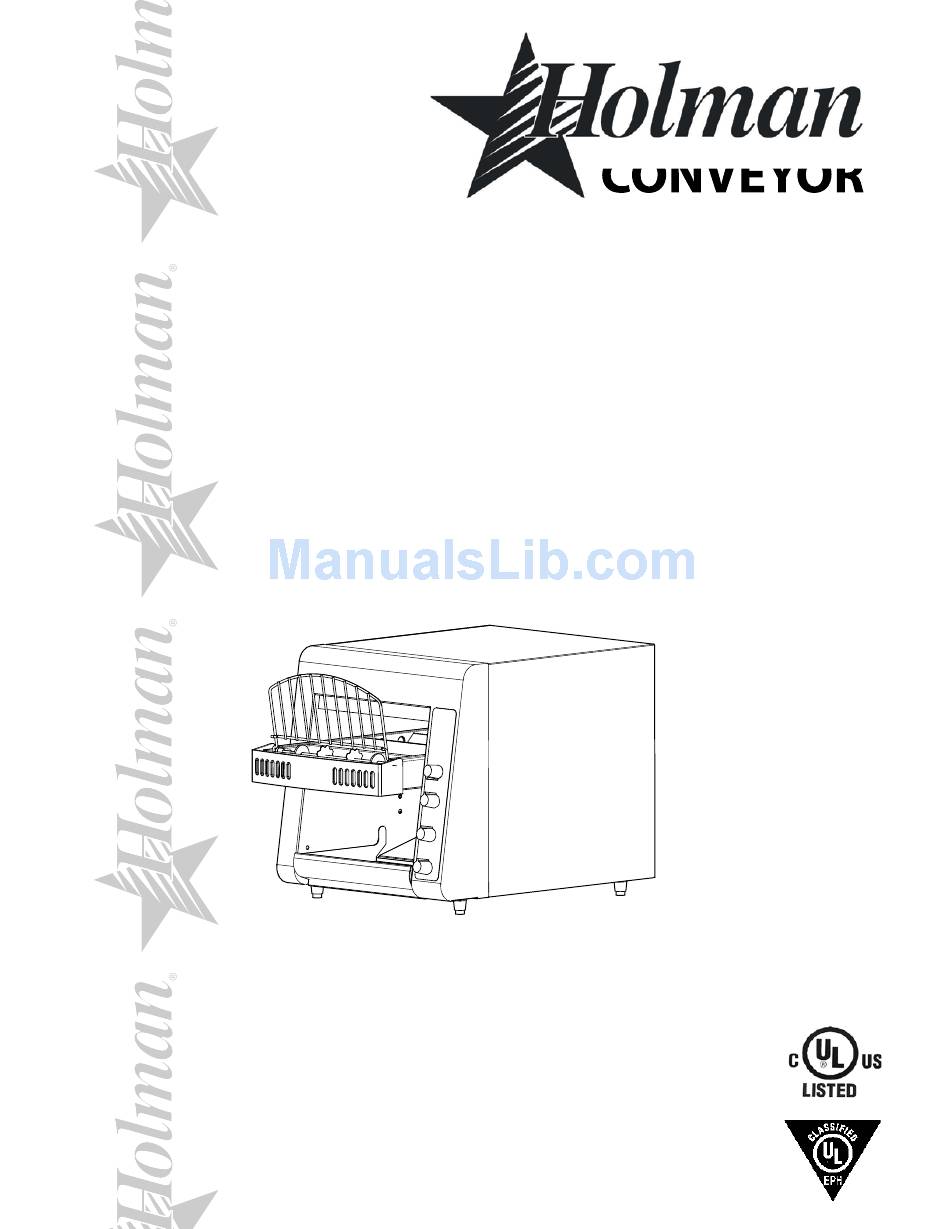

  • Page 1 ® CONVEYOR TOASTER MODEL QCS2, QCSe2, RCS2, R2e SERIES QCS3, QCSe3 SERIES Installation and Operation Instructions 2M-Z10651 Rev. G 1/26/2015 Q2-600H-208V...
  • Page 2 SAFETY SYMBOL These symbols are intended to alert the user to the presence of important operating and maintenance instructions in the manual accompanying the appliance. RETAIN THIS MANUAL FOR FUTURE REFERENCE NOTICE Using any part other than genuine Star factory supplied parts relieves the manufacturer of all liability.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS General Installation Data ............4 Uncrating & Inspection............4 Assembly & Installation ............4 Electrical Connection............4 QCS & RCS Operation ................5 Cooking Procedures ............5 Toaster Components ............5 Daily Operation ..............6 Operating Hints & Safety ............6 QCSe & RCSe QCSe Operation ..............7 Start-up ................8 Daily Operation ..............8 Operating Hints &...

  • Page 4: General Installation Data

    GENERAL INSTALLATION DATA This equipment is designed and sold for commercial use only by personnel trained and experienced in its operation and is not sold for consumer use in and around the home nor for use directly by the general public in food service locations. CAUTION Before using your new equipment, read and understand all the instructions &...

  • Page 5: Operation

    OPERATION ROTARY POWER SAVER SWITCH For toasters equipped with a Rotary Power Saver Switch, turn clockwise or counterclockwise to get in the following positions. FULL POWER When in this position your equipment is at full power and ready to use. OFF ROTARY Two off positions are provided, a single rotation to either direction will shut the unit off.

  • Page 6: Daily Operation

    DAILY OPERATION Check the power cord to insure that it is plugged into a proper outlet. Set the heat control knobs to desired temperature. preheat time will result in unsatisfactory cooking until the unit reaches operating temperature. OPERATING HINTS AND SAFETY Disconnect power to the unit with the switch at the end of each day of operation.

  • Page 7: Qcse & Rcse Qcse Operation

    ® QCSe & RCSe OPERATION The Holman QCSe conveyor toaster comes with pre-programmed factory default settings for TOAST, MUFFINS, and BAGELS. The operator may change these setting at any time. A button labeled OTHER is provided to allow the operator to program settings for additional product(s).

  • Page 8: Start-Up

    ® CERTAIN SURFACES ARE EXTREMELY HOT DURING OPERATION AND CARE SHOULD BE TAKEN WHILE USING THIS UNIT. CAUTION START UP When the toaster has been plugged into a suitable outlet and power supply, the word OFF will be displayed on the L.E.D. read out. A.

  • Page 9: Programing Conveyor Speed

    ® PROGRAMING A. CONVEYOR SPEED (temporary setting) The conveyor speed is programmable with a range from 0 to 99 with 0 being the slowest and 99 being the fastest. Each menu item can have independent conveyor speed settings. The LIGHT and DARK buttons can be used to temporarily change the conveyor speed. Pressing the LIGHT button once will increase the conveyor speed by 15%.

  • Page 10: Cleaning

    CLEANING Preventive maintenance for your Holman toaster consists of the following recommended cleaning ® procedures. To keep your toaster in its top operating condition, these steps should be performed on a daily or weekly as indicated. A. Clean air intake on bottom of unit.

  • Page 11: Maintenance Procedures

    MAINTENANCE PROCEDURES A. REPLACING HEATER TUBES 1) DISCONNECT UNIT FROM POWER SOURCE. 2) Remove the enclosure. 3) Remove heater tube wire from terminal block connection, keeping top and bottom wires separate. 4) Lift heater tube retainers by loosening retaining screws and sliding the retainer plate up. Hand tighten the plate to hold it up so the heater tubes will slide out freely.

  • Page 12: Troubleshooting Guide

    F. PRODUCT STICKING TO CONVEYOR OR SLIDE Your Holman conveyor toaster is designed to toast product that is at current room temperature. DO NOT attempt to put frozen, refrigerated, or any butter or a butter substitute material in the toaster.

  • Page 13: Warranty

    Visit our Website at: www.star-mfg.com Email: service@star-mfg.com THOROUGHLY INSPECT YOUR UNIT ON ARRIVAL This unit has been tested for proper operation before leaving our plant to insure delivery of your unit in perfect condition. However, there are instances in which the unit may be damaged in transit.

  • Page 16: Qcs2 & 3, Rcs2 & 3, 3 Wired In Series W/Bun Mode

    20 BLACK 3 BLACK...

  • Page 18: Qcs3, 6 Wired In Series, With Fuses

    RCS-2-600N RCS-2-600BN RIGHT SIDE RIGHT SIDE (CONTROLS) (CONTROLS) RESET/HIGH LIMIT RESET/HIGH LIMIT DRIVE MOTOR COOLING DRIVE MOTOR COOLING SPEED CONTROL BLU FOR 120/240V SPEED WHT FOR 208V CONTROL POWER SUPPLY POWER SUPPLY 2M-Z16972 rev~ 2M-Z16803 revA...

  • Page 20: Exploded View / Parts List R2-600N (Narrow)

    Nameplate 8 12 MODEL: R2-600N: SK2664 Rev. A 7/22/13 Narrow Conveyor Toaster...
  • Page 21 PARTS LIST January 26, 2015, Rev. G Model: R2-600 Narrow Conveyor Toaster Fig No Part Number Description Application 2C-6349 SCREW #8X3/8 B THP STL NP HC-Z16791 BACK PANEL R2N HC-120325 BODY COVER ASSY R2N HC-120326 HEAT BAFFLE ASSEMBLY R2N 2E-200566 SWITCH, RESET, 0796 2A-200284 E-CLIP 5/16”...
  • Page 23 15 41 Certain Models or Q2-3KL-KIT SOME ITEMS ARE INCLUDED FOR ILLUSTRATIVE PURPOSES ONLY AND IN CERTAIN INSTANCES MAY NOT BE AVAILABLE This drawing contains information confidential to Star Manufacturing International, Inc. No reproduction or disclosure of its contents is permitted. ®...
  • Page 24 PARTS LIST January 26, 2015, Rev. G Models: Q2-500-120V, Q2E-500-120V, Q2-500-CUL20, Q2-600H-CE, Q2-600H-UK, Q2-600HF-208, Q2-600H-208/220/240V, Q2-600HS-208, Q2E-600H-208/240V, Q2-800-208/220/240V, Q2-800-240UK, Q2-800-230CE, Q2E-800-208/240V, CONVEYOR TOASTERS Q2-1200B-208/240V, R2-12BSZ-208/240V, R2--1200-208/240V, R2-600HJ-208/240V, R2-800-208V Fig No Part No. Description Application HC-120258 ENCLOSURE ASSY - QCS-2 Q2-800-208/220/240V, Q2-1200B-208/240V, R2-12BSZ-208/240V, R2-1200B- HB-120270 TOP BAFFLE ASSY QCS-2 LOW 208/240V, R2-600HJ-208/240V, Q2-500-120V, Q2-500-CUL20, Q2E-500-120V, Q2E-...
  • Page 25 PARTS LIST January 26, 2015, Rev. G Models: Q2-500-120V, Q2E-500-120V, Q2-500-CUL20, Q2-600H-CE, Q2-600H-UK, Q2-600HF-208, Q2-600H-208/220/240V, Q2-600HS-208, Q2E-600H-208/240V, Q2-800-208/220/240V, Q2-800-240UK, Q2-800-230CE, Q2E-800-208/240V, CONVEYOR TOASTERS Q2-1200B-208/240V, R2-12BSZ-208/240V, R2--1200-208/240V, R2-600HJ-208/240V, R2-800-208V Fig No Part No. Description Application 2N-209100 ELMT, METAL 120V 430W R2E-500-120V 2N-209112 ELMT, SERPENTINE, RCS R2-12BSZ-240V, R2-1200B-240V, R2E-1200B240, R2E-12BK-240...
  • Page 26 PARTS LIST January 26, 2015, Rev. G Models: Q2-500-120V, Q2E-500-120V, Q2-500-CUL20, Q2-600H-CE, Q2-600H-UK, Q2-600HF-208, Q2-600H-208/220/240V, Q2-600HS-208, Q2E-600H-208/240V, Q2-800-208/220/240V, Q2-800-240UK, Q2-800-230CE, Q2E-800-208/240V, CONVEYOR TOASTERS Q2-1200B-208/240V, R2-12BSZ-208/240V, R2--1200-208/240V, R2-600HJ-208/240V, R2-800-208V Fig No Part No. Description Application Q2-600H-208/220/240V, Q2-800-208/220/240V, Q2E-600H-208V, Q2E-800-208/240V, Q2-500-120V, Q2-500-CUL20, Q2E-500-120V, Q2E-500CUL20, Q2-600H-CE, Q2- 2K-200464 BUSHING WIRE RING 7/8”...
  • Page 27 PARTS LIST January 26, 2015, Rev. G Models: Q2-500-120V, Q2E-500-120V, Q2-500-CUL20, Q2-600H-CE, Q2-600H-UK, Q2-600HF-208, Q2-600H-208/220/240V, Q2-600HS-208, Q2E-600H-208/240V, Q2-800-208/220/240V, Q2-800-240UK, Q2-800-230CE, Q2E-800-208/240V, CONVEYOR TOASTERS Q2-1200B-208/240V, R2-12BSZ-208/240V, R2--1200-208/240V, R2-600HJ-208/240V, R2-800-208V Fig No Part No. Description Application HC-402457 CRUMB TRAY, QCS-2 HF-100656 SECURITY CRUMB TRAY, QCS Q2-600HS-208 HB-120309 CRUMB TRAY ASSY, Q2E-600HW...
  • Page 28 PARTS LIST January 26, 2015, Rev. G Models: Q2-500-120V, Q2E-500-120V, Q2-500-CUL20, Q2-600H-CE, Q2-600H-UK, Q2-600HF-208, Q2-600H-208/220/240V, Q2-600HS-208, Q2E-600H-208/240V, Q2-800-208/220/240V, Q2-800-240UK, Q2-800-230CE, Q2E-800-208/240V, CONVEYOR TOASTERS Q2-1200B-208/240V, R2-12BSZ-208/240V, R2-1200-208/240V, R2-600HJ-208/240V, R2-800-208V Fig No Part No. Description Application 2E-200375 CORD SET, 14/3 120V EZ10 R2E-500-120V 2E-Y7874 CORD SET CEE7/VII 6’-6”...
  • Page 29 PARTS LIST January 26, 2015, Rev. G Models: Q3-950H-208/220/240V/CE/UK, Q3-1000-208/220/240/CE/UK, Q3-1300-208/240V, Q3-1400BH-208/240/CE, CONVEYOR TOASTERS Q3-1600B-208/240, Q3E-950H-208/240, Q3E-1000-208/240, Q3E-1300-208/240 Fig No Part No. Description Application HC-120283 CHASSIS ENCLOSURE ASSY HC-120284 ASSY, AIR BAFFLE QCS-3 LO Q3-1000, -1300/S, -1600B, Q3E-1000, -1300, R3-1000 HC-120285 ASSY, AIR BAFFLE QCS-3 HI Q3-950H, -95WS, -1400BH, R3-950H...
  • Page 30 PARTS LIST January 26, 2015, Rev. G Models: Q3-950H-208/220/240V/CE/UK, Q3-1000-208/220/240/CE/UK, Q3-1300-208/240V, Q3-1400BH-208/240/CE, CONVEYOR TOASTERS Q3-1600B-208/240, Q3E-950H-208/240, Q3E-1000-208/240, Q3E-1300-208/240 Fig No Part No. Description Application HB-Z10858 ELEMENT GUIDE PLATE QCS2 Q3-950H HC-Z10388 ELEMENT GUIDE PLATE Q3-1000, Q3-1300, Q3E-1000, Q3E-950H-208 HC-Z19063 ELEMENT GUIDE PLATE R3E-14CAR HC-Z10439 ELEMENT GUIDE PLATE 1200...
  • Page 31 PARTS LIST January 26, 2015, Rev. G Models: Q3-950H-208/220/240V/CE/UK, Q3-1000-208/220/240/CE/UK, Q3-1300-208/240V, Q3-1400BH-208/240/CE, CONVEYOR TOASTERS Q3-1600B-208/240, Q3E-950H-208/240, Q3E-1000-208/240, Q3E-1300-208/240 Fig No Part No. Description Application 2A-200284 E-CLIP 5/16 2E-200574 SWITCH, FAN, CERAMIC Q3-1600B 2U-200591 QCSE CONTROL BOARD ALL Q2E & Q3E HC-Z13815 CONTROL - PROGRAMMED Q3E-950HP208, CUSTOMER SPECIFIC...
  • Page 32 STAR INTERNATIONAL HOLDINGS INC. COMPANY 10 Sunnen Drive, St. Louis, MO 63143 U.S.A. (314) 678-6303 www.star-mfg.com...
