Standard Features (HP BladeSystem c-Class Interconnect Components)
Mezzanines Mezzanines Mezzanines Mezzanines

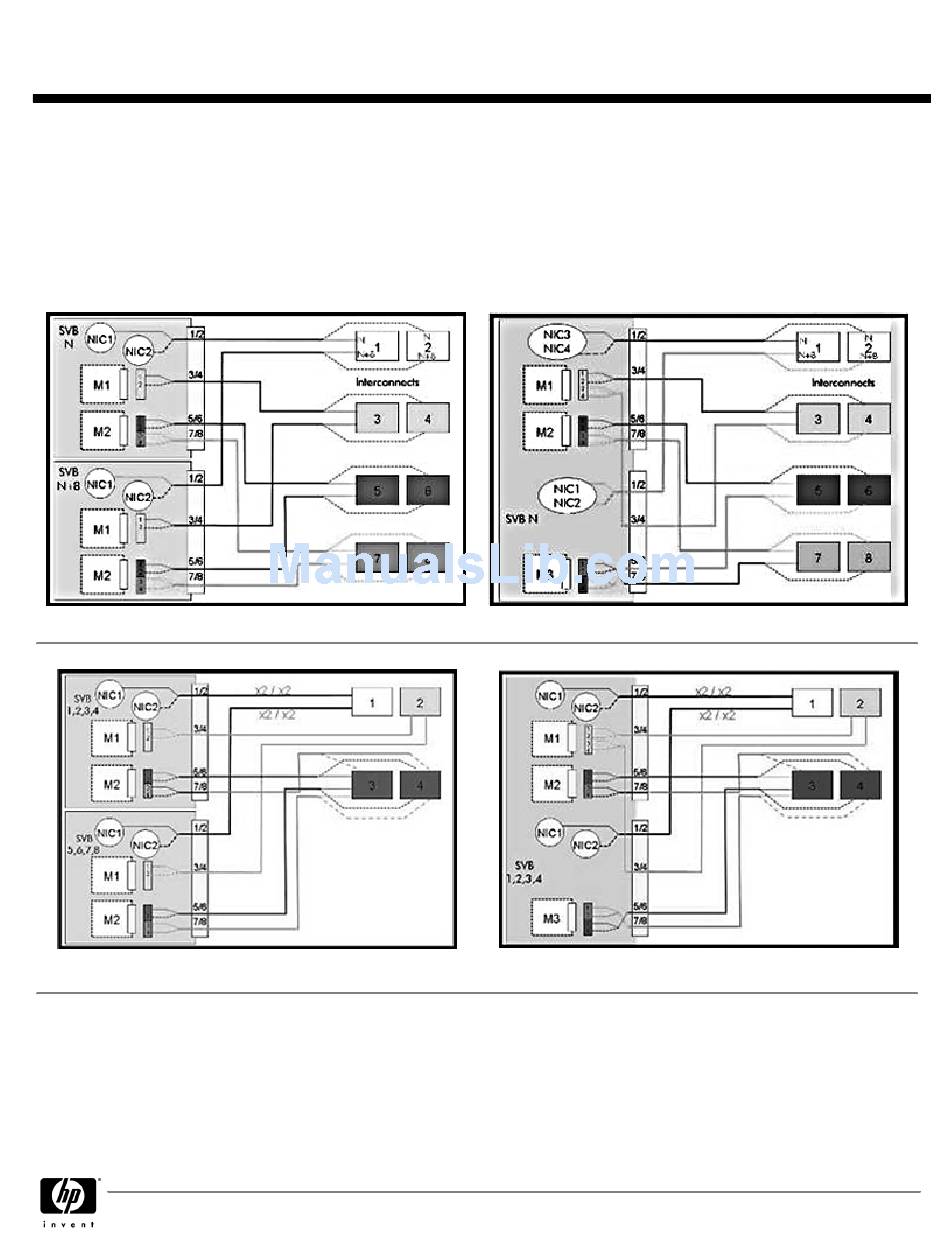

Port Mapping Port Mapping Port Mapping Port Mapping
C7000 Half Height Server Blade C7000 Half Height Server Blade C7000 Half Height Server Blade C7000 Half Height Server Blade
C3000 Half Height Server Blade C3000 Half Height Server Blade C3000 Half Height Server Blade C3000 Half Height Server Blade
Port mapping differs slightly between full height and half height server blades due to the support for
additional Mezzanine cards on the full height version.
HP has simplified the processes of mapping Mezzanine ports to switch ports by providing intelligent
management tools via the Onboard Administrator and HP Insight Manager Software. The Onboard
Administrator Guide, Enclosure Setup and Installation Guide provides detailed information on port
mapping.
