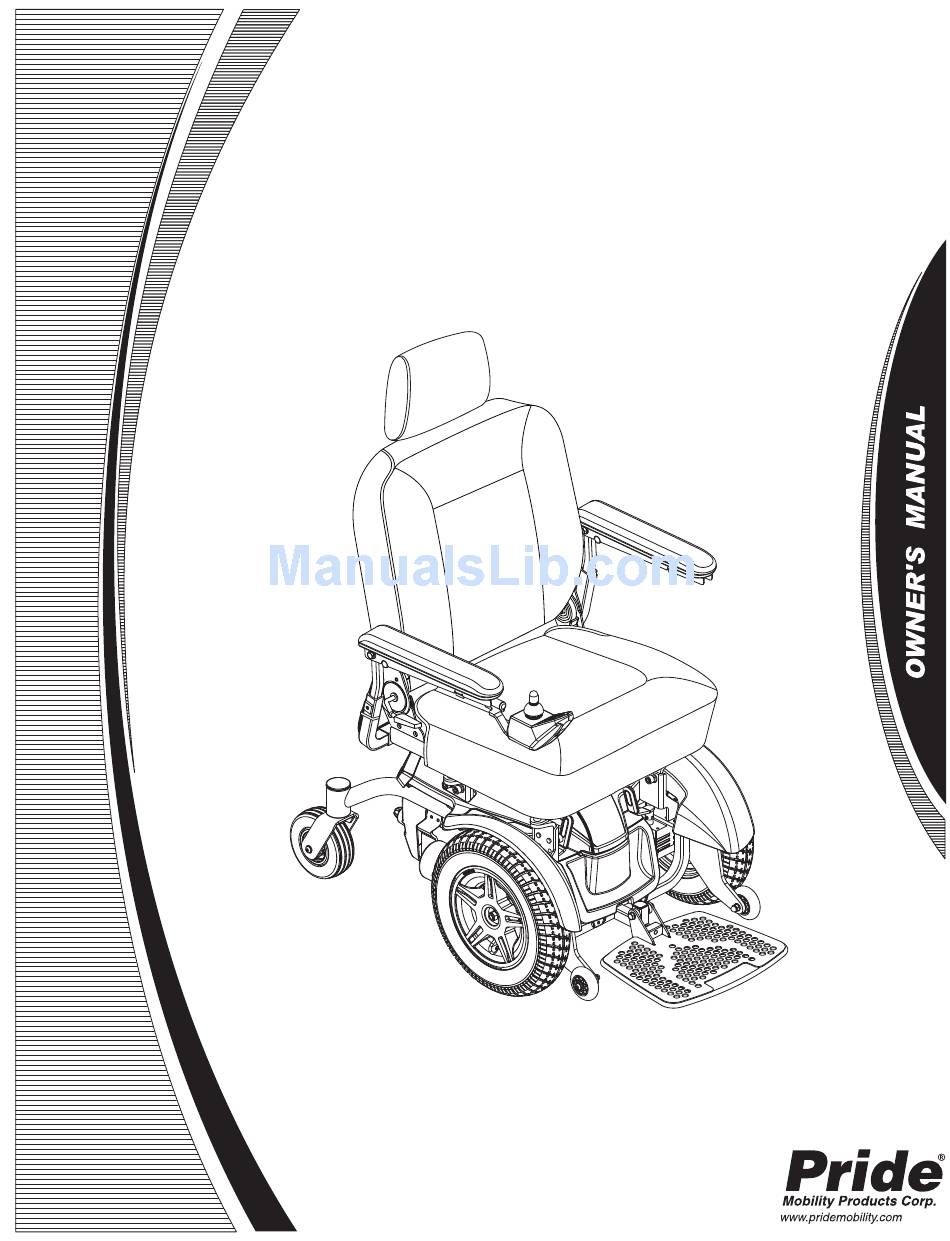

- Page 1 Jazzy Elite Series Including Models: Jazzy Elite HD and Jazzy Elite 14...
- Page 2 On the product, this icon is represented as a black symbol with a red circle and red slash. NTENDED The intended use of the Pride Mobility Products device is to provide mobility to persons limited to a seated position that have the capability of operating a powered wheelchair. Quick Reference Information...
-
Page 3: Table Of Contents
Figure 1. Word Variations Jazzy Elite Series www.pridemobility.com... -
Page 4: Introduction
I . I N T R O D U C T I O N SAFETY WELCOME to Pride Mobility Products (Pride). The power chair you have purchased combines state-of-the-art components with safety, comfort, and styling in mind. We are confident that these design features will provide you with the conveniences you expect during your daily activities. - Page 5 1-888-570-1113 info@pridemobility.com 1-800-424-8205 United Kingdom: Australia: Pride Mobility Products Ltd. Pride Mobility Products Australia Pty. Ltd. 32 Wedgwood Road 20-24 Apollo Drive Bicester, Oxfordshire OX26 4UL Hallam, Victoria 3803 Australia NOTE: If you ever lose or misplace your copy of this manual, contact us and we will be glad to send you a new one immediately.
- Page 6 Place unit on level ground and stand to one side when changing from drive mode to freewheel mode or freewheel mode to drive mode. Unlocked and in freewheel mode. Manufactured in Class II Equipment. Power chair not rated for occupied transit. Power chair information label www.pridemobility.com Jazzy Elite Series...
-
Page 7: General Guidelines
Check battery charge. See VI. “Batteries and Charging.” Ensure the manual freewheel levers are in drive mode before sitting on the power chair. NOTE: If you discover a problem, contact your authorized Pride Provider for assistance. Jazzy Elite Series www.pridemobility.com... -
Page 8: Assembly
THE JAZZY ELITE SERIES POWER CHAIR The Jazzy Elite Series Power Chair has two main assemblies: the seat assembly and the power base assembly. See figure 1. Typically, the seat assembly includes the armrests, seatback, and seat base. The power base assembly includes two motor/brake assemblies, two drive wheels, two rear caster wheels, two front anti-tip wheels, two batteries, and wiring harnesses. - Page 9 I I I . Y O U R P O W E R C H A I R TRAPEZE BARS CONTROLLER HARNESS REAR COVER MANUAL MAIN SHROUD FREEWHEEL LEVERS FRONT COVER MAIN CIRCUIT BREAKER LOCATION (CIRCUIT BREAKER SHOWN IN FIGURE 3) Figure 2. The Jazzy Elite Series Power Base Jazzy Elite Series www.pridemobility.com...
- Page 10 Pride Provider. See figure 3. Power Module: Provides connection between the controller and the motors and batteries. POWER MODULE MOTOR CONNECTORS CONTROLLER HARNESS BATTERY CONNECTORS BATTERY CONNECTORS MAIN CIRCUIT BREAKER Figure 3. Jazzy Elite Series Electrical Components www.pridemobility.com Jazzy Elite Series...
- Page 11 If a lever is difficult to move in either direction, slightly rock the power chair back and forth. The lever should then move to the desired position. WARNING! Do not use the freewheel lever handles as tie-down points to secure this product. Figure 4. Drive Mode (Drive Engaged) Figure 5. Freewheel Mode (Drive Disengaged) Jazzy Elite Series www.pridemobility.com...
- Page 12 5. Plug the controller connector into the front of Figure 7. Controller Harness Routing the power base. See figure 3. 6. Secure the controller harness to the armrest receiver with wire ties. See figure 7. www.pridemobility.com Jazzy Elite Series...
-
Page 13: Comfort Adjustments
Your authorized Pride Provider has evaluated your power chair and made any necessary adjustments to suit your specific requirements. Do not change your seating configuration without first contacting Pride Mobility Products or your authorized Pride Provider. - Page 14 Allowed Allowed Figure 9. Seat Position Adjustment NOTE: Pride Mobility Products offers a wide variety of seating options available on power chairs in the Heavy Duty category, which covers a wide range of user weights from 270-450 lbs. (122- 204 kg). RESNA testing to determine seat stability for the range of seat depths across the user weight range in the Heavy Duty category has been performed.
-
Page 15: Armrest Width Adjustment
1. Loosen the setscrew on the armrest. See figure 10. 2. Raise or lower the armrest to the desired height. 3. Tighten the setscrew to secure the armrest. NOTE: Ensure all hardware is securely fastened after making any adjustments. Jazzy Elite Series www.pridemobility.com... -
Page 16: Controller Position
You may be able to adjust the height and depth of the foot platform. See figure 12. To adjust the foot platform height: 1. Remove the height adjustment hardware. 2. Move the foot platform to the desired height. 3. Reinstall the height adjustment hardware. www.pridemobility.com Jazzy Elite Series... - Page 17 1. Remove the two adjustment screws from the rear of each leg rest extension. LEG REST 2. Slide the leg rest up or down to the desired length. EXTENSION 3. Reinstall the two adjustment screws. ADJUSTMENT SCREWS Figure 14. Elevating Leg Rests Jazzy Elite Series www.pridemobility.com...
- Page 18 If you discover a problem, contact your authorized Pride Provider for maintenance and repair. www.pridemobility.com Jazzy Elite Series...
-
Page 19: Batteries And Charging
Refer to the manual supplied with the battery charger for more information. Jazzy Elite Series www.pridemobility.com... - Page 20 We do not recommend using other types of chargers (e.g., an automotive battery charger). NOTE: Your power chair’s charger will not operate after the batteries have been discharged to nearly zero voltage. If this happens, contact your authorized Pride Provider for assistance. www.pridemobility.com Jazzy Elite Series...
- Page 21 More importantly, it will take a few “charging cycles” (a partial drain — then a full recharge) to establish the critical chemical balance that is essential to the battery’s peak performance and long life. It will be well worth it to take the time to break in your battery properly. Jazzy Elite Series www.pridemobility.com...
- Page 22 What about shipping? If you wish to use a freight company to ship your power chair to your final destination, repack your power chair in the original shipping container and ship the batteries in separate boxes. www.pridemobility.com Jazzy Elite Series...
-
Page 23: Care And Maintenance
V I I . C A R E A N D M A I N T E N A N C E CARE AND MAINTENANCE Your Jazzy Elite Series is a sophisticated power chair. Like any motorized vehicle, it requires routine maintenance checks. You can perform some of these checks, but others require assistance from an authorized service represen- tative. - Page 24 Take your power chair to your authorized Pride Provider for yearly maintenance, especially if you use your power chair on a daily basis. This helps ensure that your power chair is functioning properly and helps prevent future complications. www.pridemobility.com Jazzy Elite Series...
-
Page 25: Cleaning And Disinfection
WARNING! When changing a tire, remove only the center lug nut and washer, then remove the wheel. If any further disassembly is required, deflate the tire completely or it may explode. Jazzy Elite Series www.pridemobility.com... -
Page 26: Battery Replacement
If not installed securely, braking system Figure 17. Jazzy Elite Series Drive Wheel Removal disengaged which may cause personal injury and/or product damage may result. 8. Reinstall the drive wheel nut and washer onto the axle and tighten. See figure 17. - Page 27 - = Negative (Black) Terminal Post Connect Red wire to Red Positive (+) Terminal Post. Connect Black wire to Black Negative (-) Terminal Post. REAR SHROUD THUMBSCREWS REAR BATTERY FRONT BATTERY CORRECT INCORRECT CONNECTION CONNECTION Figure 18. Battery Installation Jazzy Elite Series www.pridemobility.com...
- Page 28 Disconnect both batteries before load testing and follow the directions that come with the load tester. If either one of the batteries fails the load test, replace both of them. If your power chair still does not power up, contact your authorized Pride Provider. www.pridemobility.com Jazzy Elite Series...
- Page 29 N O T E S Jazzy Elite Series www.pridemobility.com...
- Page 30 N O T E S www.pridemobility.com Jazzy Elite Series...
- Page 32 Quality Control – Jazzy Elite Series Inclusion of all Parts Joystick Serial Number Controller Serial Number Left Motor Serial Number Right Motor Serial Number Fit and Finish Performance Pride keeps a more detailed report on file at the factory. Date Inspected...
