Summary of Contents for Pride Mobility Jazzy 600 2S

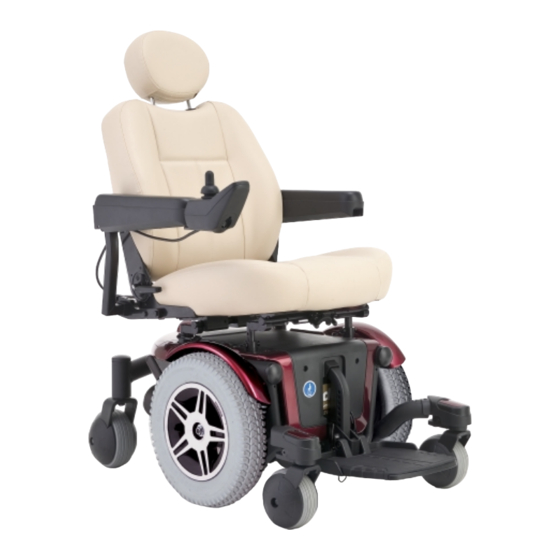

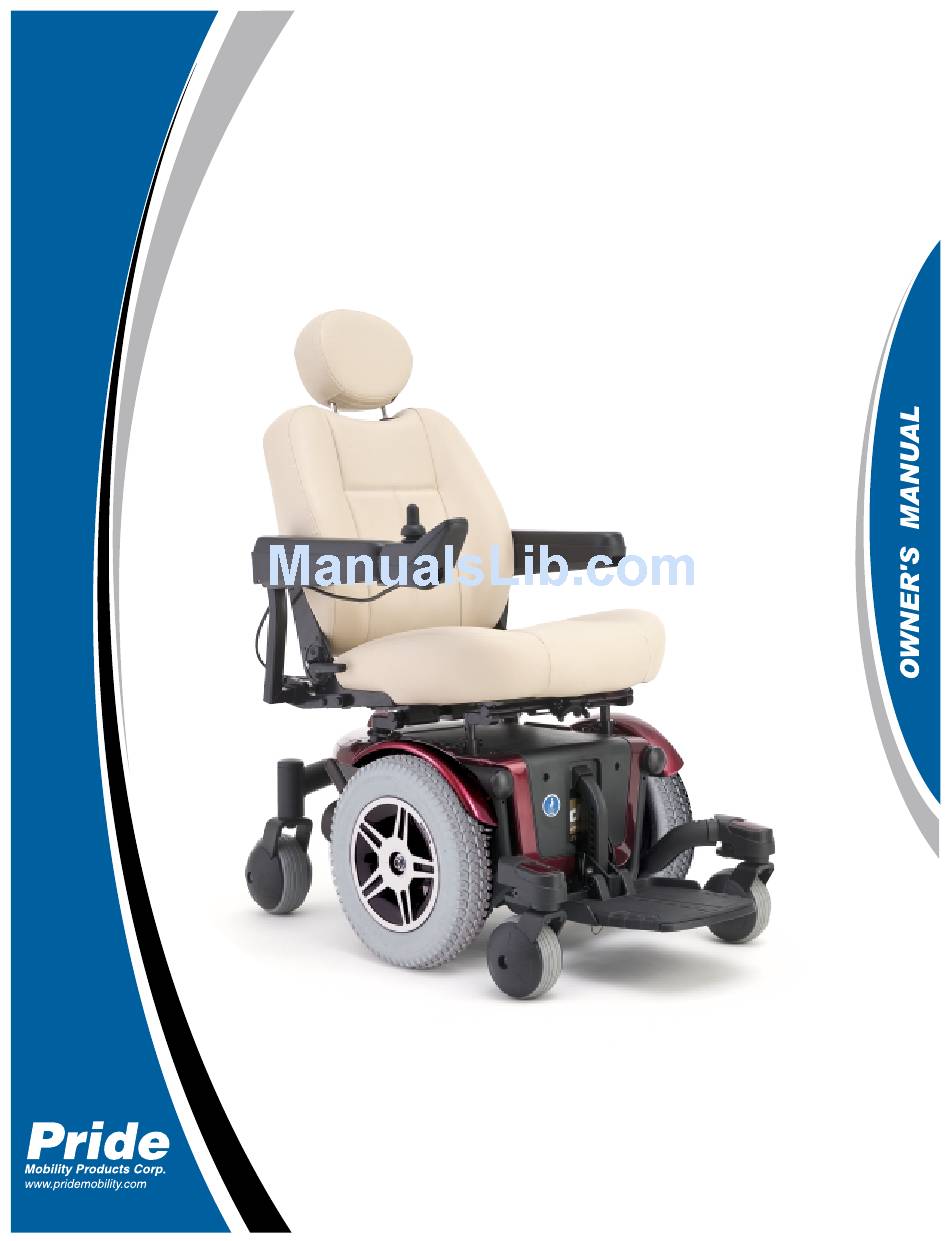

- Page 1 JAZZY 600 S E R I E S How a Power Chair should FEEL! ™ Including Models: Jazzy 600 2S, Jazzy 600 2SP, Jazzy 600 3S, Jazzy 600 3SP, Jazzy 600XL 1-800-800-8586 (US) 1-888-570-1113 (Canada)
- Page 2 We reserve the right to make changes as they become necessary. Any changes to our products may cause slight variations between the illustrations and explanations in this manual and the product you have purchased. 088 609 661 Copyright © 2006 Pride Mobility Products Corp. INFMANU2828/Rev E/December 2006 www.pridemobility.com Jazzy 600 Series...
-
Page 3: Table Of Contents
C O N T E N T S INTRODUCTION............................ 4 SAFETY ..............................6 III. YOUR POWER CHAIR ........................16 IV. ASSEMBLY............................21 COMFORT ADJUSTMENTS......................23 VI. BATTERIES AND CHARGING ....................... 30 VII. CARE AND MAINTENANCE ......................34 VIII. WARRANTY............................40 Jazzy 600 Series www.pridemobility.com... -
Page 4: Introduction
I N T R O D U C T I O N SAFETY WELCOME to Pride Mobility Products Corporation (Pride). The power chair you have purchased combines state-of- the-art components with safety, comfort, and styling in mind. We are confident that these design features will provide you with the conveniences you expect during your daily activities. -
Page 5: I. Introduction
I N T R O D U C T I O N PRIDE OWNERS CLUB As an owner of a Pride product, you are encouraged to enroll in the Pride Owners Club. Complete and return your enclosed product registration card or visit Pride’s web site at www.pridemobility.com. From our home page, select “Owners Club”... - Page 6 I I . S A F E T Y PRODUCT SAFETY SYMBOLS The symbols below are used on the power chair to identify warnings, mandatory actions, and prohibited actions. It is very important for you to read and understand them completely. Corrosive chemicals contained in battery.
-
Page 7: Ii. Safety
I I . S A F E T Y Do not use a cell phone, walkie/talkie, laptop, or other radio transmitter while operating. Avoid exposure to rain, snow, ice, salt, or standing water whenever possible. Maintain and store in a clean and dry condition. Removal of grounding prong can create electrical hazard. -
Page 8: General Guidelines
I I . S A F E T Y GENERAL GUIDELINES MANDATORY! Do not operate your new power chair for the first time without completely reading and understanding this owner’s manual. Your power chair is a state-of-the-art life-enhancement device designed to increase mobility. Pride provides an extensive variety of products to best fit the individual needs of the power chair user. - Page 9 I I . S A F E T Y Weight Limitations Your power chair is rated for a maximum weight capacity. Please refer to the specifications table for this limit. WARNING! Stay within the specified weight capacity of your power chair. Exceeding the weight capacity voids your warranty.
- Page 10 I I . S A F E T Y WARNING! Even though your power chair is capable of climbing slopes greater than those illustrated in figure 1, do not, under any circumstances, exceed the incline guidelines or any other specifications presented in this manual. Doing so could cause instability in your power chair. In compliance with the Americans with Disabilities Act of 1990, all handicap public access ramps are required to have a maximum slope of 5°...
- Page 11 I I . S A F E T Y Public Streets and Roadways WARNING! You should not operate your power chair on public streets and roadways. Be aware that it may be difficult for traffic to see you when you are seated on your power chair. Obey all local pedestrian traffic rules.
- Page 12 I I . S A F E T Y WARNING! Do not attempt to have your power chair climb or descend an obstacle that is higher than 2 in. (5 cm) unless you have the assistance of an attendant. WARNING! Do not attempt to have your power chair proceed backward down any step, curb, or other obstacle.
- Page 13 I I . S A F E T Y Batteries In addition to following the warnings below, be sure to comply with all other battery handling information. For more information about your power chair’s batteries, see VI. “Batteries and Charging.” WARNING! Power chair batteries are heavy.
-
Page 14: Iii. "Your Power Chair
I I . S A F E T Y Transfers Transferring onto and off of your power chair requires a good sense of balance. Always have an attendant or health- care professional present while learning to properly transfer yourself. To eliminate the possibility of injury, Pride recommends that you or a trained attendant perform the following tasks be- fore attempting a transfer: ! Turn off the power to the controller. - Page 15 I I . S A F E T Y WARNING! Although the power chair seat has passed the necessary testing requirements for cigarette smoke, Pride recommends that you adhere to the following safety guidelines: Do not leave lit cigarettes unattended. Keep ashtrays a safe distance from the seat cushions.
- Page 16 I I I . Y O U R P O W E R C H A I R THE JAZZY 600 SERIES Your power chair has two main assemblies: the seat assembly and the power base assembly. See figure 5. Typically, the seat assembly includes the armrests, seatback, and seat base.
- Page 17 I I I . Y O U R P O W E R C H A I R SPECIFICATIONS Suspension: ATX Suspension (Active-Trac with extra stability) Drive Wheels: Jazzy 600 Series: 14 in. (35.56 cm), pneumatic or solid available Jazzy 600XL: 14 in. (35.56 cm), solid Front Caster Wheels: 5 in.
- Page 18 I I I . Y O U R P O W E R C H A I R REAR SHROUD FASTENERS TRAPEZE BARS FRONT COVER MOTOR/BRAKE ASSEMBLY Figure 6. The Jazzy 600 Series Power Base ELECTRICAL COMPONENTS The electrical components are located inside the power base. The ammeter and the charger power cord receptacle are located on the right side of the power base.
- Page 19 I I I . Y O U R P O W E R C H A I R Controller Connector: This is where the controller connects to the power module or power base. Each controller uses a different type of cable. Regardless of which type of controller is used, the cable must be secured to the seat assembly and not allowed to drag on the floor.
-
Page 20: Manual Freewheel Levers
I I I . Y O U R P O W E R C H A I R Manual Freewheel Levers Your power chair has a manual freewheel lever on each motor. Manual freewheel levers enable you to disengage the drive motors from the gearboxes and maneuver the chair manually. -
Page 21: Initial Assembly
I V . A S S E M B L Y INITIAL ASSEMBLY Your power chair may require some assembly either before initial use or after transportation. It may also require disassembly to make some comfort adjustments. Figure 10 details those parts of the power chair that are designed to be disassembled and assembled by an end user or by a qualified caregiver before using the product or making comfort adjustments. -
Page 22: Iv. Assembly
I V . A S S E M B L Y Seat Installation REAR EXTRUSION It may be necessary to install the seat either prior to initial operation or after transporting your power chair. Most seats are attached to the power base with the Universal Mount- ing System (UMS). -
Page 23: Comfort Adjustments
C O M F O R T A D J U S T M E N T S COMFORT ADJUSTMENTS After becoming familiar with your power chair’s operation, you may find the need to make some adjustments to increase your comfort, such as seat height and angle, armrest angle, foot platform height and angle, and controller position. NOTE: If your power chair is equipped with a Specialty Seat or TRU-Balance Power Positioning System, refer to the seat adjustment information contained in separate manuals. - Page 24 C O M F O R T A D J U S T M E N T S NOTE: Change the seat dump by raising or lowering only one set of towers (front or back). 10. Reinstall the retaining clips from step 8. 11.
- Page 25 C O M F O R T A D J U S T M E N T S Seatback Angle Adjustment If your power chair is equipped with an adjustable seatback, you can adjust it to four (4) different angles: 90°, 102°, JAM NUT 105°, or 107°.
- Page 26 C O M F O R T A D J U S T M E N T S Controller Position You can move the controller in toward or out away from the armrest, or change the position of the controller for ei- ther left-hand or right-hand use.
- Page 27 C O M F O R T A D J U S T M E N T S Foot Platform Depth Adjustment To adjust the foot platform depth: UNCLAMPED 1. Remove the quick release fasteners from the foot plat- LEVER (FULLY CLOSED) form bracket.
- Page 28 C O M F O R T A D J U S T M E N T S Swing-away Footrests Swing-away Footrests (SFRs) enable you to rotate the foot- rests to the side before you transfer onto or off or your power chair.
- Page 29 C O M F O R T A D J U S T M E N T S To adjust the leg rest length: 1. Remove the adjustment screws from the leg rest exten- sion. 2. Slide the leg rest up or down to the desired length. 3.
-
Page 30: Batteries And Charging
V I . B A T T E R I E S A N D C H A R G I N G BATTERIES AND CHARGING Your power chair uses two long-lasting, 12-volt, deep-cycle batteries. These batteries are sealed and maintenance free. Since they are sealed, there is no need to check the electrolyte (fluid) level. - Page 31 V I . B A T T E R I E S A N D C H A R G I N G WARNING! If your battery charger has not been tested and approved for outdoor use, then do not expose it to adverse or extreme weather conditions.
- Page 32 V I . B A T T E R I E S A N D C H A R G I N G Frequently Asked Questions (FAQs) How does the charger work? The battery charger takes the standard electrical outlet voltage of 120 VAC (alternating current) and converts it to 24 VDC (direct current).
- Page 33 V I . B A T T E R I E S A N D C H A R G I N G WARNING! Corrosive chemicals contained in batteries. Use only AGM or Gel-Cell batteries to reduce the risk of leakage or explosive conditions. Why do my new batteries seem weak? Deep-cycle batteries employ a much different chemical technology than that used in car batteries, nickel-cadmium (nicads), or in other common battery types.
-
Page 34: Care And Maintenance
V I I . C A R E A N D M A I N T E N A N C E CARE AND MAINTENANCE Your Jazzy 600 is a sophisticated power chair. Like any motorized vehicle, it requires routine maintenance checks. You can perform some of these checks, but others require assistance from your authorized Pride Provider. - Page 35 V I I . C A R E A N D M A I N T E N A N C E ! All wheel bearings are prelubricated and sealed. They require no subsequent lubrication. ! The body shroud has been sprayed with a clear sealant coating. You can apply a light coat of car wax to help it retain its high-gloss appearance.
- Page 36 V I I . C A R E A N D M A I N T E N A N C E Yearly Checks Take your power chair to your authorized Pride Provider for yearly maintenance, especially if you use your power chair on a daily basis.
- Page 37 V I I . C A R E A N D M A I N T E N A N C E TIRE AXLE KEY TUBE AXLE SLOT SCREWS FRONT RIM HALF REAR RIM HALF DRIVE WHEEL WASHER DRIVE WHEEL NUT Figure 24.
- Page 38 V I I . C A R E A N D M A I N T E N A N C E REAR SHROUD FASTENERS REAR SHROUD BATTERY WIRING DIAGRAM LABEL FRONT BATTERY REAR BATTERY Figure 26. Battery Installation www.pridemobility.com Jazzy 600 Series...
- Page 39 V I I . C A R E A N D M A I N T E N A N C E To replace the batteries: 1. Turn off the power to the controller. 2. Make sure that the power chair is in drive mode. See III. “Your Power Chair.” 3.
- Page 40 V I I I . W A R R A N T Y LIFETIME LIMITED WARRANTY For the lifetime of your power chair from the date of purchase, Pride will repair or replace at our option to the original purchaser, free of charge, any of the following parts found upon examination by an authorized representative of Pride to be defective in material and/or workmanship: Structural frame components, including: ! Main Frame...
-
Page 41: Viii. Warranty
Circumstances beyond the control of Pride Labor, service calls, shipping, and other charges incurred for repair of the product, unless specifically authorized, IN ADVANCE, by Pride Mobility Products Corporation Repairs and/or modifications made to any part without specific consent from Pride... - Page 42 N O T E S www.pridemobility.com Jazzy 600 Series...
- Page 44 Quality Control - Jazzy 600 Series Inclusion of all Parts Joystick Serial Number Controller Serial Number Left Motor Serial Number Right Motor Serial Number Fit and Finish Performance Pride keeps a more detailed report on file at the factory. Date Inspected Inspector *INFMANU2828* Product Serial #...
