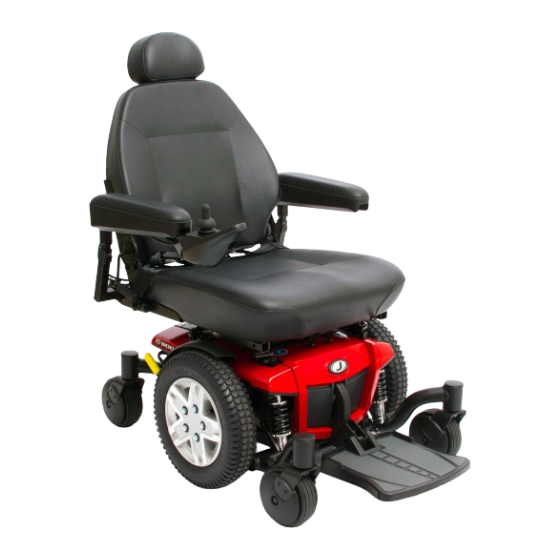

Pride Mobility JAZZY 600 ES Owner's Manual

Hide thumbs Also See for JAZZY 600 ES:

Advertisement

Quick Links

Owner's Manual
®
JAZZY
600 ES

Advertisement

loading
Need help?

Need help?

Do you have a question about the JAZZY 600 ES and is the answer not in the manual?

Questions and answers

Jeffery Harris
July 5, 2025

Flashing yellow wrench on controller

0
1 comments:
Jeffery Harris
July 5, 2025

@Jeffery Harris Not in the manual

-1
Jeffery Harris
July 5, 2025

What causes the wrench icon to blink yellow on the controller pad of the Jazzy 600ES

0

Related Manuals for Pride Mobility JAZZY 600 ES

Summary of Contents for Pride Mobility JAZZY 600 ES

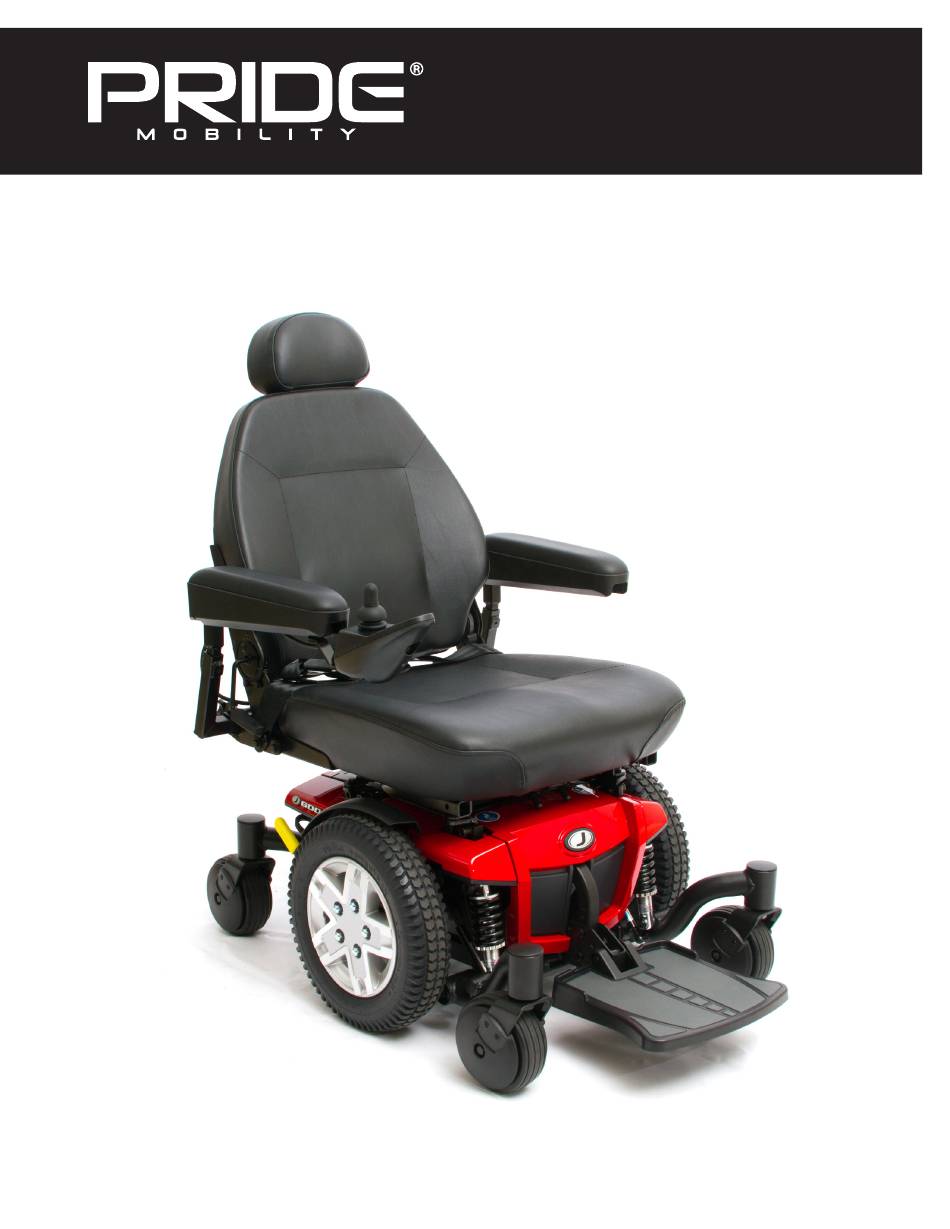

  • Page 1 Owner’s Manual ® JAZZY 600 ES...
  • Page 2 On the product, this icon is represented as a black symbol with a red circle and red slash. Intended Use The intended use of the Pride Mobility Products device is to provide mobility to persons limited to a seated position that have the capacity of operating a powered wheelchair. Regarding Devices for Prescription Use...

  • Page 3: Table Of Contents

    C O N T E N T S INTRODUCTION ..........................4 SAFETY ..............................5 III. YOUR POWER CHAIR ........................7 ASSEMBLY ............................11 COMFORT ADJUSTMENTS ......................17 BATTERIES AND CHARGING ....................23 VII. CARE AND MAINTENANCE ......................27 LANGUAGE USAGE This owner’s manual is intended for distribution in all English-speaking countries where Power Chairs are sold.

  • Page 4: I . I N T R O D U C T I O N

    I . I N T R O D U C T I O N SAFETY WELCOME to Pride Mobility Products (Pride). The power chair you have purchased combines state-of-the-art components with safety, comfort, and styling in mind. We are confident that these design features will provide you with the conveniences you expect during your daily activities.

  • Page 5: Your Power Chair

    I I . S A F E T Y PRODUCT SAFETY SYMBOLS The symbols below are used on the power chair to identify warnings, mandatory actions, and prohibited actions. It is very important for you to read and understand them completely. NOTE: There are more warnings identified and explained in the Consumer Safety Guide that is included with your power chair.
  • Page 6 I I . S A F E T Y GENERAL GUIDELINES MANDATORY! Do not operate your new power chair for the first time without completely reading and understanding this owner’s manual. Your power chair is a state-of-the-art life-enhancement device designed to increase mobility. Pride provides an extensive variety of products to best fit the individual needs of the power chair user.

  • Page 7: Assembly

    I I I . Y O U R P O W E R C H A I R THE JAZZY ® 600 ES POWER CHAIR Your power chair has two main assemblies: the seat assembly and the power base assembly. See figure 1. Typically, the seat assembly includes the armrests, seatback, and seat base.
  • Page 8 I I I . Y O U R P O W E R C H A I R TRAPEZE BARS REAR SHROUD FRONT COVER MANUAL FREEWHEEL LEVER SUSPENSION SPRING Figure 2. The Jazzy ® 600 ES Power Base PROHIBITED! The spring tension on your power chair was factory set to meet the needs of the demographic majority of users.
  • Page 9 I I I . Y O U R P O W E R C H A I R Main Circuit Breaker (located on the rear main frame): The main circuit breaker is a safety feature built into your power chair. When the batteries and the motors are heavily strained (e.g., from excessive loads), the main circuit breaker trips to prevent damage to the motors and the electronics.
  • Page 10 I I I . Y O U R P O W E R C H A I R Manual Freewheel Levers Your power chair has a manual freewheel lever on each motor. Manual freewheel levers enable you to disengage the drive motors from the gearboxes and maneuver the chair manually. WARNING! Do not use the power chair while the drive motors are disengaged! Do not disengage the drive motors when the power chair is on an incline or decline, as the unit could roll on its own.
  • Page 11 I V. A S S E M B L Y INITIAL ASSEMBLY Your power chair may require some assembly either before initial use or after transportation. It may also require disassembly to make some comfort adjustments. Figure 6 or 7 details those parts of the power chair that are designed to be disassembled and assembled by an end user or by a qualified caregiver before using the product or making comfort adjustments.
  • Page 12 I V. A S S E M B L Y ARMREST ANGLE ADJUSTMENT SEAT INSTALLATION CONTROLLER POSITION SEAT HEIGHT ADJUSTMENT FOOT PLATFORM ADJUSTMENT Figure 7. Jazzy ® 600 ES Assembly View (United Kingdom Occupied Transit Securement System Shown) www.pridemobility.com Jazzy® 600 ES...
  • Page 13 I V. A S S E M B L Y Seat Installation SEAT LATCH SAFETY It may be necessary to install the seat either prior to initial operation or after transporting your power chair. Most seats are attached to the power base with the Universal Mounting System (UMS).
  • Page 14 I V. A S S E M B L Y 5. Plug the controller connector into the rear of the power base. See figure 3. 6. Secure the controller harness to the armrest receiver with wire ties. See figure 11. To install the seat (UK Occupied Transit): 1.
  • Page 15 I V. A S S E M B L Y Transit Securement System (Optional) POSITIONING BELT If your power chair is equipped with a transit ANCHORING BRACKET LOCATIONS securement system, it is equipped with manufacturer- (1 OF 2 SHOWN) installed front and rear securement brackets and positioning belt anchoring brackets.
  • Page 16 I V. A S S E M B L Y FRONT OF VEHICLE Figure 14. Unoccupied Transit System Securement Points www.pridemobility.com Jazzy® 600 ES...

  • Page 17: Comfort Adjustments

    Your authorized Pride Provider has evaluated your power chair and made any necessary adjustments to suit your specific requirements. Do not change your seating configuration without first contacting Pride Mobility Products or your authorized Pride Provider.
  • Page 18 V. C O M F O R T A D J U S T M E N T S 4. Flip up the seat latch safety. See figure 8. 5. Squeeze the seat latch and release the seat from the front trapeze bar. 6.
  • Page 19 V. C O M F O R T A D J U S T M E N T S Seat Position You can move the seat forward or rearward by changing the extrusion mounting position. To change the position: 1. Turn off the power to the controller. 2.
  • Page 20 V. C O M F O R T A D J U S T M E N T S To change the armrest width: 1. Locate the two armrest knobs on each side of the armrest receiver bracket. See figure 18. 2.
  • Page 21 V. C O M F O R T A D J U S T M E N T S Foot Platform Height Adjustment The foot platform height is easily adjusted to several different heights. To raise or lower the foot platform: 1.
  • Page 22 V. C O M F O R T A D J U S T M E N T S WARNING! The positioning belt is not designed for use as a seat belt in a motor vehicle. Anyone traveling in a vehicle should be properly belted into seats approved by the vehicle manufacturer. Your power chair is not suitable for use as a seat in any vehicle with the following exception: The vehicle must be equipped with a Wheelchair Tie- down and Occupant Restraint System (WTORS) that has been installed in accordance with the tie-down manufacturer's instructions,...

  • Page 23: Batteries And Charging

    V I . B A T T E R I E S A N D C H A R G I N G BATTERIES AND CHARGING Your power chair uses two long-lasting, 12-volt, deep-cycle batteries. These batteries are sealed and maintenance free.
  • Page 24 V I . B A T T E R I E S A N D C H A R G I N G WARNING! Do not use a converter with your battery charger. Plug the charger directly into a properly rated electrical outlet.
  • Page 25 V I . B A T T E R I E S A N D C H A R G I N G Frequently Asked Questions (FAQs) How does the charger work? The battery charger takes the standard electrical outlet voltage (alternating current) and converts it to 24V DC (direct current).
  • Page 26 V I . B A T T E R I E S A N D C H A R G I N G What type of batteries should I use? We recommend deep-cycle batteries that are sealed and maintenance free. Both AGM and Gel-Cell are deep-cycle batteries that are similar in performance.

  • Page 27: Care And Maintenance

    V I I . C A R E A N D M A I N T E N A N C E CARE AND MAINTENANCE Your Jazzy ® 600 ES is a sophisticated power chair. Like any motorized vehicle, it requires routine maintenance checks.
  • Page 28 V I I . C A R E A N D M A I N T E N A N C E „ All wheel bearings are prelubricated and sealed. They require no subsequent lubrication. „ If your power chair has a body shroud with a glossy finish, the body shroud has been sprayed with a clear sealant coating.
  • Page 29 V I I . C A R E A N D M A I N T E N A N C E Monthly Checks „ Check for drive tire wear. See your authorized Pride Provider for repair. „ Check the caster wheels for wear. Replace them as necessary. „...
  • Page 30 V I I . C A R E A N D M A I N T E N A N C E Wheel Replacement Your power chair is equipped with run flat tires. If a tire becomes damaged, you must replace the whole wheel assembly.
  • Page 31 V I I . C A R E A N D M A I N T E N A N C E To replace the batteries: 1. Turn off the power to the controller. 2. Make sure that the power chair is in drive mode. See III. “Your Power Chair.” 3.
  • Page 32 V I I . C A R E A N D M A I N T E N A N C E When to See Your Authorized Pride Provider for Service The following symptoms could indicate a serious problem with your power chair. If necessary, contact your authorized Pride Provider.
  • Page 33 N O T E S Jazzy® 600 ES www.pridemobility.com...
  • Page 34 N O T E S www.pridemobility.com Jazzy® 600 ES...
  • Page 36 B.V. (Authorised EU Representative) 401 York Avenue De Zwaan 3 Duryea, PA 18642 1601 MS Enkhuizen Canada The Netherlands 5096 South Service Road www.pride-mobility.nl Beamsville, Ontario L0R 1B3 Italy Australia Via del Progresso-ang. Via del Lavoro 20-24 Apollo Drive Loc. Prato della Corte Hallam, Victoria 3803 00065 Fiano Romano (RM) www.pridemobility.com.au...
