Summary of Contents for Phonak WatchPilot 2
-

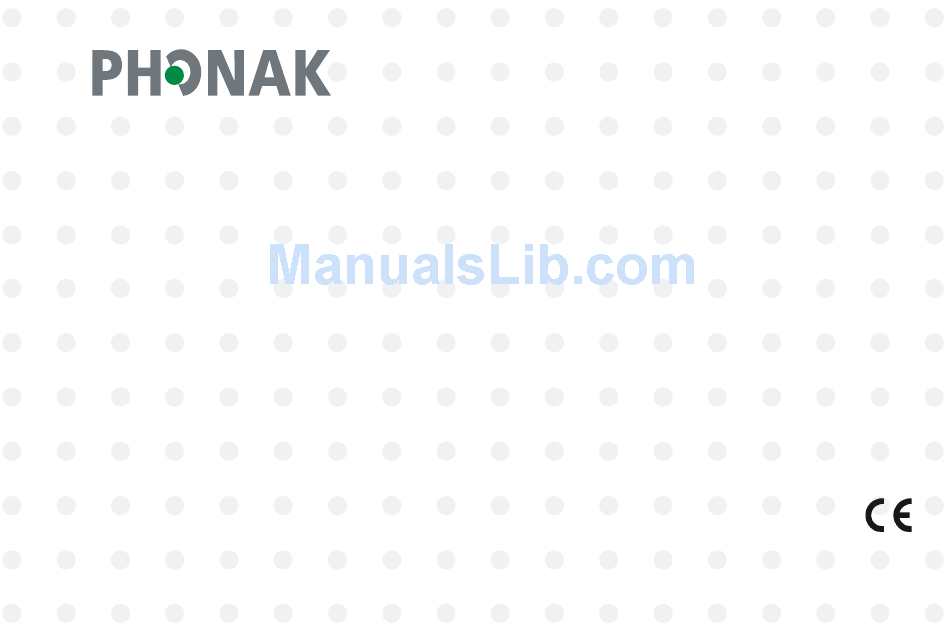

Page 1: Remote Control
hearing systems Remote Control WatchPilot User Guide... - Page 2 Please read this user guide carefully and contact your hearing care professional if you have any questions. Phonak – the leader in hearing instrument technology!

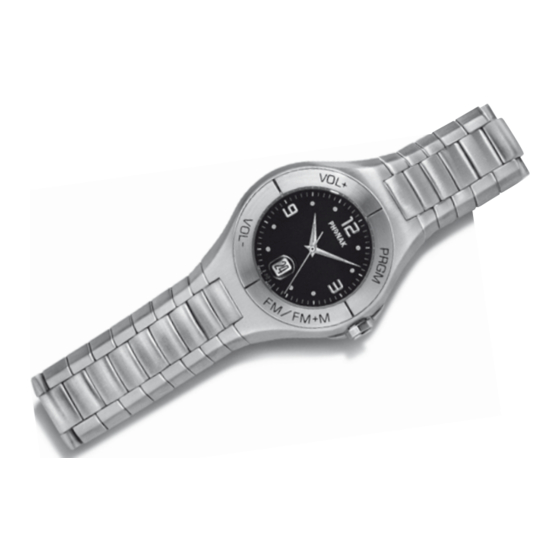

- Page 3 Description 1. Program selection ( . . . ➝A➝1➝2➝3➝ . . . ) 2. Volume up 3. Volume down 4. FM mode selection ( . . . ➝FM➝FM+M➝ . . . ) 5. Crown for adjustment of watch settings 6. LED indicator 7.
-
Page 4: Main Features
Main features • Swiss quality movement • Rugged, scratch-proof sapphire glass • Case and wristband made of durable stainless steel • Caseback made of metallized mineral glass • Water-resistant to 30 m • Remote control range approx. 30 cm • Date display (men’s model only) - Page 5 Closing and opening the wristband • Closing Press the wristband onto the clasp. • Opening Press both buttons simultaneously.
- Page 6 Remote control of hearing instruments LED Indicator Hold the WatchPilot2 so that you can conveniently read the time . The distance between the WatchPilot2 and your hearing instruments should be about 30 cm. Press the appropriate button on the WatchPilot2 until the red LED indicator on the dial flashes briefly.
-
Page 7: Program Selection
Program selection By pressing the “PRGM” button , you can activate the next program of your hearing instruments. The “FM/FM+M” button is enabled if your hearing instruments are equipped with FM receivers. By pressing this button, you can toggle between “FM” (the wireless microphone is active, the microphones in the hearing instruments are inactive) and “FM+M”... -
Page 8: Volume Adjustment
Volume adjustment Press the “VOL+” button to increase the volume incrementally. Press the “VOL–” button to decrease the volume incrementally. -
Page 9: Setting The Date
Setting the date The men’s model has a date display. • Pull the crown out to the first position • Turn the crown clockwise until the correct date appears. • Press the crown back home... -
Page 10: Setting The Time
Setting the time • Pull the crown to the outermost position • Turn the crown clockwise until the correct time is set. • Press the crown back home... -
Page 11: Changing The Battery
Changing the battery Your WatchPilot2 has two batteries, one for the watch and one for the built-in remote control. The batteries should be replaced only by qualified personnel (hearing care professional or watch retailer). Unauthorized opening of the watch case may impair its water resistance. -
Page 12: When To Replace A Battery
When to replace a battery • Watch function (men’s model only): When the seconds hand begins to jump 4 steps forward every 4 seconds. This function is not available in the ladies’ model. • Remote control (both models): When the red light in the dial briefly flashes 10 times after a button has been pressed. - Page 13 Caring for your WatchPilot2 • To clean the WatchPilot2, use only a soft cloth. Never use solvents or other cleaning agents. • Have your WatchPilot2 – and your hearing instruments – regularly checked by a hearing care professional who can also adjust the wristband to the size of your wrist.
- Page 14 Important • Have the batteries of your WatchPilot2 replaced only by qualified personnel. • Strong magnetic fields (such as near computer screens) can interfere with the transmission of the signal to the hearing instruments. In this case, try again after having moved 1 to 2 meters away from the source of interference.
- Page 15 Warning • The WatchPilot2 is compatible with most cardiac pacemakers and other medical devices. Nonetheless, we strongly advise that you consult your doctor before using the WatchPilot2 together with any medical devices*. • The case and wristband are made of stainless steel. The material has been tested for skin irritation and found safe according to Standard EN 1811, the commonly used standard in watchmaking.
-
Page 16: Phonak Distributors Worldwide
Phonak distributors worldwide Group companies: (detailed information on www.phonak.com) Australia Phonak Australasia Pty. Ltd., Baulkham Hills N. S. W. 2153 Austria Hansaton Akustische Geräte GmbH, 5020 Salzburg Belgium Lapperre N.V., 1702 Groot-Bijgaarden Brazil CAS Produtos Médicos, São Paulo – SP 04363-100... -
Page 17: Service And Warranty
Service and Warranty Phonak offers you a comprehensive global warranty which becomes effective on the date of purchase. Please ask your hearing care professional about the details and duration. This warranty covers any repairs due to defects in material and/or workmanship. The warranty does not cover damage from improper handling or care, exposure to chemicals, immersion in water or undue stress. - Page 18 Your hearing care professional:...
