Thank you for purchasing this Panasonic product.
■ Before operating this product, please read the instructions carefully and save this manual
for future use.
■ Before using your projector, be sure to read "Read this first!" ( x pages 2 to 9).

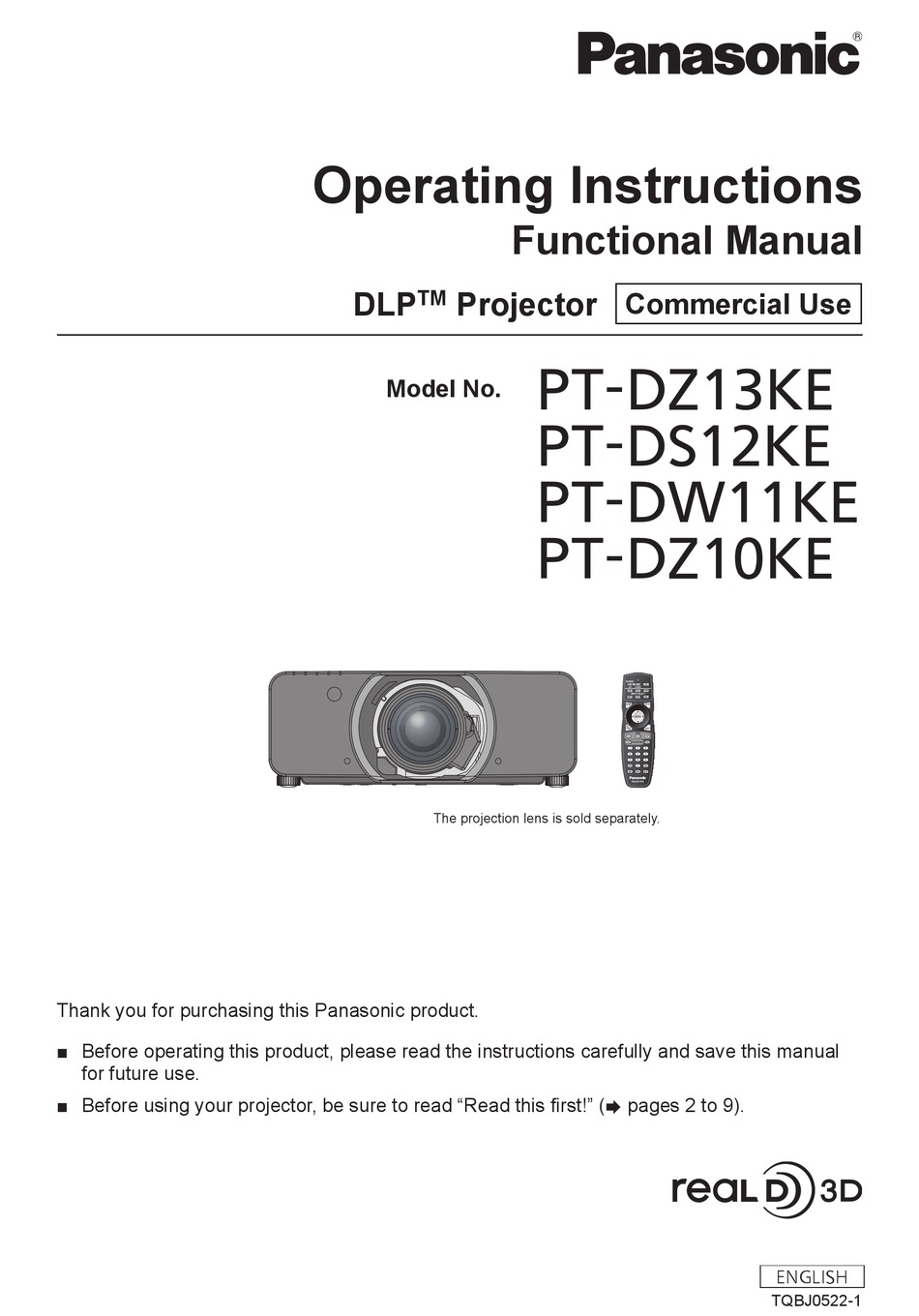

Operating Instructions

DLP
Projector
TM
Model No.
The projection lens is sold separately.
Functional Manual
Commercial Use
PT-DZ13KE
PT-DS12KE
PT-DW11KE
PT-DZ10KE
ENGLISH
TQBJ0522-1

Advertisement

Table of Contents
loading

Related Manuals for Panasonic PT-DZ13KE

Summary of Contents for Panasonic PT-DZ13KE

  • Page 1: Operating Instructions

    PT-DW11KE PT-DZ10KE The projection lens is sold separately. Thank you for purchasing this Panasonic product. ■ Before operating this product, please read the instructions carefully and save this manual for future use. ■ Before using your projector, be sure to read “Read this first!” ( x pages 2 to 9).

  • Page 2: Read This First

    This is a device to project images onto a screen, etc., and is not indented for use as indoor lighting in a domestic environment. Directive 2009/125/EC Importer’s name and address within the European Union Panasonic Marketing Europe GmbH Panasonic Testing Center Winsbergring 15, 22525 Hamburg, Germany Product information (for Turkey only) EEE Yönetmeliğine Uygundur.
  • Page 3 Read this first! IMPORTANT: THE MOULDED PLUG (U.K. only) FOR YOUR SAFETY, PLEASE READ THE FOLLOWING TEXT CAREFULLY. This appliance is supplied with a moulded three pin mains plug for your safety and convenience. A 13 amp fuse is fitted in this plug. Should the fuse need to be replaced, please ensure that the replacement fuse has a rating of 13 amps and that it is approved by ASTA or BSI to BS1362.
  • Page 4 Read this first! WARNING: r POWER The wall outlet or the circuit breaker shall be installed near the equipment and shall be easily accessible when problems occur. If the following problems occur, cut off the power supply immediately. Continued use of the projector in these conditions will result in fire or electric shock. f If foreign objects or water get inside the projector, cut off the power supply.
  • Page 5 If liquid enters inside of the projector, consult your dealer. f Particular attention must be paid to children. Use the ceiling mount bracket specified by Panasonic. Using the ceiling mount bracket other than the specified one will result in falling accidents.
  • Page 6 Read this first! WARNING: r ACCESSORIES Do not use or handle the batteries improperly, and refer to the following. Failure to observe this will cause burns, batteries to leak, overheat, explode or catch fire. f Use AA/R6 batteries. f Do not use unspecified batteries. f Do not use chargeable batteries.
  • Page 7 Read this first! CAUTION: r POWER When disconnecting the power cord, be sure to hold the power plug and power connector. If the power cord itself is pulled, the lead will become damaged, and fire, short-circuits or serious electric shocks will result.
  • Page 8 Continuous use while dust is accumulated inside the projector may result in fire. f For cleaning fee, ask your dealer. r VIEWING 3D VIDEO (PT-DZ13KE, PT-DS12KE, and PT-DW11KE only) Those with a medical history of oversensitivity to light, heart problems, or poor physical health should not view 3D images.
  • Page 9 Read this first! To remove the battery Remote Control Battery 1. Press the guide and lift the cover. 2. Remove the batteries. (ii) ENGLISH - 9...
  • Page 10 rTrademarks f Windows , Windows Vista , and Internet Explorer are registered trademarks or trademarks of Microsoft Corporation in the ® ® ® United States and other countries. f Mac, Mac OS, OS X, and Safari are trademarks of Apple Inc., registered in the United States and other countries. f PJLink is a registered trademark or pending trademark in Japan, the United States, and other countries and regions.

  • Page 11: Features Of The Projector

    Features of the Projector Quick Steps For details, refer to the corresponding pages. 1. Set up the projector. High luminance and high color (x page 31) reproduction High luminance and high color 2. Attach the projection lens reproduction are achieved with a small size (optional).

  • Page 12: Table Of Contents

    Contents Contents Be sure to read “Read this first!” from page 2. Read this first! Projecting Selecting the input signal Adjusting the focus, zoom, and shift Chapter 1 Preparation Moving the lens to the home position Adjustment range by the lens position shift Precautions for use (optical shift) Cautions when transporting...
  • Page 13 Contents [ADVANCED MENU] menu [PROJECTOR SETUP] menu [DIGITAL CINEMA REALITY] [PROJECTOR ID] [BLANKING] [PROJECTION METHOD] [INPUT RESOLUTION] [COOLING CONDITION] [CLAMP POSITION] [HIGH ALTITUDE MODE] [EDGE BLENDING] [LAMP SELECT] [FRAME RESPONSE] [LAMP RELAY] [FRAME LOCK] [LAMP POWER] [RASTER POSITION] [BRIGHTNESS CONTROL] [STANDBY MODE] [DISPLAY LANGUAGE] menu [SCHEDULE]...
  • Page 14 Contents Chapter 5 Maintenance Lamp/temperature/filter indicators When an indicator lights up Maintenance/replacement Before performing maintenance/replacement Maintenance Replacing the unit Troubleshooting Chapter 6 Appendix Technical information PJLink protocol Control commands via LAN <SERIAL IN>/<SERIAL OUT> terminal <REMOTE 2 IN> terminal Two-window display combination list Control device password Upgrade Kit List of compatible signals...

  • Page 15: Chapter 1 Preparation

    Preparation Chapter 1 This chapter describes things you need to know or check before using the projector. ENGLISH - 15...

  • Page 16: Precautions For Use

    Chapter 1 Preparation — Precautions for use Precautions for use Cautions when transporting f The projection lens (optional) is susceptible to effects due to vibration or impact. Make sure to remove the lens when transporting. f When transporting the projector, hold it securely by its bottom and avoid excessive vibration and impacts. They may damage the internal components and result in malfunctions.
  • Page 17 Chapter 1 Preparation — Precautions for use rDo not use the projector tilted to the right or left. Using the projector at a vertical angle that exceeds 15° may reduce product life or result in malfunction. rWhen installing and using the projector at an angle that exceeds 30° vertically, set [COOLING CONDITION] (x page 109).

  • Page 18: Security

    Make your password difficult to guess as much as possible. f Change your password periodically. f Panasonic Corporation or its affiliate companies will never ask for your password directly. Do not divulge your password in case you receive such inquiries.

  • Page 19: Software Information Regarding This Product

    PUBLIC LICENSE and GNU LESSER GENERAL PUBLIC LICENSE) in the supplied CD-ROM. (Those provisions are written in English because they have been stipulated by third parties.) If you have any questions regarding the software, please contact us via email (sav.pj.gpl.pavc@ml.jp.panasonic.com). ENGLISH - 19...

  • Page 20: Accessories

    Chapter 1 Preparation — Precautions for use Accessories Make sure that the following accessories are provided with your projector. Numbers enclosed in < > show the number of accessories. Wireless/wired remote control unit <1> CD-ROM <1> (N2QAYB000769) (TXFQB02VLF9) AA/R6 battery <2> Power cord <1>...

  • Page 21: Optional Accessories

    Replacement Filter Unit ET-EMF320 Smoke cut filter ET-SFD320 Smoke cut filter ET-SFR320 (Replacement) Upgrade Kit ET-UK20 (only for PT-DZ13KE, PT-DS12KE) Note f The model numbers of optional accessories are subject to change without prior notice. ENGLISH - 21...

  • Page 22: Start-Up Display

    Chapter 1 Preparation — Start-up display Start-up display When the projector is switched on for the first time after purchase as well as when [ALL USER DATA] in the [PROJECTOR SETUP] menu → [INITIALIZE] is executed, the focus adjustment screen is displayed after projection starts, then the initial setting screen is displayed. Set them in accordance with circumstances.

  • Page 23: Initial Setting (Installation Setting)

    Press the <ENTER> button to proceed to the initial setting. Initial setting (screen setting) (Only for PT-DZ13KE, PT-DS12KE, PT-DZ10KE) Set the screen format (aspect ratio) and display position of the image. After completed the initial setting, you can change the settings of each item from the [DISPLAY OPTION] menu →...

  • Page 24: About Your Projector

    Chapter 1 Preparation — About your projector About your projector Remote control Front Side Bottom Remote control indicator 11 <AUTO SETUP> button Flashes if any button in the remote control is pressed. Automatically adjusts the image display position while projecting the image. Power standby <v>...

  • Page 25: Projector Body

    Chapter 1 Preparation — About your projector Note f The remote control can be used within a distance of about 30 m (98'5") if pointed directly at the remote control signal receiver. The remote control can control at angles of up to ±15° vertically and ±30° horizontally, but the effective control range may be reduced. f If there are any obstacles between the remote control and the remote control signal receiver, the remote control may not operate properly.

  • Page 26: Control Panel

    Switches the input to HDMI. Automatically adjusts the image display position while projecting <SDI 1/2> button the image. [PROGRESS] is displayed on the screen while Switches the input to SDI. adjusting automatically. (x page 62) (Only for PT-DZ13KE, PT-DS12KE, PT-DZ10KE) 26 - ENGLISH...

  • Page 27: Connecting Terminals

    <SDI IN> terminal the projector in 3D systems. This is the terminal to input SDI signals. (Only for PT-DZ10KE) (Only for PT-DZ13KE, PT-DS12KE, PT-DW11KE) <SDI IN 1> terminal / <SDI IN 2> terminal 13 <LAN> terminal This is the terminal to input SDI signals.

  • Page 28: Using The Remote Control

    Chapter 1 Preparation — Using the remote control Using the remote control Inserting and removing the batteries (ii) Fig. 1 Fig. 2 Open the cover. (Fig. 1) Insert the batteries and close the cover (insert the m side first). (Fig. 2) f When removing the batteries, perform the steps in reverse order.

  • Page 29: Connecting To The Projector With A Cable

    Chapter 1 Preparation — Using the remote control Connecting to the projector with a cable When you use the system with multiple projectors, use commercial M3 stereo mini jack cables and connect the other devices to the <REMOTE 1 IN>/<REMOTE 1 OUT> terminals of the projector body. The remote control is effective even in places where an obstacle stands in the light path or where devices are susceptible to outside light.

  • Page 30: Chapter 2 Getting Started

    Getting Started Chapter 2 This chapter describes things you need to do before using the projector such as the setup and connections. 30 - ENGLISH...

  • Page 31: Setting Up

    Chapter 2 Getting Started — Setting up Setting up Installation mode There are six ways to set up the projector. Set the [PROJECTOR SETUP] menu → [PROJECTION METHOD] (x page 108) depending on the installation location. Set [COOLING CONDITION] (x page 109) to [AUTO]. Using the projector with [COOLING CONDITION] set incorrectly may shorten the life of the lamp.

  • Page 32: Parts For Ceiling Mount (Optional)

    Chapter 2 Getting Started — Setting up Parts for ceiling mount (optional) You can install the projector on the ceiling using the optional Ceiling Mount Bracket for Projectors (Model No.: ET-PKD310H (for High Ceilings), ET-PKD310S (for Low Ceilings)). f Be sure to use the Ceiling Mount Bracket for Projectors specified for this projector. f Refer to the Installation Instructions supplied with the Ceiling Mount Bracket for Projectors when installing the projector with the bracket.
  • Page 33 Chapter 2 Getting Started — Setting up [GEOMETRY] projection range (Only for PT-DZ13KE, PT-DS12KE, PT-DZ10KE) [VERTICAL KEYSTONE] (viewed from the side) [HORIZONTAL KEYSTONE] (viewed from above) Screen Screen Vertical arc correction (viewed from the side) Horizontal arc correction (viewed from above)
  • Page 34 Chapter 2 Getting Started — Setting up When using the optional Upgrade Kit (Model No.: ET-UK20) (Only for PT-DZ13KE, PT-DS12KE) Only for [KEYSTONE] [KEYSTONE] and [CURVED] used together Only for [CURVED] Projection Vertical Horizontal Vertical Horizontal lens Model keystone keystone keystone keystone Min.
  • Page 35 A ±5 % error in listed projection distances may occur. In addition, when [GEOMETRY] and [KEYSTONE] are used, distance is corrected to become smaller than the specified screen size. For PT-DZ13KE, PT-DZ10KE r When the screen aspect is 16:10 (Unit: m)
  • Page 36 Chapter 2 Getting Started — Setting up r When the screen aspect is 16:9 (Unit: m) Lens type Zoom lens Projection lens Model No. ET-D75LE1 ET-D75LE2 ET-D75LE3 ET-D75LE4 ET-D75LE8 ET-D75LE6 Throw ratio 1.4-1.8:1 1.8-2.8:1 2.8-4.6:1 4.6-7.4:1 7.3-13.8:1 0.9-1.1:1 Projection screen size Projection distance (L) Height Min.
  • Page 37 Chapter 2 Getting Started — Setting up r When the screen aspect is 4:3 (Unit: m) Lens type Zoom lens Projection lens Model No. ET-D75LE1 ET-D75LE2 ET-D75LE3 ET-D75LE4 ET-D75LE8 ET-D75LE6 Throw ratio 1.6-2.2:1 2.2-3.3:1 3.3-5.5:1 5.6-8.9:1 8.8-16.5:1 1.1-1.3:1 Projection screen size Projection distance (L) Height Min.
  • Page 38 Chapter 2 Getting Started — Setting up For PT-DS12KE r When the screen aspect is 4:3 (Unit: m) Lens type Zoom lens Projection lens Model No. ET-D75LE1 ET-D75LE2 ET-D75LE3 ET-D75LE4 ET-D75LE8 ET-D75LE6 Throw ratio 1.5-2.0:1 2.0-30:1 3.0-5.0:1 5.0-8.0:1 7.9-15.0:1 1.0-1.2:1 Projection screen size Projection distance (L) Height Min.
  • Page 39 Chapter 2 Getting Started — Setting up r When the screen aspect is 16:9 (Unit: m) Lens type Zoom lens Projection lens Model No. ET-D75LE1 ET-D75LE2 ET-D75LE3 ET-D75LE4 ET-D75LE8 ET-D75LE6 Throw ratio 1.5-2.0:1 2.0-30:1 3.0-5.0:1 5.0-8.0:1 8.0-15.0:1 1.0-1.2:1 Projection screen size Projection distance (L) Height Min.
  • Page 40 Chapter 2 Getting Started — Setting up For PT-DW11KE r When the screen aspect is 16:9 (Unit: m) Lens type Zoom lens Projection lens Model No. ET-D75LE1 ET-D75LE2 ET-D75LE3 ET-D75LE4 ET-D75LE8 ET-D75LE6 Throw ratio 1.5-2.0:1 2.1-3.1:1 3.1-5.2:1 5.2-8.2:1 8.2-15.4:1 1.0-1.2:1 Projection screen size Projection distance (L) Height Min.
  • Page 41 Chapter 2 Getting Started — Setting up r When the screen aspect is 4:3 (Unit: m) Lens type Zoom lens Projection lens Model No. ET-D75LE1 ET-D75LE2 ET-D75LE3 ET-D75LE4 ET-D75LE8 ET-D75LE6 Throw ratio 2.0-2.7:1 2.7-4.1:1 4.1-6.9:1 6.9-11.0:1 10.9-20.5:1 1.4-1.6:1 Projection screen size Projection distance (L) Height Min.
  • Page 42 To use a screen size not listed in this manual, check the screen size SD (m) and use the respective formula to calculate projection distance. The unit of all the formulae is m. (Values obtained by the following calculation formulae contain a slight error.) For PT-DZ13KE, PT-DZ10KE r Zoom lens Projection lens Model No.
  • Page 43 Chapter 2 Getting Started — Setting up Projection lens Model No. Throw ratio Aspect ratio Projection distance (L) formula Min. (LW) L = 2.0647 x SD - 0.1131 2.4 to 4.7:1 16:10 Max. (LT) L = 4.0041 x SD - 0.1765 Min.
  • Page 44 Chapter 2 Getting Started — Setting up Projection lens Model No. Throw ratio Aspect ratio Projection distance (L) formula Min. (LW) L = 1.4618 x SD - 0.0832 Max. (LT) L = 2.1241 x SD - 0.1162 ET-D75LE20 1.8 to 2.6:1 Min.

  • Page 45: Adjusting Adjustable Feet

    Chapter 2 Getting Started — Setting up Projection lens Model No. Throw ratio Aspect ratio Projection distance (L) formula Min. (LW) L = 1.6324 x SD - 0.0832 1.8 to 2.7:1 16:9 Max. (LT) L = 2.3720 x SD - 0.1162 ET-D75LE20 Min.

  • Page 46: Attaching/Removing The Projection Lens (Optional)

    Chapter 2 Getting Started — Attaching/removing the projection lens (optional) Attaching/removing the projection lens (optional) Move the projection lens to the home position before replacing or removing the projection lens. (x page 57) Attention f Replace the projection lens after turning off the power of the projector. f Do not touch the lens signal receiver.
  • Page 47 Chapter 2 Getting Started — Attaching/removing the projection lens (optional) Attention f Store the removed projection lens where it will be free from vibration and impact. f Store the removed lens fixing screw in a safe place. ENGLISH - 47...

  • Page 48: Connecting

    Chapter 2 Getting Started — Connecting Connecting Before connecting f Before connecting, carefully read the operating instructions for the external device to be connected. f Turn off the power of all devices before connecting cables. f Take note of the following points before connecting the cables. Failure to do so may result in malfunctions. g When connecting a cable to a device connected to the projector or the projector itself, touch any nearby metallic objects to eliminate static electricity from your body before performing work.

  • Page 49: Connecting Example: Av Equipment

    Chapter 2 Getting Started — Connecting <DVI-D IN> terminal pin assignments and signal names Outside view Pin No. Signal name Pin No. Signal name T.M.D.S data 2- (13) — T.M.D.S data 2+ (14) +5 V T.M.D.S data 2/4 shield (15) — (16) Hot plug detection (24)

  • Page 50: Connecting Example: Computers

    Use the same length and same type of cables to connect <SDI IN 1>/<SDI IN 2> terminals when entering dual link signals. If there is a difference of 4 m (13'1") or greater in cable length, images may not be projected properly. (Only for PT-DZ13KE, PT-DS12KE) f To input dual link signals, connect directly without going through a distributor or other such device to the external device which outputs signals.

  • Page 51: Chapter 3 Basic Operations

    Basic Operations Chapter 3 This chapter describes basic operations to start with. ENGLISH - 51...

  • Page 52: Switching On/Off The Projector

    Chapter 3 Basic Operations — Switching on/off the projector Switching on/off the projector Connecting the power cord Make sure that the supplied power cord is securely fixed to the projector body to prevent it from being removed easily. Confirm that the <MAIN POWER> switch is on the <OFF> side before connecting the power cord. For details of power cord handling, refer to “Read this first!”...

  • Page 53: Switching On The Projector

    Chapter 3 Basic Operations — Switching on/off the projector Note f While the power indicator <ON (G)/STANDBY (R)> is lit in orange, the fan is running to cool the projector. f For about 75 seconds after the projector is switched off and the luminous lamp cooling is started, the lamp indicators will not light up even if the power is switched on.

  • Page 54: Making Adjustments And Selections

    Press the input selection (<RGB1>, <RGB2>, <DVI-D>, <VIDEO>, <HDMI>, <SDI 1/2>) buttons to select the input signal. (SDI input is only for PT-DZ13KE, PT-DS12KE, PT-DZ10KE) Adjust the front, back and sideway tilt of the projector with the adjustable feet. (x page 45) Press the <SHIFT>...

  • Page 55: Switching Off The Projector

    Chapter 3 Basic Operations — Switching on/off the projector Switching off the projector MENU LENS VIDEO ENTER RGB 1 AUTO SHUTTER RGB 2 SETUP DVI-D HDMI SDI 1/2 SDI 1/2 Press the power standby <v> button. f The [POWER OFF(STANDBY)] confirmation screen is displayed. Press qw to select [OK], and press the <ENTER>...

  • Page 56: Projecting

    Chapter 3 Basic Operations — Projecting Projecting Check the projection lens attachment (x page 46), external device connection (x page 48), power cord connection (x page 52), switch on the power (x page 53) to start projecting. Select the video for projection, and adjust appearance of the projected image. Selecting the input signal Select an input signal.

  • Page 57: Moving The Lens To The Home Position

    ET-D75LE30, ET-D75LE40 Projection screen width H Projection screen width H 0.2 H 0.2 H 0.15 H 0.15 H PT-DZ13KE, PT-DZ10KE Standard projection position Standard projection position Projection screen width H Projection screen width H 0.3 H 0.3 H 0.2 H 0.2 H...

  • Page 58: Adjusting The Lens Mounter When The Focus Is Unbalanced

    Chapter 3 Basic Operations — Projecting ET-D75LE1, ET-D75LE2, ET-D75LE3, ET-D75LE4, Projection lens Model No. ET-D75LE8, ET-D75LE10, ET-D75LE20, ET-D75LE6 ET-D75LE30, ET-D75LE40 Projection screen width H Projection screen width H 0.3 H 0.3 H 0.2 H 0.2 H PT-DW11KE Standard projection position Standard projection position Note f When the optional fixed-focus lens (Model No.: ET-D75LE5, ET-D75LE50) is attached, the shift cannot be adjusted.

  • Page 59: Adjustment Procedure

    Chapter 3 Basic Operations — Projecting r Front view diagram of the lens mounter (viewed from the screen side) Lens mount bracket Fixing screws Note f Focus adjustment screws (a), (b), and (c) are adjusted with the lens attached. Adjustment procedure r Relationship between the adjustment location and adjustment screws (b)+(c) Adjustment location:...
  • Page 60 Chapter 3 Basic Operations — Projecting Press the <SHIFT> button on the remote control or the <LENS> button on the control panel to display the [SHIFT] adjustment menu, and reset the screen position of the projected image on the screen surface back to an optimal state. Perform focus adjustment again near the center of the screen and if it is still not enough, fine tune the amount of rotation of the adjustment screws.

  • Page 61: Operating With The Remote Control

    Chapter 3 Basic Operations — Operating with the remote control Operating with the remote control Using the shutter function If the projector is not used for a certain period of time during the meeting intermission, for example, it is possible to turn off the image temporarily.

  • Page 62: Switching The Input Signal

    You can also fix the input selection to either SDI1 or SDI2 from the [SECURITY] menu → <SDI 1/2> [CONTROL DEVICE SETUP]. (PT-DZ10KE) Switches the input to SDI. *1 Only for PT-DZ13KE, PT-DS12KE, PT-DZ10KE Using the Status function You can display the status of the projector. button Press the <STATUS> button.

  • Page 63: Using The Function Button

    Press the <FUNC> button. Note f [LEFT/RIGHT SWAP] can only be assigned in PT-DZ13KE, PT-DS12KE, PT-DW11KE. f Assignment of the function is performed from the [PROJECTOR SETUP] menu → [FUNCTION BUTTON] (x page 121). Displaying the internal test pattern The projector has eight types of internal test patterns to check the condition of the set.

  • Page 64: Chapter 4 Settings

    Settings Chapter 4 This chapter describes the settings and adjustments you can make using the on-screen menu. 64 - ENGLISH...

  • Page 65: Menu Navigation

    Chapter 4 Settings — Menu navigation Menu navigation The on-screen menu (Menu) is used to perform various settings and adjustments of the projector. Navigating through the menu Operating procedure button Press the <MENU> button on the remote control or control panel. f The [MAIN MENU] screen is displayed.

  • Page 66: Main Menu

    Chapter 4 Settings — Menu navigation Press as to select a sub-menu, and press qw or the <ENTER> button to change or adjust settings. f Some items will switch in order as follows each time you press qw. f For some items, press qw to display an individual adjustment screen with a bar scale as shown below. CONTRAST ADJUST Note...

  • Page 67: Sub-Menu

    [P IN P] [TEST PATTERN] [SIGNAL LIST] [SECURITY] [NETWORK] *1 Only for PT-DZ13KE, PT-DS12KE, PT-DW11KE Sub-menu The sub-menu of the selected main menu item is displayed, and you can set and adjust items in the sub-menu. [PICTURE] Sub-menu item Factory default...

  • Page 68: Display Language

    [FRAME LOCK] [OFF] [RASTER POSITION] ― *1 Depends on the signal input. *2 Only for PT-DZ13KE, PT-DS12KE, PT-DZ10KE Note f Sub-menu items and factory default settings differ depending on the selected input terminal. [DISPLAY LANGUAGE] Details (x page 90) [3D SETTINGS]...

  • Page 69: Projector Setup

    [LOAD ALL USER DATA] ― [INITIALIZE] ― [SERVICE PASSWORD] ― *1 It is [NORMAL] for PT-DZ10KE. In the portrait setting, it is [MIDDLE] for PT-DZ13KE, PT-DS12KE, PT-DW11KE. [P IN P] Details (x page 125) [TEST PATTERN] Details (x page 127) [SIGNAL LIST]...
  • Page 70 Chapter 4 Settings — Menu navigation [NETWORK] Sub-menu item Factory default Page [NETWORK SETUP] ― [NETWORK CONTROL] ― [NETWORK STATUS] ― Note f Some items may not be adjusted or used for certain signal formats to be input to the projector. The menu items that cannot be adjusted or used are shown in gray characters, and they cannot be selected.

  • Page 71: [Picture] Menu

    Chapter 4 Settings — [PICTURE] menu [PICTURE] menu On the menu screen, select [PICTURE] from the main menu, and select an item from the sub- menu. Refer to “Navigating through the menu” (x page 65) for the operation of the menu screen. f After selecting the item, press asqw to set.

  • Page 72: [Brightness]

    Chapter 4 Settings — [PICTURE] menu Press qw or the <ENTER> button. f The [CONTRAST] individual adjustment screen is displayed. Press qw to adjust the level. Operation Adjustment Range of adjustment Brightens the screen and makes the color deeper. Press the w button. -31 - +31 Darkens the screen and makes the color lighter.
  • Page 73 Chapter 4 Settings — [PICTURE] menu Press qw or the <ENTER> button. f The [COLOR TEMPERATURE] individual adjustment screen is displayed. Press qw to switch the item. f The items will switch each time you press the button. [DEFAULT] Factory default setting. [USER1] Adjusts white balance as desired.

  • Page 74: [Gamma]

    Chapter 4 Settings — [PICTURE] menu Press the <ENTER> button. f The [CHANGE TO *****] screen is displayed. Press as to select [USER1] or [USER2]. f The status of the color temperature changed is saved to the selected item. Press the <ENTER> button. f The confirmation screen is displayed.

  • Page 75: [System Daylight View]

    Chapter 4 Settings — [PICTURE] menu [1.0] [1.8] Set so that images become as you like. [2.0] - [2.8] can be set in increments of 0.1. [2.0] - [2.8] (increments of 0.1) *1 When [PICTURE MODE] is set to [DYNAMIC], [USER], or [DICOM SIM.], [DEFAULT] cannot be selected. Note f DICOM is an abbreviation of “Digital Imaging and COmmunication in Medicine”...

  • Page 76: [Noise Reduction]

    Chapter 4 Settings — [PICTURE] menu Note f If you press w while the adjustment value is [+15], the value will become [0]. If you press q while the adjustment value is [0], the value will become [+15]. [NOISE REDUCTION] You can reduce noises when the input image is degraded and noise is occurring in the image signal. Press as to select [NOISE REDUCTION].

  • Page 77: [System Selector]

    <SDI IN 1> terminal, <SDI [1080/50i RGB], or [1080/60i RGB]. IN 2> terminal (only for During SDI2 input, select [AUTO], [480i YC ], [576i PT-DZ13KE, PT-DS12KE) ], [720/50p YP ], [720/60p YP ], [1035/60i YP [1080/24p YP ], [1080/24sF YP...

  • Page 78: Srgb-Compliant Video

    Chapter 4 Settings — [PICTURE] menu sRGB-compliant video sRGB is an international standard (IEC61966-2-1) for color reproduction defined by IEC (International Electrotechnical Commission). Set according to the following steps to reproduce more faithful, sRGB compliant colors. Set [COLOR MATCHING] adjustments to [OFF]. f Refer to [COLOR MATCHING] (x page 96).

  • Page 79: [Position] Menu

    Chapter 4 Settings — [POSITION] menu [POSITION] menu On the menu screen, select [POSITION] from the main menu, and select an item from the sub- menu. Refer to “Navigating through the menu” (x page 65) for the operation of the menu screen. f After selecting the item, press asqw to set.

  • Page 80: [Zoom]

    Chapter 4 Settings — [POSITION] menu [DEFAULT] Displays images without changing the aspect ratio of the input signals. The projector identifies the video ID (VID) embedded in the video signals and displays the image by [VID AUTO] automatically switching the screen sizes between 4:3 and 16:9. This function is effective for NTSC signals.

  • Page 81: [Clock Phase]

    If you press w while the adjustment value is [+31], the value will become [0]. If you press q while the adjustment value is [0], the value will become [+31]. [GEOMETRY] (Only for PT-DZ13KE, PT-DS12KE, PT-DZ10KE) You can correct various types of distortion in a projected image. Unique image processing technology enables projection of a square image on a special screen shape.
  • Page 82 Chapter 4 Settings — [POSITION] menu [PC-1] [PC-2] Uses the computer to perform geometric adjustment. [PC-3] *1 Advanced skills are necessary to use a computer to control geometric adjustment. Consult your dealer. Up to three geometric adjustments performed using the computer can be saved. Setting [KEYSTONE] or [CURVED] Press as to select [GEOMETRY].
  • Page 83 Chapter 4 Settings — [POSITION] menu [CURVED] [VERTICAL BALANCE] [HORIZONTAL BALANCE] [MAINTAIN ASPECT RATIO] Select [ON] to correct while keeping the aspect ratio. Setting [CORNER CORRECTION] Press as to select [GEOMETRY]. Press qw to select [CORNER CORRECTION]. Press the <ENTER> button. f The [GEOMETRY:CORNER CORRECTION] screen is displayed.

  • Page 84: [Keystone]

    Chapter 4 Settings — [POSITION] menu [KEYSTONE] (Only for PT-DW11KE) You can correct the trapezoidal distortion that occurs when the projector is installed tilted or when the screen is tilted. Press as to select [KEYSTONE]. Press the <ENTER> button. Press as to select the item to adjust. Press qw to adjust.

  • Page 85: [Advanced Menu] Menu

    Chapter 4 Settings — [ADVANCED MENU] menu [ADVANCED MENU] menu On the menu screen, select [ADVANCED MENU] from the main menu, and select an item from the sub-menu. Refer to “Navigating through the menu” (x page 65) for the operation of the menu screen. f After selecting the item, press asqw to set.

  • Page 86: [Input Resolution]

    Range of adjustment The blanking zone Press the q moves upward. button. Top of the screen [UPPER] PT-DZ13KE, PT-DZ10KE: The blanking zone Press the w Top to bottom 0 - 599 button. moves downward. PT-DS12KE: Top to bottom 0 - 524...

  • Page 87: [Edge Blending]

    Chapter 4 Settings — [ADVANCED MENU] menu [EDGE BLENDING] The edge blending function allows multiple projector images to be seamlessly overlapped by using the inclination of the brightness at the overlapped area. Press as to select [EDGE BLENDING]. Press qw to switch the item. f The items will switch each time you press the button.

  • Page 88: [Frame Response]

    15) Press as to select [UPPER], [LOWER], [LEFT], or [RIGHT] in [BLACK BORDER WIDTH]. 16) Press qw to set the region (width) of the [BLACK BORDER WIDTH] adjustment. f When PT-DZ13KE, PT-DS12KE, or PT-DZ10KE is used, proceed to Step 17). f When PT-DW11KE is used, proceed to Step 19).

  • Page 89: [Frame Lock]

    Chapter 4 Settings — [ADVANCED MENU] menu [FRAME LOCK] (Only for PT-DZ13KE, PT-DS12KE, PT-DZ10KE) Set this to view 3D display when the vertical scanning frequency of the signal is 25 Hz, 50 Hz, and 100 Hz. Press as to select [FRAME LOCK].

  • Page 90: [Display Language] Menu

    Chapter 4 Settings — [DISPLAY LANGUAGE] menu [DISPLAY LANGUAGE] menu On the menu screen, select [DISPLAY LANGUAGE] from the main menu, and display the sub- menu. Refer to “Navigating through the menu” (x page 65) for the operation of the menu screen. f Press as to select a language, and press the <ENTER>...

  • Page 91: [3D Settings] Menu

    Chapter 4 Settings — [3D SETTINGS] menu [3D SETTINGS] menu (Only for PT-DZ13KE, PT-DS12KE, PT-DW11KE) On the menu screen, select [3D SETTINGS] from the main menu, and select an item from the sub-menu. Refer to “Navigating through the menu” (x page 65) for the operation of the menu screen.

  • Page 92: [3D Simul Input Setting]

    “H” is output to the 3D image display and “L” is output to the 2D image display from the terminal for which 3D trigger output is selected. Note f [11] or [3D SYNC MODE] is the setting when the 3D IR TRANSMITTER TY-3DTRW of Panasonic is used with the projector. Consult your dealer regarding the connection method.

  • Page 93: [Left/Right Swap]

    Chapter 4 Settings — [3D SETTINGS] menu Note f When set to [AUTO], [SIMULTANEOUS], [SIDE BY SIDE], [TOP AND BOTTOM], [LINE BY LINE], or [FRAME SEQUENTIAL], 3D images are not displayed in [3D SIMUL INPUT SETTING]. In [AUTO], however, this only occurs when 3D format can be recognized. f This may not function properly for some connected external devices.

  • Page 94: [Dark Time Setting]

    Chapter 4 Settings — [3D SETTINGS] menu [OFF] Hides the 3D waveform monitor. [3D WAVEFORM MONITOR] [ON] Displays the 3D waveform monitor. Note f The [CLOCK PHASE] setting is enabled at simultaneous input of RGB1 and RGB2 to adjust the right eye image. f This is disabled when [3D SYSTEM SETTING] is set to other than [SINGLE].

  • Page 95: [3D Test Pattern]

    Chapter 4 Settings — [3D SETTINGS] menu [3D TEST PATTERN] The 3D test pattern can be used to check operation and make adjustments even without a 3D signal. Press as to select [3D TEST PATTERN]. Press qw to switch the item. Menu screen + Entry screen Menu screen + Left: white/ Right: black...

  • Page 96: [Display Option] Menu

    Set [3D COLOR MATCHING] (x page 93) to set whether 2D and 3D signals are set separately or whether common data is used. (Only for PT-DZ13KE, PT-DS12KE, PT-DW11KE) f When 2D and 3D settings are set separately, [NATIVE] or [3D] is displayed in the upper right of the menu. (Only for PT-DZ13KE, PT-DS12KE, PT-DW11KE)

  • Page 97: [Large Screen Correction]

    Performs weak correction. Performs strong correction. [SCREEN SETTING] (Only for PT-DZ13KE, PT-DS12KE, PT-DZ10KE) Set the screen size. When changing the aspect of a projected image, correct to the optimum image position for the set screen. Set as necessary for the screen in use.

  • Page 98: [Auto Signal]

    Adjusts the vertical position between -132 and 131. Press as to select [SCREEN POSITION]. f If [SCREEN FORMAT] is set to [16:10] in PT-DZ13KE and PT-DZ10KE, or [SCREEN FORMAT] is set to [4:3] in PT-DS12KE, then selection and adjustment of [SCREEN POSITION] are not available.

  • Page 99: [Rgb In]

    Chapter 4 Settings — [DISPLAY OPTION] menu Press the <ENTER> button. f The [AUTO SETUP] screen is displayed. Press as to select [POSITION ADJUST]. Press qw to switch the item. [OFF] Does not perform automatic adjustment. [ON] Adjust the screen position and size when automatic setup is executed. Adjusting signal level automatically Press as to select [AUTO SETUP].

  • Page 100: [Dvi-D In]

    The HDMI signal level is displayed for every 30 bits of input. [SDI IN] (Only for PT-DZ13KE, PT-DS12KE, PT-DZ10KE) Set to match the signal to input to the <SDI IN 1>/<SDI IN 2> terminals (PT-DZ13KE, PT-DS12KE) or <SDI IN> terminal (PT-DZ10KE). 100 - ENGLISH...
  • Page 101 Chapter 4 Settings — [DISPLAY OPTION] menu Setting [SDI LINK] (Only for PT-DZ13KE, PT-DS12KE) Press as to select [SDI IN]. Press the <ENTER> button. f The [SDI IN] screen is displayed. Press as to select [SDI LINK]. Press qw to switch the item.

  • Page 102: [On-Screen Display]

    Chapter 4 Settings — [DISPLAY OPTION] menu [ON-SCREEN DISPLAY] Set the on-screen display. Setting [OSD POSITION] Set the position of the menu screen (OSD). Press as to select [ON-SCREEN DISPLAY]. Press the <ENTER> button. f The [ON-SCREEN DISPLAY] screen is displayed. Press as to select [OSD POSITION].

  • Page 103: [Back Color]

    Displays the entire projection area in blue. [BLACK] Displays the entire projection area in black. [DEFAULT LOGO] Displays the Panasonic logo. [USER LOGO] Displays the image registered by the user. Note f To create/register the [USER LOGO] image, use “Logo Transfer Software” included in the supplied CD-ROM.

  • Page 104: [Startup Logo]

    Press as to select [STARTUP LOGO]. Press qw to switch the item. f The items will switch each time you press the button. [DEFAULT LOGO] Displays the Panasonic logo. [USER LOGO] Displays the image registered by the user. [NONE] Disables the startup logo display.

  • Page 105: [Shutter Setting]

    Chapter 4 Settings — [DISPLAY OPTION] menu [SHUTTER SETTING] Set image fade-in and fade-out at opening and closing of the shutter. Set automatic opening and closing of the shutter when power is turned Setting [FADE-IN] or [FADE-OUT] Press as to select [SHUTTER SETTING]. Press the <ENTER>...
  • Page 106 The waveform monitor turns off when [P IN P] is executed during waveform monitoring. f The waveform monitor is not displayed when on-screen display is hidden (off). f To display the waveform monitor in 3D images, use [3D WAVEFORM MONITOR]. (Only for PT-DZ13KE, PT-DS12KE, PT-DW11KE) Adjusting the waveform Project the luminance adjustment signal of a commercial test disk (0 % (0 IRE or 7.5 IRE) –...

  • Page 107: [Cut Off]

    Chapter 4 Settings — [DISPLAY OPTION] menu [CUT OFF] Each red, green, and blue color component can be removed. Press as to select [CUT OFF]. Press the <ENTER> button. f The [CUT OFF] screen is displayed. Press as to select [RED], [GREEN], or [BLUE]. Press qw to switch the item.

  • Page 108: [Projector Setup] Menu

    Chapter 4 Settings — [PROJECTOR SETUP] menu [PROJECTOR SETUP] menu On the menu screen, select [PROJECTOR SETUP] from the main menu, and select an item from the sub-menu. Refer to “Navigating through the menu” (x page 65) for the operation of the menu screen. f After selecting the item, press asqw to set.

  • Page 109: [Cooling Condition]

    Chapter 4 Settings — [PROJECTOR SETUP] menu [COOLING CONDITION] Change the fan control depending on the direction of projection. Set [COOLING CONDITION] according to the projection direction, but set it to [AUTO] normally. Using the projector with incorrect setting may shorten the life of the lamp. [VERTICAL UP SETTING] 30°...

  • Page 110: [Lamp Relay]

    Chapter 4 Settings — [PROJECTOR SETUP] menu Press the <ENTER> button. Note f For a certain time after [LAMP SELECT] is switched, [LAMP SELECT] cannot be switched again, because the speed of the lamp replacement cycle will increase. Repeatedly switching [LAMP SELECT] in a short time will also increase the speed of the lamp replacement cycle.

  • Page 111: [Lamp Power]

    Select when high luminance is required. [ECO] Select when high luminance is not required. *1 Only for PT-DZ13KE, PT-DS12KE, PT-DW11KE *2 Only for PT-DZ10KE Note f [HIGH] cannot be selected when the optional Replacement lamp unit (for portrait mode) (Model No.: ET-LAD320P (1 pc), ET-LAD320PW (2 pcs)) is used.

  • Page 112: [Off]

    Chapter 4 Settings — [PROJECTOR SETUP] menu Press the <ENTER> button. f The [BRIGHTNESS CONTROL SETUP] screen is displayed. Press as to select [MODE]. Press qw to switch the item. f The items will switch each time you press the button. [OFF] Does not correct the brightness of the screen by the brightness sensor.
  • Page 113 Chapter 4 Settings — [PROJECTOR SETUP] menu Note f When [MODE] in [BRIGHTNESS CONTROL SETUP] is set to [AUTO] or [PC], keep the shutter open for at least two minutes to perform the brightness sensor calibration after completed the [BRIGHTNESS CONTROL SETUP] setting. f If the shutter is closed within approx.
  • Page 114 Chapter 4 Settings — [PROJECTOR SETUP] menu When [MODE] of [BRIGHTNESS CONTROL SETUP] is set to When [MODE] of [BRIGHTNESS CONTROL SETUP] is set to [AUTO] and [LINK] is set from [GROUP A] to [GROUP D] [PC] The screen shows the status of the brightness control of BRIGHTNESS CONTROL STATUS synchronized projectors (up to eight units), including the projector being controlled through the on-screen menu.

  • Page 115: [Standby Mode]

    Chapter 4 Settings — [PROJECTOR SETUP] menu Brightness control adjustment procedure example The steps exemplify an adjustment to link the brightness of eight projectors connected in a network. Connect all projectors to the hub using LAN cables. (x page 136) Switch on all projectors and start projection. Set [LAMP SELECT] to either [DUAL] or [SINGLE] for all projectors.

  • Page 116: [Schedule]

    Chapter 4 Settings — [PROJECTOR SETUP] menu [SCHEDULE] Set the command execution schedule for each day of the week. Enabling/disabling the schedule function Press as to select [SCHEDULE]. Press qw to switch the item. f The items will switch each time you press the button. [OFF] Disables the schedule function.

  • Page 117: [Startup Input Select]

    *2 Only for PT-DZ13KE, PT-DS12KE *3 Only for PT-DZ13KE, PT-DS12KE, PT-DW11KE. Even when the command for [HIGH] is set, it is not reflected at the execution, if the optional Replacement lamp unit (for portrait mode) (Model No.: ET-LAD320P (1 pc), ET-LAD320PW (2 pcs)) is used.

  • Page 118: Rs-232C]

    /[SDI] Sets the input to SDI/SDI1. [SDI2] Sets the input to SDI2. *1 Only for PT-DZ13KE, PT-DS12KE *2 Only for PT-DZ10KE [RS-232C] Set the communication conditions of the <SERIAL IN>/<SERIAL OUT> terminal. Setting the communication condition of the <SERIAL IN> terminal Press as to select [RS-232C].

  • Page 119: [Status]

    Chapter 4 Settings — [PROJECTOR SETUP] menu Setting the response Press as to select [RS-232C]. Press the <ENTER> button. f The [RS-232C] screen is displayed. Press as to select [RESPONSE(ID ALL)]. Press qw to switch the item. [ON] Returns the response when the ID setting is ALL. [OFF] Does not return the response when the ID setting is ALL.

  • Page 120: [No Signal Shut-Off]

    Some items in [SIGNAL INFORMATION] may be displayed and others not displayed, depending on the signal being input. f If you attach a lamp unit used in a projector of a model different from the projector (PT-DZ13KE, PT-DS12KE, PT-DW11KE, PT-DZ10KE) to the projector, or when the lamp unit used in the projector to a projector of a different model, the “lighting time”...

  • Page 121: [Function Button]

    Calls the registered lens memory. (x page 122) [LEFT/RIGHT SWAP] Switches the flip horizontal settings. (x page 93) *1 Only for PT-DZ13KE, PT-DS12KE, PT-DW11KE Press the <ENTER> button. [DATE AND TIME] Set the time zone, date, and time of the built-in clock of the projector.

  • Page 122: [Lens Calibration]

    Chapter 4 Settings — [PROJECTOR SETUP] menu Setting the date and time automatically Press as to select [DATE AND TIME]. Press the <ENTER> button. f The [DATE AND TIME] screen is displayed. Press as to select [ADJUST CLOCK]. Press the <ENTER> button. f The [ADJUST CLOCK] screen is displayed.
  • Page 123 Chapter 4 Settings — [PROJECTOR SETUP] menu f If you press asqw to select [DEFAULT] and press the <ENTER> button, the entered name will not be registered and the default name will be used. f If you select [OK] without entering any characters and press the <ENTER> button, the default name will be used. Loading the lens position Press as to select [LENS MEMORY].

  • Page 124: [Save All User Data]

    Chapter 4 Settings — [PROJECTOR SETUP] menu After the name is changed, press asqw to select [OK], and press the <ENTER> button. f The registration completes and returns to the [LENS MEMORY NAME CHANGE] screen. f If you press asqw to select [CANCEL] and then press the <ENTER> button, the changed name will not be registered. f If you press asqw to select [DEFAULT] and press the <ENTER>...

  • Page 125: [P In P] Menu

    Chapter 4 Settings — [P IN P] menu [P IN P] menu On the menu screen, select [P IN P] from the main menu, and select an item from the sub- menu. Refer to “Navigating through the menu” (x page 65) for the operation of the menu screen. f After selecting the item, press asqw to set.
  • Page 126 When [FRAME RESPONSE] is set to other than [NORMAL], [P IN P] cannot be set. f 3D images cannot be displayed in P IN P. (Only for PT-DZ13KE, PT-DS12KE, PT-DW11KE) f The P IN P state continues while the P IN P function is used, even if 3D images of the simultaneous system are displayed. (Only for...

  • Page 127: [Test Pattern] Menu

    Chapter 4 Settings — [TEST PATTERN] menu [TEST PATTERN] menu On the menu screen, select [TEST PATTERN] from the main menu. Refer to “Navigating through the menu” (x page 65) for the operation of the menu screen. f Press qw to switch. [TEST PATTERN] Display the test pattern built-in to the projector.

  • Page 128: [Signal List] Menu

    Chapter 4 Settings — [SIGNAL LIST] menu [SIGNAL LIST] menu On the menu screen, select [SIGNAL LIST] from the main menu. Refer to “Navigating through the menu” (x page 65) for the operation of the menu screen. r Registered signal details A1 (1-2) Memory number: Sub memory number...

  • Page 129: Protecting The Registered Signal

    Chapter 4 Settings — [SIGNAL LIST] menu f To cancel the deletion, press the <MENU> button to return to the [REGISTERED SIGNAL LIST] screen. Press the <ENTER> button. f The selected signal will be deleted. Note f A registered signal can also be deleted from [REGISTERED SIGNAL DELETE] on the [REGISTERED SIGNAL SETUP] screen. Protecting the registered signal Press asqw to select the signal to protect.

  • Page 130: Sub Memory

    Chapter 4 Settings — [SIGNAL LIST] menu Sub memory The projector has a sub memory function that can register the multiple image adjustment data, even if it is recognized as the same signal by the frequency or format of the synchronization signal source. Use this function when you need to adjust the picture quality such as switching of the aspect ratio or white balance by the same synchronization signal source.

  • Page 131: [Security] Menu

    Chapter 4 Settings — [SECURITY] menu [SECURITY] menu On the menu screen, select [SECURITY] from the main menu, and select an item from the sub- menu. Refer to “Navigating through the menu” (x page 65) for the operation of the menu screen. f When the projector is used for the first time Initial password: Press awsqawsq in order, and press the <ENTER>...

  • Page 132: [Display Setting]

    Chapter 4 Settings — [SECURITY] menu [DISPLAY SETTING] Overlap the security message (text or image) over the projecting image. Press as to select [DISPLAY SETTING]. Press qw to switch the item. f The items will switch each time you press the button. [OFF] The text display is disabled.

  • Page 133: [Control Device Password Change]

    [ENABLE] Enables button operations. [DISABLE] Disables button operations. f The following items are available when [SDI1/2 BUTTON] is selected in [INPUT SELECT BUTTON] in PT-DZ13KE and PT-DS12KE. [TOGGLE] Switches between SDI1 and SDI2 when the button is operated. [SDI1] Fixes to SDI1.
  • Page 134 Chapter 4 Settings — [SECURITY] menu Press asqw to select [OK], and press the <ENTER> button. f To cancel, select [CANCEL]. Attention f The initial password is “AAAA” by the factory default or when [ALL USER DATA] in [INITIALIZE] (x page 124) is executed. f Change the password periodically that is hard to guess.

  • Page 135: [Network] Menu

    Chapter 4 Settings — [NETWORK] menu [NETWORK] menu On the menu screen, select [NETWORK] from the main menu, and select an item from the sub- menu. Refer to “Navigating through the menu” (x page 65) for the operation of the menu screen. f After selecting the item, press asqw to set.

  • Page 136: [Network Status]

    Chapter 4 Settings — [NETWORK] menu Press as to select [STORE], and press the <ENTER> button. When the confirmation screen is displayed, press qw to select [OK], and press the <ENTER> button. [NETWORK STATUS] Display the status of the projector network. Press as to select [NETWORK STATUS].

  • Page 137: Accessing From The Web Browser

    Enter the IP address set on the projector into the URL entry field of the web browser. Enter the user name and the password. f The factory default setting of the user name is user1 (user rights)/admin1 (administrator rights) and the password is panasonic (lower case).
  • Page 138 Chapter 4 Settings — [NETWORK] menu Note f If you use a web browser to control the projector, set [WEB CONTROL] to [ON] in [NETWORK CONTROL] (x page 135). f Do not perform setting or control simultaneously by starting up multiple web browsers. Do not set or control the projector from multiple computers.
  • Page 139 Chapter 4 Settings — [NETWORK] menu [Projector status] page Click [Status] → [Projector status]. Display the status of the projector for the following items. [PROJECTOR TYPE] 10 [LAMP POWER] Displays the type of the projector. Displays the setting status of [LAMP POWER] (x page 111). [MAIN VERSION] 11 [INPUT] Displays the firmware version of the projector.

  • Page 140: Error Information Page

    Chapter 4 Settings — [NETWORK] menu Error information page When [Error (Detail)] or [Warning (Detail)] is displayed in the self-diagnosis display of the [Projector status] screen, click it to display the error/warning details. f The projector may go into the standby status to protect the projector depending on the contents of the error. Self-diagnosis result display Displays the item check results.
  • Page 141 Chapter 4 Settings — [NETWORK] menu [Network status] page Click [Status] → [Network status]. The current network setting status is displayed. [Access error log] page Click [Status] → [Access error log]. The error log on the web server is displayed such as access to the pages that do not exist or access with unauthorized user names or passwords.
  • Page 142 [P IN P] 11 [GET OSD] Switches the P IN P setting. Updates the on-screen display of the projector at the right of the control page. [LEFT/RIGHT SWAP] (only for PT-DZ13KE, PT-DS12KE, PT-DW11KE) Switches the flip horizontal settings. 142 - ENGLISH...
  • Page 143 Chapter 4 Settings — [NETWORK] menu [Network config] page Click [Detailed set up] → [Network config]. f Click [Network config] to display the [CAUTION!] screen. f The current settings are displayed by pressing the [Next] button. f Click [Change] to display the setting change screen. [PROJECTOR NAME] [DNS1] Enter the name of the projector.

  • Page 144: Adjust Clock] Page

    Chapter 4 Settings — [NETWORK] menu [Adjust clock] page Click [Detailed set up] → [Adjust clock]. [Time Zone] [Date] Select the time zone. Enter the date to be changed. [Set time zone] [Time] Updates the time zone setting. Enter the time to be changed. [NTP SYNCHRONIZATION] [Set date and time] Set to [ON] to adjust the date and time automatically.
  • Page 145 Chapter 4 Settings — [NETWORK] menu [E-mail set up] page When there is a problem or the runtime of a lamp reaches a set value, an E-mail can be sent to preset E-mail addresses (up to two addresses). Click [Detailed set up] → [E-mail set up]. [ENABLE] [MINIMUM TIME] Select [Enable] to use the E-mail function.
  • Page 146 Chapter 4 Settings — [NETWORK] menu [E-MAIL ADDRESS 1], [E-MAIL ADDRESS 2] Settings of the conditions to send E-mail Enter the E-mail address to be sent. Leave [E-MAIL ADDRESS Select the conditions to send E-mail. 2] blank when two E-mail addresses are not to be used. [MAIL CONTENTS]: Select either [NORMAL] or [SIMPLE].
  • Page 147 Chapter 4 Settings — [NETWORK] menu [Authentication set up] page Set the authentication items when POP authentication or SMTP authentication is necessary to send an E-mail. Click [Detailed set up] → [Authentication set up]. [Auth] [Password] Select the authentication method specified by your Internet Enter the password for the POP server or the SMTP server.
  • Page 148 Chapter 4 Settings — [NETWORK] menu Contents of E-mail sent Example of E-mail sent when E-mail is set The following E-mail is sent when the E-mail settings have been established. === Panasonic projector report(CONFIGURE) === Projector Type : DS12K Serial No...
  • Page 149 Chapter 4 Settings — [NETWORK] menu Example of the E-mail sent for an error The following E-mail is sent when an error has occurred. === Panasonic projector report(ERROR) === Projector Type : DS12K Serial No : SW1234567 ----- check system -----...
  • Page 150 Chapter 4 Settings — [NETWORK] menu [Change password] page Click [Change password]. [Administrator] [Next] Used to change the setting of the [Administrator]. Used to change the setting of the password. [User] Used to change the setting of the [User]. [Administrator] account [Account] [New][Password] Displays the account to change.
  • Page 151 Chapter 4 Settings — [NETWORK] menu [User] account [Account] [New][Password] Displays the account to change. Enter the desired new password. (Up to 16 characters in single byte) [New][User name] Enter the desired new user name. (Up to 16 characters in single [New][Password(Retype)] byte) Enter the desired new password again.
  • Page 152 Chapter 4 Settings — [NETWORK] menu Control page [Tools][Info][Help] [Input Select] Tabs for selecting the setting, information, or help page of the Controls input selection. projector. Not available when the power of the projector is turned off. [POWER] Menu screen control buttons Turns on/off the power.
  • Page 153 Chapter 4 Settings — [NETWORK] menu [Info] page Click [Info] on the control page. [Projector Name] [Source] Displays the projector name. Displays the selected input. [Mac Address] [Lamp Mode] Displays the MAC address. Displays [LAMP POWER] (x page 111). [Lamp Hours] [Error Status] Displays the runtime of the lamps (converted value).

  • Page 154: Chapter 5 Maintenance

    Maintenance Chapter 5 This chapter describes methods of inspection when there are problems, maintenance, and replacement of the units. 154 - ENGLISH...

  • Page 155: Lamp/Temperature/Filter Indicators

    *1 The indicator lights up in red while the lamp is turned off, and lights up in orange while the lamp is turned on. *2 For PT-DZ13KE, PT-DS12KE, PT-DW11KE. 3 300 hours (when [LAMP POWER] is set to [NORMAL]) for PT-DZ10KE.
  • Page 156 Chapter 5 Maintenance — Lamp/temperature/filter indicators Temperature indicator <TEMP> Flashing in red Flashing in red Indicator status Lighting in red (2 times) (3 times) Internal temperature is high Internal temperature is high The cooling fan has Status Warm-up status (warning). (standby status). stopped.

  • Page 157: Maintenance/Replacement

    Chapter 5 Maintenance — Maintenance/replacement Maintenance/replacement Before performing maintenance/replacement f Make sure to turn off the power before maintaining or replacing the unit. (x pages 52, 55) f When switching off the projector, make sure to follow the procedures in “Switching off the projector” (x page 55). Maintenance Outer case Wipe off dirt and dust with a soft, dry cloth.
  • Page 158 Chapter 5 Maintenance — Maintenance/replacement Cleaning the air filter unit Remove the air filter unit beforehand with the previously described procedure of “Removing the air filter unit”. Fig. 1 Fig. 2 Wash the air filter unit. (Fig. 1) Soak the air filter unit in cold or warm water and then lightly rinse it. f Do not use cleaning tools such as brushes.

  • Page 159: Replacing The Unit

    The lamp contains mercury. When disposing of used lamp units, contact your local authorities or dealer for correct methods of disposal. Attention f Panasonic takes no responsibility for any damage or malfunction of the product resulting from use of lamp units which are not manufactured by Panasonic. Use only specified lamp units.
  • Page 160 The message remains displayed until you press any Over 2 500 hours button. *1 For PT-DZ13KE, PT-DS12KE, PT-DW11KE. 3 500 hours for PT-DZ10KE. *2 For PT-DZ13KE, PT-DS12KE, PT-DW11KE. 3 300 hours for PT-DZ10KE. Note f To predict when to replace the lamp, check the lamp runtime displayed in [LAMP1] and [LAMP2] in [STATUS] (x page 119).
  • Page 161 Chapter 5 Maintenance — Maintenance/replacement How to replace the lamp unit Attention f When the projector is mounted on the ceiling, do not conduct work while your face is near the lamp unit. f Do not remove or loosen the screws other than specified ones when replacing the lamp unit. f Use same type of lamp unit for both lamps.
  • Page 162 Chapter 5 Maintenance — Maintenance/replacement Use a Phillips screwdriver to firmly tighten the lamp unit fixing screws (x2 each). f Make sure to attach the lamp unit securely. Attach the lamp unit cover. Close the lamp unit cover in Step 2) in the reverse order. f Attach the lamp unit cover so that the connector of the lamp unit cover is inserted to the fan power connector securely.

  • Page 163: Troubleshooting

    Chapter 5 Maintenance — Troubleshooting Troubleshooting Review the following points. For details, see the corresponding pages. Problems Points to be checked Page f Is the power plug firmly inserted into the outlet? ― f Is the <MAIN POWER> switch set to <OFF>? f Is the wall outlet supplying electricity? ―...
  • Page 164 Chapter 5 Maintenance — Troubleshooting Problems Points to be checked Page Left and right images are f Are the devices synchronized? Check the 3D eyewear settings. ― reversed (not showing f Change the [LEFT/RIGHT SWAP] setting of [3D SETTINGS]. properly). Image in the 3D eyewear f Are you within the reception range? ―...

  • Page 165: Chapter 6 Appendix

    Appendix Chapter 6 This chapter describes specifications and after-sales service for the projector. ENGLISH - 165...

  • Page 166: Technical Information

    Input selection RGB2 VIDEO DVI-D HDMI INPT? Input selection query SDI1 (only for PT-DZ13KE, PT-DS12KE), SDI (only for PT-DZ10KE) SDI2 (only for PT-DZ13KE, PT-DS12KE) AVMT Shutter control Shutter function off (shutter open) AVMT? Shutter status query Shutter function on (shutter closed)

  • Page 167: Control Commands Via Lan

    “xxxxxx:yyyyy:zzzzzzzz” xxxxxx Administrator rights user name for the web control (default user name is “admin1”) yyyyy Password of above administrator rights user (default password is “panasonic”) zzzzzzzz 8-byte random number obtained in Step 2) Command transmission method Transmit using the following command formats.

  • Page 168: Error Response

    Chapter 6 Appendix — Technical information r Error response Termination String Details symbol “ERR1” Undefined control command “ERR2” Out of parameter range “ERR3” Busy state or no-acceptable period (CR) Message 0x0d “ERR4” Timeout or no-acceptable period “ERR5” Wrong data length “ERRA” Password mismatch Data length 4 bytes...

  • Page 169: Serial In>/ Terminal

    Chapter 6 Appendix — Technical information r Error response Termination String Details symbol “ERR1” Undefined control command “ERR2” Out of parameter range “ERR3” Busy state or no-acceptable period (CR) Message 0x0d “ERR4” Timeout or no-acceptable period “ERR5” Wrong data length “ERRA” Password mismatch Data length 4 bytes...

  • Page 170: Basic Format

    Chapter 6 Appendix — Technical information D-Sub 9-pin (male) Pin No. Signal name Details Outside view ― Received data Transmitted data ― Earth ― Connected internally ― Communication conditions (Factory default) Signal level RS-232C-compliant Sync. method Asynchronous Baud rate 9 600 bps Parity None Character length...

  • Page 171: When Multiple Projectors Are Controlled

    Chapter 6 Appendix — Technical information Attention f If a command is transmitted after the lamp starts illuminating, there may be a delay in response or the command may not be executed. Try sending or receiving any command after 60 seconds. f When transmitting multiple commands, be sure to wait until 0.5 seconds has elapsed after receiving the response from the projector before sending the next command.

  • Page 172: Control Command

    Power standby STANDBY Power query Power on VIDEO RGB1 RGB2 Switching the input DVI-D signal HDMI SDI1 (only for PT-DZ13KE, PT-DS12KE, PT-DZ10KE) SDI2 (only for PT-DZ13KE, PT-DS12KE) DUAL SINGLE Query for lamp selection LAMP1 LAMP2 DUAL SINGLE Lamp selection LAMP1...

  • Page 173: Remote 2 In> Terminal

    Chapter 6 Appendix — Technical information r Lens control command Command Sub command Details Remark LNSI2 Lens H shift +00000 = Fine adjustment 1+, +00001 = Fine adjustment 1-, +00100 LNSI3 Lens V shift = Fine adjustment 2+, +00101 = Fine adjustment 2-, +00200 = Coarse LNSI4 Lens focus adjustment+, +00201 = Coarse adjustment-...

  • Page 174: Two-Window Display Combination List

    *3 480i, 480p, 576i, 576p, 720/60p, 720/50p, 1080/60i, 1080/50i, 1080/24sF, 1080/24p, 1080/25p, 1080/30p, 1080/50p, 1080/60p *4 SDI1 (only for PT-DZ13KE, PT-DS12KE) *5 SDI2 (only for PT-DZ13KE, PT-DS12KE) *6 SDI (only for PT-DZ10KE) *7 Dual link HD-SDI (only for PT-DZ13KE, PT-DS12KE) Control device password To initialize your password, consult your distributor. 174 - ENGLISH...

  • Page 175: Upgrade Kit

    Chapter 6 Appendix — Technical information Upgrade Kit (Only for PT-DZ13KE, PT-DS12KE) If the optional Upgrade Kit (Model No.: ET-UK20) is applied, the following functions are extended. Function Standard status When the Upgrade Kit is applied Adjustment range of Maximum of ±40°...
  • Page 176 Chapter 6 Appendix — Technical information Scanning freq. Plug and play Dot clock Resolution Mode freq. Format DVI-D Horizontal Vertical (Dots) RGB2 HDMI (MHz) (kHz) (Hz) EDID1 EDID2 EDID3 800 x 600 35.2 56.3 36.0 R/D/H ― 800 x 600 37.9 60.3 40.0 R/D/H...
  • Page 177 Note f There are 1 920 x 1 080 display dots for PT-DZ13KE and PT-DZ10KE, 1 400 x 1 050 for PT-DS12KE, and 1 366 x 768 for PT-DW11KE. A signal with a different resolution is converted to the number of display dots.
  • Page 178 Chapter 6 Appendix — Technical information Scanning freq. HDMI DVI-D Dot clock 3D compatible Resolution freq. Horizontal Vertical signal (Dots) (MHz) (kHz) (Hz) 1 024 x 768 39.6 50.0 51.9 ― ― ― ― ― ― ― 1 024 x 768 48.4 60.0 65.0...
  • Page 179 Chapter 6 Appendix — Technical information Scanning freq. RGB1/RGB2 SDI1/SDI2 Dot clock 3D compatible Resolution freq. Horizontal Vertical signal (Dots) (MHz) (kHz) (Hz) 750 (720)/60p 1 280 x 720 45.0 60.0 74.3 ― 750 (720)/50p 1 280 x 720 37.5 50.0 74.3 ―...

  • Page 180: Specifications

    *1 Measurement, measuring conditions and method of notation all comply with ISO21118 international standards. *2 In the portrait setting, the light output is 10 600 lm for PT-DZ13KE and PT-DS12KE, and 9 600 lm for PT-DW11KE. *3 Average value. Weight varies for each product.
  • Page 181 Horizontal: 15.75 kHz/15.63 kHz, Vertical: 50 Hz/60 Hz (including Y/C signal) Horizontal: 15 kHz to 100 kHz, Vertical: 24 Hz to 120 Hz PIAS (Panasonic Intelligent Auto Scanning) system For RGB signal f Dot clock frequency: 162 MHz or less...
  • Page 182 1 set, D-Sub 9 p, for contact control <LAN> terminal 1 set, RJ-45, for network connection, PJLink compatible, 10Base-T/100Base-TX *1 Only for PT-DZ13KE, PT-DS12KE Note f The model numbers of accessories and optional components are subject to change without prior notice.

  • Page 183: Dimensions

    Chapter 6 Appendix — Dimensions Dimensions Unit: mm 462 (18-3/16") 26 (1-1/32") 530 (20-7/8") 468 (18-7/16") * Actual dimensions may differ depending on the product. ENGLISH - 183...

  • Page 184: Precautions For Ceiling Mount Bracket For Projectors

    Ask a qualified technician to do the installation work such as mounting the projector on the ceiling. f Panasonic takes no responsibility for any damage to the projector resulting from use of a ceiling mount bracket not manufactured by Panasonic or the inappropriate choice of location for installation, even if the warranty period of the projector has not expired.

  • Page 185: Index

    Index Index 0 – 9 [FREEZE] Precautions for Ceiling Mount Bracket for <FUNC> button Projectors [3D COLOR MATCHING] Remote control 24, 63 Precautions for use [3D FRAME DELAY] Function button Projecting [3D INPUT FORMAT] [FUNCTION BUTTON] [PROJECTION METHOD] [3D PICTURE BALANCE] Projector body [3D SAFETY PRECAUTIONS] [PROJECTOR ID]...
  • Page 186 Index [UNIFORMITY] Upgrade Kit <VIDEO> button Projector body 26, 62 Remote control 24, 62 [WAVEFORM MONITOR] [ZOOM] <ZOOM> button Remote control 24, 56 186 - ENGLISH...
  • Page 187 This symbol might be used in combination with a chemical symbol. In this case it complies with the requirement set by the Directive for the chemical involved. Environment care information for users in China This symbol is only valid in China. Panasonic Corporation Web Site : http://panasonic.net/avc/projector/ © Panasonic Corporation 2013 W0513HM1063 -YI...

This manual is also suitable for:

Pt-dw11kePt-dz10kePt-ds12ke

Table of Contents
