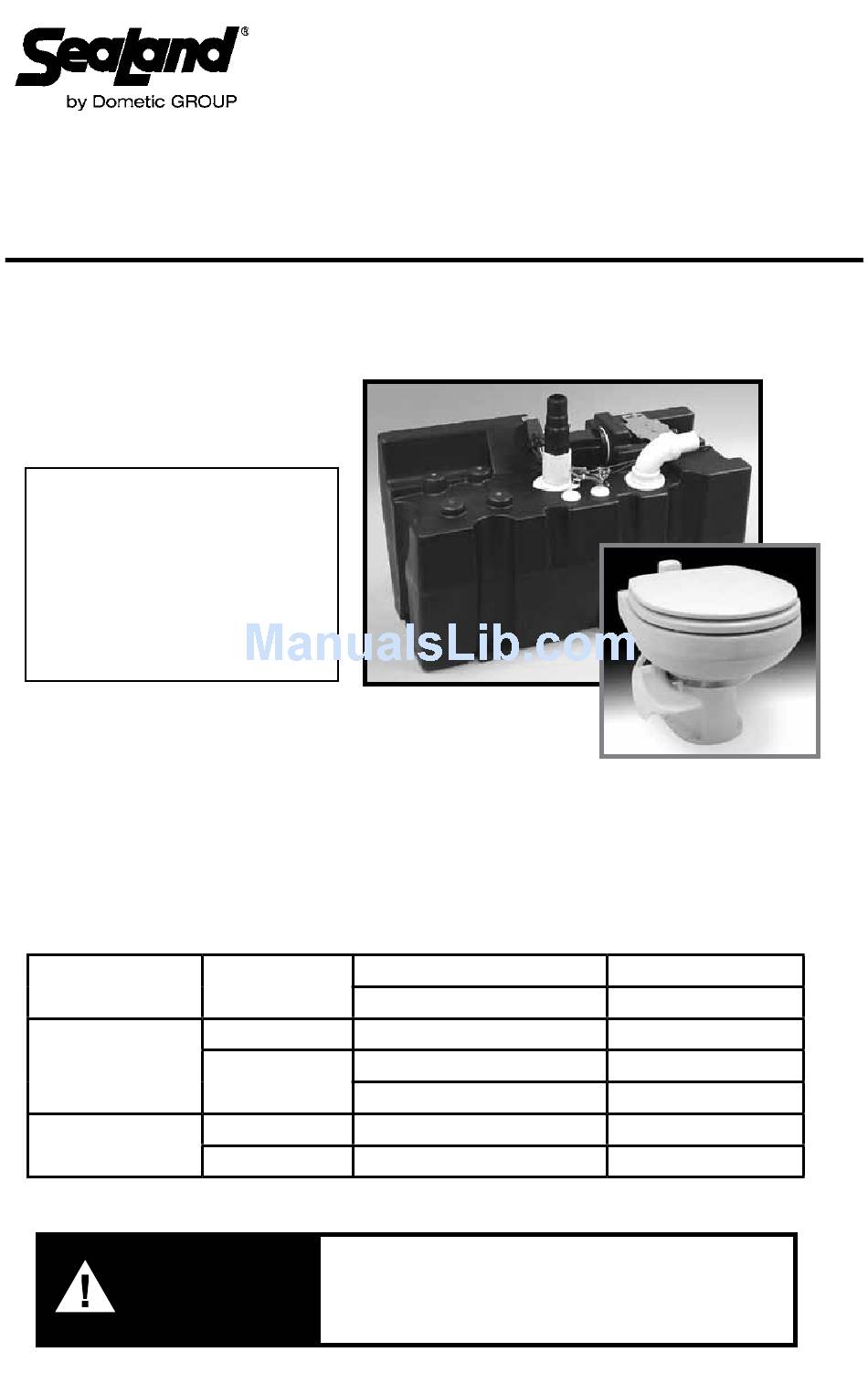

VacuuM ToilET/holDinG TanK sYsTEM
iMPoRTanT noTicE
VacuFlush
sanitation systems must
®
be installed according to Dometic's
r e c o m m e n d e d p r o c e d u r e s .
Do not attempt installation with-
out first contacting a VacuFlush
certified dealer or Dometic
Corporation.
VacuFlush sYsTEM FEaTuREs
• Very low water consumption – as little
as 1 pint/.5 liter per flush
• Integrated vacuum pump and
holding tank
sYsTEM sPEciFicaTions
Water
supply
Discharge Piping
Electrical system
(12 VDc)
WaRninG
140 series VacuFlush
4500 series Vacuum holding Tank
VHT4501
Water hose
connection
Hose ID
Hose runs
Vacuum pump
Discharge pump
* Distance between toilet discharge and vacuum holding tank inlet.
** Vacuum pump and discharge pump (if applicable) should be on separate circuits.
This manual must be read and understood
before adjustment, maintenance, or service is
performed. Modification of this product can
result in property damage. see page 3.
oWnER's Manual
• "Full" tank shut-down relay
• Pedal Lock keeps flush ball open
during holding tank pump-out
• Adult-size seat
Thread size
Flow rate at toilet
Standard
Max. horizontal run
Max. vertical run
3-amp draw
6-amp draw
1
sealand
Toilet and
®
1/2 inch (13 mm) NPT
2 gpm/ 7.6 lpm
1.5 inch / 38 mm
20 ft. / 6.1 m*
3 ft. / 0.9 m*
5-amp fuse/breaker**
10-amp fuse/breaker**
®
VF149
Advertisement
Table of Contents
Troubleshooting
Related Manuals for SeaLand VHT4501
Summary of Contents for SeaLand VHT4501
-
Page 1: System Features
p r o c e d u r e s . Do not attempt installation with- out first contacting a VacuFlush certified dealer or Dometic Corporation. VHT4501 VF149 VacuFlush sYsTEM FEaTuREs • Very low water consumption – as little • “Full” tank shut-down relay as 1 pint/.5 liter per flush... -
Page 2: Product Specifications, Dimensions
PRoDucT sPEciFicaTions VhT4500 MoDEls Weight – Model Description Voltage Empty/Full Vacuum holding tank. Indicator 30 lbs. (14 Kg)/ VHT4501 panel. 9-gallon (34-liter) capacity. 12 VDC 102 lbs. (46 Kg) Straight fitting (vertical) discharge. Vacuum holding tank. Indicator 30 lbs. (14 Kg)/ VHT4502 panel. 9-gallon (34-liter) capacity. 12 VDC 102 lbs. (46 Kg) Elbow fitting (horizontal) discharge. Vacuum holding tank with discharge pump. Indicator panel. 9-gallon 38 lbs. (17 Kg)/ VHT4511 12 VDC (34-liter) capacity. Swivel fitting 110 lbs. (50 Kg) discharge. 140 sERiEs ToilETs seat color Model Description Weight... -
Page 3: Table Of Contents
Marine Sanitation Regulations....12 Before Operation ......... 9 Troubleshooting ........13 - 15 System Start-Up .......... 9 Toilet Model Identification ......15 Toilet Operation ........... 9 Ordering Parts ........... 15 Holding Tank Pump-out ......10 Customer Service and Warranty ....16 WaRninGs SeaLand vacuum toilet systems must be installed back siphonage of seawater into the boat. Failure according to Dometic’s recommended proce- to do so can result in flooding which can cause dures. Dometic also recommends that a qualified loss of property and life. marine technician or electrician install or service * if connected to raw water this product. Equipment damage, injury to person- WaRninG! nel or death could result from improper installa- haZaRD oF FlooDinG – If the toilet... -
Page 4: Toilet System Components
ToilET sYsTEM coMPonEnTs DocKsiDE inDicaToR DischaRGE PanEl VEnT FilTER DischaRGE PuMP (opt.) 140 sERiEs VacuuM ToilET VhT4500 sERiEs oVERboaRD VacuuM holDinG TanK DischaRGE VacuuM ToilET The VacuFlush 140 series (EcoVac) offers a space-saving design with adult-sized seat. All come with an attractive, easy-to-use flush pedal that also locks open during tank discharge. Medium-height 140 series toilets are available in three discharge models: a rear discharge unit, a right-side discharge unit, and a left-side discharge unit. VacuuM holDinG TanK (VhT) The VHT4500 produces and stores vacuum between flushes. -
Page 5: Installation
2. The VHT inlet must not be located more than 3 feet (0.9 m) to remove entire above the outlet of the toilet. (NOTE: The lower the tank, the unit better the system efficiency.) 3. The VHT must be mounted in a horizontal position. 4. The VHT must not be exposed to temperatures over 120°F (49°C). Do not place near heat sources such as engine manifolds, water heaters, generators, etc. Mounting space must provide for free air flow. Vacuum hose Follow routing 1. OdorSafe Plus Sanitation Hose should be used; it is sized to use SeaLand fittings in the system, minimizing vacuum and fittings instructions leakage. 2. It is important that restrictions in the vacuum hose be kept to a minimum. Where a bend must occur in a hose run, the ra- dius of the bend must not be less than 8.5 inches (216 mm). If a tighter radius is required, use a SeaLand 90° bend kit to assure a clog-free transition. insTallinG VacuuM ToilET 1. Toilet must be installed on a horizontal surface, and located so that the toilet seat can be lifted and the foot pedal operated without interference from other fixtures. 2. Place toilet in desired location at least 1.5 inches (38 mm) from back wall. - Page 6 insTallaTion (cont’d) RouTinG saniTaTion hosE Maximum difference Maximum length of hose between in height from toilet to toilet and vacuum tank is 20 ft. vacuum tank is 3 ft. (0.9 (6.1 m). Route the sanitation hose from the toilet outlet Make sure the hose layout does not exceed the to the intended location for the vacuum holding rise and run distances shown above. tank inlet (see tips for hose installation on page 7). hosE laYouTs...
- Page 7 insTallaTion (cont’d) VacuuM holDinG TanK The Vacuum Holding Tank (VHT) can be located in any accessible space as long as the 1.5-inch hose is not longer than 20 feet (6.1 m) and the VHT inlet is not higher than 3 ft. (0.9 m) from the toilet outlet. The VHT must be mounted horizontally. 1. Position VHT in space intended. Make sure there is enough space around top of VHT to make all plumbing and electrical connec- tions. 2. Secure the VHT with four 1/4 inch x 1-1/2 inch long lag screws and washers on all tank mounting feet. Secure at all four mounting feet.
-
Page 8: Installation
insTallaTion (cont’d) ElEcTRical sYsTEM Wiring Diagram Electrical installation must TanKWaTch sTaTus PanEl follow abYc standards and 1. Select a location for the holding tank status be performed by qualified panel. Make sure that wires from tank level probes and status panel can be connected personnel only! with panel in chosen location. 2. Cut an access hole in the wall according to VacuuM PuMP template (below). Vacuum pump must be protected by a 5-amp 3. Connect wires from panel to probe wires fuse or circuit breaker. Connect wires according to wiring diagram (supplied sepa- according to wiring diagram. -
Page 9: Before Operation
2. Make sure all guests understand the operation of the VacuFlush system and the instruction label is in plain sight and easy for guests to read. if this label is not visible under the toilet seat lid, please contact sealand customer service immediately. 3. Remember, the vacuum pump starts automatically. Shut off the system before servicing and do not leave the boat with toilet system breaker on. 4. never use drain openers, alcohol, solvents, etc. in the system. -
Page 10: Holding Tank Pump-Out
3. Pump out holding tank. 4. After pump-out is complete, press down on Pedal fully, then release to close flush ball. PRoPER boWl clEaninG To maintain the toilet’s original, lustrous appearance, use SeaLand Toilet Bowl Cleaner or other non-abrasive ® bathroom and toilet bowl cleaners. Follow label directions. Caution To avoid damaging the toilet system’s seals and valves, do not clean toilet with abrasive cleaners, caustic chemicals, or lubricants and cleaners that contain alcohols or petroleum distillates. -
Page 11: Clearing Discharge Lines
4. Flush the toilet without water, allowing the vacuum pump to shut off after the flush. Repeat three times. (This procedure will minimize any remaining water in the sanitation hoses.) 5. Turn off power to the vacuum pump. 6. Completely pump out holding tank. If system will be subjected to freezing temperatures, please follow above procedure, then winterize system as described below. WinTERiZinG At the end of each season, the SeaLand toilet should be winterized for storage by using potable water-safe antifreeze in the system. To use antifreeze: 1. Drain potable water tank. 2. Add freshwater antifreeze to potable water tank. 3. Flush potable water antifreeze and water mixture through toilet and into the waste holding tank. Each installation is different, so amounts may vary. User discretion is required. 4. Empty holding tank. -
Page 12: Deodorants And Special Tissue
DEoDoRanTs anD sPEcial TissuE Your SeaLand toilet system may require the regular addition of a deodorant product to reduce malodors and to help break down holding tank contents. Several factors should be considered in selecting a deodorant product. liquid or Granulated. Liquid products work more quickly by readily going into solution. Granulated powder formulations have the advantage of requiring less storage space and are less likely to leak if the package is inadvertently damaged. Formaldehyde versus non-Formaldehyde. Dometic manufactures both types of deodorants. -
Page 13: Troubleshooting
TRoublEshooTinG Problem Possible cause service instructions 1. Water will not stay in bowl. a. Loose clamp ring. a. Tighten clamp ring adjusting nut. b. Improper seal around flush ball b. Inspect flush ball and underside due to dirt or debris on underside of seal for foreign objects. of ball seal. Clean flush ball and under seal if needed. c. Worn or damaged seal. c. Replace seal. d. Worn or damaged flush ball. d. Replace flush ball. 2. Plastic flush ball will not close a. Too much friction between flush a. Lubricate between flush ball and completely. ball and ball seal. ball seal with furniture polish or cooking spray. b. Water valve screws are too tight. b. Loosen screws slightly. c. Defective spring cartridge. c. Check spring tension by pushing flush lever down, then release it suddenly. If lever does not snap back into original posi- tion, replace spring cartridge. 3. Flush ball will not open. a. Broken shaft. a. Replace shaft. b. Shaft not fully engaged in the b. Put pressure on shaft from spring cartridge. - Page 14 TRoublEshooTinG (cont’d) Problem Possible cause service instructions 7. Water leaking from rear of a. Worn or defective vacuum breaker. a. Remove vacuum breaker cover toilet bowl. and look into top of vacuum breaker. Flush toilet. If water leaks during flush, vacuum breaker needs to be replaced. b. Loose vacuum breaker. b. Secure vacuum breaker connection. c. Cracked or defective toilet bowl. c. Replace toilet bowl. 8. Water is leaking from the a. Clamp ring may be loose. a. Tighten the clamp ring. base/toilet connection. b. Ball seals may be worn or b. Replace ball seals. defective. 9. Vacuum pump running too a. Flush ball in toilet leaks. a. Leave small amount of water in much between flushes. toilet. If water drains from bowl, see problems 1 - 2. b. Vacuum line leak. b. Tighten all hose connections at pump, vacuum tank, holding tank, and toilet. c. Foreign material has fouled air c. Disassemble air pump and pump valves. inspect under the two flat disk valves. If foreign material is present, remove it and reas-...
-
Page 15: Toilet Model Identification
TRoublEshooTinG (cont’d) Problem Possible cause service instructions 13. Vacuum pump is making a a. L oose set screw in crank a. Remove cover from pump and loud noise. assembly. check crank assembly setscrew for tightness. b. Pump bearing is worn. b. Check pump bearing for wear. Replace if needed. c. Dirt or debris in pump body. c. Disassemble air pump assem- bly and inspect inside of pump body for foreign objects. d. Worn or defective motor. d. Replace motor assembly. e. Motor loose from mounting e. Tighten the four (4) screws bracket. securing the motor to the mounting bracket. 14. Vacuum pump running too a. Improper voltage. a. Check input power for low slow, overheating, blowing voltage. fuses or circuit breakers. b. Loose or broken electrical wiring. b. Tighten or reconnect wires. c. Improper wire size. c. Wire size too small – check electrical diagram for proper wire size for voltage of pump used. -
Page 16: Customer Service And Warranty
You may also contact or have your local dealer There is a strong, worldwide network to assist contact the Parts Distributor nearest you for in servicing and maintaining your sanitation quick response to your replacement parts system. For the Authorized Service Center near needs. They carry a complete inventory for the you, please call from 8:00 a.m. to 5:00 p.m. SeaLand product line. (ET) Monday through Friday. Telephone: 1 800-321-9886 U.S.A. and Canada 330-439-5550 International Fax: 330-496-3097 U.S.A. and Canada 330-439-5567 International Web site: http://www.DometicSanitation.com http://www.Dometic.com ManuFacTuRER’s onE-YEaR liMiTED WaRRanTY Dometic Corporation warrants, to the original purchaser only, that this VacuFlush vacuum toilet system, if used for personal, family or household-like purposes, and if installed according to Dometic’s recommended procedures, is free from defects in material and workmanship for a period of one (1) year from the date of purchase. If this Dometic product is placed in commercial or business use, it will be warranted, to the original purchaser only, to be free of defects in material and workmanship for a period of ninety (90) days from the date of purchase. Dometic reserves the right to replace or repair any part of this product that proves, upon inspection by Dometic, to be defective in material or workmanship. All labor and transportation costs or charges incidental to warranty service are to be borne by the purchaser-user. EXclusions IN NO EVENT SHALL DoMETic BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES, FOR DAMAGES RESULTING FROM IMPROPER INSTALLATION, OR FOR DAMAGES CAUSED BY NEGLECT, ABUSE, ALTERATION, OR USE OF UNAUTHORIZED COMPONENTS. THIS INCLUDES FAILURES WHICH MAY RESULT FROM NOT FOLLOWING THE WINTERIZATION OR CLEANING PROCEDURES AS DESCRIBED IN THIS MANUAL. ALL IM-...
