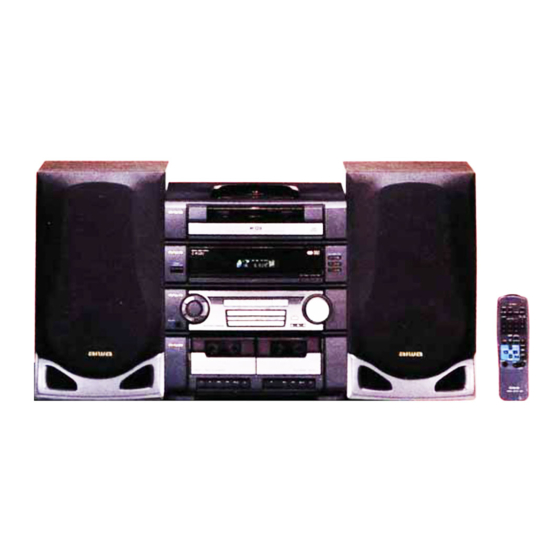

COMPACT DISC STEREO
CASSETTE RECEIVER
•
BASIC TAPE MECHANISM : TN-21ZFW-1788
•
BASIC CD MECHANISM : 4ZG-1 Z3DLSH
SIMPLE MANUAL
SYSTEM
• Replace this Service Manual with "Revision Publishing" when it is issued.
• If requiring information about the cd mechanism, see Service Manual of 4ZG-1Z3.
(S/M Code No. 09-983-249-30T).
CD-
CASSEIVER
Z-R220
CX-ZR220
S/M Code No
Z-R220
•
TYPE
SPEAKER
SX-ZR20
.
09–986–268–10A
:
EZ,K
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Aiwa Z-R220
Summary of Contents for Aiwa Z-R220
- Page 1 Z-R220 COMPACT DISC STEREO CASSETTE RECEIVER • BASIC TAPE MECHANISM : TN-21ZFW-1788 • TYPE EZ,K • BASIC CD MECHANISM : 4ZG-1 Z3DLSH SIMPLE MANUAL SYSTEM SPEAKER CASSEIVER Z-R220 CX-ZR220 SX-ZR20 • Replace this Service Manual with ”Revision Publishing” when it is issued.
-
Page 2: Electrical Main Parts List
ELECTRICAL MAIN PARTS LIST - 1 NOTE: The characters in the suffix column indicate the part usage. K ......XX........C....EZ .....XX........D....REF.NO PARTS NO. DESCRIPTION SUFFIX 82-NF7-210-110 GUIDE,FL (*) ABCD....88-MA5-601-010 PWB,COMB FRONT A....87-018-208-080 CAP 0.047-50F ABCD....87-010-404-080 CAP, ELECT 4.7-50V ABCD.... - Page 3 ELECTRICAL MAIN PARTS LIST -2 87-010-546-080 CAP, ELECT 0.33-50V ABCD....87-010-546-080 CAP, ELECT 0.33-50V ABCD....87-018-133-080 CAPACITOR,CER 4700P-16V ABCD....87-010-260-080 CAP, ELECT 47-25V A....87-010-260-080 CAP, ELECT 47-25V A....87-010-403-080 CAP, ELECT 3.3-50V ABCD....87-010-403-080 CAP, ELECT 3.3-50V ABCD....87-010-544-080 CAP, ELECT 0.1-50V ABCD....
- Page 4 ELECTRICAL MAIN PARTS LIST - 3 87-018-195-080 CAP, CER 1200P-16V ABCD....87-018-195-080 CAP, CER 1200P-16V ABCD....87-010-260-080 CAP, ELECT 47-25V ABCD....87-010-260-080 CAP, ELECT 47-25V ABCD....87-010-545-080 CAP, ELECT 0.22-50V ABCD....87-010-545-080 CAP, ELECT 0.22-50V ABCD....87-010-545-080 CAP, ELECT 0.22-50V ABCD....
- Page 5 ELECTRICAL MAIN PARTS LIST -4 FFE 801 A8-8ZA-190-030 8ZA-1 FEUNM ....FFE 801 A8-8ZA-191-030 8ZA-1 YFEUNM AB....87-A60-202-010 TERMINAL,ANT 4P MSP-154V-02 AB....87-A60-403-010 TERMINAL,ANT PAL 2P HSP-312V05 ..CD....87-005-847-080 COIL,2.2UH(CECS) ABCD....87-A50-019-010 COIL,OSC LW(COI) ..CD....87-A50-020-010 COIL,ANT LW(COI) ..CD....87-NF4-650-010 COIL,AM PACK 4N(TOK) AB....
-
Page 6: Mechanical Parts List
MECHANICAL PARTS LIST - 1 NOTE: The characters in the suffix column indicate the part usage. K ......XX........C....EZ .....XX........D....REF.NO PARTS NO. DESCRIPTION SUFFIX 82-NE8-032-010 BADGE,AIWA 27.5 ABCDE....88-MA3-015-010 PANEL,TOP 3 A.CDE....88-MA3-016-010 PANEL,SIDE L3 A.CDE....88-MA3-017-010 PANEL,SIDE R3 A.CDE.... -
Page 7: Accessories List
ACCESSORIES LIST NOTE: The characters in the suffix column indicate the part usage. K ......XX........C....EZ .....XX........D....REF.NO PARTS NO. DESCRIPTION SUFFIX 88-MA5-902-010 IB,LH(ESP)M A....88-MA5-903-010 IB,U(ESF)M .B....88-MA5-905-010 IB,K(E)M ..C....88-MA5-906-010 IB,E(9L)M ...D....88-MA5-912-010 IB,LH(P)CCE 227 ..E....86-NFZ-738-010 RC UNIT,6AS14 A.... - Page 8 SCHEMATIC DIAGRAM _ 1 (MAIN : EZ)
- Page 9 SCHEMATIC DIAGRAM _ 2 (MAIN : K)
- Page 10 SCHEMATIC DIAGRAM _ 3 (FRONT)
- Page 11 931196 Tokyo Japan Printed in Singapore...
