12. ENTERING A PHONE NUMBER

This constant can be set only with the version with the option of connecting a GST1
module for control via a mobile phone (see pgs. 12-14).
Enter a phone number in the international format (420123456789) at which you wish to receive
return text messages about the status of the thermostat.
Set it using the +/- T buttons and confirm with the i
You can toggle among the numbers using the +/- H buttons.
13. ENTERING OF THE PIN CODE OF THE SIM CARD USED
This constant can be set only with the version with the option of connecting a GST1
module for control via a mobile phone (see pgs. 12-14).
Enter the PIN code of the SIM card which is inserted in the GST1 module.
Set it using the +/- T buttons and confirm with the i
You can toggle among the numbers using the +/- H buttons

14. FIRMWARE VERSION

This constant cannot be set; it only informs about the firmware version.

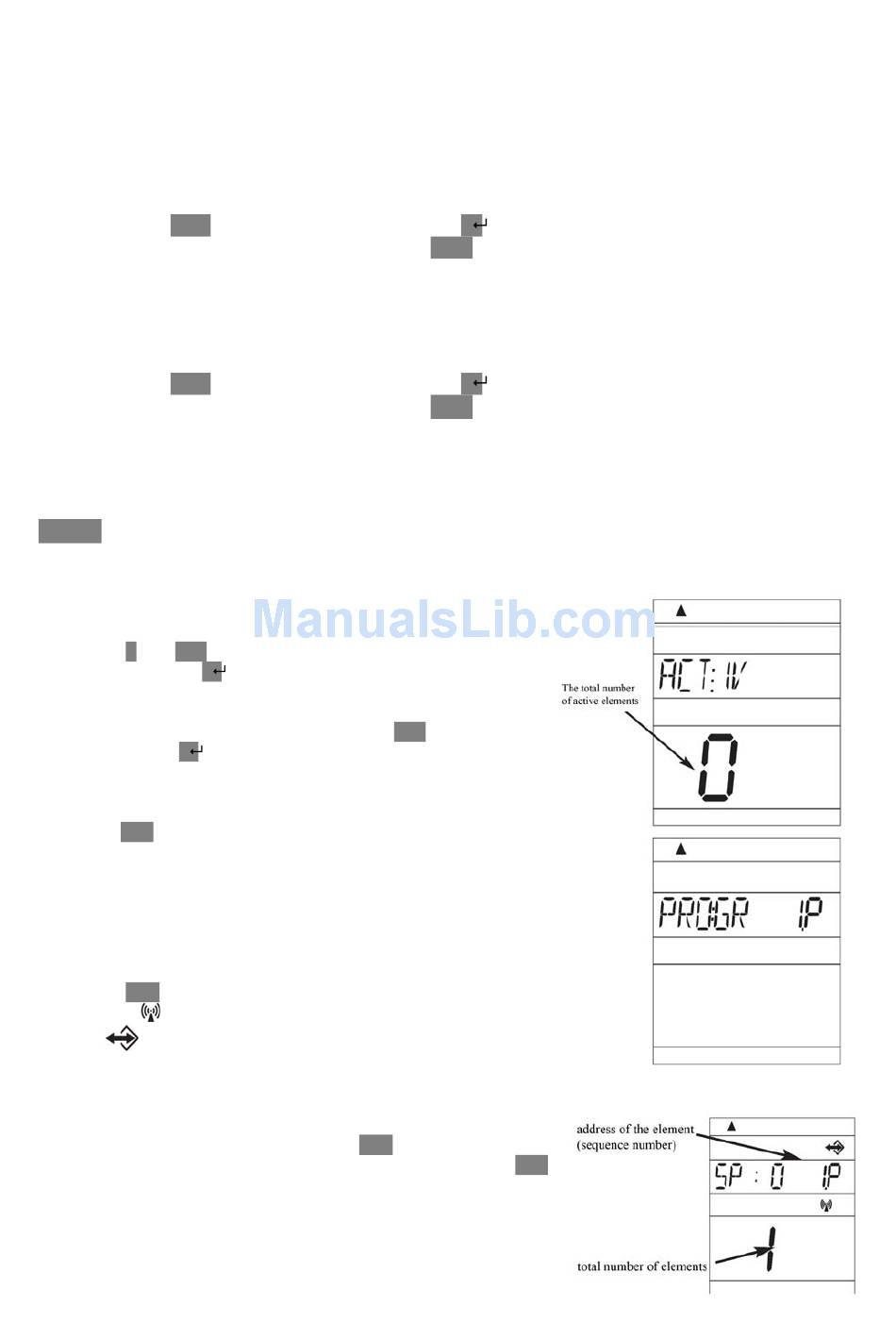

ACTIV activation of switching elements
This mode enables the gradual addition (activation) of elements to the system and the allocation of
temperature programmes to them.
The maximum number of elements in the whole system is
255!
- press the F and +/-T buttons and select the ACTIV mode,
confirming it with the i
- the option to select the programme for switching elements,
PROGR, will appear on the LCD
- allocate the programme 1.P – 9.P using the +/-T buttons and
confirm it with the i button
- in the next step, you gradually activate the switching elements
from SP1 to SP255.
-press the +/-P buttons and thus allocate the address to the first
switching element (SP : 1)
(the number in line 5 informs you about the total number of
active elements)
- press the "FUNCTION BUTTON" (approx. 1.5 seconds) on the
switching element (receiver) and this will take you to the code
learning mode (see the relevant instructions manual for the
receiver)
- press the Test button on the BPT-SP (the symbol for signal
transmission and the symbol for communication with the
element will appear)
- Two diodes will flash simultaneously on the switching element
and the element is thus ACTIVATED!
If Err appears on the BPT-SP display, it is necessary to check the
connection and repeat the procedure!
– you can add another element using the +/-H buttons, and
allocate the address of the second element (SP : 2) using the +/-P
buttons and repeat the procedure as in the case of the activation of
the first element.
button
button.
button
.
11
