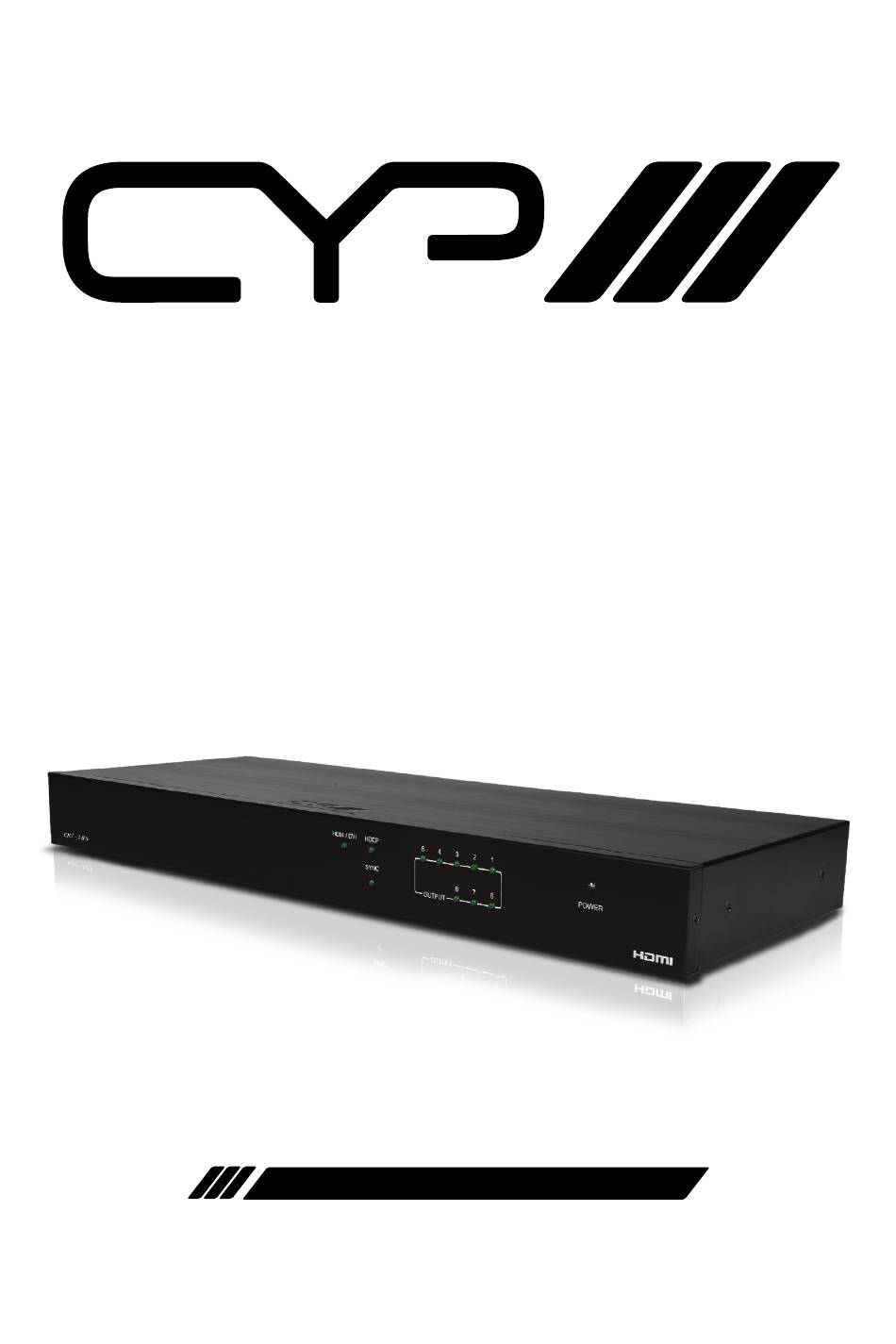

- Page 1 QU-18S 1 to 8 HDMI Distribution Amplifier OPERATION MANUAL...
- Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. CYP (UK) Ltd assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. CYP (UK) Ltd assumes no responsibility for any inaccuracies that may be contained in this document.
- Page 4 SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.
-
Page 5: Table Of Contents
CONTENTS 1. Introduction ...........6 2. Applications ...........6 3. Package Contents ........6 4. System Requirements ......6 5. Features ..........7 6. Operation Controls and Functions ..8 6.1 Front Panel ........... 8 6.2 Rear Panel ............. 9 7. Connection Diagram ......10 8. Specifications ........11 8.1 Technical Specifications ......11 9. -
Page 6: Introduction

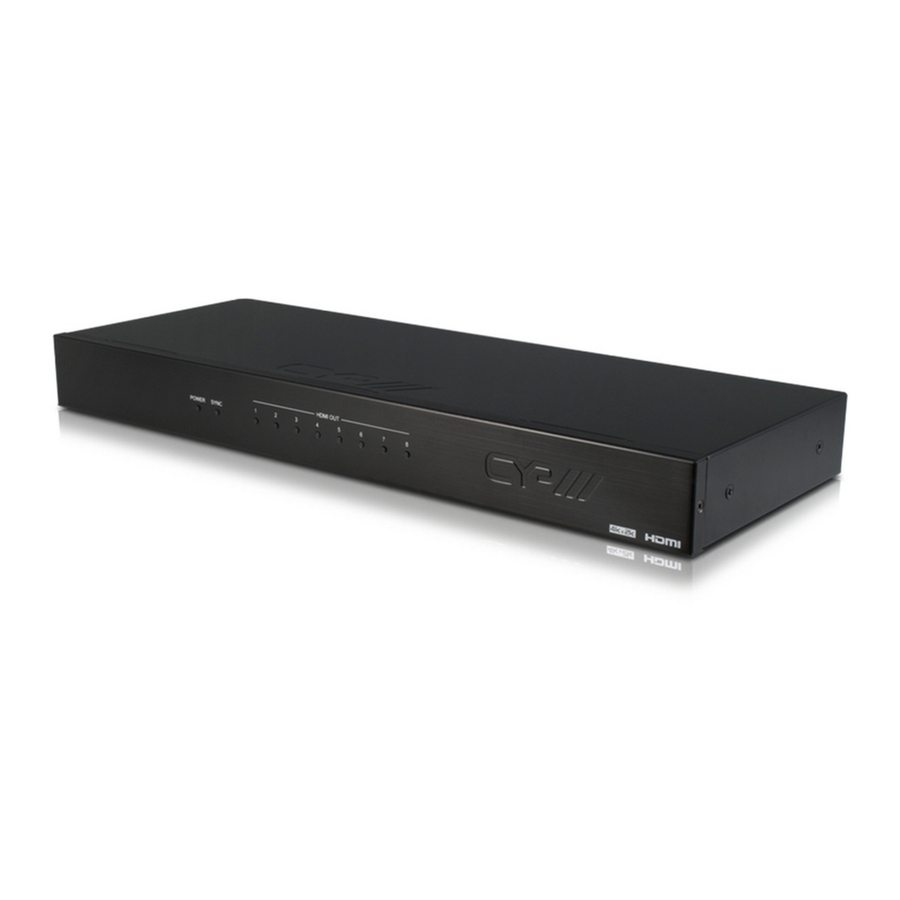

1. INTRODUCTION The QU-18S Distribution Amplifier (splitter) accepts one HDMI input and splits this signal to eight identical outputs. This device is compatible to v1.3 HDMI specifications, supporting ‘Deep Colour’ together with High Definition Audio. Each buffered output can run 1080p/8-bit up to 20 metres and can also be cascaded up to 3 layers. -
Page 7: Features
5. FEATURES HDMI HDCP1.1 and DVI1.0 compliant Receiver. 'Deep colour' video up to 12bit, 1080p@60Hz. Connect an HDMI source to up to eight HDMI displays simultaneously. HDCP keysets allows each output to work independently when connecting to a HDMI display. Splits a HDMI source up to eight outputs without signal loss. -
Page 8: Operation Controls And Functions
HDCP SYNC POWER OUTPUT QU-18S HDMI/DVI Indicator: The LED will illuminate when the selected HDMI input source is an HDMI output, the LED will not illuminate when the selected HDMI input source is from a DVI output. SYNC Indicator: The LED will illuminate when the selected HDMI IN connects to an HDMI or DVI output correctly. -
Page 9: Rear Panel
6.2 Rear Panel HDMI IN HDMI OUT DC 5V EDID EDID Control Switch: Default factory setting is TV. Switch to STD to use the build-in EDID if the display has problems. When switched to TV mode, the unit will detect the first HDMI output source’s EDID and store it in the unit. -
Page 10: Connection Diagram
7. CONNECTION DIAGRAM DVD or Blu-ray Player HDMI Input HDMI IN HDMI OUT DC 5V Power EDID Supply Simultaneous HDMI Outputs HDTV Projector HDTV Projector HDTV Projector HDTV Projector... -
Page 11: Specifications
8. SPECIFICATIONS 8.1 Technical Specifications Frequency Bandwidth 2.25Gbps (Single Link) Input Port 1x HDMI female port (Type A) Output Port 8 x HDMI female ports (Type A) Power Supply 5V DC/5A (US/EU standards, CE/FCC/UL certified) Dimensions (mm) 436(W) × 160(D) × 44(H) Weight(g) 2000 Chassis Material... -
Page 12: Acronyms
9. ACRONYMS ACRONYM COMPLETE TERM Consumer Electronics Control Digital Visual Interface EDID Extended Display Identification Data HDCP High-bandwidth Digital Content Protection HDMI High-Definition Multimedia Interface HDTV High-Definition Television Video Graphics Array... - Page 16 CYP (UK) Ltd., Unit 7, Shepperton Business Park, Govett Avenue, Shepperton, Middlesex, TW17 8BA Tel: +44 (0) 20 3137 9180 | Fax: +44 (0) 20 3137 6279 Email: sales@cypeurope.com www.cypeurope.com v2.00...
