14.7 how to connect the cables to the batteries

warnIng!
If you are in any doubt about performing any
maintenance on your wheelchair, please contact your
Sunrise Medical authorised dealer.
parts in the battery box:
• Two 12v Deep Cycle Mobility Batteries.
• Two Fused Battery Loom Assemblies.
• One Power Loom
warnIng!
• Before connecting the batteries it is very important
to identify the correct connection for each battery
terminal. Failure to do this may result in the
wheelchair not functioning or possibly a blown fuse.
• Connect all battery terminals before connecting the
plugs.
• After connecting battery terminals and connectors
ensure all wiring is tidy and can not get entangled in
any moving parts and the rubber covers fit fully over
the battery terminals.
note: After connection of the batteries wait 2 minutes
for the system to reset, before switching on the control
system. This reset time is required every time the
batteries are disconnected.

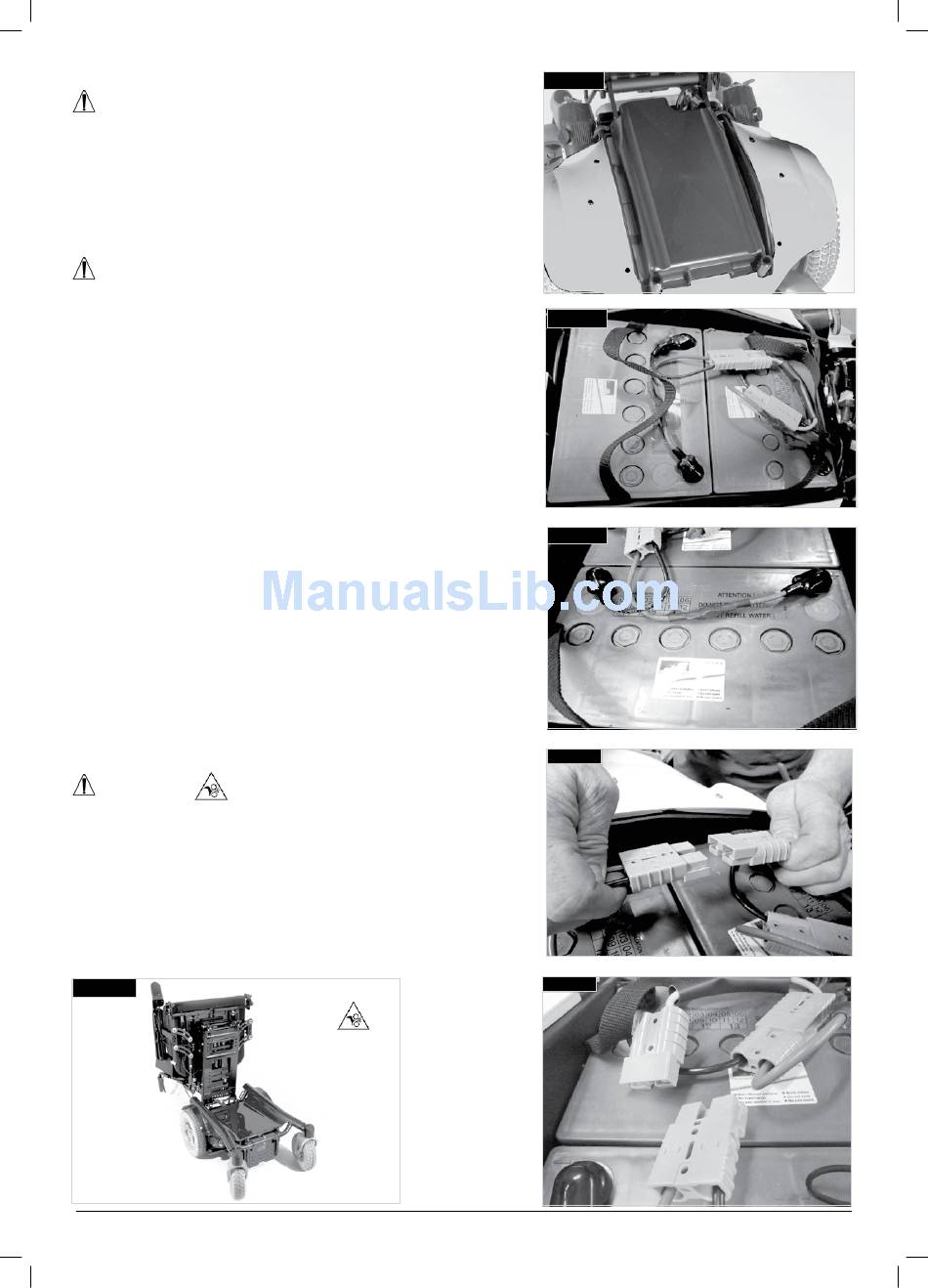

connecting / disconnecting the batteries:
• Undo the two seat interface screws, (Section 12.1).
• Flip the seat frame backwards until the automatic
lock pin clicks to secure it in place. Ensure the seat
is secure before letting go, (Fig.14.21).
• Lift off the battery box lid, (Fig.14.22).
• The Front battery has RED to Positive (+) & BLACK
to negative (-). (Fig.14.23 - 14.24).
• The Rear battery has RED to Positive (+) & BLACK
to negative (-). (Fig.14.23 - 14.24).
• Connect the GREY plugs to the power loom,
(Fig.14.25 - 14.26).
warnIng!
Ensure the two seat interface screws are fully tightened
before using the wheelchair, (Section 12.1, Fig.12.1).
Fig. 14.21
Fig. 14.22
Fig. 14.23
Fig. 14.24
Fig. 14.25
Fig. 14.26
