EPA APPROVED HIGH EFFICIENCY
We recommend that our products be installed and serviced
by professionals who are certifi ed in the U.S. By NFI
(National Fireplace Institute) or in Canada by WETT
(Wood Energy Technical Training).
SAFETY NOTICE: Read this entire manual before you install and use your appliance. If not properly
installed, a house fi re may result. To reduce the risk of fi re, follow the installation instructions. Failure to
follow instructions may result in property damage, bodily injury, or even death. Contact local building, fi re
offi cials or authorities having jurisdiction about permits, restrictions and installation inspection require-
ments in your area.
These units are mobile home approved for U.S. and Canada

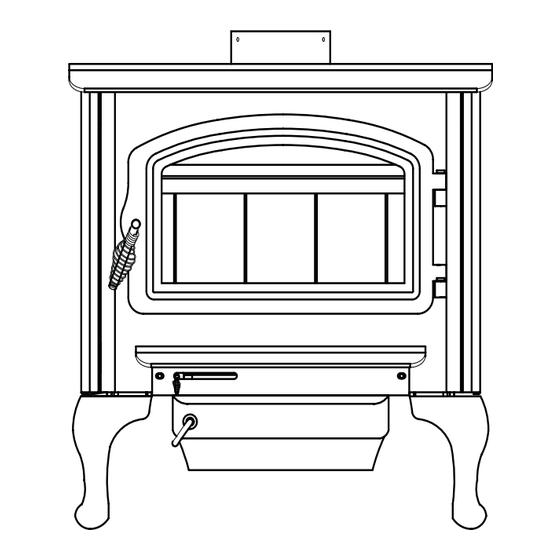

AIR TIGHT WOOD STOVE
FOR RESIDENTIAL INSTALLATION
6" (152mm) Flue Required
SSW30FTAL, SSW30STAL, SSW30FTPB
SSW30FTAPB, SSW30STAPB
OWNERS MANUAL
MODELS:
Advertisement
Table of Contents
Related Manuals for Lexington Forge SSW30FTAL
Summary of Contents for Lexington Forge SSW30FTAL
- Page 1 EPA APPROVED HIGH EFFICIENCY AIR TIGHT WOOD STOVE FOR RESIDENTIAL INSTALLATION 6" (152mm) Flue Required MODELS: SSW30FTAL, SSW30STAL, SSW30FTPB SSW30FTAPB, SSW30STAPB OWNERS MANUAL We recommend that our products be installed and serviced by professionals who are certifi ed in the U.S. By NFI (National Fireplace Institute) or in Canada by WETT (Wood Energy Technical Training).
-
Page 2: Table Of Contents
CONTENTS Operation ................14 Specifi cations ..............03 Maintenance ..............17 Questions? ................. 04 Replacement parts ............. 20 Pre-installation instructions ..........05 Illustrated Parts Breakdown ..........22 Unpacking and leg installation .......... 07 FAQs ................. 24 Stove set-up ............... 09 Warranty ............. -
Page 3: Specifi Cations
SPECIFICATIONS OVERALL DIMENSIONS "G" "A" "F" "A" "B" "C" "D" "E" SSW30FTAL SSW30STAL MODEL SSW30FTAL 30¼ 28¼ 19¼ 24¼ 27¾ SSW30STAL 33¾ 28¼ 19¼ 24¼ 27¾ "G" "G" "A" "A" "A" "F" "B" "B" "C" "E" "E" "D" SSW30FTPB SSW30FTAPB... -
Page 4: Questions
3. Under specifi c conditions used during EPA emissions testing. NEED TO ASK QUESTIONS? REQUIRE PARTS INFORMATION? First, contact the Lexington Forge Dealer from whom you purchased your stove, for parts and service. Have the following information ready: • Date of purchase •... -
Page 5: Pre-Installation Instructions
PRE-INSTALLATION INSTRUCTIONS After reading these instructions, if you have any doubt about your ability to complete your installation in a professional like manner, you should obtain the services of an installer versed in all aspects as to the correct and safe installation. DO NOT use temporary, makeshift compromises during installation. BEFORE INSTALLATION OF YOUR APPLIANCE Check with the building inspector’s offi... - Page 6 fi re. Important: For optimum heater performance at “low” burn rate, operate the fan at low speed. An outside air kit is available from your Lexington Forge dealer. Optional Blower: 70v 130 CFM Model: BLOTWS • OPERATE THIS HEATER ONLY WITH THE DOOR CLOSED.
-
Page 7: Unpacking And Leg Installation
UNPACKING AND ATTACHING LEGS REMOVING THE STOVE FROM THE PALLET AND ATTACHING THE LEGS ON THE SSW30(F/S)TAL Caution: Stove is extremely heavy. You will need help installing the legs and moving your stove to its fi nal location. Please note: The fi berboard baffl e is secured with two screws for shipping purposes only. These screws are located behind the rear tube and may be removed prior to use, if so desired. - Page 8 UNPACKING AND ATTACHING LEGS 7) With rear leg installed, pivot the stove so that the hold down bracket is off the pallet. The stove should be resting the installed leg on the fl oor, one support bracket on the pallet and the partially loosened support bracket hanging free. Have someone steady the stove to avoid tipping.
-
Page 9: Stove Set-Up
STOVE SET-UP STOVE SET-UP Check that all brick and tubes are in place. Select the proper location for the stove. These appliances must not be installed any closer than the minimum clearance to combustible materials shown on page 11 of this manual. The stove must be installed on a non-combustible surface as shown on page 11 of this manual. - Page 10 STOVE SET-UP Flue Sizing The fl ue size for a controlled-combustion appliance should be based on the cross-sectional volume of the stove fl ue outlet. In this case, more is defi nitely not better. Hot gases lose heat through expansion; if a stove with a six-inch fl ue collar (28 square inch area) "...
-
Page 11: Clearances
CLEARANCES CLEARANCES TO COMBUSTIBLES (UL-1482 AND ULC-S627) Minimum clearances to combustible materials in inches. Note: All “A,” “C,” and “F” dimensions are to the stove pipe. Installation: Full Vertical Single Wall Pipe Flat top model 14.5 21.5 16.75 Step top model 11.5 18.5 15.25... -
Page 12: Installation
INSTALLATION WALL PASS-THRUS Whenever possible, design your installation so the connector does not pass through a combustible wall. If you must use a wall pass- through in your installation, check with your building inspector before you begin and construct it in accordance with local building codes. -
Page 13: Floor Protector
1 (25mm) clear of the wall. Your Lexington Forge dealer or your local building inspector can provide details of other approved methods of passing a chimney connector through a combustible wall. In Canada, this type of installation must conform to CAN/CSA-B365. -
Page 14: Operation
OPERATION CHIMNEY REFER TO CHIMNEY AND CHIMNEY CONNECTOR MANUFACTURER’S INSTRUCTIONS Contact your local building authority for approved methods of installation This appliance requires a masonry or pre-manufactured chimney listed to ULCS629 (Canada) and UL 103 HT (USA) sized correctly. If a masonry chimney is used it is advisable to have your chimney inspected for cracks and check the general condition before you install your unit. - Page 15 OPERATION You can never be too safe. Contact your local fi re authority for information on what to do in the event of a chimney fi re, and have a clearly understood plan on how to handle one. OPERATION Do not use a grate or elevate fi re. Build wood fi re directly on fi rebrick. When the stove is used for the fi rst time the solvents in the paint will smoke off.
-
Page 16: Building A Fire
OPERATION INSTRUCTION FOR FIRST BURN – CURING THE STOVE PAINT Your stove has been painted with the highest quality stove paint and has special break-in procedures. The heat generated by the normal operation of the stove, will serve to harden the paint. Ventilate the house during the fi... -
Page 17: Maintenance
MAINTENANCE REMOVING BAFFLE: 1. Pull the cotter pin from the retaining collar on the front tube. See Detail A. 2. Tilt up the front side of the baffle and insulation. 3. Slide the tube to the right to free from the collar, tilt down and push towards the left, then pull out the tube. See Figure 4. -
Page 18: Glass Care
To remove fi rebrick, lift up from bottom and rotate outward. See Figure 14. GLASS CARE REPLACE GLASS ONLY WITH HIGH TEMPERATURE CERAMIC AVAILABLE FROM YOUR LOCAL LEXINGTON FORGE DEALER The following use and safety tips should be observed: Firebrick Inspect the glass regularly for cracks and breaks. - Page 19 MAINTENANCE CREOSOTE When wood is burned slowly, it produces tar and other organic vapors. These combine with moisture to form creosote. Creosote vapors condense in the relatively cool chimney fl ue of a slow burning fi re. As a result, creosote residue accumulates on the fl ue lining. When ignited, this creosote makes an extremely hot fi...
-
Page 20: Replacement Parts
REPLACEMENT PARTS SSW30 SSW30 SSW30 SSW30 SSW30 FTAL FTAPB STAL STAPB FTPB ITEM PART No. Description Qty. 63D0162 FIREBRICK 63D0028 SECONDARY- AIR ROUNDTUBING- REAR 63D0026 SECONDARY- AIR ROUNDTUBING- MIDDLE 63D0112 SECONDARY-AIR ROUND TUBING- FRONT 63D0022 COTTER PIN 3/32” DIA. X 1.25 LG. 63D0159 REAR INSULATION 1”... - Page 21 REPLACEMENT PARTS CONTINUED SSW30 SSW30 SSW30 SSW30 SSW30 FTAL FTAPB STAL STAPB FTPB ITEM PART No. Description Qty. 58D6022 1/4”-20 X 3/8” LG. BUTTON HEAD SOCKET CAP SCREW 63D0186 CAST IRON LEGS 63D0330 6mm X 25mm LEVELLER 63D0063 1/4 FLAT WASHER 63D0064 1/4”-20 X 1”...
-
Page 22: Illustrated Parts Breakdown
ILLUSTRATED PARTS BREAKDOWN Figure 16: Upper Body Parts Exploded View DETAIL A SCALE = 5:1 63D0022 DETAIL E DETAIL K SCALE = 5:1 63D0174 SCALE = 5:1 0052825B DETAIL B DETAIL H SCALE = 5:1 SCALE = 5:1 63D0304 63D0313 DETAIL F DETAIL C SCALE = 5:1... - Page 23 ILLUSTRATED PARTS BREAKDOWN SSW30FTAPB SSW30FTAL Figure 18: Lower Body Parts Exploded View DETAIL L DETAIL N DETAIL V SCALE = 5:1 SCALE = 5:1 SCALE = 5:1 58D6022 63D0064 63D0344 DETAIL M DETAIL W SCALE = 5:1 SCALE = 5:1...
-
Page 24: Faqs
FAQS FREQUENTLY ASKED QUESTIONS 1) What is the correct way to start a fi re? a) You will need small pieces of dry wood (kindling) and paper. Use only newspaper or paper that has not been coated or had unknown materials glued or applied to it. Never use coated (typically advertising fl yers) or colored paper. b) Open the door of the wood stove. - Page 25 FAQS 8) What is draft? Draft is the ability of the chimney to exhaust by-products produced during the normal combustion process. 9) What can cause a poor draft? The most common factors for poor draft are: Atmospheric pressure and air supply Environmental condition Cold chimney temperature Poor chimney installation and maintenance...
-
Page 26: Warranty
This warranty is expressly in lieu of other warranties, express or implied, including the warranty of merchantability of fi tness for purpose and of all other obligations or liabilities. Lexington Forge does not assume for it any other obligations or liability in connection with the sale or use of the appliance. In states that do not allow limitations on how long an implied warranty lasts, or do not allow exclusion of indirect damage, those limitations of exclusions may not apply to you.
