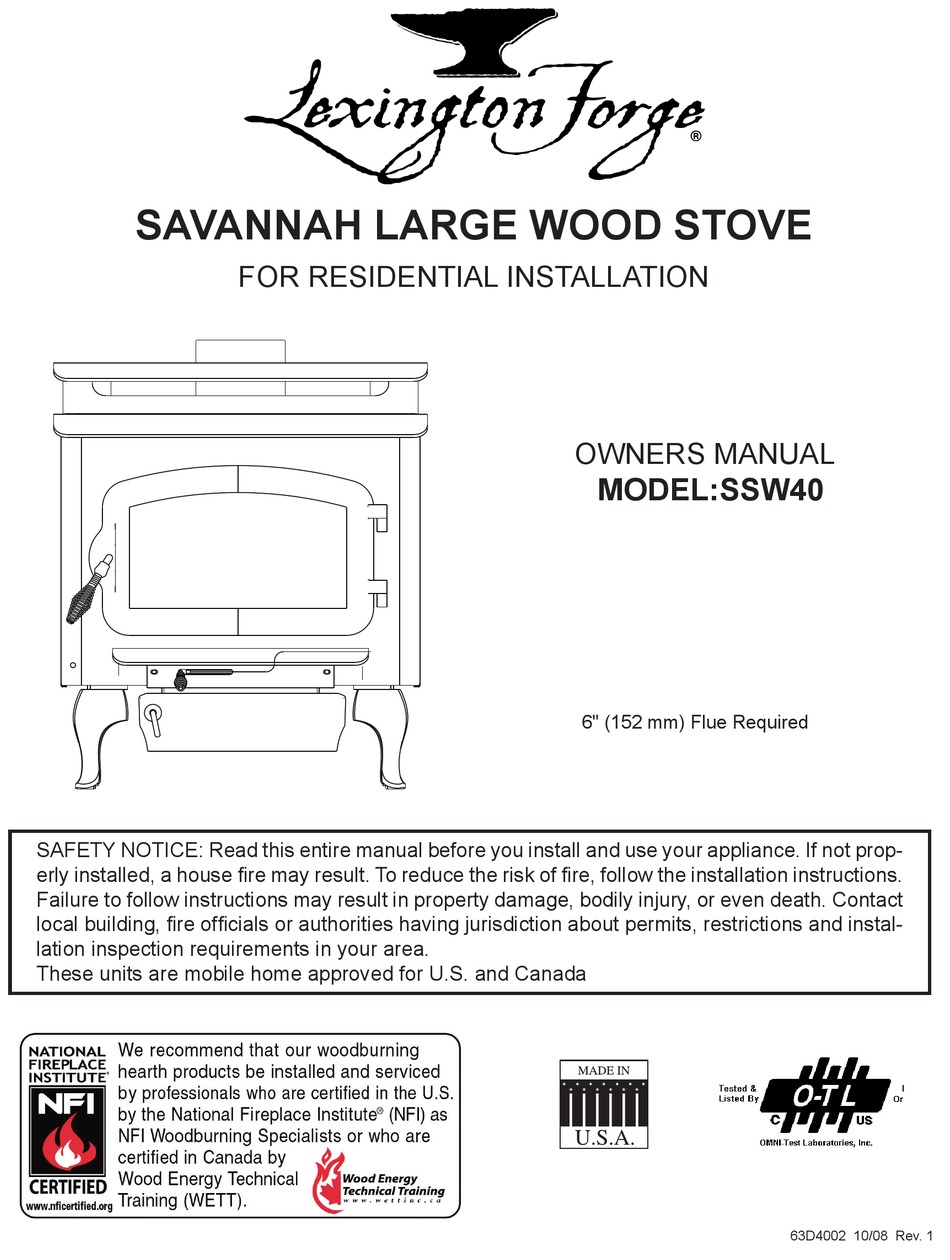

SAVANNAH LARGE WOOD STOVE
SAFETY NOTICE: Read this entire manual before you install and use your appliance. If not prop-
erly installed, a house fire may result. To reduce the risk of fire, follow the installation instructions.
6300002
Failure to follow instructions may result in property damage, bodily injury, or even death. Contact
SSW40 cover
local building, fire officials or authorities having jurisdiction about permits, restrictions and instal-
lation inspection requirements in your area.
These units are mobile home approved for U.S. and Canada
FOR RESIDENTIAL INSTALLATION
OWNERS MANUAL
MODEL:SSW40
6" (152 mm) Flue Required
63D4002 10/08 Rev. 1
Advertisement
Table of Contents
Related Manuals for Lexington Forge SAVANNAHSSW40
Summary of Contents for Lexington Forge SAVANNAHSSW40
- Page 1 SAVANNAH LARGE WOOD STOVE FOR RESIDENTIAL INSTALLATION OWNERS MANUAL MODEL:SSW40 6" (152 mm) Flue Required SAFETY NOTICE: Read this entire manual before you install and use your appliance. If not prop- erly installed, a house fire may result. To reduce the risk of fire, follow the installation instructions. 6300002 Failure to follow instructions may result in property damage, bodily injury, or even death.
-
Page 2: Table Of Contents
CONTENTS OWNER INSTALLER Please retain these instructions for future reference. Please leave these instructions with the appliance. IMPORTANT Read these instructions carefully before installing or trying to operating this woodburning appliance. Operation ..............12 Specifications ............03 Maintenance .............15 Questions? ...............04 Replacement parts ...........18 Pre-installation instructions........05 Illustrated Parts Breakdown........19... -
Page 3: Specifications
SPECIFICATIONS OVERALL DIMENSIONS SSW40 Front and Side Views 634002 SSW40 DIMS 10/08 MODEL SSW40 " " 23" 32" " " 63D4002... -
Page 4: Questions
3. Under specific conditions used during EPA emissions testing. NEED TO ASk QUESTIONS? REQUIRE PARTS INFORMATION? First, contact the Lexington Forge Dealer from whom you purchased your stove, for parts and service. Have the following information ready: • Date of purchase •... -
Page 5: Pre-Installation Instructions
PRE-INSTALLATION INSTRUCTIONS After reading these instructions, if you have any doubt about your ability to complete your installation in a professional manner, you should obtain the services of an installer versed in all aspects of correct and safe installation. DO NOT use temporary, makeshift compromises during installation. -
Page 6: Unpacking And Leg Installation
Important: For optimum heater performance at “low” burn rate, operate the fan at low speed. An outside air kit is available from your Lexington Forge dealer. Optional Blower: 110v 130 CFM Model: BLOTWS •... -
Page 7: Stove Set-Up
STOVE SET-UP STOVE SET-UP 1. Check that all brick and tubes are in place. 2. Select the proper location for the stove. These appliances must not be installed any closer than the minimum clearance to combustible materials shown on page 11 of this manual. The stove must be installed on a non-combustible surface as shown on page 9 of this manual. - Page 8 STOVE SET-UP Flue Sizing The flue size for a controlled-combustion appliance should be based on the cross-sectional volume of the stove flue outlet. In this case, more is definitely not better. Hot gases lose heat through expansion; if a " "...
-
Page 9: Clearances
CLEARANCES CLEARANCES TO COMbUSTIbLES (UL-1482 AND ULC-S627) Minimum clearances to combustible materials in inches. Note: All “A,” “C,” and “F” dimensions are to the stove pipe. Installation: Full Vertical Single Wall Pipe Flat top model 15" 10" 26" 15" 8" 20"... -
Page 10: Installation
INSTALLATION WALL PASS-THRUS Whenever possible, design your installation so the connector does not pass through a combustible wall. If you must use a wall pass-through in your installation, check with your building inspector before you begin and construct it in accordance with local building codes. Also, check with the chimney connector manufacturer for any specific requirements. -
Page 11: Floor Protector
1 (25mm) clear of the wall. Your Lexington Forge dealer or your local building inspector can provide details of other approved methods of passing a chimney connector through a combustible wall. In Canada, this type of installation must conform to CAN/CSA-B365. -
Page 12: Operation
OPERATION CHIMNEy REFER TO CHIMNEy AND CHIMNEy CONNECTOR MANUFACTURER’S INSTRUCTIONS Contact your local building authority for approved methods of installation 1. This appliance requires a masonry or pre-manufactured chimney listed to ULCS629 (Canada) and UL 103 HT (USA) sized correctly. 2. - Page 13 OPERATION OPERATION Do not use a grate or elevate fire. Build wood fire directly on firebrick. When the stove is used for the first time the solvents in the paint will smoke off. Wood This heater is designed to burn natural wood only. Higher efficiencies and lower emissions generally result when burning air dried seasoned hardwoods, as compared to softwoods or to green or freshly cut hardwoods.
-
Page 14: Building A Fire
OPERATION INSTRUCTION FOR FIRST bURN – CURING THE STOVE PAINT Your stove has been painted with the highest quality stove paint and has special break-in procedures. The heat generated by the normal operation of the stove, will serve to harden the paint. Ventilate the house during the first three times the stove is used. -
Page 15: Maintenance
MAINTENANCE REMOVING THE bAFFLE Secondary Air Tubes C-Cast Baffle To remove the baffle you will have to remove the secondary air tubes and the C-cast baffle plates. See Figure 7. 1. Use a Philips head screw driver or your fingers to remove the drywall screws that are hanging down next to the secondary air tubes. - Page 16 Inspect glass and door seal periodically to ensure proper seal: if gaskets become frayed or worn, replace immediately. Contact your Lexington Forge dealer for approved replacement parts. Refer to replacement parts list in this manual.
- Page 17 MAINTENANCE CREOSOTE When wood is burned slowly, it produces tar and other organic vapors. These combine with moisture to form creosote. Creosote vapors condense in the relatively cool chimney flue of a slow burning fire. As a result, creosote residue accumulates on the flue lining. When ignited, this creosote makes an extremely hot fire.
-
Page 18: Replacement Parts
ILLUSTRATED PARTS bREAkDOWN Figure 9: Exploded View 634002 SSW40 parts 10/08 63D4002... - Page 19 REPLACEMENT PARTS Item Qty. Description Part Number Door Cast Iron 63D2078 Glass 63D0111 Glass Clip 63D0174 Handle Assembly, Fall-away 63D2084 Grate, Cast Iron 63D0068 Handle Assembly, Ash Pan Door 63D0313 Ash Pan Door, Cast Iron 63D0188 Fettle 63D3002 Airwash, Cast Iron 63D3001 Shroud, Left 63D3117...
-
Page 20: Faqs
FAQS FREQUENTLY ASKED QUESTIONS 1) What is the correct way to start a fire? a) You will need small pieces of dry wood (kindling) and paper. Use only newspaper or paper that has not been coated or had unknown materials glued or applied to it. Never use coated (typically advertising flyers) or colored paper. - Page 21 FAQS a good operating temperature, and has a good draft. Cold firebox temperature and poor draft cause sooting of the glass. Once the firebox temperature and the draft increases, the soot will burn off. 8) What is draft? Draft is the ability of the chimney to exhaust by-products produced during the normal combustion process. 9) What can cause a poor draft? The most common factors for poor draft are: a.
- Page 22 NOTES 63D4002...
-
Page 23: Warranty
Lexington Forge will, at its option, replace or repair the defective components at no charge to the original owner. Lexington Forge will also pay for reasonable labor costs incurred in replacing or repairing such components for a period of one year from the date of installation. Any products presented for warranty repair must be accompanied by a dated proof of purchase. - Page 24 MHSC 149 Cleveland Drive • Paris, Kentucky 40361 www.mhsc.com OCTObER 2008 63D4002 • Rev. 1 63D4002...
