F3 Field Service Manual – Level 1 Maintenance
3.6.

Shafts

Note: The following procedure details shaft disassembly/assembly and should be
followed in order until the component to be replaced is accessible.
Middle Camlock Assembly
Yoke and Lower
Camlock Assembly
3.6.1. Shafts Disassembly:
•
Remove the Electronics pack and Coil, (Section 3.4.1 Electronics Pack
Removal and Section 3.5.1 Coil Removal).
a. Lower camlock and lower shaft
Middle Camlock Assembly

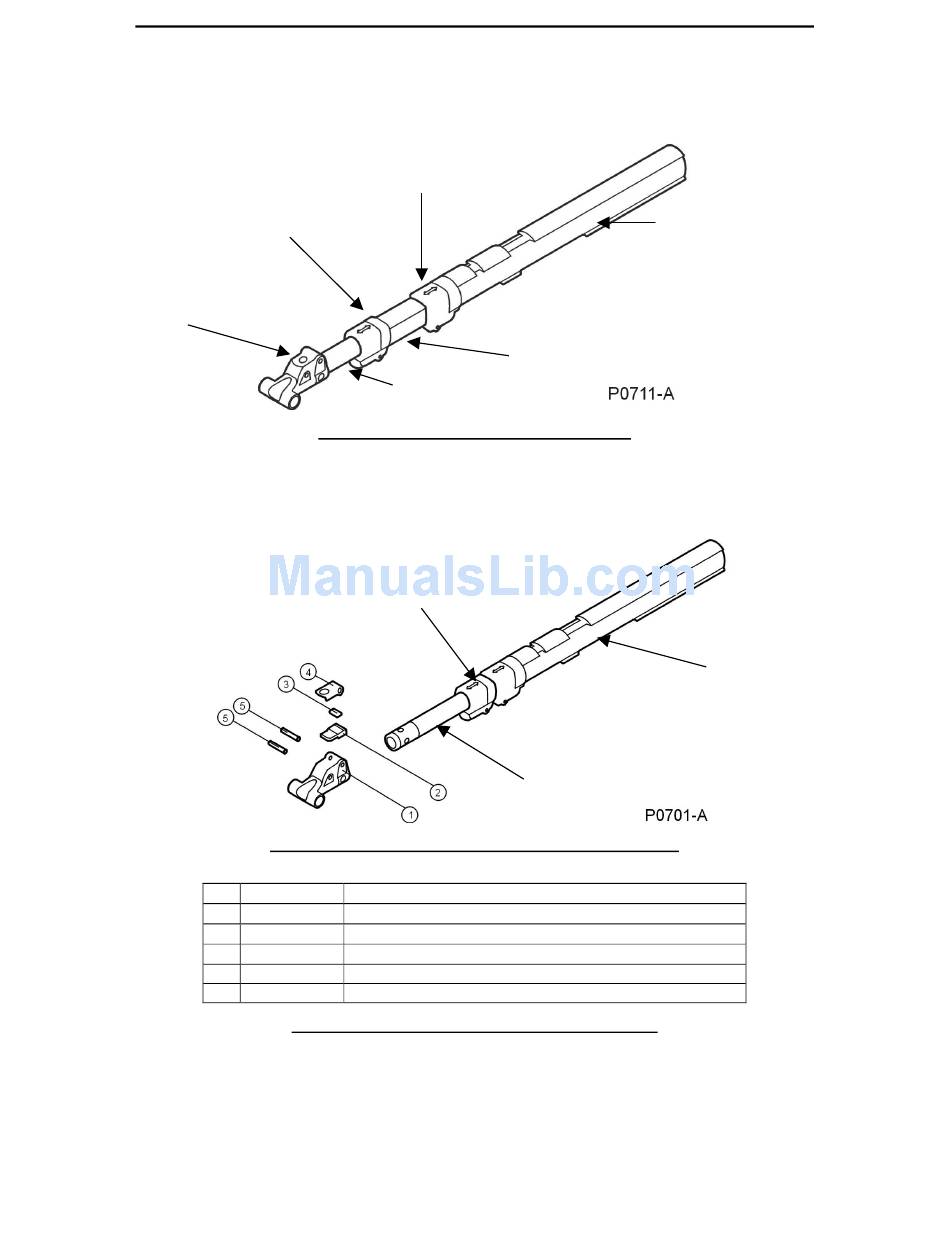

Figure 48 Lower Camlock Assembly Exploded View
3004-0011
1 8007-0022
2 8008-0031
3 8008-0030
4 8008-0029
5 4308-0008
Figure 49 Lower Camlock Assembly Parts List
Upper Camlock Assembly
Lower Shaft
Figure 47 Complete F3 Shaft Assembly
Lower Shaft
CAMLOCK KIT LOWER SHAFT F3
CAMLOCK BODY LOWER F3
PRESSURE BLOCK LOWER F3
WEAR PLATE F3
CAM LEVER LOWER CAMLOCK F3
PIN LOWER CAMLOCK F3
Page 34
Upper Shaft
Middle Shaft
Upper Shaft
