F3 Field Service Manual – Level 1 Maintenance
3.4.

Electronics Pack

3.4.1. Electronics Pack Removal:
• Remove battery pack and sensitivity endcap.

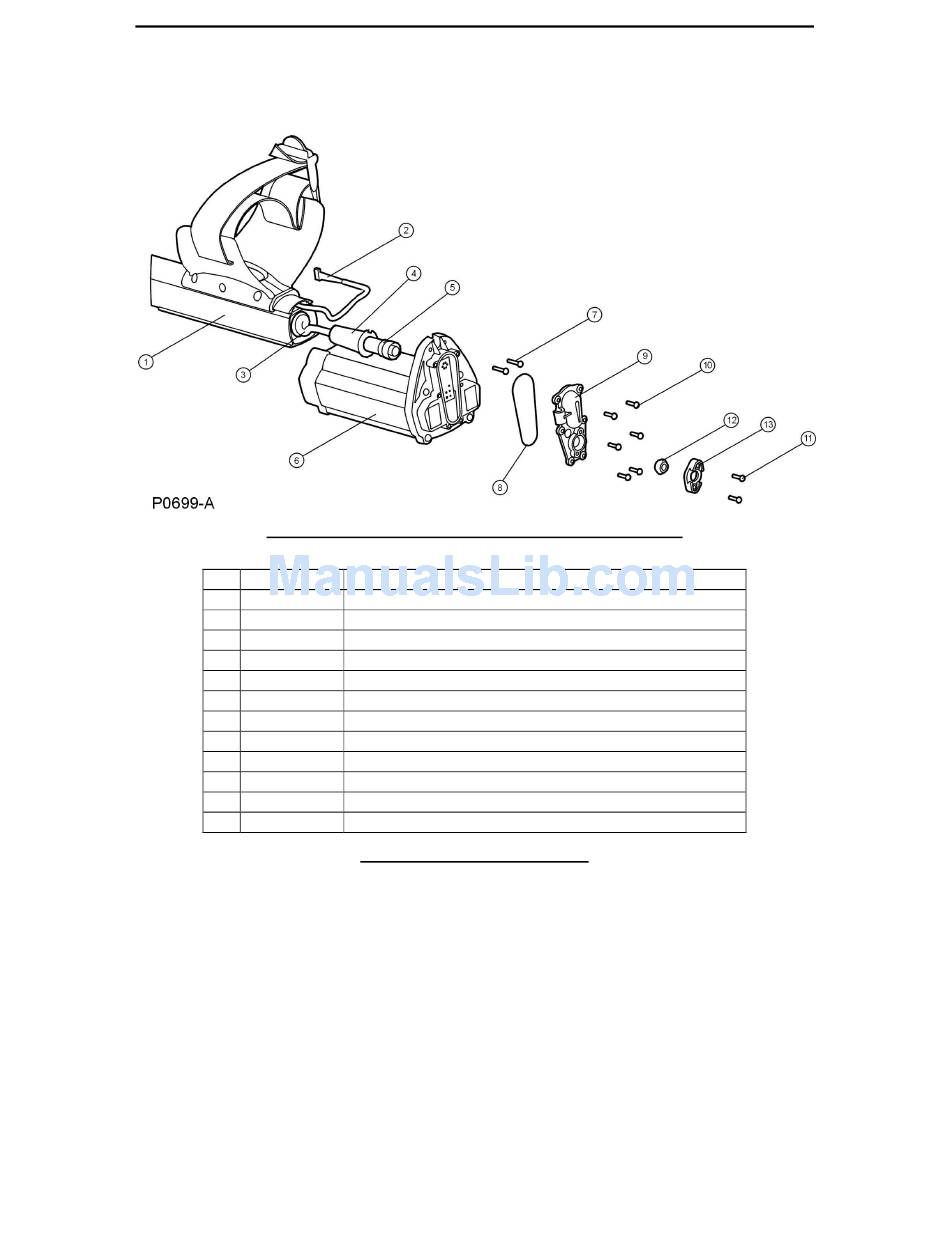

Figure 22 Electronics Pack Removal, Exploded View
1 8007-0023
2 9511-0023
3
4 8009-0007
5
6 3004-0001
7 4003-0078
8 4309-0039
9 0703-0095
10 4003-0084
11 4003-0084
12 4309-0044
13 0703-0097
•
This step only required if access to the split grommet is required: Undo and
remove the two screws (11) holding the ribbon cable cover (13) to the
bulkhead cover. Carefully pull back this cover and the split grommet (12)
along the main wiring loom cable.
•
Undo and remove the six screws (10) holding the bulkhead cover (9) to the
electronics pack rear panel. Pull and the bulkhead cover back along the main
wiring loom cable.
UPPER SHAFT BLACK F3
WIRING LOOM F3 SHAFT/HANDLE
COIL CABLE (part of 2021-0054 Coil F3)
RETAINER PLUG F3
COIL PLUG (part of 2021-0054 Coil F3)
ELECTRONICS PACK KIT SVC BLACK F3
SCREW M3X16 POSI SS
O-RING BULKHEAD 50MM
COVER BULKHEAD F3
SCREW NO 3X16 POSI SS
SCREW NO 3X16 POSI SS
GROMMET BULKHEAD F3
COVER RIBBON CABLE F3
Figure 23 Detector Parts List
Page 21
