ugoTT
Desktop Headphone amplifier with Advanced DAC
Thank you for purchasing the Chord HugoTT. In order to get the most from your
product, please take a few moments to read the instructions.
The HugoTT is an advanced desktop headphone amplifier and state of the art FPGA
DAC with our latest WTA filter algorithm. HugoTT supports PCM formats up to 384kHz.
It will also play DSD64 and DSD128 in DoP format.
Complete power isolation is assured by the use of rechargeable batteries with
the addition of super capacitors to smooth out the instantaneous power demands.
HugoTT was made for desktop use and will work wirelessly via bluetooth or can be
connected via USB to give a direct digital audio signal as found on many devices and
computers. You can also connect with BNC coax digital input, Optical TOSLink input
and full sized B type USB inputs for both SD (up to 16 bit 48KHz) & HD (32 bit 384KHz
& DSD).
HugoTT can be switched to line level output to connect into a preamplifier or used with
its advanced volume control as a digital preamplifier directly into an amplifier. To
complete the usability, HugoTT comes with remote control and display so the setup can
clearly be seen across a room. HugoTT is a truly versatile piece of equipment to help
enhance your listening experience.

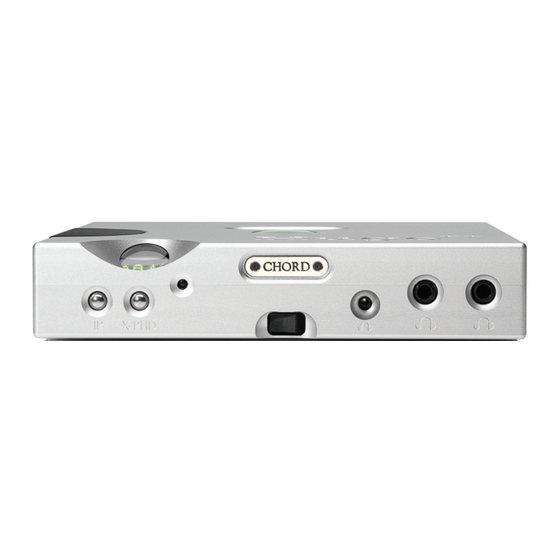

Get to know HugoTT
HugoTT features several different inputs and output connections. Please choose the
one that suits your source components.
Input
switch
XFeed
switch
Chord Electronics Limited
Chord Electronics Limited
Instruction Manual
Power
3.5mm
jack
switch
6.35mm
jack x 2
Advertisement
Table of Contents
Related Manuals for Chord HugoTT
Summary of Contents for Chord HugoTT
- Page 1 B type USB inputs for both SD (up to 16 bit 48KHz) & HD (32 bit 384KHz & DSD). HugoTT can be switched to line level output to connect into a preamplifier or used with its advanced volume control as a digital preamplifier directly into an amplifier. To complete the usability, HugoTT comes with remote control and display so the setup can clearly be seen across a room.
- Page 2 7 or 8 PC then you will need to install the driver software on the supplied memory stick. Before connecting to HugoTT, double click the driver file to open it and then click the setup file to start the installation process. Follow the screen prompts to complete the installation.
-
Page 3: Optical Input
It is safe to leave the power adapter connected continuously to charge and power HugoTT. The charge status is indicated by a colour changing LED under the lens, blue being fully charged and will change to green and red as the batteries discharge. - Page 4 Volume keys Numbers 1-5 select source inputs 1: USBH (HD USB) 2: USBS (SD USB) 3: OPT (Optical) 4: COAX (Coaxial) 5: BLTH (Bluetooth) Mute outputs The functions listed here have no use or compatibility with the HugoTT.
-
Page 5: Specifications
Press and hold the Crossfeed switch whilst turning on to activate line level volume output. The volume control will illuminate light blue. Using this mode, HugoTT can be used as a standalone DAC into a preamplifier with volume control. Please note the volume control is still active in this mode so the volume can quickly and easily be reduced, if necessary. - Page 6 Chord Electronics Limited Chord Electronics Limited...
