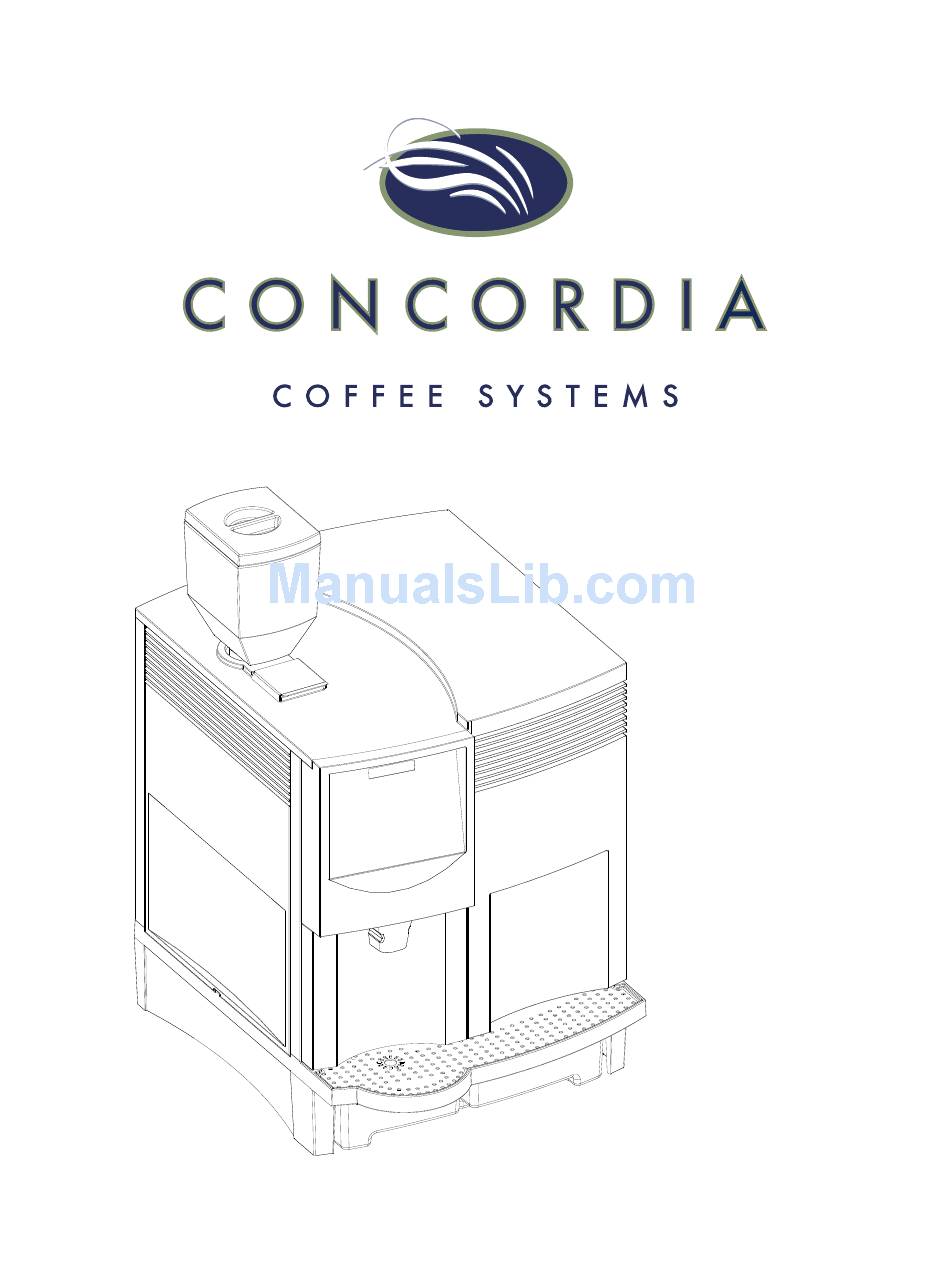

  • Page 1 Concordia Model 1500s/i Espresso Machine User Guide...

  • Page 3: Table Of Contents

    The Model 1500s/i Machine..........2 The Model 1500s/i Components......3 Using the Espresso Machine ..........4 Starting the Machine .......... 4 1500s Elite Touch Pad ........5 1500i Elite Touch Pad......... 7 Pouring Drinks ..........9 Pre-Programmed Drinks ........10 Making a Decaffeinated Drink ......12 Machine Software Overview ..........13...

  • Page 5: Important Safety Information

    Important Safety Information Your safety is important to us. The Concordia Model 1500s/i dispenses hot liquids and steam, and incorporates grinding operations. Please follow all safety precautions to reduce the risk of electric shock, burns, and/or injury to persons or property.

  • Page 6: The Model 1500S/I Machine

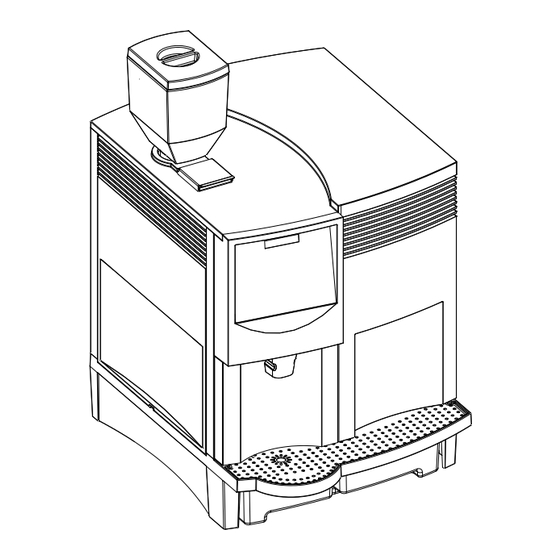

    The Model 1500s/i Machine AIR FILTER Customer Service (800) 778-0990...

  • Page 7: The Model 1500S/I Components

    The Model 1500s/i Components Bean Hopper The bean hopper holds espresso beans, and feeds them to the grinder. Decaf Bypass Chute Decaffeinated espresso is added through the decaf bypass chute. Brew Group The brew group assembly precisely brews espresso and automatically discards the used coffee into the grounds bin.

  • Page 8: Using The Espresso Machine

    Using the Espresso Machine Starting the Machine The power switch is located above the refrigerator compartment behind the refrigerator door. Turn the power switch to the ON position to start the machine. ON / OFF switch Machine warm-up takes approximately 10-15 minutes. During warm-up, the machine is heating the water and generating steam, while cooling the refrigeration compartment.

  • Page 9: 1500S Elite Touch Pad

    1500s Elite Touch Pad SELECT DRINK 1500sElite 39° OPTIONS if desired press first ON / OFF CAFFE LATTE CLEAN DOUBLE CAPPUCCINO PROGRAM TALL AMERICANO HOT WATER ESPRESSO HOT MILK ICED LATTE STOP COLD MILK FIRST FILL CUP WITH ICE ACORTO 7, 8, 9, 10, 11 1.
  • Page 10 12. CLEAN BUTTON AFTER PRESSING THE CLEAN BUTTON, THE CLEANING CYCLES WILL BEGIN (FIRST THE MILK SYSTEM CLEAN, AND THEN THE SHUTDOWN CLEAN). ONCE THE CLEANING CYCLE IS STARTED, IT CANNOT BE STOPPED. SEE THE CLEANING CARD INCLUDED WITH THE MACHINE FOR FULL CLEANING PROCEDURES.

  • Page 11: 1500I Elite Touch Pad

    1500i Elite Touch Pad ON/OFF SELECT DRINK CONCORDIA CLEAN PROGRAM 39° COFFEE SYSTEMS OPTIONS EXTRA SHOT LARGE CUP SELECT DRINK CAFFE LATTE CAPPUCCINO AMERICANO ESPRESSO ICED LATTE E lite STOP 1500i HOT WATER HOT MILK COLD MILK 1. CLEAN BUTTON...
  • Page 12 Extra milk will be used when pouring the selected drink. 4. DRINKS THESE BUTTONS DETERMINE WHICH TYPE OF DRINK WILL BE POURED. FOR COFFEE DRINKS, ONE SHOT OF ESPRESSO WILL BE USED. CAFFE LATTE Caffe latte is poured. CAPPUCCINO Cappuccino is poured. AMERICANO Americano is poured.

  • Page 13: Pouring Drinks

    Pouring Drinks Pouring a Drink 1. Place cup on drain grate below product nozzle 2. Press desired DRINK OPTION button(s) 3. Press START button for the desired drink Brewing cycle starts and stops automatically once the drink START button is selected. Pouring Milk Only Press the HOT MILK button to dispense hot milk Pouring Cold Milk...

  • Page 14: Pre-Programmed Drinks

    Pre-Programmed Drinks Please note that specific pre-programmed drinks will depend on the model and touch pad of your machine. ESPRESSO An aromatic shot of intensely rich coffee. TO POUR: Press the ESPRESSO button CAFFE LATTE Steamed milk mixed with espresso. TO POUR: Press the CAFFÉ...
  • Page 15 MOCHA Latte flavored with chocolate sauce. TO POUR: Pour 1-2 ounces of chocolate syrup in cup Place cup under drink dispensing nozzle Press the CAFFEE LATTE button STEAMER Steamed milk flavored with syrup. TO POUR: Pour 1-2 ounces of flavor in cup Press the HOT MILK to fill cup Customer Service (800) 778-0990...

  • Page 16: Making A Decaffeinated Drink

    Making a Decaffeinated Drink Bypass Chute 1. Open the bypass chute door 2. Using the supplied scoop, insert pre-ground decaffeinated espresso Measure 1 level scoop for a single shot espresso Measure 2 level scoops for a double shot espresso 3. Close the bypass chute door 4.

  • Page 17: Machine Software Overview

    Machine Software Overview Software Programming Menu PRESS THE PROGRAM BUTTON RESULT ONE TIME CUMULATIVE TOTAL TWO TIMES DAILY TOTAL THREE TIMES O-RING COUNTER FOUR TIMES EXIT THE MENU SYSTEM Check Cumulative Total Drink Statistics • Press and hold the PROGRAM button until top line of the LCD reads CUMULATIVE TOTAL.

  • Page 18: Display Messages

    Display Messages The following table lists the various messages, which can be displayed on the Model 1500s/i, and their definition. NOTE : Actual messaging may vary according to a particular version of software. MESSAGE DEFINITION / ACTION CHECK WATER FLOW No water flow detected by flowmeter.

  • Page 19: Plumbing

    Plumbing Soft-Plumbed or Hard-Plumbed Configuration The Model 1500s/i can be plumbed directly to a building’s water supply (hard-plumbed) and/or drain system or configured as a self-contained unit using the on-board fresh water and drain water bins (soft- plumbed). It’s also possible to use a combination of these configurations.

  • Page 20: Beans And The Bean Hopper

    Beans and the Bean Hopper Storing Espresso Beans Espresso beans are typically sealed in an airtight container by the roaster. Once the vacuum-sealed bag is opened, the beans should be stored in an airtight container in a cool, dry location. The opened bag of beans should be used within 10-15 days.
  • Page 21 DO NOT Change your brand or blend of beans without scheduling a calibration service call with Concordia. All espresso beans differ, and your machine must be re-calibrated by a Concordia Certified Technician if you change espresso beans. A Calibration Service Call is not covered under the Machine Warranty or Extended Service Agreement.

  • Page 22: Milk And The Milk System

    Milk and the Milk System On-Board Refrigeration Unit The Model 1500s/i espresso machine features an on-board refrigeration unit, to house the milk used for drinks. The refrigeration unit is designed to accommodate a single, standard 1-gallon milk container. WARNING : Do NOT use any type of flavored milk in the milk delivery system.

  • Page 23: Espresso Overview

    Espresso Overview What is espresso? The term espresso is used to describe more than just a drink. It’s a roast of beans It’s a brewing method It’s a beverage It’s a Roast of Beans Espresso refers to coffee beans that have been specifically roasted for use in espresso machines.

  • Page 24: Cleaning And Maintenance

    Concordia recommends performing the daily maintenance and cleaning at the close of each business day. The Model 1500s/i is equipped to monitor the elapsed time and number of drinks poured between cleaning cycles.

  • Page 25: Daily Maintenance

    • Clean the drain grate and drain tray • Use only Concordia cleaning products Clean the Milk and Brew Group Systems Pressing the CLEAN button will cause the machine to run the daily clean cycle. The milk clean cycle will run first, followed by the shutdown clean cycle, which cleans the brew group.
  • Page 26 Clean the Drain Tray and Grate Remove drain grate and clean with hot soapy water to remove milk residue. Grate can be placed in the dishwasher, if desired. Clean drain tray with soapy water and/or sanitizer. Clean Exterior Machine Surfaces Use a clean towel or paper towel and sanitizer to clean the doors and front panel of the machine.

  • Page 27: Monthly Maintenance

    Preventative Maintenance must be performed every 10,000 drinks by a Concordia Certified Technician. The Model 1500s/i is equipped to monitor the total drink statistics, and display a PM REQUIRED message when the machine reaches 10,000 drinks.

  • Page 28: Upper Piston O-Ring Replacement Procedure

    Upper Piston O-Ring Replacement Procedure Replacement of the upper piston o-ring is required every 5,000 drink cycles. When the message REPLACE O-RING SEE USER’S GUIDE is displayed, follow the procedure described below. 1. Turn unit off at power switch 2. Open the grounds bin door 3.

  • Page 29: Priming The Water Delivery System

    When SELECT DRINK is displayed, press and hold the HOT WATER button for 5 seconds or until water dispenses from the product outlet. If water is not dispensed within 10 seconds, call Concordia Customer Service. MSDS Material Safety Data Sheets (MSDS) are provided with all cleaning products.

  • Page 30: Troubleshooting Guide

    Troubleshooting Guide WHAT TO DO MACHINE SYMPTOM Check milk level. Verify milk tubes are in milk container(s). Inspect milk tube for kinks, obstructions, holes. No milk flow Clean dispensing nozzle. Verify milk pump assembly is operational by pressing HOT MILK button and observing milk flow from dispensing nozzle.
  • Page 31 WHAT TO DO MACHINE SYMPTOM Verify machine is plugged in and turned on. Can’t turn unit ON, no response from ON/OFF Verify MAIN ON/OFF power switch is on. button on front panel Verify main circuit breaker is not tripped. Measure temperature of drink in the center of a paper cup.

  • Page 32: Faq

    How do I change the cup size? For example, I want to change from a 10oz to a 12oz cup. You must call Concordia to schedule a Calibration Service call, and a Concordia Certified Technician will adjust your machine to the new drink size.
  • Page 33 They retain their oils for a full-flavored drink. What is the difference between the drink types? For complete information about the various drinks your Concordia machine can dispense, see page 10. Can I use eggnog in the machine around the holidays? No.

  • Page 34: Machine Warranty

    Monday through Friday, except holidays). If limited warranty service is required outside normal business hours, you will not be charged for parts but you will be charged for labor at Concordia’s scheduled rates. The foregoing limited warranty represents the full extent of Concordia’s liability with respect to the goods.
  • Page 35 (a) of merchantability, (b) of fitness for a particular purpose, or (c) arising from course of performance, course of dealing, or usage of trade. In no event shall Concordia’s liability exceed the amount of the purchase price for the goods.
  • Page 38 Customer Service Concordia Coffee Systems Sales USA (800) 778-0990 1287 120 Avenue NE USA (800) 995-9019 (425) 453-2868 Bellevue, WA 98005 (425) 453-2800 PN 2900-124 Rev C...
