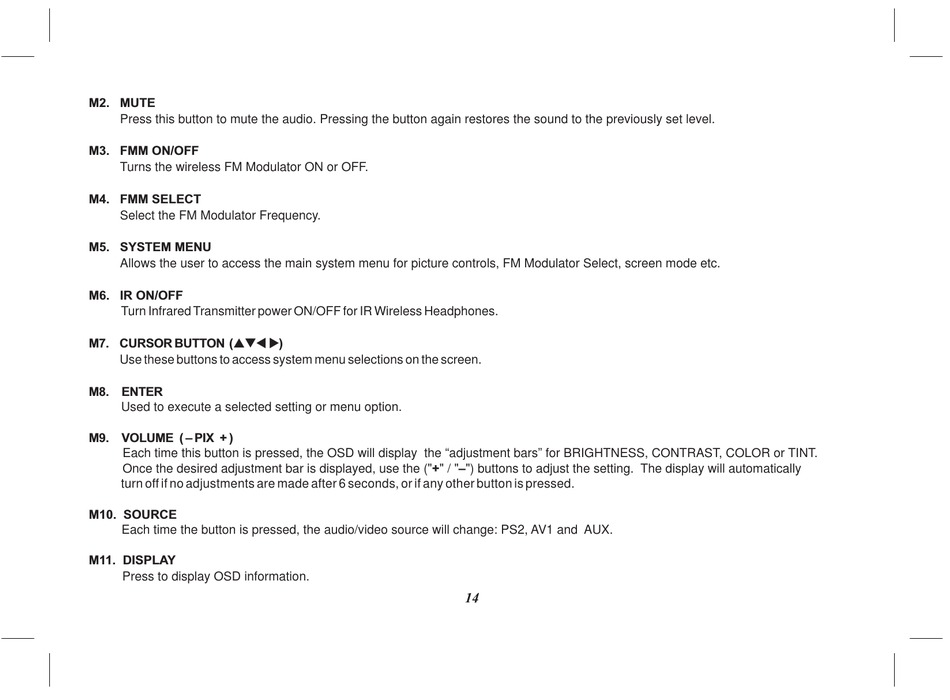

M2. MUTE
Press this button to mute the audio. Pressing the button again restores the sound to the previously set level.
M3. FMM ON/OFF
Turns the wireless FM Modulator ON or OFF.
M4. FMM SELECT
Select the FM Modulator Frequency.
M5. SYSTEM MENU
Allows the user to access the main system menu for picture controls, FM Modulator Select, screen mode etc.
M6. IR ON/OFF
Turn Infrared Transmitter power ON/OFF for IR Wireless Headphones.
pqt u
M7. CURSOR BUTTON (
Use these buttons to access system menu selections on the screen.
M8. ENTER
Used to execute a selected setting or menu option.
M9. VOLUME ( – PIX + )
Each time this button is pressed, the OSD will display the "adjustment bars" for BRIGHTNESS, CONTRAST, COLOR or TINT.
Once the desired adjustment bar is displayed, use the (" " / " ") buttons to adjust the setting. The display will automatically
turn off if no adjustments are made after 6 seconds, or if any other button is pressed.
M10. SOURCE
Each time the button is pressed, the audio/video source will change: PS2, AV1 and AUX.
M11. DISPLAY
Press to display OSD information.
)
+
–
14
