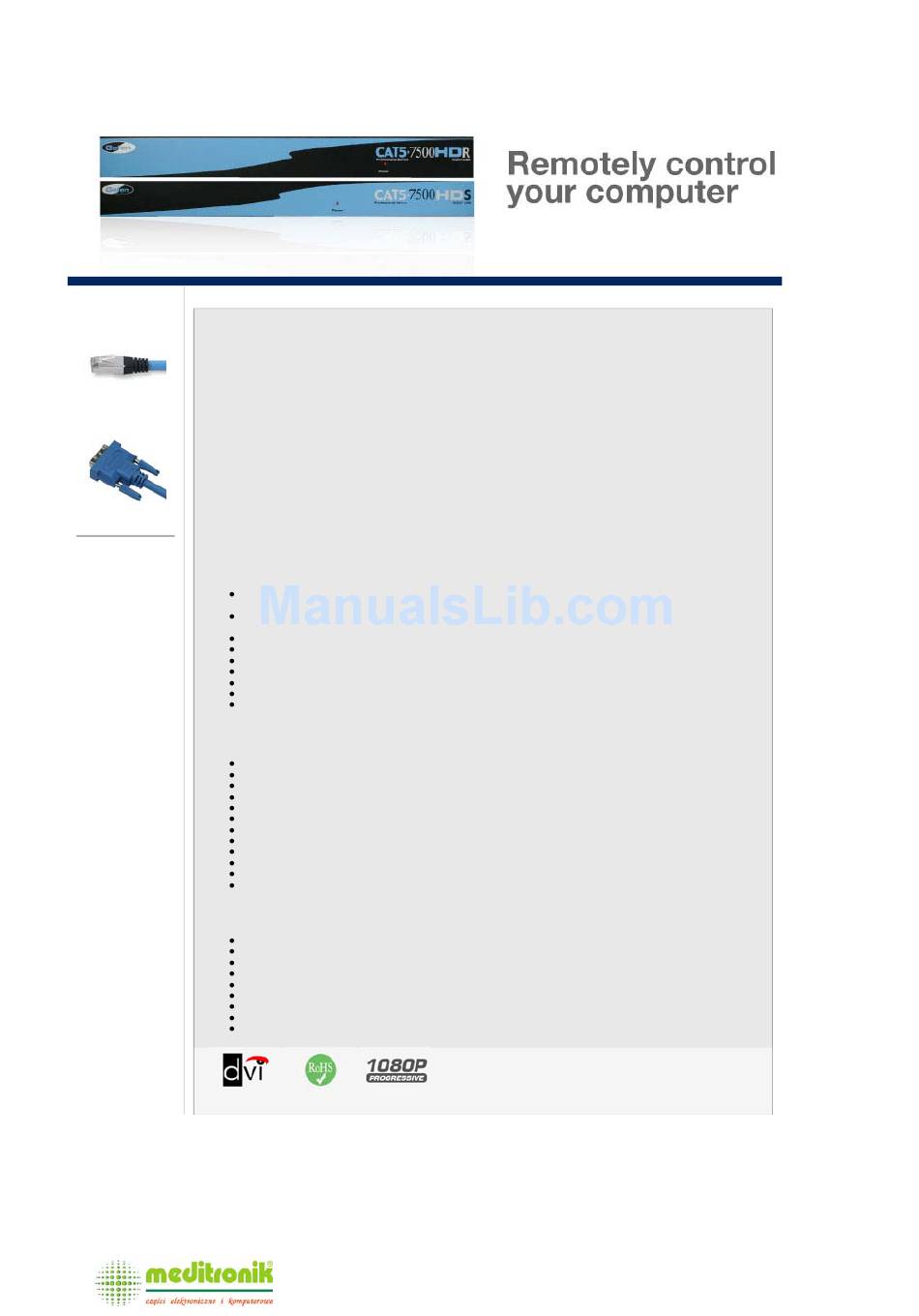

CAT5•7500HD
Accessories
The Professional Series CAT5•7500HD KVM (keyboard, video, mouse) extender sends two digital
video displays plus accompanying peripherals away from the computer so you can operate in
silence or locate your CPU in a separate and secure location. It supports two DVI displays, four
USB devices and/or PS/2 keyboard/mouse, RS-232 for serial communication systems, two audio
devices and an additional microphone port. Industry standard CAT-5e cables are used to connect
your computer to the remote devices at distances up to 200 feet. High definition digital resolutions
up to 1920x1200 are supported.
CAT-5 Cables
How It Works
The CAT5•7500HD sender connects to your computer with the supplied cables. The receiver
connects to your DVI displays and peripherals - up to 200 feet away. Multiple CAT-5 cables
connect the sender (computer) and receiver (peripherals) to each other.
The CAT5•7500HD is HDCP compliant.
DVI Cables
DVI, HDCP & HDMI Defined
Features:
Extends any DVI compliant device up to 150 feet (45 meters) from the computer at
1920x1200
Extends any DVI compliant device up to 200 feet (60 meters) from the computer at
1280x1024
Extends USB 1.1 compliant devices up to 200 feet
Uses CAT-5e cable for DDC and control signals
Video is transmitted digitally for zero signal loss
Supports resolutions up to 1080p, 2K, and 1920 x 1200
Supports DDWG standard for DVI compliant monitors
Includes rack ears
HDCP compliant
Specifications:
Video Amplifier Bandwidth: 165 MHz
Single Link Range: 1080P/1920 x 1200
Input Video Signal: 1.2 volts p-p
Input DDC Signal: 5 volts p-p (TTL)
DVI Connector: DVI-I (29 pin) female (digital only)
USB Input: USB type "B" connector
USB Output: two USB type "A" connectors
Link Connector: RJ-45 Shielded
Power Supply: 5V DC
Power Consumption: 20 watts (max)
Dimensions: 17"W x 1.75" H x 4.375" D
Shipping Weight: 10 lbs.
Package Includes:
CAT5•7500HD-S
CAT5•7500HD-R
Two 6 foot DVI Cables
Two 6 foot PS/2 Cables
One 6 foot USB Cable
One 6 foot Audio Cable
One 5V Power Supply
Rack Ears
User's Manual
Dystrybucja i sprzedaż: Meditronik Sp. z o.o.
02-952 Warszawa, ul. Wiertnicza 129, tel. (+48 22) 651-72-42, fax (+48 22) 651-72-46
http://www.meditronik.com.pl
e-mail: office@meditronik.com.pl
EXT-CAT5-7500HD
Advertisement
Table of Contents
Related Manuals for Gefen CAT5-7500HD
Summary of Contents for Gefen CAT5-7500HD
-
Page 1: Specifications
One 6 foot USB Cable One 6 foot Audio Cable One 5V Power Supply Rack Ears User's Manual EXT-CAT5-7500HD Dystrybucja i sprzedaż: Meditronik Sp. z o.o. 02-952 Warszawa, ul. Wiertnicza 129, tel. (+48 22) 651-72-42, fax (+48 22) 651-72-46 http://www.meditronik.com.pl e-mail: office@meditronik.com.pl... - Page 2 CAT5 • 7500HD U S E R M A N U A L www.gefen.com...
- Page 3 Notice Gefen Inc. reserves the right to make changes in the hard ware, packaging and any accompanying doc u men ta tion without prior written notice. CAT5•7500HD is a trademark of Gefen Inc. © 2006 Gefen Inc., All Rights Reserved...
-
Page 4: Table Of Contents
TABLE OF CONTENTS Introduction and Operation Notes How it Works CAT5•7500HD Front Panel Descriptions CAT5•7500HDS Back Panel Layout CAT5•7500HDS Back Panel Functions CAT5•7500HDR Back Panel Layout CAT5•7500HDR Back Panel Functions CAT5•7500HD - Wiring Diagram CAT5 Link Cable Wiring Diagram Service Switch Usage Guide Frequently Asked Questions Terminology System Specifi... -
Page 5: Operation Notes
Thank you for purchasing the new ex•tend•it CAT5•7500HD series by Gefen, Inc. The ex•tend•it CAT5•7500HD by Gefen allows users the benefi ts of extending USB, audio in, audio out, PS/2, RS232, and video signals beyond the desktop. In a growing number of applications, broadcast stations and production facilities there is a need to locate a computer remotely, from the keyboard, mouse, and video monitor. -
Page 6: How It Works
HOW IT WORKS CONTENTS The CAT5•7500HD system consists of: --- (1) CAT5•7500HDS (sender unit) --- (1) CAT5•7500HDR (receiver unit) --- (2) 5 VDC power supply --- (2) DVI cables (6FT) --- (1) USB cable (6FT) --- (2) PS/2 cables (6FT) --- (1) Audio cable (6FT) --- (1) Rack ears --- (1) User Manual... -
Page 7: Cat5•7500Hd Front Panel Descriptions
CAT5•7500HDS FRONT PANEL DE SCRIP TIONS Front Panel Function Descriptions Power On Indication - Indicates that the unit is on and plugged in. CAT5•7500HDR FRONT PANEL LAYOUT Front Panel Function Descriptions POWER ON INDICATOR - Indicates that the unit is on and plugged in. -
Page 8: Cat5•7500Hds Back Panel Layout
CAT5•7500HDS BACK PANEL LAYOUT... - Page 9 CAT5•7500HDS BACK PANEL LAYOUT POWER - 5 VDC external power supply CAT5 Video 1 - RJ-45 input extends DVI input 1 with CAT-5 cable CAT5 USB/DDC1 - RJ-45 input extends USB and DDC1 signals with CAT-5 cable DVI IN 1 - DVI Input connects to your computer with the supplied DVI cable CAT5 Video 2 - RJ-45 input extends DVI input 2 with CAT-5 cable CAT5 USB/DDC2 - RJ-45 input extends USB and DDC2 signals with CAT-5 cable...
-
Page 10: Cat5•7500Hdr Back Panel Layout
CAT5•7500HDR BACK PANEL LAYOUT... -
Page 11: Cat5•7500Hdr Back Panel Functions
CAT5•7500HDR BACK PANEL FUNC TIONS POWER - 5 VDC external power supply CAT5 USB/DDC1 - RJ-45 input extends USB and DDC1 signals with CAT-5 cable CAT5 Video 1 - RJ-45 input extends video input 1 with CAT-5 cable DVI OUT 1 - DVI output connects to the monitor 1 for local video CAT5 USB/DDC1 - RJ-45 input extends USB and DDC1 signals with CAT-5 cable CAT5 Video 2 - RJ-45 input extends video input 2 with CAT-5 cable... -
Page 12: Cat5•7500Hd Wiring Diagram
CAT5•7500HD WIRING DIAGRAM... -
Page 13: Cat5 Link Cable Wiring Diagram
CAT5 LINK CABLE - WIRING DIAGRAM... -
Page 14: Service Switch Usage Guide
SERVICE SWITCH USAGE GUIDE Gefen CAT5 HD products (sender and receiver) both contain a pair of service switches (also called dip switches) located underneath the unit. These service switches are used to select from sets of confi gurations that will equalize the signal to best match the conditions in your setup. -
Page 15: Frequently Asked Questions
TERMINOLOGY Frequently Asked Questions What kind of CAT-5e cable should I be using? Solid core CAT-5e cable rated at 350 Mhz, terminated in 568a or 568b is the minimum requirement. CAT-6 cables are also a viable cable to use. Higher resolutions and transmission lengths greater then 80 feet might require low skew cables for optimum performance. - Page 16 What kind of CAT-5e cable should I be using? Solid core CAT-5e cable rated at 350 Mhz and terminated in 568a or 568b is the minimum requirement. For resolutions greater than 1280x1024 or 1080i, Gefen recommends solid CAT-6 cables. Why does the CAT5 sender unit have a HDMI connector on the input? A HDMI connector was used on the input to optimize space on the board by using the smaller connector.
- Page 17 SPECIFICATIONS Video Amplifi er Bandwidth ................1.65 GHz Single Link Range ................1080p / 1920 x 1200 Input Video Signal ..................1.2 volts p-p Input DDC Signal .................. 5 volts p-p (TTL) DVI Output Connector Type ........DVI-I (29 pin) female (digital only) Link Connector ..................
-
Page 18: Warranty
Gefen Inc. warrants the equipment it manufactures to be free from defects in material and workmanship. If equipment fails because of such defects and Gefen Inc. is notifi ed within two (2) year from the date of shipment, Gefen Inc. will, at its option, repair or replace the equipment, provided that the equipment has not been subjected to mechanical, electrical, or other abuse or modifi...
