Prestige 07S3BP Programming Manual

Transmitter Programming Guide
These transmitters makes use of icons (symbols) to identify the reac-
tion your security system/keyless entry/and or remote start system,
where applicable, will have when any icon (button) is pressed.
These icons are programmed at time of installation to meet the needs of
the individual and to complement the vehicle that the system is installed
in. To replace a transmitter or add transmitters, please follow the
programming instructions listed on the pages of this manual.
RECEIVER
BUTTON
CHANNEL
1
2
1
3
3
*4
*5
* Where So Equipped

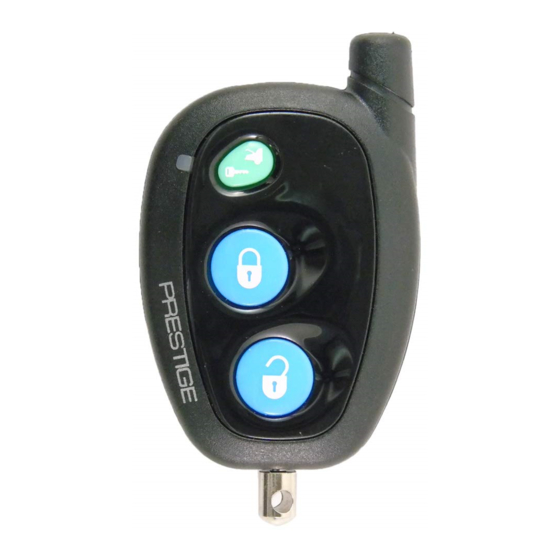

Model 07S3BP
SYSTEM FUNCTION
Lock And Arm Alarm, also initiate and
terminates *Panic
Unlock And Disarm, also initiates and
terminates *Panic. Programmable to
unlock drivers door and or all doors.
Lock and arm/unlock and disarm. May
be programmed to unlock driver's door
or all doors. Also will initiate and
terminate *Panic.
Pulsed or switched output to control
Remote Trunk Release or optional
device connected to channel 3.
When pressed and release two times,
will provide pulsed output or activate the
Remote Start option when installed.
When so equipped, this button can be
used to operate an optional device
connected to channel 4.
When so equipped, this button can be
used to operate an optional device
connected to channel 5.
1
128-8112
1 of 8
