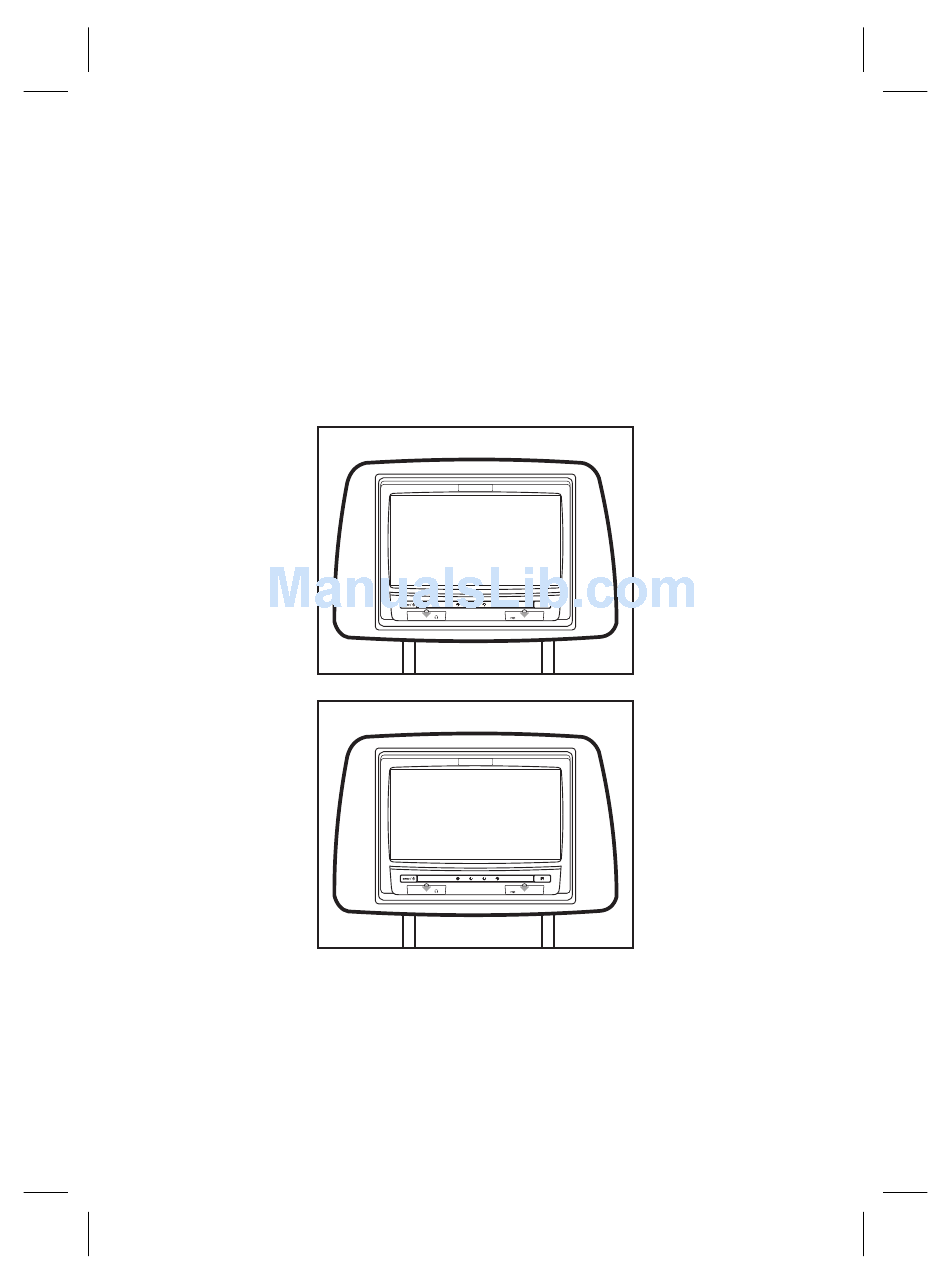

Page 1: Installation Guide
HR7011PKG Two Custom Vehicle Headrests with 7” LCD Monitors Touch Screen Control and Built-in DVD Player for Rear Entertainment Installation Guide 128-8939... -
Page 2: Important Notice
Damage to air bag wiring can result in personal injury to vehicle occupants. If you have any questions regarding wire routing or installation in a vehicle, please contact Audiovox Technical Support at 1-800-225-6074. When connecting power and ground in a mobile video installation, insure that the ACC wire is fused at the point where it is connected to the vehicle ACC wiring. - Page 3 MATERIAL TO USE IN THIS PACKAGE: 1) HR7011PKG System Monitor (P/N HR7011M) (2 pcs) Monitor with touch screen control and DVD Player M1/M2 Note: The HR7011M touch screen monitor has been designed to be interchangeable from one headrest to the other.
- Page 4 HR7011PKG SYSTEM OVERVIEW 1) The HR7011PKG SYSTEM is a versatile audio / video system with built-in DVD player HR7011PKG which includes two touch screen monitors, that can accept an Audio / Video input and independent AUX input. A separate audio output is provided for connecting an optional FM Modulator to the vehicle’s radio.
- Page 5 9) Pivot the screen until a comfortable viewing angle reached. The internal lock limits the screen to a maximum adjustment of 19 degrees from closed position. The headrest itself can be tilted forward to help achieve a comfortable viewing position. PUSH UP Internal Lock Shaft Angle...
-
Page 6: Vehicle Preparation
The mounting method and the location will vary from vehicle to vehicle, so this manual will only focus on the installation of the Master and Satellite Monitors in the supplied configuration. The best location for the HR7011PKG System components are: a. - Page 7 Make sure that no wiring was pinched or connected improperly during the final installation. Wireless FM Modulator The HR7011PKG is equipped with a built-in wireless FM Modulator*, that allows you to listen to the DVD audio signal by tuning your vehicle’s radio to the selected frequency, ( 88.1MHz,...
- Page 8 ELECTRONICS INSTALLATION GUIDE Monitor Unit Install Monitor Unit to Headrest (Master Monitor) (Satellite Monitor) (Master Monitor / M1) (Satellite Monitor / M2) Press the release tab to release Hold the Eject Card then Monitor must be in closed the monitor completely. press monitor and pull it position.
- Page 9 10 Move the locking tab to right position to fully insert the monitor into the With Screw (x4) headrest...
- Page 10 HR7011PKG WIRING DIAGRAM M1 Monitor M2 Monitor Master Monitor Satellite Monitor 12 Pin AV Adapter Cable BLUE YELLOW GREEN 2 PIN DC POWER CABLE AV Input AV Output INTERFACE BOX FM ANTENNA OPTIONAL Relay Box SIRSWB Relay Box for wireless FM MOD See antenna note below See the instructions supplied with the SIRSWB for installation.
- Page 11 This page intentionally left blank.
- Page 12 © 2011 Audiovox Electronics Corp., Hauppauge, NY 11788 128-8939...
