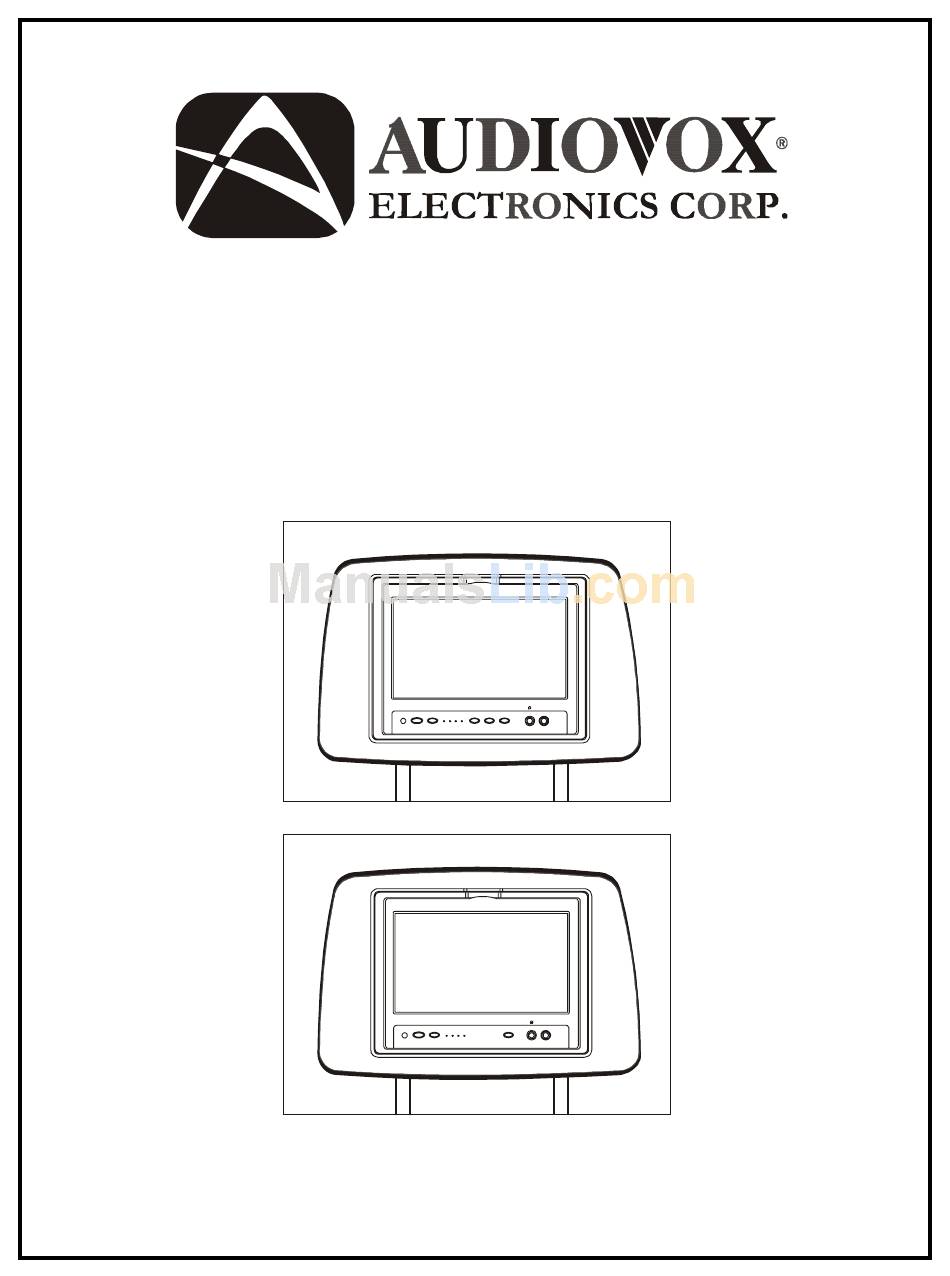

- Page 1 HRDV700 Two 7" Monitors with Built-in DVD player and Two Audio/Video Input Capability Mounted in Vehicle Specific Headrests S C R E E N P O W E R M O D E P LA Y S TO P S O U R C E...
- Page 2 IMPORTANT An LCD panel and/or video monitor may be installed in a motor ve- hicle and visible to the driver if the LCD panel or video monitor is used for vehicle information, system control, rear or side observation or navigation. If the LCD panel or video monitor is used for television reception, video or DVD play, the LCD panel or video monitor must be installed so that these features will only function when the vehicle is in ‘park’...
- Page 3 HRDV700 system The HRDV700 system is composed of two headrest units. The master unit has a built-in DVD player and the satellite unit has a monitor that is used to either watch the DVD movie that is playing in the master unit or play a video game plugged into the AV1 input or AUX input.
- Page 4 Controls on Master Monitor and Master Remote Control Unit Master Monitor Panel Controls Figure 1. S C R EE N P OW ER M O D E P LAY S TO P S OU R C E 1. Remote Control Sensor (IR) 2.
- Page 5 3. ANGLE Button – Press this button to display and select the camera angles. Each time the button is pressed, the angle will change. 4. SUBTITLE Button – Press this button to display and select the subtitle language in DVD. Each time the button is pressed, the subtitle language changes.
- Page 6 37. FM ON/OFF Button – Press this button to turn the FM Modulator power ON/OFF. 38. FM SELECT Button – Press this button to select the FM modulator Frequency (Frequency 1, 88.3MHz, Frequency 2, 88.7MHz, Frequency 3, 89.1MHz). NOTE: VCP function buttons are for Audiovox VCP'S only.
- Page 7 Controls on Satellite Monitor and Satellite Remote Control Unit Satellite Monitor Panel Controls Figure 1. S C R EE N P OW ER M O D E S OU R C E 1. Remote Control Sensor (IR) 2. Power ON/OFF Button 3.
- Page 8 OPERATION INSTRUCTION Button Functions (HRDV700M Master Unit) There are five (5) buttons on the front of the HRDV700M Master unit: POWER, SCREEN MODE, PLAY, STOP, SOURCE. 1) POWER 2) SCREEN MODE 3) PLAY 4) STOP 5) SOURCE Button Functions (HRDV700S Satellite Unit) There are three (3) buttons on the front of the HRDV700S Satellite unit: POWER, SCREEN MODE, SOURCE.
-
Page 9: Dvd Settings And Adjustments
DVD Settings and Adjustments This chapter describes how to set and adjust various DVD functions using the on-screen SETUP menu. Using the Setup Menu The Setup Display is used for the initial setup, select the DVD playback screen rating, and set the various outputs. -
Page 10: New Password
Settings for Parental (Parental Control) This section of the SETUP Menu allows the user to select a rating limit* from G to NO_PARENTAL. The Parental Control function allows you to limit viewing to your preference. 1. Press and use the G (Children) PG 13 NC-17... -
Page 11: Playing Audio Cds
Playing Audio CDs When playing an audio CD, the DISPLAY Banner appears automatically. It displays the current track and the amount of the time for the track playing. The total amount of time on the disc and the current time running on the disc. Press the DISPLAY button on the remote to change the DISPLAY Banner. -
Page 12: Playing Mp3 Discs
Playing MP3 Discs MP3 is a format for storing digital audio. An audio CD-quality song can be compressed into the MP3 format with very little loss of quality, while taking up much less space. CD-R discs that have been encoded in MP3 format can be played on your DVD player. Press the DISPLAY button on the remote to DISPLAY Banner. - Page 13 Selecting a Play Mode You can choose the order that the songs will play on a disc temporarily. The FOLDER play mode is the default. To access the play mode options, press STOP if the disc is playing. Press the right arrow button until the PLAY MODE option is highlighted.
-
Page 14: Troubleshooting
Troubleshooting PROBLEM Poor in vehicle radio reception (FM modulator installed) IR sensor inoperative Disc won’t play Play starts, but then stops immediately No sound or distorted sound Can’t advance through a movie The icon ( appears on screen Picture is distorted No forward or reverse scan... -
Page 15: Monitor Specifications
1. Keep the monitor clean and dry. 2. Always seek qualified personnel to perform repairs. Never attempt your own repairs. 3. Do not drop the monitor or expose to strong impacts. 4. Do not expose to direct sunlight for extended periods of time. MONITOR SPECIFICATIONS 1. -
Page 16: 12 Month Limited Warranty
12 MONTH LIMITED WARRANTY AUDIOVOX ELECTRONICS CORP. (the Company) warrants to the original retail purchaser of this product that should this product or any part thereof, under normal use and conditions, be proven defective in material or workmanship within 12 months from the date of original purchase, such defect(s) will be repaired or replaced with reconditioned product (at the Company's option) without charge for parts and repair labor. - Page 20 For C ustom er S ervice Visit O u r W ebsite A t P ro duct Inform atio n, P h oto s, FA Q ’s O w ner’s M anuals © Copyright 2004 Audiovox Electronics Corp. 150 Marcus Blvd. Hauppauge, NY 11788 128-6913...
