Summary of Contents for Audiovox HR7008PKG

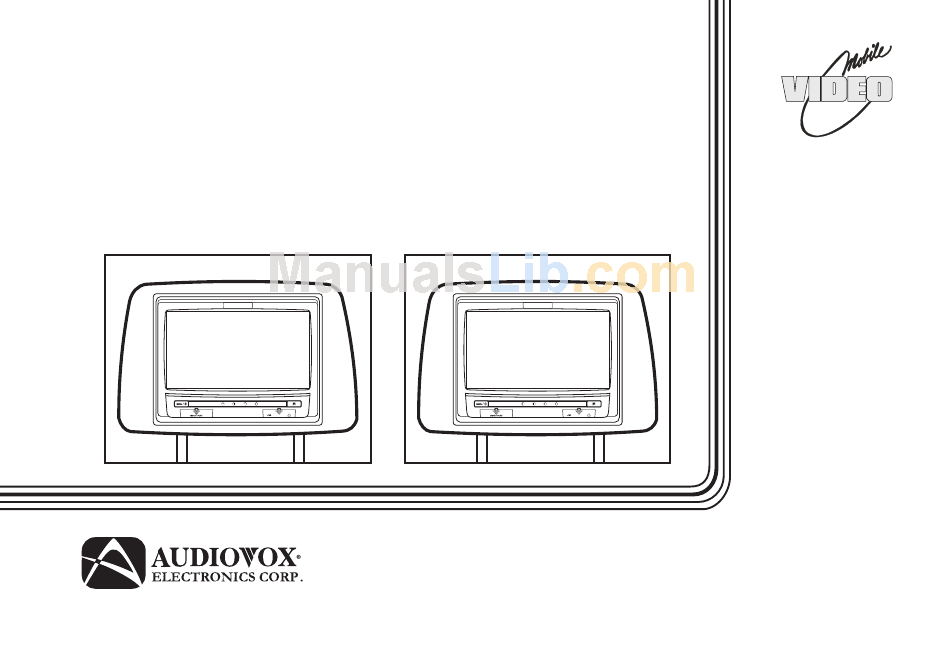

- Page 1 HR7008PKG Two Specific Vehicle Headrests With 7" LCD Monitors Touch Screen control and Built-In DVD Player for Rear Seat Entertainment OPERATION MANUAL 128-8312...
- Page 2 If you have any questions regarding wire routing or installation in a vehicle, please contact Audiovox Technical Support at 1-800-225-6074. When connecting power and ground in a mobile video installation, insure that the ACC wire is fused at the point where it is connected to the vehicle ACC wiring.
- Page 3 HR7008PKG The HR7008PKG contains two vehicle specific head-rests. Each has a 7" Monitor with touch screen control and built-in DVD Player. This system allows the users to either watch individual DVD s or watch the same DVD on both monitors. Both users can also share others program.
- Page 4 HR7008PKG SYSTEM OVERVIEW 1) The HR7008PKG SYSTEM is a versatile audio / video system with built-in DVD player HR7008M1/M2 which includes two touch screen monitors, that can accept an Audio / Video input and independent AUX input. A separate audio output is provided for connecting an optional FM Modulator to the vehicle's radio.
- Page 5 9) Pivot the screen until a comfortable viewing angle reached. The internal lock limits the screen to a maximum adjustment of 19 degrees from closed position, the headrest itself can be tilted forward to help achieve a comfortable viewing position. PULL UP SMART PORT...
-
Page 6: Eject Button
Control Function Descriptions for M1 and M2 Monitor SMART PORT M1 / M2 Panel Control 1. DVD disc insertion slot 2. EJECT Button 3. SD Card 4. MENU/POWER Button with Power Indicator LED 5. Smart Port 6. IR Transmitter LEDS 7. -
Page 7: Memory Card
OSD Touch Screen for HR7008 M1/M2 Main page To turn on the unit by pressing the power button at left bottom. i) Touch the panel to call the MENU display or press power button again. ii) Screen turn on in blue screen with M1 unit: DVD, M2, PICTURE... -
Page 8: Picture Control
PICTURE CONTROL Touch the screen or MENU to select PICTURE CONTROL display. The contents are selecting BRIGHTNESS, CONTRAST, COLOR, TINT, RESET & OK. For adjustment at bottom key by touching +(higher) or - (lower) then touch OK to exit page. SCREEN MODE Touch the screen or MENU to select SCREEN MODE display. -
Page 9: Battery Installation
REMOTE CONTROL WITH WIRELESS GAME CONTROLLER OPERATION Back View DIRECTION KEYS M1/M2 P1/P2 RESET START Battery Installation Before attempting to operate your Remote Control, install the batteries as described below. 1) Turn the Remote Control face down. Using your finger, slide the battery cover off in the direction of the arrow. -
Page 10: Main Function Description
MAIN FUNCTION DESCRIPTION POWER EJECT SOURCE SYSTEM MENU SOURCE AUTO MEMORY SKIP/ SEARCH VOLUME ERASEL DISPLAY WRITE NIGHT CHANNEL MUTE ON/OFF SELECT ON/OFF RETURN REPEAT ZOOM AUDIO MENU SETUP SUBTITLE Function control is available on the unit or touch screen and the remote control. - Page 11 AUTO MEMORY Button (AUTO PROGRAM Button)** When the AUTO MEMORY button is pressed, all channels are searched and channels that are detected with signals of sufficient levels are automatically stored in memory. SKIP / SEARCH Button** This button selects between SKIP and SEARCH mode. In "SKIP mode" the TV tuner will tune and stop on channels that are programmed into memory when the CHANNEL UP / DOWN buttons are used.
- Page 12 AUDIO Button Press to display and select the available AUDIO languages in DVD mode. Each time you press the button, the language changes. Note: The languages for audio vary from disc to disc. MENU Button Allows the user to access the DVD (DVD MODE). SUBTITLE Button Press to display and select the available subtitle language in DVD mode.
- Page 13 OK Button (ENTER)* Used to implement a selected setting or menu option. CURSOR / CHANNEL UP DOWN ( Use these buttons to navigate the menu selections on the screen. Use the CH to increase the channel number and use CH SETUP Button Press to display the Setup Menu which allows the user to change the DVD player options such as TV DISPLAY, OSD LANGUAGE, PARENTAL CONTROL etc.
- Page 14 31. MUTE Button* Press this button to mute all the audio. Pressing the button again restores the sound to the previously set level. DAY / NIGHT Mode Button** This control toggles the unit between "Day" and "Night" LCD illumination modes. In the "Day" mode, the LCD backlit intensity is at maximum.
-
Page 15: Settings And Adjustments
SETTINGS AND ADJUSTMENTS The Setup Menu contains features and options that let you customize your DVD player. For example, you can set a language for the on- screen display or prevent DVD playback for children. Using the Setup Menu 1. Press the SETUP button on the remote. The Setup Menu appears on the screen as shown per diagram. Language OSD Language : English... - Page 16 LANGUAGE SETUP Language for On-Screen Display OSD MENU: The OSD MENU setup allows you to select the language for the on-screen display. The user can either select English, French, Spanish, German or Italian for the OSD language. SUBTITLE SETUP select "SUBTITLE" using button, then press desire using button, then press "OK"...
-
Page 17: Rating Setup
TV Type The TV TYPE setup allows you to select the system to fit to the color system of the TV to be connected. NTSC - Select this type for NTSC TV PAL - Select this type for PAL TV Multi - Select this type for multi-system TV RATING SETUP Rating... -
Page 18: Misc Setup
Misc SETUP select "MISC" using button, then press using button, then press "ENTER" to confirm the setting. Press button to return. Load Factory Load Factory allows you to reset all options to factory settings. * This function will not affect the Rating control settings. Screen Saver ON -Screen saver will appear OFF -Screen saver will not appear... -
Page 19: Playing Mp3 Discs
Playing MP3 Discs MP3 is a format for storing digital audio. An audio CD-quality song can be compressed into the MP3 format with very little loss of quality, while taking up much less space. CD-R discs that have been encoded in MP3 format can be played on your DVD player. The DVD player plays the songs in the order they were burned on to the disc. - Page 20 Flat Mode: play the entire disc This mode is always on (default). During the Flat Mode all the data folders with Mp3, JPEG & movies will be played in sequence. If the Flat Mode function is off, it will only play the selected folder; other folders are disabled. Repeat: play repetitive Repeat function has 4 options: Off, Single, Folder, All.
- Page 21 Edit Mode Program View Add to Program Notice: Edit Mode/Program view/Add to program functions are all related and can not be implemented during play mode or any other program function. Method: Make sure disc playback is off. Move cursor to Edit Mode function and press OK. After Edit Mode is selected, open the folder and select the songs which will be compiled.
-
Page 23: Source Feature
Audio / Video Inputs and Outputs Audio Output The Audio output will provide the Audio signal from the HR7008M1 unit. This output can be connected to your car Audio input or a wired FM Modulator (buit-in WFMM Box) Source Feature HR7008M1 Sources: DVD >... -
Page 24: Troubleshooting
TROUBLESHOOTING... -
Page 25: Monitor Specifications
CAUTION 1. Keep the monitor clean and dry. 2. Always seek qualified personnel to perform repairs. Never attempt your own repairs. 3. Do not drop the monitor or expose to strong impacts. 4. Do not expose to direct sunlight for extended periods of time. MONITOR SPECIFICATIONS 1. -
Page 26: 12 Month Limited Warranty
Applies to Audiovox Mobile Video Products AUDIOVOX ELECTRONICS CORP. (the Company) warrants to the original retail purchaser of this product that should this product or any part thereof, under normal use and conditions, be proven defective in material or workmanship within 12 months from the date of original purchase, such defect(s) will be repaired or replaced with reconditioned product (at the Company's option) without charge for parts and repair labor. - Page 28 © 2008 Audiovox Electronics Corp., Hauppauge, NY 11788 128-8312...
