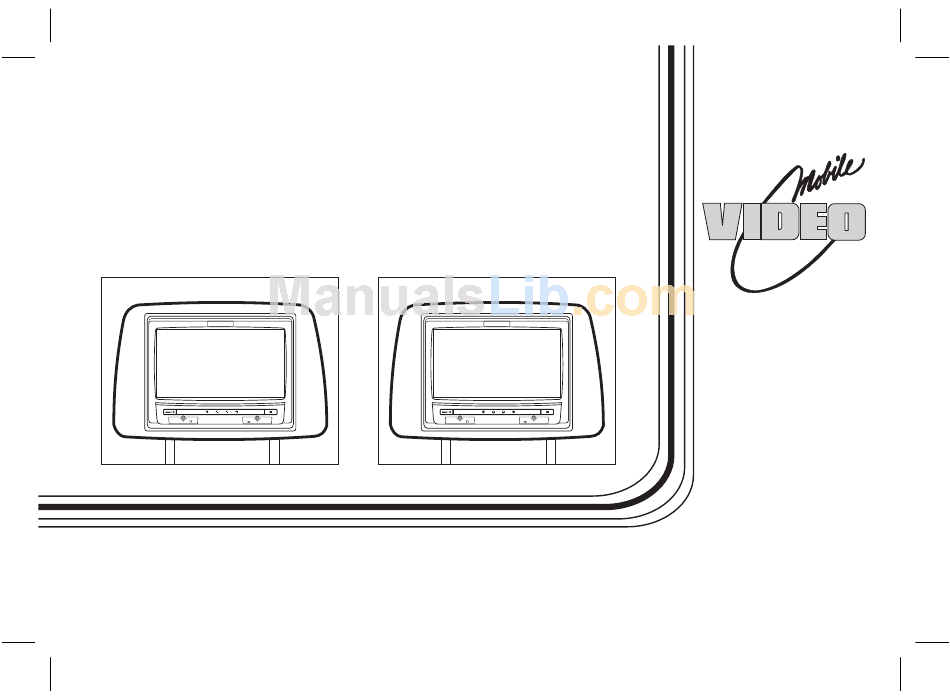

HR7011PKG
Two Custom Vehicle Headrests
with 7" LCD Monitors Touch Screen Control
and Built-in
DVD Player for Rear Entertainment
AUX
AUX
OPERATION
MANUAL
128-8938

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HR7011PKG and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Audiovox HR7011PKG

Summary of Contents for Audiovox HR7011PKG

  • Page 1 HR7011PKG Two Custom Vehicle Headrests with 7” LCD Monitors Touch Screen Control and Built-in DVD Player for Rear Entertainment OPERATION MANUAL 128-8938...
  • Page 2 IMPORTANT An LCD panel and/or video monitor may be installed in a motor vehicle and visible to the driver if the LCD panel or video monitor is used for vehicle information, system control, rear or side observation or navigation. If the LCD panel or video monitor is used for television reception, video or DVD play, the LCD panel or video monitor must be installed so that these features will only function when the vehicle is in “park”...

  • Page 3: Quick Start Guide

    HR7011PKG The HR7011PKG contains two vehicle specific headrests. Each has a 7” Monitor with touch screen controls and a built-in DVD Player. This system allows the users to either watch individual DVDs or watch the same DVD on both monitors. Both users can also share each other’s program.
  • Page 4 HR7011PKG SYSTEM OVERVIEW 1) The HR7011PKG SYSTEM is a versatile headrest system. The headrests are referred to as M1 and M2 in this manual. 2) The M1 Monitor is comprised of a 7" Touch Screen TFT LCD monitor with a built-in DVD player that allows the user to select from several sources (DVD, USB, M2, AV, AUX, MEDIA, and GAME Source).
  • Page 5 9) Press and release the screen at the top of the screen to release the screen for disc insertion. The headrest itself can be tilted forward to help achieve a comfortable viewing position. Pressing it again will lock the screen back in the closed position. PULL UP WIRED HEADPHONE 10) Insert/Eject disc.
  • Page 6 HR7011PKG Touch Screen The touch screen allows the user to start DVD play by touching PLAY MOVIE or any of the DVD menu features on the LCD screen. Some DVDs will not allow this function. One method is to use the remote control instead of the touch screen. The other method is to touch any of four corners of the screen to access the DVD menu navigation screen (see below).

  • Page 7: Controls And Indicators Diagram

    CONTROLS AND INDICATORS DIAGRAM Control Function Description for M1 and M2 Monitor M1/M2 Panel Control 1. DVD disc insertion slot 2. EJECT ( ) Button - Press this button to eject the disc 3. MENU/POWER ( 4. Wired Headphone Jack 5.
  • Page 8 Touch Screen For HR7011PKG Main Page Turn on the unit by pressing the power button located on the lower left of the unit. 1) Touch the panel then touch the Home icon to display the Main Menu. The Main Menu can also be accessed by pressing the MENU button on the unit’s...

  • Page 9: Screen Off

    Touch the Main Menu PIX icon to gain access to the display’s picture controls. The controls available are BRIGHTNESS, CONTRAST, COLOR, TINT, and RESET. Adjustment of each control is made by touching + (increase) or - (decrease) then touching (enter) to exit. COLOR The on-screen DVD menu of most DVDs can be used to select a DVD menu feature such as “Play Movie”, “Scene Select”, etc.

  • Page 10: Two-Player Games

    REMOTE CONTROL WITH WIRELESS GAME CONTROL OPERATION DIRECTION KEYS Back View M1/M2 P1/P2 SELECT RESET START GAME/REMOTE SELECTOR SWITCH BATTERY COVER Battery Installation Before attempting to operate your remote control, install the batteries as described below: 1) Turn the remote control face down. Using a finger, slide battery cover off in the direction of the arrow.

  • Page 11: Remote Control Functional Description

    REMOTE CONTROL FUNCTIONAL DESCRIPTION Function control is available on the unit and the remote control. 1. POWER ( ) Button* Press this button to turn the unit ON and OFF. MONITOR SELECT M1 Button – Sets the remote control codes to enable the control of the M1 Monitor.
  • Page 12 7. AUTO MEMORY Button (AUTO PROGRAM Button) This function is not available in this model. 8. SKIP / SEARCH Button This function is not available in this model. ERASE / WRITE Button This function is not available in this model. 10.
  • Page 13 15. AUDIO Button Press to display and select the available AUDIO languages in DVD mode. Each time you press the button, the language changes. Note: The audio languages vary from disc to disc. 16. MENU Button Pressing the MENU button in DVD mode will cause the DVD root menu to be displayed. When using a USB device, pressing the MENU button will cause the root menu to be displayed.
  • Page 14 23. SCAN FORWARD ( ) Button* Press to search in the forward direction. Press repeatedly to change the search speed from 2, 4, 8, and 16 times the normal speed. 24. NEXT ( ) Button* Press to skip to the next chapter or track. 25.
  • Page 15 30. IRT ON/OFF Button Turn the Infrared Transmitter ON or OFF for IR Wireless Headphones. Pressing M1 then IRT ON/OFF will control the IR Transmitter for M1. Pressing M2 then IRT ON/OFF will control the IR Transmitter for M2. 31. MUTE Button* Press this button to mute all the audio.

  • Page 16: Settings And Adjustments

    SETTINGS AND ADJUSTMENTS The Setup Menu contains features and options that let you customize your DVD player. For example, you can set a language for the on- screen display or control DVD playback content for children. You can use the remote control or the touch screen to navigate the Setup Menu.
  • Page 17 Subtitle Setup Select "SUBTITLE" using the button, then press the subtitle language you desire using the button, then press Press the button to return. Note : The subtitle selection is only available for discs that are recorded in the listed languages. If the selected language is not available, the player will play and display on the screen the original language contained in the disc.

  • Page 18: Rating Setup

    RATING SETUP Parental Control This item allows you to limit the content of movie playback from G to Adult. The lower the value, the more strict the control. 1. G 2. PG 3. PG – 13 4. R 5. NC – 17 6.

  • Page 19: Misc Setup

    MISC SETUP Select "M ” using the button, then press the you want to change using the button, then press Use Default Settings This option allows you to reset all options to default settings. Note: This function will not affect the Rating control settings. Screen Saver This option allows you to set the Screen Saver mode.

  • Page 20: Playing Mp3 Discs

    Playing MP3 Discs MP3 is a format for storing digital audio. An audio CD-quality song can be compressed into the MP3 format with very little loss of quality, while taking up much less space. CD-R discs that have been encoded in MP3 format can be played on DVD player. The DVD player plays the songs in the order they were burned on to the disc.
  • Page 21 Repeat The Repeat function has 4 options: Off, Single, Folder, and All. Move the cursor to the Repeat function and press OK / . Each time OK / is pressed the unit will cycle through the available options Off/Single/Folder/All are displayed in that order. The Repeat default is Off. Turn off repeat function Single Repeat the song being played until STOP is pressed.
  • Page 22 Program Mode Set the “Select Mode“ to ON. Select the desired songs from the song list on the left side of the screen. A check mark will appear next to the song. Touch “Program Mode” and select “Add”. Touch “Program” to view the play list.

  • Page 23: Dvd Basics

    DVD BASICS To get the optimum use out of the DVD player, make sure you read this section completely. Types of Discs your DVD Player will play • DVD* disc - DVD discs that contain video. • Audio disc - Audio CDs that contain musical or sound content only. •...
  • Page 24 DVD Region Code The DVD player is preset to a region code at the factory depending on where the DVD player is sold. DVDs from a different region cannot be played in this unit and the unit will display "WRONG REGION”. Region 1- USA, Canada Region 2- Japan, Europe, South Africa, Middle East, Greenland...

  • Page 25: Troubleshooting

    TROUBLESHOOTING PROBLEM IR sensor inoperative Disc won't play Play starts, but then stops immediately Picture pixelates or plays intermittently SOLUTION Verify that the batteries in the remote control are fresh. Verify that the remote sensor eye is not obstructed. Verify that M1 or M2 has been selected correctly. The disc is scratched or damaged.
  • Page 26 TROUBLESHOOTING PROBLEM No sound or distorted sound OSD Displays “Incorrect Disc Format” Touch screen operation is erratic SOLUTION Make sure your DVD player is connected properly. Make sure all cables are securely inserted into the appropriate jacks. The disc is loaded backwards. Turn the disc around so that the disc is facing towards the driver.

  • Page 27: Monitor Specifications

    CAUTION 1. Keep the monitor clean and dry. 2. Always seek qualified personnel to perform repairs. Never attempt your own repairs. 3. Do not drop the monitor or expose to strong impacts. 4. Do not expose to direct sunlight for extended periods of time. MONITOR SPECIFICATIONS 1.
  • Page 28 For Customer Service Visit Our Website At .audiovox.com Product Information, Photos, FAQ’s Owner’s Manuals © 20 Hauppauge, NY 11788 Audiovox Electronics Corp., 128-8938...
