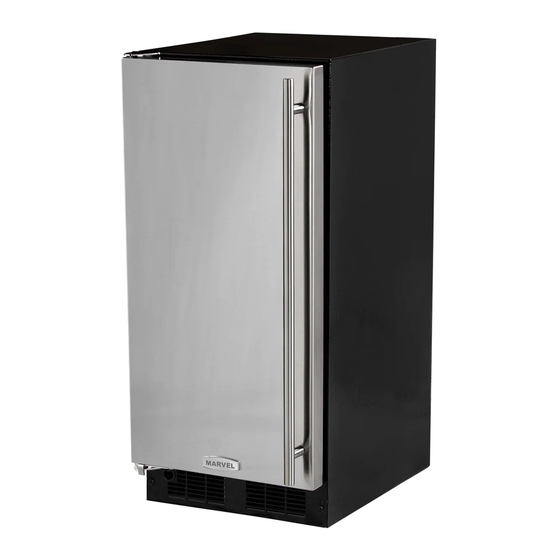

- Page 1 MARVEL Installation Operation Maintenance Instructions Ice Machines 15iM 25iM...
-
Page 2: Table Of Contents
Connecting the water supply........4 Using your ice machine.........5 Turning on your ice machine........5 Ice machine operation........5 Dimensions For 15iM Solid Door......6 Important Safety Instructions Recommended Rough in Opening Dimensions Warnings and safety instructions appearing in this For 15iM Solid Door..........6 guide are not meant to cover all possible condi- Dimensions For 25iM Solid Door...... -
Page 3: Unpacking Your Ice Machine
UNPACKING YOUR ICE MACHINE Remove Packaging Warranty Registration Your ice machine has been packed for shipment with It is important you send in your warranty registration card all parts that could be damaged by movement securely immediately after taking delivery of your ice machine or you fastened. -
Page 4: Installing Your Ice Machine
3 prong grounded receptacle required. machine condenser. For this reason it is important this area to not be obstructed and be kept clean. Marvel does not recommend the use of custom made grilles as air flow may Do not use an extension cord be restricted because of inadequate openings. -
Page 5: Connecting The Water Supply
INSTALLING THE WATER SUPPLY Water Supply Observe and follow all local building codes when install- ing this appliance. Attach the supplied water line adapter (Figure 4) to the water valve inlet on the back of the ice machine (See Figure 3). Be sure the rubber washer is in place in the inlet valve nut. -
Page 6: Using Your Ice Machine
USING YOUR ICE MACHINE Turning on the ice machine After connecting the water supply, and setting your ice ma- chine in place plug the power cord into the wall receptacle. Then place the switch located in the grille (see Figure 5) to the “ON”... -
Page 7: Dimensions For 15Im Solid Door
3-15/16” to 4-5/8” (50.09cm) (10.01 to 25.43cm) 21-25/32” (55.32cm) Recommended Rough in Opening Dimensions,15iM Solid Door Electrical Requirements: 115 volts, 3.3 amps running max. 15 amp dedicated circuit required. 3 prong grounded receptacle required. Power outlet can be located in the back wall behind unit. -
Page 8: Dimensions For 25Im Solid Door
DIMENSIONS FOR MODEL 25iM SOLID DOOR 35-21/32” (90.55cm) 16-9/16” (42.06cm) 23-11/16” (60.17cm) 14-7/8” (37.8cm) 21-25/32” (55.32cm) 34-1/4” to 34-1/2” (87 to 87.6cm) 3” to 3-1/4” 19-23/32” (7.62 to 8.26cm) (50.09cm) Recommended Rough in Opening Dimensions, 25iM Solid Door Electrical Requirements: 115 volts, 3.3 amps running max. -
Page 9: Dimensions For 25Im Solid Overlay Door
DIMENSIONS FOR MODEL 25iM SOLID OVERLAY DOOR 35-21/32” (90.55cm) 21-25/32” 14-7/8” (55.32cm) (37.8cm) 21-1/32” (53.42cm) 34-1/4” to 34-1/2” (87 to 87.6cm) 3” to 3-1/4” 19-23/32” (7.62 to 8.26cm) (50.09cm) Recommended Rough in Opening Dimensions, 25iM Solid Overlay Door Electrical Requirements: 115 volts, 3.3 amps running max. -
Page 10: Full Overlay Panel Installation Instructions
FULL OVERLAY PANEL INSTALLATION INSTRUCTIONS Step 4: Cut overlay panel Step 1: Verify door alignment Depending on the ice machine model cut the overlay The door should be parallel to the sides and top of the panel to the dimensions shown in Figure 8. ice machine. - Page 11 FULL OVERLAY PANEL INSTALLATION INSTRUCTIONS Step 6: Drill holes in overlay panel Step 8: Assemble the lock parts Remove the hinge adapter bushings from the top and Two (2) lock extensions are supplied with the lock. Use bottom door hinge adapters. (See Figure 9).Using the the longer extension for a 3/4”...
- Page 12 FULL OVERLAY PANEL INSTALLATION INSTRUCTIONS Step 9: Secure overlay panel to the door. Clearance hole through With the #8 wood screws provided fasten the overlay door gasket channel panel to the door. (See Figure 12). #8 Wood Screw Step 10: Install lock cam (Models with locks only). Attach the lock cam to the back of the lock assembly with the phillips head machine screw provided.
-
Page 13: Care And Cleaning
CARE AND CLEANING Condenser Air Flow Defrosting Instructions The machine compartment located beneath the cabinet Push the rocker switch located in the front grille to the does not require frequent cleaning; however, satisfactory “OFF” position. performance depends on adequate ventilation. Be sure Remove the ice bucket and place a towel in the lower nothing obstructs the required air flow openings in front of front area of the ice maker to absorb the defrost water. -
Page 14: Troubleshooting Guide
TROUBLESHOOTING YOUR ICE MACHINE Before You Call for Service If the unit appears to be malfunctioning, read through this manual first. If the problem persists, check the troubleshoot- Electrocution Hazard - Never attempt to repair or perform ing guide below. Locate the problem in the guide and refer maintenance on the unit until the main electrical power has to the cause and its remedy before calling for service. -
Page 15: Troubleshooting Your Ice Machine
TROUBLESHOOTING YOUR ICE MACHINE Problem Possible Cause Remedy Unit too warm or too cold inside. • Control set too warm or cold • Adjust temperature colder or warmer as required. Allow 24 hours for temperature to stabilize. • Airflow to front grille blocked. •... -
Page 16: Obtaining Service
OBTAINING SERVICE If Service is Required: • If the product is within the first year warranty period please call Marvel Customer Service at 800.223.3900 for directions on how to obtain war- ranty coverage in your area. • If the product is outside the first year warranty period, Marvel Customer Service can provide recommen- dations of service centers in your area. -
Page 17: Household Product Warranty
Limited One Year Parts and Labor Warranty Not Supplied or Designated by Marvel Marvel warrants that it will supply all necessary parts and The above warranties also do not apply if: labor to repair or replace in the end user’s home or office, any component which proves to be defective in material •... - Page 18 NOTES...
- Page 19 NOTES...
- Page 20 Northland-Marvel P .O. Box 400 1260 E. Van Deinse St. Greenville MI 48838 800.223.3900 41011771-EN Rev D All specifications and product designs subject to change without notice. Such revisions do not entitle 11/10/09 the buyer to corresponding changes, improvements, additions, replacements or compensation for...
