This Data Sheet Includes Information On
Marvel
•
Product Model Number (s):
Ice Machine:
15iM-BS
•
Dimensions (Actual Size)
Overall depth NOT including handle:
Depth not including door:
Toe Kick height:
Door swing at 90°:
Recommended opening width:
Recommended opening depth:
Recommended opening height:
•
Additional Information
• Electrical requirements: 120 volts, 3 amps running
max. 15 amp circuit required.
• Locate a 3-prong grounded receptacle in one of three
locations: 1) On the wall in the adjacent cabinet
opening. 2) Flush on the back wall of the refrigerator
opening (add 1" to the overall depth of the unit to
accommodate the thickness of the plug). 3) Recessed
1" into the back wall of the refrigerator opening.
• Door is reversible in field.
• Shipping weight: 72 pounds.
• U.L. Listed.
• Water supply : 1/4" OD copper tube (subject to local
codes). 20-100 PSI. For water connection, allow 2"
behind the unit.
• Does not accept custom panels.
• 15iM-BS :Black cabinet, brushed aluminum door
frame, stainless door panel, professional style
stainless handle.
Subject to change without notice. This system is designed to
be updated daily if necessary. Dimension Express is not
responsible for use of superseded, voided, or outdated data
sheets. Because of the difficulty or impracticability of deter-
mining actual damages, liability of Dimension Express shall
not exceed $50.00.
Copyright © Dimension Express, 2007.
• NEVER reuse Data Sheets. Data Sheets are subject to change without
notice. Dimension Express is a FREE service bureau and is updated daily,
it makes far more sense to spend the time necessary to request new Data
Sheets for each project, as opposed to the problems, time, costs, and risks
associated with reusing old Data Sheets.
DIMENSION EXPRESS
•
•
Overall Depth:
24 1/4"
22 1/8"
19 3/4"
Height:
24 1/4"
Width:
14 7/8"
3 3/4"
16 3/8"
15"
24"
24 5/8"
•
318
Fax on Demand (925) 284-3558
14 7/8"

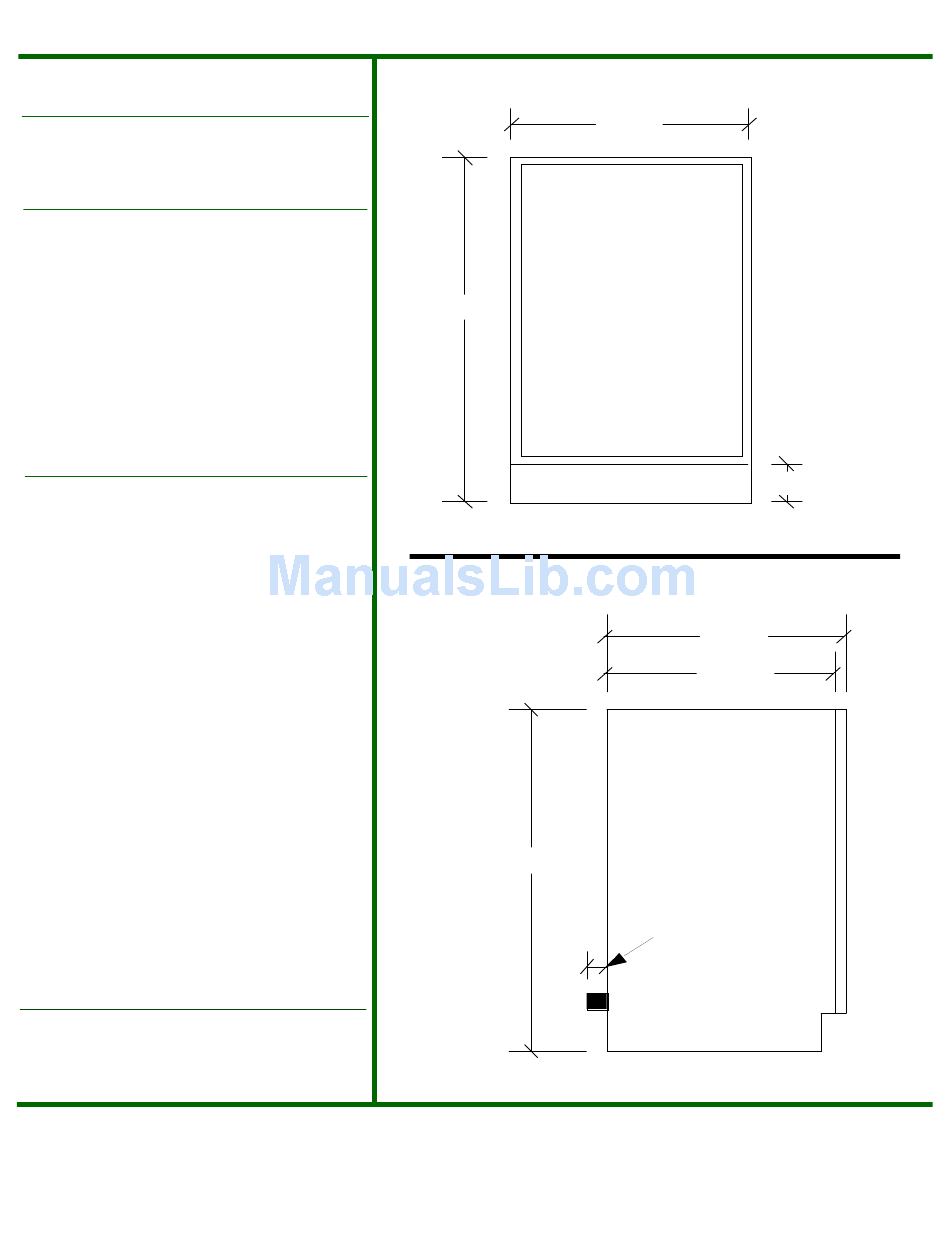

Front View
(not to scale)
24 1/4"
24 1/4"
• Call Dimension Express if you have any questions at (800) 940-2059 •
• Always refer to a current Code at a Glance or manufacturer directory •
• Data Sheet codes change on the first of each quarter at 12:01am •
3 3/4"
22 1/8"
19 3/4"
Side View
(not to scale)
Allow 2" for
water connection
BN • A318 • • 070612 • 12619 • 65273
