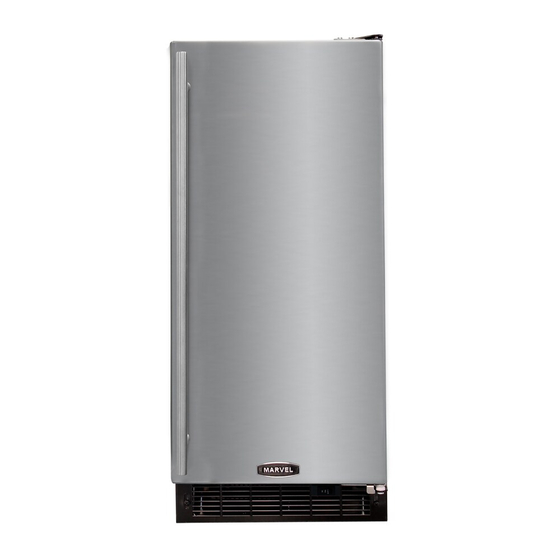

- Page 1 MARVEL Installation Operation Maintenance Instructions Tall Door Clear Ice Models 30iMT 30iMAT 3OiMT...
-
Page 2: Table Of Contents
Electrical Requirements..........3 Installing the drain ............4 Optional drain pump installation........5 Connecting the water supply..........7 Dimensions for 30iMT & 3OiMT solid door.......8 Recommended Rough in Opening Dimensions for 30iMT & 3OiMT solid door........8 Dimensions for 3oiMT solid overlay door......9 Recommended Rough in Opening Dimensions for 30iMT solid overlay door........9... -
Page 3: Unpacking Your Ice Machine
UNPACKING YOUR ICE MACHINE Note to Customer Important Safety Instructions This merchandise was carefully packed and thoroughly Warnings and safety instructions appearing in this inspected before leaving our plant. Responsibility for its safe guide are not meant to cover all possible condi- delivery was assumed by the retailer upon acceptance of the tions and situations that may occur. -
Page 4: Installing Your Ice Machine
For this reason it is important this area to not be obstructed and be kept clean. Marvel does not rec- ommend the use of custom made grilles as air flow may be Do not use an extension cord restricted because of inadequate openings. -
Page 5: Installing The Drain
INSTALLING THE DRAIN PLUMBING Drain Plumbing Your ice machine uses a gravity drain (Figure 3) that re- quires 5/8” I.D. tubing from the back of the ice machine to a plumbed connection to a sanitary sewer. Remove the access panel to plumb in drain connection. Gravity drain location for built-in units can be within the area shown in Figure 5. -
Page 6: Optional Drain Pump Installation
OPTIONAL DRAIN PUMP INSTALLATION Maintenance The Marvel Drain Pump is designed to remove drain water The following items require review on a regular basis. from ice machines installed in areas without direct drain- Check that the inlet tubing from the ice machine age access. - Page 7 OPTIONAL DRAIN PUMP INSTALLATION 30iM Installation Turn the ice machine to gain access to the rear of the unit. Remove the access panel by removing the ten (10) screws (see Figure 6). Plug the ice machine’s power plug into the outlet on the drain pump.
-
Page 8: Connecting The Water Supply
CONNECTING THE WATER SUPPLY Water Supply The ice machine must be connected to a potable, active cold water supply line delivering water pressure at a mini- mum of 20 psi and a maximum of 120 psi. • Water connection is made through a right angle garden hose fitting supplied with the ice machine. -
Page 9: Dimensions For 30Imt & 3Oimt Solid Door
3” to 3-1/4” 8” (20.32cm) (7.62 to 8.26cm) 23-5/8” (60cm) Rough In Opening Dimensions, for 30iMT & 3OiMT Solid Door Electrical Requirements: 115 volts, 3 amps running max. 15 amp dedicated circuit required. 3 prong grounded receptacle required. Power outlet can be located in the 34-1/2”... -
Page 10: Dimensions For 30Imt Solid Overlay Door
3” to 3-1/4” CL gravity 8” (20.32cm) (7.62 to 8.26cm) drain Rough In Opening Dimensions, for 30iMT Solid Overlay Door Electrical Requirements: 115 volts, 3 amps running max. 15 amp dedicated circuit required. 3 prong grounded receptacle required. Power outlet can be located in the 34-1/2”... -
Page 11: Dimensions For 30Imat Solid Door
DIMENSIONS FOR 30iMAT SOLID DOOR 21-1/2” (54.61cm) 37-1/16” (95.4cm) 14-7/8” 25-1/2” (37.8cm) (64.77cm) CL water supply 31-5/8” to 31-7/8” (80.31 to 80.98cm) 2” (5.08cm) CL water supply 6” (15.24cm) CL gravity drain 2” (5.08cm) 3” to 3-1/4” 8” (20.32cm) (7.62 to 8.26cm) 23-5/8”... -
Page 12: Dimensions For 30Imat Solid Overlay Door
DIMENSIONS FOR 30iMAT SOLID OVERLAY DOOR 21-1/2” (54.61cm) 14-7/8” (37.8cm) 37-1/16” (95.4cm) 22-7/8” (58.11cm) CL water supply 31-5/8” to 31-7/8” 2” (5.08cm) (80.31 to 80.98cm) CL water supply 6” (15.24cm) 2” (5.08cm) 3” to 3-1/4” CL gravity 8” (20.32cm) (7.62 to 8.26cm) drain Rough In Opening Dimensions, for 30iMAT Solid Overlay Door Electrical Requirements: 115 volts,... -
Page 13: Full Overlay Panel Installation Instructions
Model Step 2: Remove door 14-5/8” 30-5/16” Remove the top hinge pin from the hinge with an 1/8” 30iMT (37.13cm) (76.99cm) allen wrench. Remove the door by angling the top of the 14-5/8” 27-11/16” door outward and lifting the door off the bottom hinge. - Page 14 FULL OVERLAY PANEL INSTALLATION INSTRUCTIONS Step 6: Drill holes in overlay panel Step 8: Assemble the lock parts Remove the hinge adapter bushings from the top and Two (2) lock extensions are supplied with the lock. Use bottom door hinge adapters. (See Figure 16).Using the the longer extension for a 3/4”...
- Page 15 FULL OVERLAY PANEL INSTALLATION INSTRUCTIONS Step 9: Secure overlay panel to the door. With the #8 wood screws provided fasten the overlay panel to the door. (See Figure 15). Clearance hole through door gasket channel Step 10: Install lock cam (Models with locks only). Attach the lock cam to the back of the lock assembly with the phillips head machine screw provided.
-
Page 16: Operation, Care, And Cleaning
OPERATION, CARE, AND CLEANING OF YOUR ICE MACHINE The impurities will need to be cleaned of this build-up Operation (Turning on the ice machine) regularly (at the very least, annually), depending on use Once the drain and water supply are hooked up, and the and water hardness. -
Page 17: Ice Production (Things To Remember)
OPERATION, CARE, AND CLEANING OF YOUR ICE MACHINE 11. Clean the ice machine’s interior, ice scoop, interior door panel and door gasket with mild soap and water. Using two (2) tablespoons of baking soda in one (1) quart of warm water while cleaning will help remove odors. -
Page 18: Filler Panel Kit Installation Instructions (Optional)
FILLER PANEL KIT INSTALLATION INSTRUCTIONS (Optional) This Filler Panel Kit will add 3 inches to the width of the ice maker for installation into an 18 inch wide opening. Order one of the following part numbers for the color you require: P/N 42242831 White Filler Panel Kit P/N 42242832 Black Filler Panel Kit P/N 42242833 Stainless Steel Filler Panel Kit... -
Page 19: Troubleshooting Guide
TROUBLESHOOTING GUIDE PROBLEM POSSIBLE CAUSE CORRECTION 1. The unit is unplugged. Plug in the unit. Reset breaker or replace fuse. Check to make sure 2. Breaker is tripped or fuse is blown. Unit does not operate. there is not a short in the electrical circuit. 3. - Page 20 TROUBLESHOOTING GUIDE PROBLEM POSSIBLE CAUSE CORRECTION Ice is slowly melting in the ice bin and will affect the size of the ice cubes. This is normal operation. When 1. Low ice consumption. the ice bin needs to be replenished, cubes will return to regular size.
- Page 21 TROUBLESHOOTING GUIDE PROBLEM POSSIBLE CAUSE CORRECTION Make sure that the reservoir drain plug is installed prop- erly. Check the water line to the unit to make sure there 1. Low water level in reservoir. are no restrictions or kinks in the line. Check all filters to make sure they are not restricted or plugged.
- Page 22 TROUBLESHOOTING GUIDE PROBLEM POSSIBLE CAUSE CORRECTION Use the ice in the bin frequently. Ice will stick together if 1. Ice consumption is low. left in insulated bin over long periods of time. Ice cubes are sticking together. Move the unit to an area where temperature is below 90 2.
-
Page 23: Preparing The Ice Machine For Storage
PREPARING THE ICE MACHINE FOR STORAGE If the ice machine is moved, not used for an extended period of time, or will be in an area that will be near freez- ing temperatures, it is necessary to remove any remaining water in the ice-making system. -
Page 24: Obtaining Service
If You Do Need Service If you do need service, contact your dealer or Northland- Marvel. In any correspondence, refer to the model number How to Obtain Service and serial number of your unit which is located on the Your ice machine requires little service because the best upper left hand side of the wall liner. -
Page 25: Household Product Warranty
Entire Product Limited One Year Parts and Labor Warranty Marvel warrants that it will supply all necessary parts and labor to repair or replace in the end user’s home or office, any component which proves to be defective in material... - Page 26 NOTES...
- Page 27 NOTES...
- Page 28 Northland-Marvel P .O. Box 400 1260 E. Van Deinse St. Greenville MI 48838 800.223.3900 41011765-EN Rev E All specifications and product designs subject to change without notice. Such revisions do not entitle 11/19/09 the buyer to corresponding changes, improvements, additions, replacements or compensation for...
