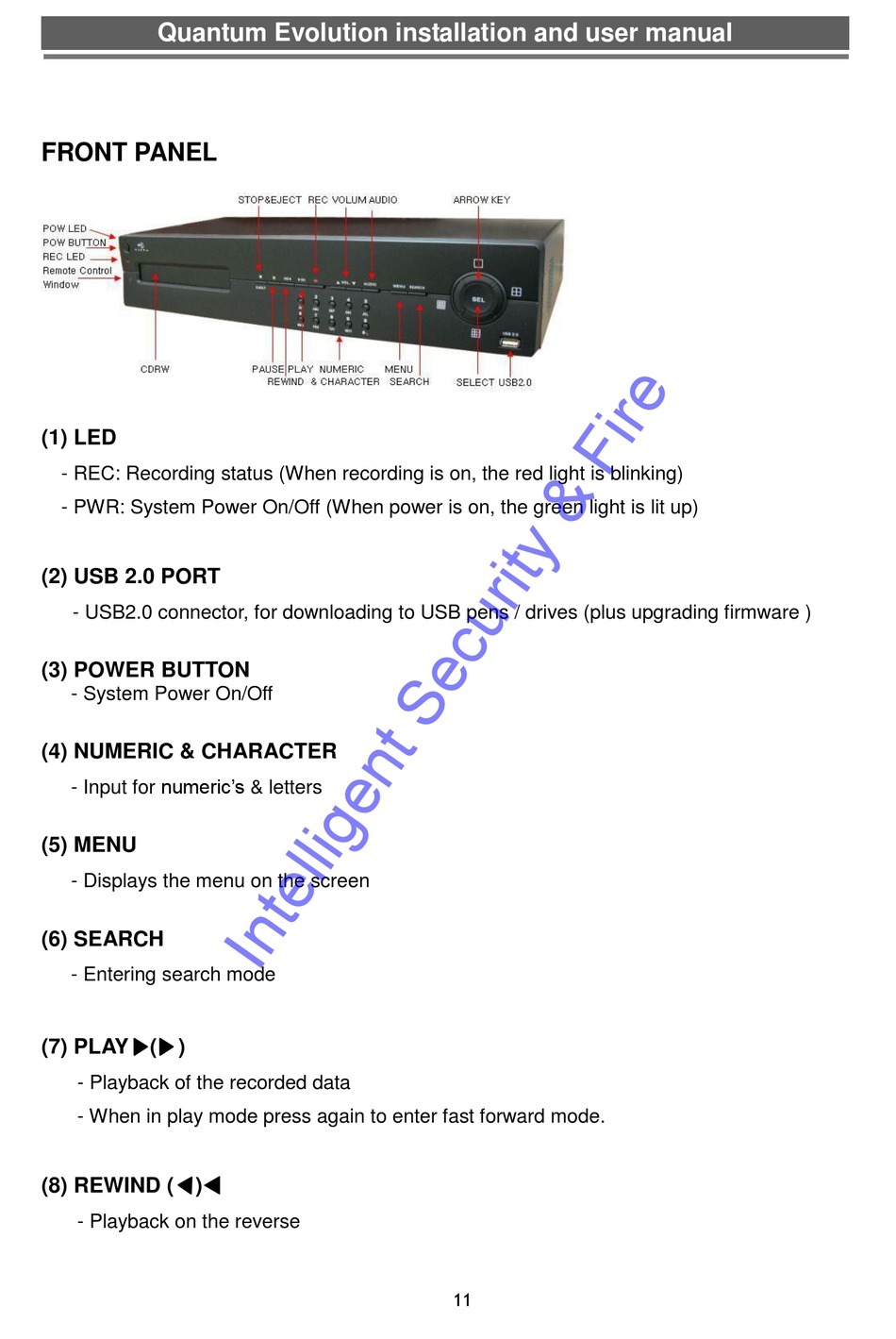

FRONT PANEL

(1) LED
- REC: Recording status (When recording is on, the red light is blinking)
- PWR: System Power On/Off (When power is on, the green light is lit up)
(2) USB 2.0 PORT
- USB2.0 connector, for downloading to USB pens / drives (plus upgrading firmware )
(3) POWER BUTTON
- System Power On/Off
(4) NUMERIC & CHARACTER
- Input for numeric‟s & letters
(5) MENU
- Displays the menu on the screen
(6) SEARCH
- Entering search mode
(7) PLAY ( )
- Playback of the recorded data
- When in play mode press again to enter fast forward mode.
(8) REWIND ( )
- Playback on the reverse
11
