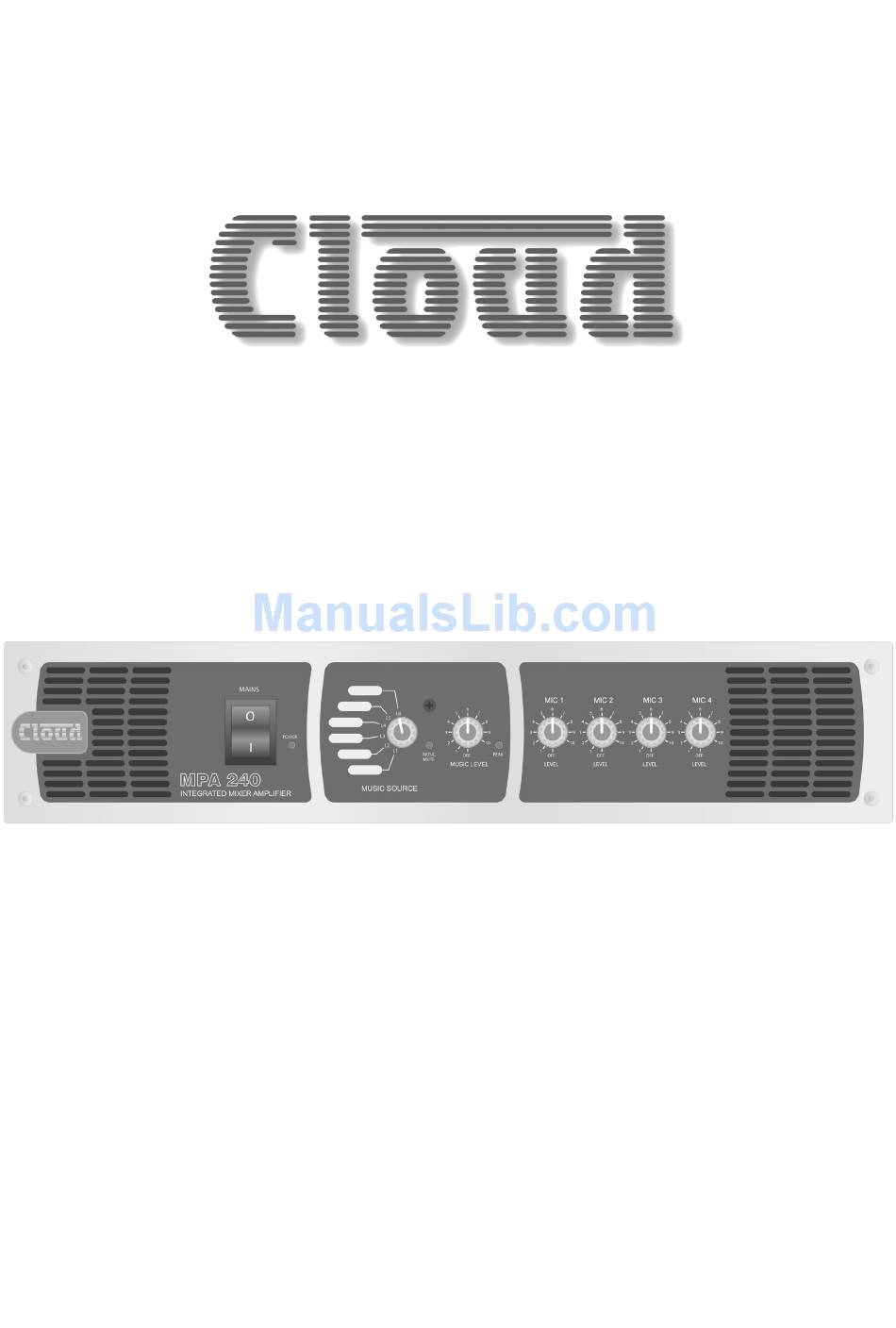

- Page 1 MPA SERIES MIXER-AMPLIFIER Installation and User Guide...
-
Page 3: Table Of Contents
Chime ............. 9 Power Amplifier Stage and Outputs.... 9 Low impedance operation ........9 Line Output ..............9 High pass filter ............10 Music Mute(Fire Alarm Interface) ..... 10 Bose® Equalisation Modules ..... 10 Installation Instructions ..........10 MPA Series User Manual v1.1... -
Page 4: Safety Information
The product conforms to the following European electrical safety standard: BS EN 60065:2002 The MPA Series was developed and manufactured with high quality materials and components, which can be recycled and/or reused. The WEEE symbol indicates that electrical and electronic equipment... -
Page 5: General Description

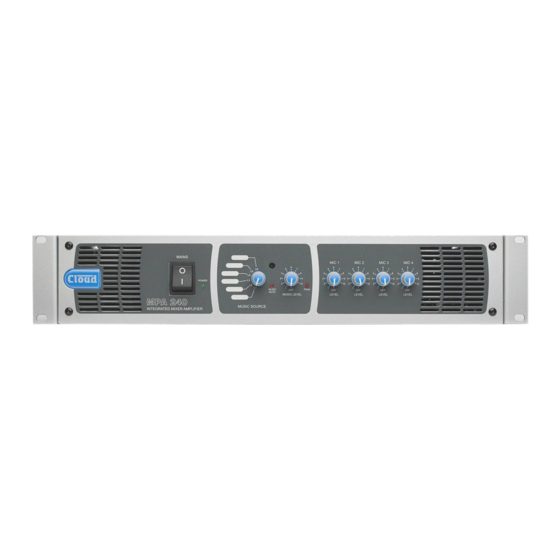

General Description The Cloud MPA Series is a range of mixer-amplifiers with applications in Licensed, Retail, Leisure and similar venues. Three models are available to suit different output power requirements (60, 120 or 240 watts); otherwise all models have identical facilities. -
Page 6: Front Panel Description
MIC EQ – LF and HF EQ adjustment for mic channel IEC mains input ACCESS – external paging control input for Mains fuse Mic 1 Fan – forced-air cooling air exhaust LOW IMPEDANCE OUTPUT – speaker output for low-Z connection MPA Series User Manual v1.1... -
Page 7: Music Inputs
47k ohm. Select and Level Line 6 input can be configured to have priority over any The MPA Series mixer-amplifiers are compatible with other music source, see Music Priority, page 8. standard Cloud remote control plates Types RSL-6 (music source select and level) and RL-1 (level only). -
Page 8: Music Equalisation
The gain can be adjusted from 10 dB to 50 dB. A high of adjustment below 100 Hz and above 5 kHz respectively. overload margin is maintained at all gain settings. After installation, some test announcements should be made, MPA Series User Manual v1.1... -
Page 9: Microphone Priority
One of these enables the microphones to have priority over music, the other allows The MPA Series amplifiers are able to deliver their rated Mic 1 to have priority over the other microphones. power into a 4 ohm load, as follows:... -
Page 10: High Pass Filter
Activation of the Music Mute is often via a relay mounted side which engage with lugs on the module’s mating close to the MPA Series amplifier, powered by the fire alarm connector to ensure correct orientation. control panel. Other arrangements may exist depending on the design of the fire control system and the fire alarm Replace the top panel. -
Page 11: General Notes
MPA Series amplifiers can be used in multiples. The 0 V rail of an MPA Series amplifier is directly coupled to the chassis ground. No interconnection problems should be Signal sources can be connected to several inputs as... -
Page 12: Technical Specifications
115/100 V T6.3A H Fuse type All models 20 mm x 5 mm Dimensions (mm) 482.6 wide x 88 high (2U) x 300 deep (+ connectors & knobs) MPA60 Net weight (kg) MPA120 10.5 MPA240 12.6 MPA Series User Manual v1.1... -
Page 13: Location Of Internal Jumpers, Etc
Mic 1 priority over Mics 2, 3 & 4 Mic 1 phantom power Mic 2 phantom power Mic 3 phantom power Mic 4 phantom power Mic 1 Access Input bypass Music Mute NO or NC MPA Series User Manual v1.1... - Page 14 Bose® is a registered trademark of The Bose Corporation. In the interest of continuing improvements Cloud Electronics Limited reserves the right to alter specifications without prior notice. MPA Series User Manual v1.1...
- Page 16 Cloud Electronics Limited 140 Staniforth Road Sheffield S9 3HF England Tel: +44 (0)114 244 7051 Fax: +44 (0)114 242 5462 email: info@cloud.co.uk web: www.cloud.co.uk...
