- Page 1 CABINET PARTS REFRIGERATOR For Models: KSRS27QAWH10, KSRS27QAAL10 (White) (Almond) Part No. 4379300 2−94 Printed In U.S.A. (RCG)
-

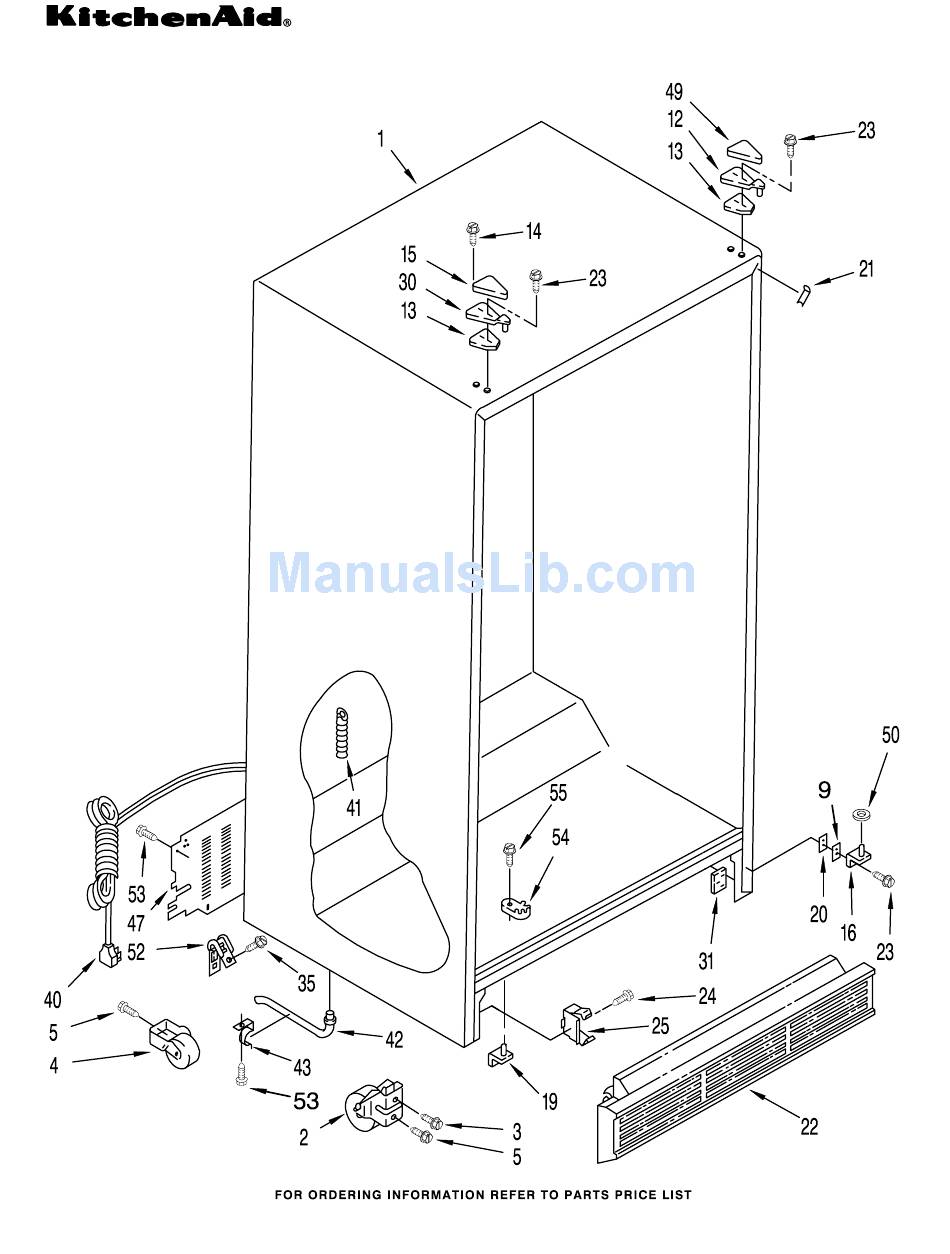

Page 2: Cabinet Parts
CABINET PARTS For Models: KSRS27QAWH10, KSRS27QAAL10 (White) (Almond) Illus. Part DESCRIPTION Cabinet (Not A Serviceable Part) 2 2152011 Front Roller (2) 489393 Screw 981122 Roller (Rear) (2) 488454 Screw 836196 Shim 12 1117937 Hinge Top (R.H.) 13 1123515 Shim, Hinge Top... -
Page 3: Refrigerator Liner Parts
REFRIGERATOR LINER PARTS For Models: KSRS27QAWH10, KSRS27QAAL10 (White) (Almond) Illus. Part DESCRIPTION Liner (Not A Serviceable Part) 985468 Escutcheon, Meat Pan Control 984102 Slide Meat Pan Control 992358 Foam Pad 6 1125675 Stud, Pan Cover 8 1110718 Stud (9) 9 1116794... -
Page 4: Refrigerator Shelf Parts
REFRIGERATOR SHELF PARTS For Models: KSRS27QAWH10, KSRS27QAAL10 (White) (Almond) Illus. Part DESCRIPTION 1 1125597 Shelf Assembly, Cantilever (2) 2 1125593 Glass, Shelf 3 1125594 Retainer, Glass 4 1125786 Gasket, Front 5 2161771 Cover, Pan Assembly (2) 6 1125705 Gasket, Cover... -
Page 5: Freezer Liner Parts
FREEZER LINER PARTS For Models: KSRS27QAWH10, KSRS27QAAL10 (White) (Almond) 4379300... - Page 6 FREEZER LINER PARTS For Models: KSRS27QAWH10, KSRS27QAAL10 (White) (Almond) Illus. Part DESCRIPTION Liner (Not A Seviceable Part) 2 1125824 Shelf, Top Compartment 3 1125657 Door, Ice Compartment 946356 Stud, R.S. Front 842534 Clip, Air Duct (2) 7 1115317 Support, Stud (4)
-
Page 7: Motor And Ice Container Parts
MOTOR AND ICE CONTAINER PARTS For Models: KSRS27QAWH10, KSRS27QAAL10 (White) (Almond) 4379300... - Page 8 MOTOR AND ICE CONTAINER PARTS For Models: KSRS27QAWH10, KSRS27QAAL10 (White) (Almond) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 1 1118386 Bracket, Motor 16 1118480 Stop, Cone 31 1119018 Nut, Bearing 2 2155263 Motor, Dispenser 32 2155231 Control Arm...
-
Page 9: Refrigerator Door Parts
REFRIGERATOR DOOR PARTS For Models: KSRS27QAWH10, KSRS27QAAL10 (White) (Almond) 4379300... - Page 10 REFRIGERATOR DOOR PARTS For Models: KSRS27QAWH10, KSRS27QAAL10 (White) (Almond) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION Refrigerator Door 1107341 End Cap, Handle BLACK GLASS PANEL KIT (Includes Item 7) 489075 Screw (2) (Optional Kit) 2171580 White 10 1107215...
-
Page 11: Freezer Door Parts
FREEZER DOOR PARTS For Models: KSRS27QAWH10, KSRS27QAAL10 (White) (Almond) 4379300... - Page 12 FREEZER DOOR PARTS For Models: KSRS27QAWH10, KSRS27QAAL10 (White) (Almond) Illus. Part DESCRIPTION Freezer Door (Includes Item 8 And Dispenser Front Parts) 2171588 White 2171589 Almond 2 1107215 Handle Assembly 3 1107341 End Cap (2) 489084 Screw 5 1107651 Spacer, Handle...
-
Page 13: Dispenser Front Parts
DISPENSER FRONT PARTS For Models: KSRS27QAWH10, KSRS27QAAL10 (White) (Almond) 4379300... - Page 14 DISPENSER FRONT PARTS For Models: KSRS27QAWH10, KSRS27QAAL10 (White) (Almond) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION Housing, Dispenser 983696 Spring, Lever (2) 32 2147164 Insulator, Control (Not a 17 2147165 Shield, Wiring Bracket Servicable Item) 488500 Screw 33 2147163...
-
Page 15: Unit Parts
UNIT PARTS For Models: KSRS27QAWH10, KSRS27QAAL10 (White) (Almond) 4379300... - Page 16 UNIT PARTS For Models: KSRS27QAWH10, KSRS27QAAL10 (White) (Almond) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 486692 Speed Nut 23 2161324 Clamp 48 1127906 Unit Mounting 2 1108179 Fan, Blade 24 2154735 Fan, Motor Rail 3 2164504 Condenser 25 1110674...
-
Page 17: Icemaker Parts
ICEMAKER PARTS For Models: KSRS27QAWH10, KSRS27QAAL10 (White) (Almond) 4379300... - Page 18 ICEMAKER PARTS For Models: KSRS27QAWH10, KSRS27QAAL10 (White) (Almond) Illus. Part DESCRIPTION 489084 Screw 836489 Fitting, Water Tube 488878 Clamp, Tube 841707 Insert, Tube 628379 Clip, Fuse 7 2155294 Tube, Water 8 1106508 Seal, Gasket 489242 Screw 10 2002182 Valve, Solenoid...
-
Page 19: Air Flow Parts
AIR FLOW PARTS For Models: KSRS27QAWH10, KSRS27QAAL10 (White) (Almond) Illus. Part DESCRIPTION 1 2155594 Fan Scroll 2 2155590 Retainer, Fan Motor 3 2161231 Air Scoop 489176 Screw 5 2155575 Air Duct Freezer 7 2149299 Fan Motor 8 2169142 Fan Blade... -
Page 20: Control Parts
CONTROL PARTS For Models: KSRS27QAWH10, KSRS27QAAL10 (White) (Almond) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 1 2169150 Control Box 12 1125591 Slide, Thermostat 23 2161308 Connecting Rod 2 1115241 Tube Barrier, 489242 Screw 489391 Fastener, Push−On Thermostat 14 1118072...
