13
CONVERTIBLE OPTIONS
Cyclone series: AK6000, 6036, 6042, 6048
Zephyr's Cyclone series are equipped with the option of a 6" vertical discharge, 3-1/4x10" vertical discharge, or 3-
1/4x10" rear discharge. Additional accessories are provided to convert to either of the above discharge methods.
Convertible Options
Vertical discharge
Vertical discharge
Horizontal rear discharge
Back Splash
Cyclone models also come with a standard back splash. If desired, install back splash to rear of range hood with
screws provided after all duct conversion steps below are completed.

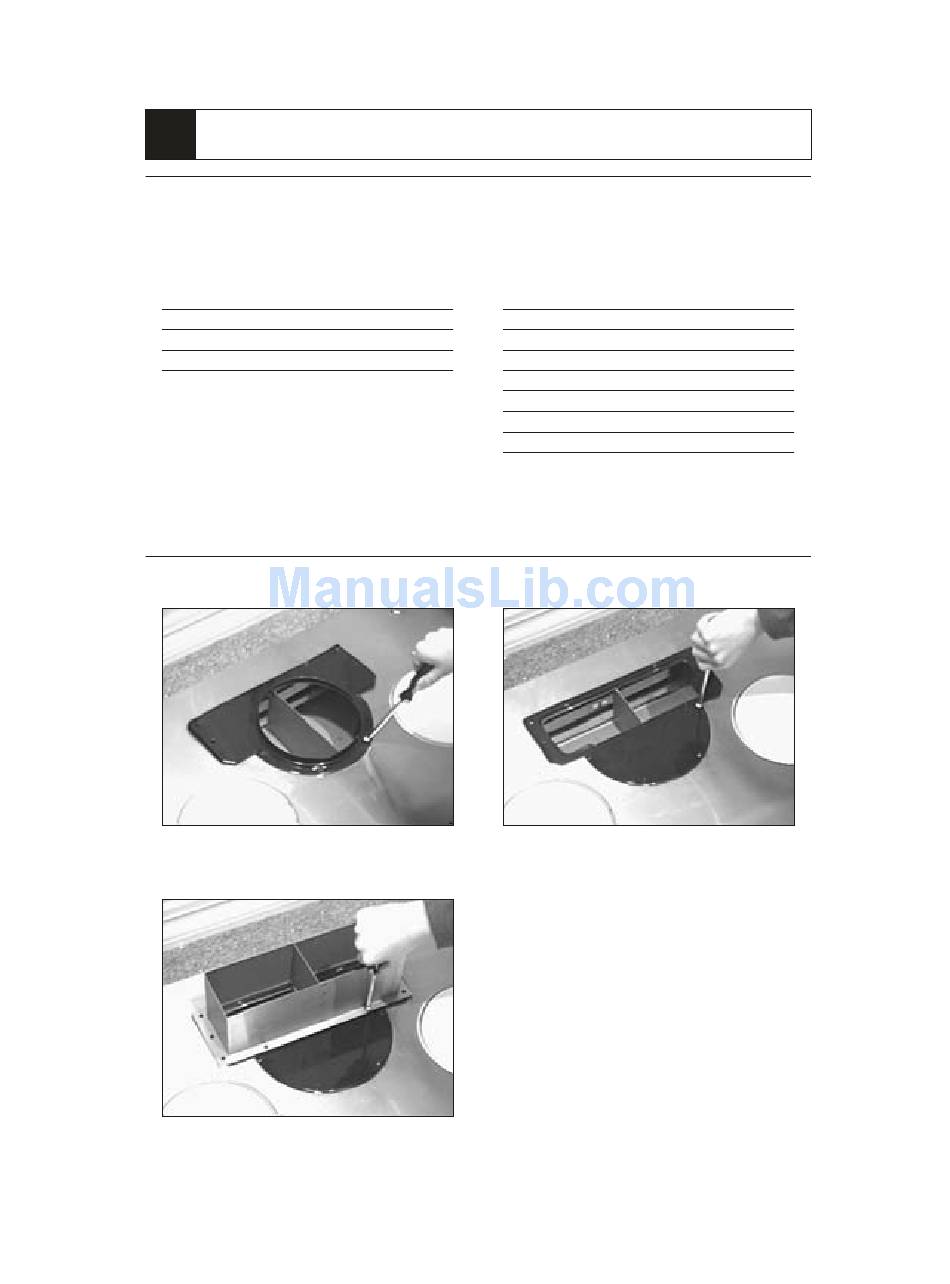

3-1/4 x 10" Vertical Discharge
1. Remove pre-mounted 6" transition adaptor on duct
opening. Leave attached gasket in its original place.
3. Mount the 3-1/4 x 10" starting collar on top of
transition piece with remaining screws.
INSTALLATION
Convertible Accessories
6" round 6" round duct cap
3-1/4 x 10" Round to rectangular transition adaptor
3-1/4 x 10"
Rectangular to round transition adaptor (pre-
mounted)
Gasket (pre-mounted)
Rectangular rear cap (pre-mounted)
3-1/4 x 10" starting collar
2. Place rectangular transition adaptor as shown over
gasket and by first installing 4 screws on half round
section.
