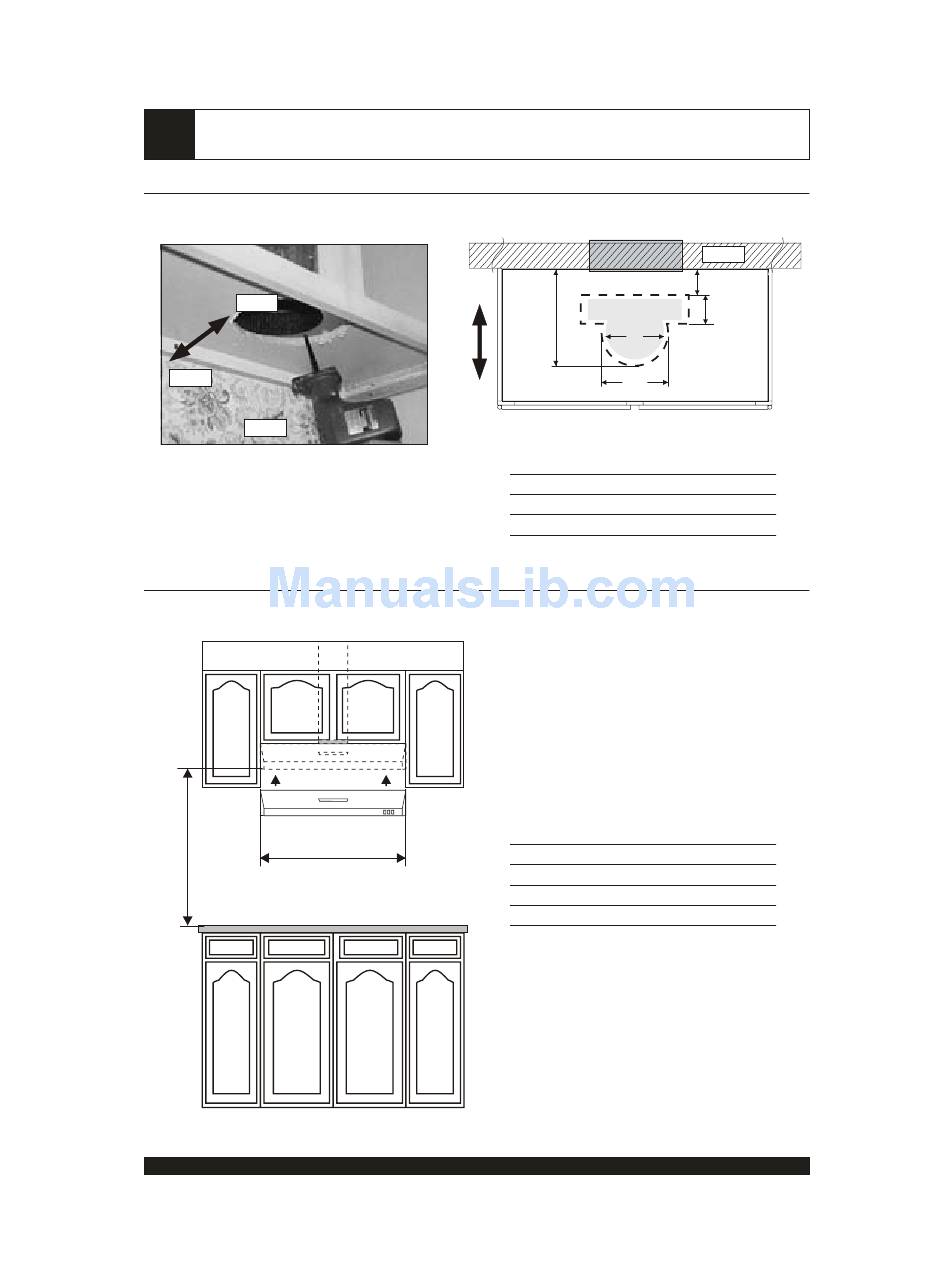

DUCT OPENING
Front
Rear
Wall
CLEARANCES
net width
MIN. 18" MAX 30"
INSTALLATION
Rear
(A)
Front
Cut Out Size (A):
Hurricane
Cyclone
Whirlwind
Minimum clearance above range should be no
less than 18" from the range surface to the
range hood's base. Maximum height are
recommended not to exceed 30" for maximum
efficiency.
Net width on all models are call out width less
1/4".
Call Out Size
30"
36"
42"
48"
Note: Refer Manufacturers' height clearance
requirements on all high btu and professional
ranges.
Wall
2-1/2"
3-1/4 x 10" 4-1/2"
6"
7"
10-1/2"
10-1/2"
8-1/2"
Net Width
29-3/4"
35-3/4"
41-3/4"
47-3/4"
