1.2.3 BATTERY CONNECTION
• The battery shipped with the generator has been provided fully
charged. Caution must be taken when connecting the battery.
A battery may lose some of it's charge when not in use for prolonged
periods of time.
1. Cut the tie wrap cable holding the RED and BLACK battery cables to
the stator.
2. Connect the RED battery cable to the battery Positive terminal (+).
After making sure that the connection is tight, slip the rubber boot
over the terminal connection.
3. Connect the BLACK battery cable to the battery Negative terminal
(–). Make sure the connection is tight.
4. Double check all connections to ensure they are in the correct
location and secure. See Figure 3.
5. Install the battery post covers (included).

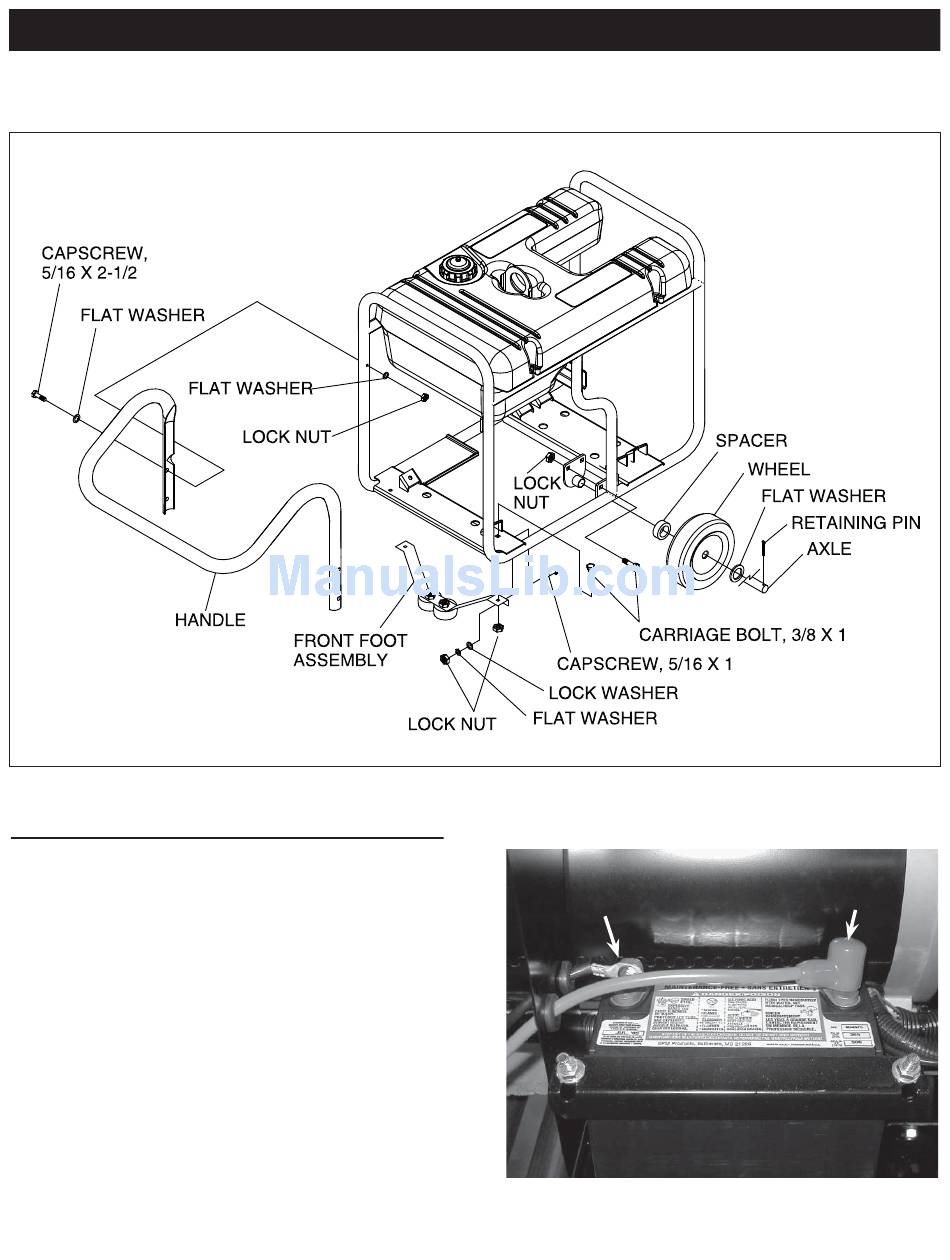

Figure 2 - Handle Assembly
NOTE:
General Information
Figure 3 - Battery Connections
Negative
Cable
Positive
Cable
