M W D - Invacare Ranger II Basic Service Manual

MWD WHEELCHAIRS
FOLDING.
1. If necessary, remove the shrouds. Refer to REMOV-
ING/INSTALLING SHROUDS in PROCEDURE 10
of this manual.
2. Remove the batteries, battery tray and footrests/
legrests from the wheelchair. Refer to FIGURE 1.
3. Lift up on the seat rails of the wheelchair.
Unfolding/Folding Captain's Seats (FIGURE 2)
UNFOLDING.
1. Push down on the push brackets until they are flush
with the pivot links on the crossbraces.
2. Assemble the wheelchair. Refer to FIGURE 2.
3. Install the shrouds. Refer to REMOVING/INSTALL-
ING SHROUDS in PROCEDURE 10 of this manual.
4. Install the captain's seat. Refer to REMOVING/IN-
STALLING CAPTAIN'S SEAT in PROCEDURE 5 of
the owner's manual, part number 1080722.
5. HIGH BACK CAPTAIN'S SEATS ONLY - Connect
the limit switch. Refer to DISCONNECTING/CON-
NECTING LIMIT SWITCH in PROCEDURE 8 of this
manual.
Install the electronics. Refer to
REPOSITIONING MKIV JOY-
STICK in PROCEDURE 7 of this
manual.
Install the battery tray and batteries.
Refer to INSTALLING/REMOVING
BATTERY TRAY and INSTALLING/
REMOVING BATTERY BOXES in
this procedure of the manual.
Push Brackets
Crossbraces

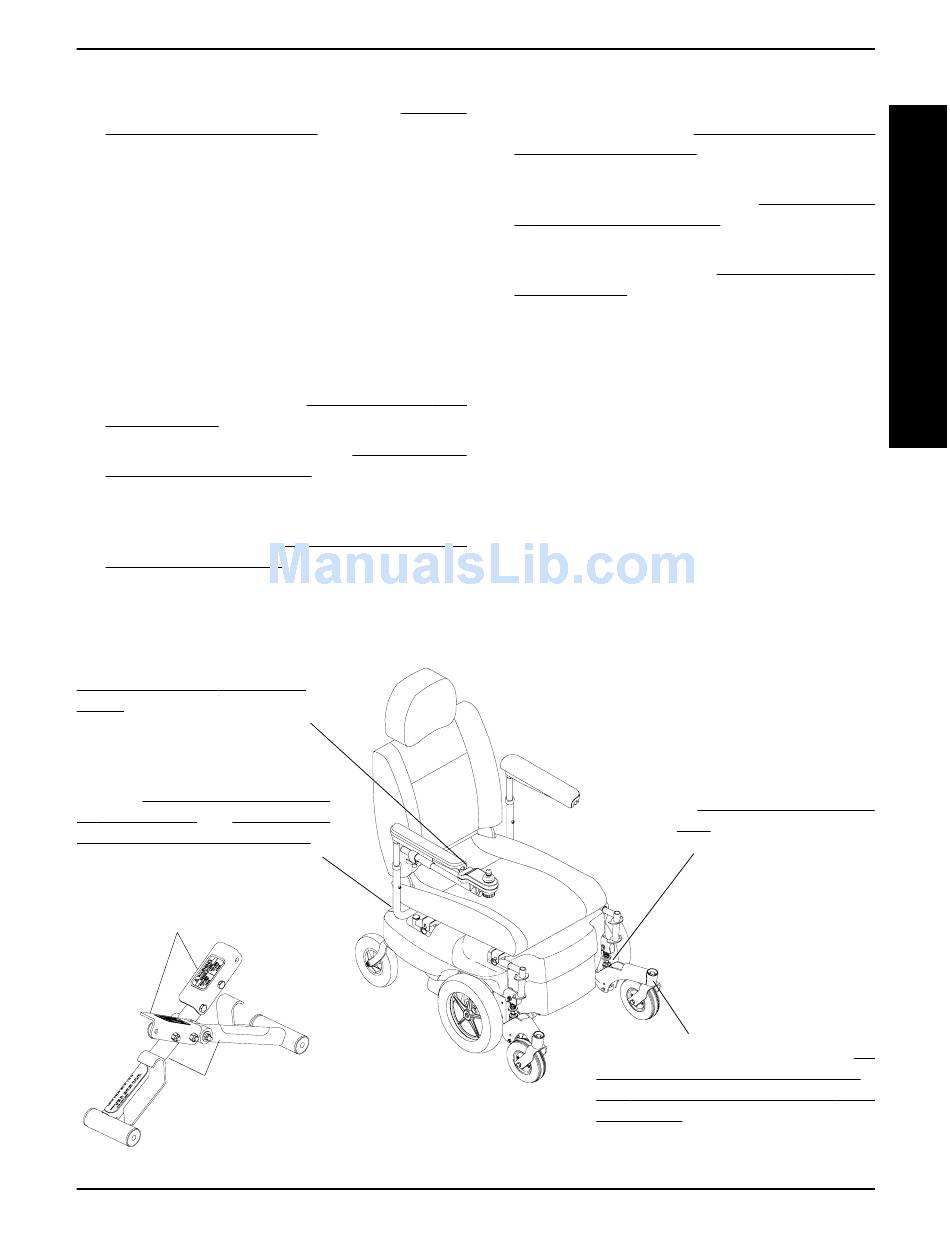

FIGURE 2 - ASSEMBLING RANGER II MWD - CAPTAIN'S SEATS
FOLDING.
1. HIGH BACK CAPTAIN'S SEATS ONLY - Disconnect
the limit switch. Refer to DISCONNECTING/CON-
NECTING LIMIT SWITCH in PROCEDURE 8 of this
manual.
2. Remove captain's seat. Refer to REMOVING/IN-
STALLING CAPTAIN'S SEAT in PROCEDURE 5 of
the owner's manual, part number 1080722.
3. Remove the shrouds. Refer to REMOVING/INSTALL-
ING SHROUDS in PROCEDURE 10 of this manual.
4. Remove the batteries, battery tray and footrests/
legrests from the wheelchair. Refer to FIGURE 2.
5. Lift up on push brackets located on the crossbraces.
Install the footrests/legrests. Refer to IN-
STALLING/REMOVING FOOTRESTS or
INSTALLING/REMOVING ELEVATING
LEGRESTS in PROCEDURE 3 of the
owner's manual, part number 1080722.
65
PROCEDURE 14
Adjust the stabilizers. Refer
to ADJUSTING STABILIZ-
ERS in this procedure of the
manual.
