PROCEDURE 4
This Procedure Includes the Following:

Replacing Armrest Pads

Replacing Armrest Plate

NOTE: The following procedures are for Captain's
seats only.
A
R
After ANY adjustments, repair or service
M
and BEFORE use, make sure that all at-
S
taching hardware is tightened securely -
otherwise injury or damage may result.
REPLACING ARMREST PADS
(FIGURE 1)
1. Remove the mounting screws that secures the front
of the armrest pad to the armrest plate.
2. Remove the mounting screw that secures the rear of
the armrest pad and armrest insert to the armrest
plate.
3. Remove the existing armrest pad and position the
new armrest pad on the armrest plate.
4. Line up the mounting holes in the armrest insert, arm-
rest plate and new armrest pad.
5. Reinstall the rear mounting screw through the arm-
rest insert, armrest plate and armrest pad and tighten
securely.
6. Reinstall the front mounting screw into the armrest
plate and new armrest pad and tighten securely.
REAR
Armrest
Insert
Mounting
Screw

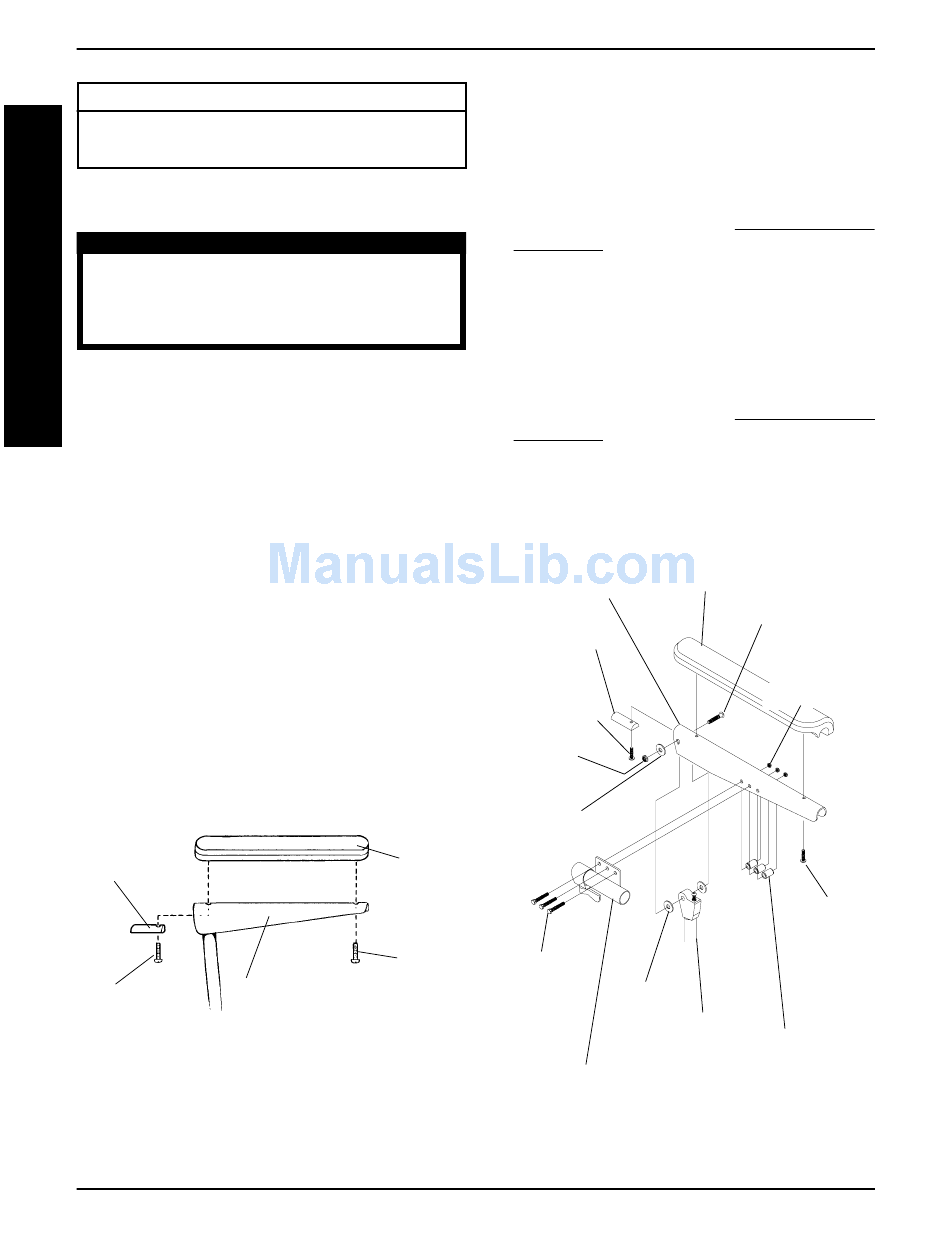

FIGURE 1 - REPLACING ARMREST PADS
WARNING
FRONT
Mounting
Armrest Plate
REPLACING ARMREST PLATE
(FIGURE 2)
1. If necessary, remove the three (3) hex bolts, spacers
and locknuts that secure the joystick mounting bracket
to the armrest plate.
2. Remove armrest pad. Refer to REPLACING ARM-
REST PADS in this procedure of the manual.
3. Remove the lug bolt, washers and locknut that secure
the existing armrest plate to the seat frame assembly.
4. Position the new armrest plate on the seat frame as-
sembly and secure with the lug bolt, washers and lock-
nut. Refer to FIGURE 2 for correct hardware orienta-
tion.
5. Reinstall armrest pad. Refer to REPLACING ARM-
REST PADS in this procedure of the manual.
6. If necessary, reinstall the three (3) hex bolts, spacers
and locknuts that secure the joystick mounting bracket
to the armrest plate.
7. Repeat STEPS 1-6 for the opposite armrest plate, if
necessary.
Armrest Plate
Armrest Insert
Phillips Screw
Locknuts
Washers
Armrest
Pad
Hex Bolts
Screw
Joystick Mounting Bracket
FIGURE 2 - REPLACING ARMREST PLATE
18
Armrest Pad
Lug Bolt
Locknuts
Washers
Seat Frame
Spacers
Assembly
ARMS
Phillips
Screw
