Owner's Operator and Maintenance Manual

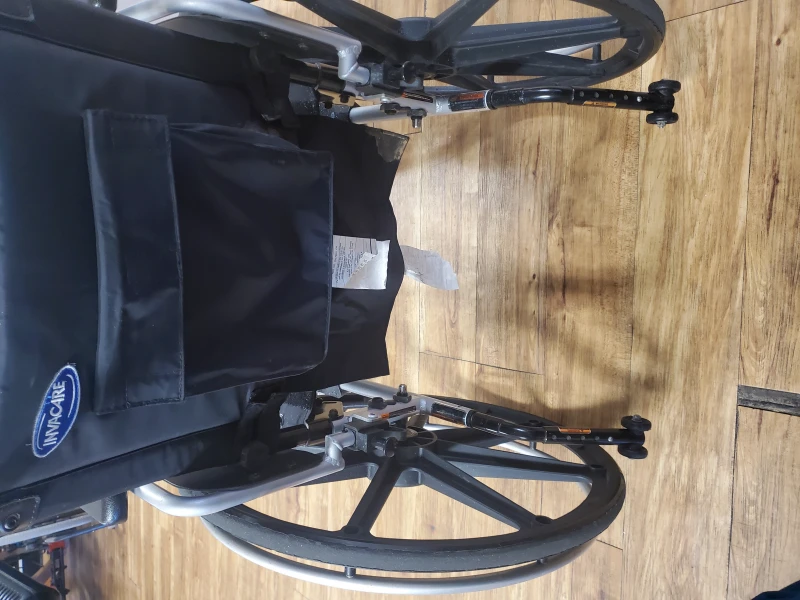

Insignia
™
DEALER: This manual MUST be given to
the user of the wheelchair.
USER: BEFORE using this wheelchair, read
this manual and save for future reference.
For more information regarding
Invacare products, parts, and services,
please visit www.invacare.com
Advertisement
Table of Contents
Troubleshooting
Related Manuals for Invacare Insignia
Summary of Contents for Invacare Insignia
- Page 1 Owner’s Operator and Maintenance Manual Insignia ™ DEALER: This manual MUST be given to the user of the wheelchair. USER: BEFORE using this wheelchair, read this manual and save for future reference. For more information regarding Invacare products, parts, and services, please visit www.invacare.com...
- Page 2 - OTHERWISE, INJURY OR DAMAGE MAY OCCUR. ACCESSORIES WARNING Invacare products are specifically designed and manufactured for use in conjunction with invacare accessories. Accessories designed by other manufacturers have not been tested by Invacare and are not recommended for use with invacare products.
-
Page 3: Table Of Contents
Adjusting Armrest Height ..............................23 Using Flip Back Armrest ..............................24 Removing/Installing the Flip Back Arm ........................... 24 Replacing Clothing Guards..............................25 Changing from Full Length Armrest to Desk Length Armrest and Vice Versa............ 26 ™ Part No. 1163197 Insignia... - Page 4 Using the IV/O2 Holder..............................46 Adjusting the Height of the IV Pole ..........................47 Cleaning the IV/O2 Holder............................... 47 Installing Crutch and Cane Carrier..........................48 Installing/Removing the Seat Positioning Strap......................48 LIMITED WARRANTY ..................51 ™ Insignia Part No. 1163197...
-
Page 5: Special Notes
WITHOUT NOTICE. WHEELCHAIR USER As a manufacturer of wheelchairs, Invacare endeavors to supply a wide variety of wheelchairs to meet many needs of the end user. However, final selection of the type of wheelchair to be used by an individual rests solely with the user and his/her healthcare professional capable of making such a selection. -
Page 6: Label Location
Keep detent balls clean. P/N 1026960 Rev D WARNING DO NOT OPERATE WITHOUT THE ANTI-TIP TUBES INSTALLED. REV. 5/98 P/N 60106X144 WARNING Refer to Owner's Manual for proper anti-tipper setting. 1085379 ™ Insignia Part No. 1163197... -
Page 7: Typical Product Parameters
TYPICAL PRODUCT PARAMETERS TYPICAL PRODUCT PARAMETERS INSIGNIA IN66AHANFR IN86AHANFR IN86AHANFRFF IN88AHANFR IN88AHANFRFF IN08AHANFR IN08AHANFRFF Overall Width 23 inches 25 inches 25 inches 25 inches 25 inches 27 inches 27 inches Overall Depth Without Riggings 32 inches; With Riggings 45.5 inches... -
Page 8: Section 1-General Guidelines
• WHEEL SIZE N/A N/A • WHEEL POSITION N/A N/A • USER CONDITION • N/A N/A SEAT HEIGHT NOTE: The various seat‐to‐floor heights require specific settings depending on rear wheel size, rear wheel position, front caster size/position and desired seat‐to‐floor angle. These adjustments must be performed by a qualified technician. Weight Training/Weight Limitation Invacare does not recommend the use of its wheelchairs as a weight training apparatus. Invacare wheelchairs have not been designed or tested as a seat for any kind of weight training. If occupant uses said wheelchair as a weight training apparatus, Invacare shall not be liable for bodily injury or damage to the wheelchair and the warranty is void. The Insignia wheelchair has a weight limitation of 250 lbs (113.4 kg). Anti-Tippers Anti‐tippers are specific to the different seat‐to‐floor angles and/or seat‐to‐floor heights. Refer to the charts in Installing/Adjusting Anti‐tippers on page 38 for correct usage and adjustment. If these requirements cannot be achieved, DO NOT use the wheelchair. Contact a qualified technician. If changing the seat‐to‐floor height with or without a change to seat‐to‐floor angle, the correct anti‐tippers must be used to maintain a 1½ to 2‐inch ground clearance. ™ Insignia Part No. 1163197... -
Page 9: Operating Information
Operating Information Unless otherwise noted, all service and adjustment should be performed while the wheelchair is unoccupied. To determine and establish your particular safety limits, practice bending, reaching and transferring activities in several combinations in the presence of a qualified healthcare professional before attempting active use of the wheelchair. When cleaning rear cane or hand grip areas use only a clean towel lightly dampened with cool water. Verify that grips are dry prior to use. Use of soap or ammonia based cleaning solutions will result in the hand grips sliding off the cane assembly. Failure to observe this warning may result in injury to the user or bystanders. If the wheelchair is exposed to extreme temperature (above 100°F or below 32°F), high humidity and/or becomes wet, prior to use, ensure that the handgrips DO NOT twist on the handle. Otherwise, damage or injury may occur. DO NOT sit or transfer into the wheelchair unless it is fully open and the seat frame rails are fully seated into the side frame H‐blocks. Avoid storing or using the wheelchair near open flame or combustible products. Serious injury or damage to property may result. DO NOT traverse, climb or go down ramps or slopes greater than 9°. DO NOT attempt to move up or down an incline with a water, ice or oil film. DO NOT operate on roads, streets or highways. DO NOT attempt to ride over curbs or obstacles. Doing so may cause your wheelchair to tip over and cause bodily harm to you or damage to the wheelchair. DO NOT attempt to reach objects if you have to move forward in the seat. DO NOT attempt to reach objects if you have to pick them up from the floor by reaching down between your knees. DO NOT lean over the top of the back upholstery to reach objects behind you, as this may cause the wheelchair to tip over. DO NOT shift your weight or sitting position toward direction you are reaching as the wheelchair may tip over. DO NOT attempt to stop a moving wheelchair with wheel locks. Wheel locks are not brakes. DO NOT tip the wheelchair without assistance. DO NOT use an escalator to move a wheelchair between floors. Serious bodily injury may occur. Before attempting to transfer in or out of the wheelchair, every precaution should be taken to reduce the gap distance. Turn both casters parallel to the object you are transferring onto. When transferring to and from the wheelchair, ALWAYS engage both wheel locks. ™ Part No. 1163197 Insignia... - Page 10 SECTION 1—GENERAL GUIDELINES DO NOT attempt to lift the wheelchair by any removable (detachable) parts. Lifting by means of any removable (detachable) parts of the wheelchair may result in injury to the user or damage to the wheelchair. DO NOT stand on the frame of the wheelchair. DO NOT use the footplate as a platform. When getting in or out of the wheelchair, make sure that the footplates are in the upward position. ALWAYS use the handrims for self‐propulsion. ™ Insignia Part No. 1163197...
-
Page 11: Section 2-Safety/Handling Of Wheelchairs
(you may order with or without the seat positioning strap), Invacare strongly recommends ordering the seat positioning strap as an additional safeguard for the wheelchair user. The seat positioning strap is a positioning belt only. It is not designed for use as a safety device withstanding high stress loads such as auto or aircraft safety belts. -
Page 12: A Note To Wheelchair Assistants
DO NOT lean over the top of the back uphol- stery to reach objects behind you, as this may cause the wheelchair to tip over. NOTE: For this procedure, refer to FIGURE 2.2. Position wheelchair as close as possible to the desired object. Point front casters forward to create the longest FIGURE 2.2 Reaching, Leaning Backwards possible wheelbase. Reach back only as far as your arm will extend without changing your sitting position. ™ Insignia Part No. 1163197... -
Page 13: Tipping
FIGURE 2.3 Method 1 - Wheelchair With Step Tubes roll up and over the curb. Method 2 - Wheelchair Without Step Tubes NOTE: For this procedure, refer to FIGURE 2.4. This method requires two assistants. The second assistant should be positioned at the front of the wheelchair lifting upward on a non‐removable (non‐detachable) part of the wheelchair frame when lifting the wheelchair and stabilizing the wheelchair when the wheelchair is being lowered to the ground. FIGURE 2.4 Method 2 - Wheelchair Without Step Tubes The first assistant should stand on the sidewalk and turn the wheelchair so that the rear wheels are against the curb. Turn the anti‐tippers so the anti‐tip wheels are pointing up. The wheelchair should be tilted back to the balance point and, in one continuous upward movement, the rear wheels should be pulled up and over the curb. DO NOT return the front casters to the ground until the wheelchair has been pulled backward far enough for the front casters to clear the edge of the curb. ™ Part No. 1163197 Insignia... -
Page 14: Stairways
Extreme caution is advised when it is necessary to move an occupied wheelchair up or down the stairs. Invacare recommends that, if possible, the user be removed from the wheelchair prior to moving. Invacare recommends using two assistants and making thorough preparations. Make sure to use only secure, non-detachable parts for hand-held supports. -
Page 15: Escalators
DO NOT sit or transfer into the wheelchair unless it is fully open and the seat frame rails are fully seated into the side frame H-blocks. NOTE: For this procedure, refer to FIGURE 2.7 and FIGURE 2.8 on page 16. Unfolding Tilt the wheelchair toward you (raising the opposite wheel and caster off the ground/floor). Place your hand on the top of the seat rail closest to you where the seat upholstery is attached. Press DOWN on Seat Rail Point your fingers and thumb to the inside of the FIGURE 2.7 Unfolding and Folding Wheelchair wheelchair. ™ Part No. 1163197 Insignia... -
Page 16: Folding Hammock Or Sling Seat Models
NOTE: Swing footrest/legrest in locked position to the front of the wheelchair. Pivot footplates upward to vertical position. With both hands, grasp the middle of the seat upholstery at the front and back edge and lift up. Continue to close the wheelchair by grasping the armrest furthest from you and pulling the armrest towards you. Folding Solid-Seat Models Swing footrest/legrest in locked position to the front of the wheelchair. Pivot footplates upward to vertical position. From behind the wheelchair, grasp the right hand edge of the solid seat. Raise the seat to the hinged side. With both hands, grasp the middle of the front and back edges of the solid folding seat and lift up until the wheelchair begins to close. Continue to close the wheelchair by grasping the armrest furthest from you and pulling the armrest towards you. Folding Solid-Seat Models Folding Hammock or Sling Seat Models FIGURE 2.8 Folding Solid-Seat Models and Folding Hammock or Sling Seat Models ™ Insignia Part No. 1163197... -
Page 17: Section 3-Safety Inspection/Troubleshooting
As with any vehicle, check the wheels and tires periodically for cracks and wear. Replace if damaged. ❑ If equipped, check that quick‐release axles lock properly. Lubricate if necessary. ❑ Check that there is no excessive side movement or binding in the rear wheels when lifted and spun. ❑ Inspect rear wheels for cracked, bent or broken spokes. ❑ Ensure all spokes are uniformly tight. ❑ Inspect handrims for signs of rough edges or peeling. ❑ Inspect axle assembly for proper tension by spinning caster. Caster should come to a gradual stop. ❑ Adjust front casters/forks bearing system if wheel wobbles noticeably or binds to a stop. ❑ Ensure wheel bearings are clean and free of moisture. ❑ Check headtube locknuts for tightness. ❑ Inspect casters for cracks and wear. ❑ Inspect front casters for cracked, bent or broken spokes. ❑ Clean upholstery and armrests. Inspect/Adjust Weekly ❑ Ensure that the wheel locks prevent the wheelchair from moving when engaged. ❑ Inspect tires for flat spots and wear. ❑ If equipped, check that quick‐release axles lock properly. Lubricate if necessary. ❑ Inspect rear wheels for cracked, bent or broken spokes. ™ Part No. 1163197 Insignia... -
Page 18: Troubleshooting
Sluggish Turn or Casters Squeaks and Looseness in Solutions Right/Left Wheels Performance Flutter Rattles Chair Check for loose nuts and bolts. Check caster headtube angle. Check that rear wheels are equally spaced away from seat frame. ™ Insignia Part No. 1163197... -
Page 19: Maintenance
After any adjustments, repair or service and before use, make sure all attaching hardware is tightened securely. Otherwise injury or damage may result. CAUTION DO NOT overtighten hardware attaching to the frame. This could cause damage to the frame tubing. Suggested Maintenance Procedures Before using your Insignia wheelchair, make sure all nuts and bolts are tight. Check all parts for damage or wear and replace. Check all parts for proper adjustment. Keep quick‐release axles free of dirt and lint to ensure positive locking and proper operation. Refer to Adjusting Quick‐Release Axle on page 31. ® Oil quick‐release axles at least once a month (3‐in‐1 oil or equivalent). -
Page 20: Section 4-Front Riggings
Rotate swingaway front rigging assembly outward. Lift the swingaway front rigging assembly off the hinge pins. DETAIL “A” DETAIL “B” Front Rigging Assembly Hinge Plates/ Hinge Pins Front Rigging Release Lever Hinge Plates/ Rotate inward to use. Hinge Pins Rotate outward to remove FIGURE 4.1 Installing/Removing Front Riggings Assembly ™ Insignia Part No. 1163197... -
Page 21: Adjusting Footplate Height
The user’s leg MUST be supported by an assistant before attempting to lower legrest. NOTE: For this procedure, refer to FIGURE 4.3 on page 21. To raise the elevating legrest, the assistant should hold Release Lever the support tube and raise the elevating legrest until the desired height is obtained. To lower the elevating legrest, perform the following: A. Support user leg with one hand. B. Push release lever downward with other hand. C. Gently, lower user leg down and rest against the legrest. Support Tube FIGURE 4.3 Raising/Lowering Elevating Legrest Assembly ™ Part No. 1163197 Insignia... -
Page 22: Replacing Heel Loop
Pull the cam lock lever down to the unlocked position. Push in the release buttons and remove the footplate assembly from the front rigging support. Remove the mounting screw, spacer and locknut that secure the heel loop to the footplate. Remove existing heel loop from slide tube. Install new heel loop onto slide tube. Install the mounting screw, spacer and locknut to secure the heel loop to the footplate. Tighten securely. Insert the slide tube into the front rigging support and adjust to desired height. Ensure that the release buttons fully protrude from holes on both sides of the front rigging support. Rotate cam lock lever up to the locked position. Front Rigging Support Adjustment Holes Cam Lock Release Button Lever Footplate Slide Tube Assembly Heel Loop Mounting Screw, Spacer and Locknut FIGURE 4.4 Replacing Heel Loop ™ Insignia Part No. 1163197... -
Page 23: Section 5-Arms
Make sure the armrest is locked in position before using the wheelchair. NOTE: For this procedure, refer to FIGURE 5.1. While pressing and holding the release button, adjust the armrest to the desired height. NOTE: An “audible”click will be heard when armrest locks in position. Let go of release button to lock armrest in place. Release Release Button Button Armrest Channel Bracket Flip Back Flip Back Arm FIGURE 5.1 Removing/Installing the Armrest/Adjusting Armrest Height ™ Part No. 1163197 Insignia... -
Page 24: Using Flip Back Armrest
Release Lever Flip Back Front Arm Armrest Socket Release Lever Front Arm Socket FIGURE 5.2 Using Flip Back Armrest Removing/Installing the Flip Back Arm NOTE: For this procedure, refer to FIGURE 5.3 on page 25. Removing Push the release lever toward the front of the chair and remove the front of the flip back arm out of the front arm socket. While pulling back on the plunger knob, pull flip back arm up and out of the front and rear arm sockets. Installing Install flip back arm into front and rear arm sockets. NOTE: Ensure that the release lever and plunger pin secure the flip back arm in place. NOTE: Armrest is locked into armrest socket when “audible” click is heard. Pull up on flip back arm to ensure arm is locked in place. ™ Insignia Part No. 1163197... -
Page 25: Replacing Clothing Guards
FIGURE 5.3 Removing/Installing the Flip Back Arm Replacing Clothing Guards NOTE: For this procedure, refer to FIGURE 5.4. Remove the flip back arm. Refer to Removing/Installing the Flip Back Arm on page 24. Remove the three mounting screws on the front side and two mounting screws on the back side that secure the clothing guard in place. Secure new clothing guard in place with three mounting screws on the front side and two mounting screws on the back side. Reinstall the flip back arm. Refer to Removing/Installing the Flip Back Arm on page 24. Back Side Front Side Clothing Guard Clothing Guard Three Mounting Two Mounting Screws Screws FIGURE 5.4 Replacing Clothing Guards ™ Part No. 1163197 Insignia... -
Page 26: Changing From Full Length Armrest To Desk Length Armrest And Vice Versa
Changing from Full Length Armrest to Desk Length Armrest and Vice Versa NOTE: For this procedure, refer to FIGURE 5.5 on page 26. Remove the armrest. Rotate armrest 180°, ensuring that the scalloped edge of the channel remains facing toward the inside of the wheelchair, and install on opposite side of chair. Desk Length Armrest Full Length Armrest Position for Desk Length Position for Full Length FIGURE 5.5 Changing from Full Length Armrest to Desk Length Armrest and Vice Versa ™ Insignia Part No. 1163197... -
Page 27: Part No. 1163197 Insignia
Removing NOTE: For this procedure, refer to FIGURE 6.1. Remove the mounting screws and washers that secure the seat upholstery to the seat rails. Remove the seat upholstery. Installing Secure the seat upholstery to the seat rails with mounting screws and washers. Tighten securely. Mounting Screws Seat Upholstery Mounting Seat Rail Screws Seat Rail FIGURE 6.1 Removing/Installing the Seat Upholstery Removing/Installing the Seat Cushion NOTE: For this procedure, refer to FIGURE 6.2. Remove the hook strips from the plastic bag shipped with the wheelchair. Position one hook strip (Detail “B”) on top of the loop strip (Deatil “A”)that are located on the seat upholstery. Repeat STEP 2 for remaining loop strip on seat upholstery. Remove the backing to expose the adhesive of each hook strip (Detail “C”). Position the seat cushion on top of both hook strips on the seat upholstery (Detail “D”). Firmly press down on both sides of cushion to ensure hook strips adhere to the underside of the seat cushion. ™ Part No. 1163197 Insignia... -
Page 28: Removing/Installing The Back Upholstery
Strip Upholstery Upholstery DETAIL “C” DETAIL “D” Backing Adhesive Seat Upholstery Seat Cushion FIGURE 6.2 Removing/Installing the Seat Cushion Removing/Installing the Back Upholstery Removing NOTE: For this procedure, refer to FIGURE 6.3 on page 29. Remove the two mounting screws and washers that secure the back upholstery to the back canes. Remove the two height adjustment knobs that secure back cane to the wheelchair frame. Pull the back canes out of the wheelchair frame. Pull the back upholstery down and off the back canes. Installing Install back upholstery onto the back canes. Install back canes into wheelchair frame. Secure the back canes to the wheelchair frame with the two adjustment knobs. Tighten securely. Secure the back upholstery to the back canes with the two mounting screws and washers. Tighten securely. ™ Insignia Part No. 1163197... -
Page 29: Adjusting Back Height, Back Angle Or Seat Depth
Any change to one or any combination of the ten may cause the wheelchair to decrease in stability. These adjustments MUST be performed by a qualified technician. Adjusting Seat Width WARNING Adjusting the seat width MUST be performed by a qualified technician. ™ Part No. 1163197 Insignia... -
Page 30: Section 7-Rear Wheels
Make sure the detent pin and detent balls of the quick-release axle are fully released before operating the wheelchair. The detent balls MUST be protruding past the inside of the rear wheel axle bushing for a positive lock. Keep detent balls clean. Insert the quick release axle into the rear wheel (Detail “C”). Insert the quick release axle with rear wheel into the axle lug into the wheelchair frame (Detail “B”). NOTE: The detent balls MUST be protruding past the inside of the rear wheel axle bushing for a positive lock (Detail “D”). If the detent balls are not protruding past the inside of the axle bushing or there is too much side‐to‐side movement of the rear wheel assembly, refer to Adjusting Quick‐Release Axle on page 31. ™ Insignia Part No. 1163197... -
Page 31: Adjusting Quick-Release Axle
WARNING Make sure detent pin and detent balls of the quick-release axles are fully released before operating the wheelchair. Keep detent balls clean. NOTE: For this procedure, refer to FIGURE 7.1 and FIGURE 7.2 on page 32. Push in the quick release axle button and pull the quick release axle with rear wheel out of the axle lug in the wheelchair frame (FIGURE 7.1). Push in the quick release axle button again and pull the quick release axle out of the rear wheel (FIGURE 7.1). Release quick release axle button and ensure that the detent balls are fully released (FIGURE 7.2). Increase or decrease play by adjusting the locknut on the end of the quick‐release axle. ™ Part No. 1163197 Insignia... -
Page 32: Replacing Rear Wheel Handrim
Make sure detent pin and detent balls of the quick-release axles are fully released before operating the wheelchair. Reinstall rear wheel to the wheelchair. Refer to Removing/Installing Rear Wheels on page 30. If the detent balls of the quick‐release axles (if applicable) are not protruding past the inside of the axle bushing or there is too much movement of the rear wheel assembly in a back and forth position, refer to Adjusting Quick‐Release Axle on page 31. Repeat STEPS 1‐6 for the opposite rear wheel if necessary. Replacing/Repairing Rear Wheel Tire WARNING Replacement of rear wheel tire or tube MUST be performed by a qualified technician. ™ Insignia Part No. 1163197... -
Page 33: Section 8-Front Casters
Installing Secure the caster to the fork with one mounting screw. Tighten securely. FIGURE 8.1 Removing/Installing Front Casters Removing/Installing the Caster/Fork/Headtube Assembly Removing NOTE: For this procedure, refer to FIGURE 8.2 on page 34. Loosen the angle adjustment screws on the bottom of the round receptacle. Remove the two mounting screws that secure the caster/fork/headtube assembly to the round receptacle (Detail “B”). Remove caster/fork/headtube assembly from the round receptacle (Detail “D”). Installing Install fork/headtube assembly into the round receptacle (Detail “B”). Using an “L” square, rotate the fork/headtube assembly so that the flat edge of the fork is 90° to the ground/floor (Detail “E”). Tighten the angle adjustment screws (Detail “A”). Secure the fork/headtube assembly to the round receptacle with two mounting screws (Detail “B”). Tighten securely. To properly tighten caster journal system and guard against flutter, perform the following check: A. Tip back of wheelchair to floor. B. Pivot both forks and casters to top of their arc simultaneously. C. Let casters drop to bottom of arc (wheels should swing once to one‐side, then IMMEDIATELY rest in a straight downward position). D. Remove dust cover and adjust locknuts according to freedom of caster swing. ™ Part No. 1163197 Insignia... - Page 34 (See Detail “C”) Adjustment Screws Mounting Screws DETAIL “D” - CASTER/FORK/HEADTUBE DETAIL “C” ASSEMBLY Dust Cover Caster/Fork/Headtube Assembly (See Detail “C”) DETAIL “E” - 90° to the ground/floor CASTER/FORK/HEADT UBE ALIGNMENT FIGURE 8.2 Removing/Installing the Caster/Fork/Headtube Assembly ™ Insignia Part No. 1163197...
-
Page 35: Replacing/Repairing Front Caster Tire/Tube
Replacement of front caster tire or tube MUST be performed by a qualified technician. CAUTION As with any vehicle, check the wheels and tires periodically for cracks and wear. Replace if damaged. Adjusting Front Caster Mounting WARNING Front caster mounting adjustments MUST be performed by a qualified technician. ™ Part No. 1163197 Insignia... -
Page 36: Section 9-Wheel Locks
Unlocked Position Locked Position Wheel Lock Handle Wheel Lock Handle FIGURE 9.1 Using Patient Operated Wheel Locks Adjusting Patient-Operated Wheel Locks NOTE: For this procedure, refer to FIGURE 9.2 on page 37. Disengage the wheel locks. Refer to Using Patient Operated Wheel Locks on page 36. Loosen the two socket screws that secure the wheel lock to the wheelchair frame (Detail “C”). Reposition the wheel lock so that when engaged, the wheel lock shoe embeds the tire 1/8‐inch (3/16‐inch for pneumatic tires) and holds the occupied wheelchair in place when pushed (Detail “B”). Securely tighten the two socket screws securing the wheel lock to the wheelchair frame. Engage the wheel lock. Measure the distance the wheel lock is embedded into the tire as shown in FIGURE 9.2 on page 37. NOTE: Any wheel lock adjustment should embed the wheel lock shoe at least 1/8‐inch (3/16‐inch if pneumatic tire) into the tire when engaged. Repeat STEPS 1‐6 until the wheel lock shoe embeds the tire 1/8‐inch (3/16‐inch for pneumatic tires) and holds the occupied wheelchair in place when pushed. ™ Insignia Part No. 1163197... - Page 37 SECTION 9—WHEEL LOCKS If wheel lock is unable to properly engage the wheel, contact your local dealer or Invacare at the number on the back cover. Repeat STEPS 1‐9 for the opposite wheel lock. 10. Engage both wheel locks and ensure the occupied wheelchair is held in place when pushed. DETAIL “B” - LOCKED DETAIL “A” - UNLOCKED NOTE: Wheel lock should embed the wheel lock shoe at least 1/8‐inch (3/16‐inch if pneumatic tire) into the tire when engaged. DETAIL “C” Wheelchair Frame Wheel Lock Socket Screws FIGURE 9.2 Adjusting Patient-Operated Wheel Locks ™ Part No. 1163197 Insignia...
-
Page 38: Section 10-Anti-Tippers
Seat-to-floor angle of 0° or 3°: If so equipped, anti-tippers must be attached at all times. Inasmuch as the anti-tippers are an option for 0° or 3° on this wheelchair, Invacare strongly recommends using the anti-tippers as a safeguard for the wheelchair user. -
Page 39: Changing Orientation Of Anti-Tip Wheels
FIGURE 10.1 Installing Anti-Tippers Changing Orientation of Anti-Tip Wheels NOTE: For this procedure, refer to FIGURE 10.2. Pull the spring loaded anti tipper out and rotate up or down. Rotate until anti‐tipper locks in the Up or Down position. Anti Tipper in Down Position Anti Tipper in Up Position Anti Tipper is spring loaded at this point FIGURE 10.2 Changing Orientation of Anti-Tip Wheels ™ Part No. 1163197 Insignia... - Page 40 2 inches 1½ inches DETAIL “B” Anti-Tipper Height Anti-Tipper Length FIGURE 10.3 Adjusting Anti-Tippers NOTE: Refer to Detail “B” in FIGURE 10.3 and to the following chart to ensure the correct anti‐tipper is installed in the wheelchair. Seat‐to‐Floor heights are approximate depending on front caster size and type. Anti‐Tipper length measurement is taken with the extension tube in the longest position available.The anti‐tipper height measurement MUST be taken with the anti‐tipper on a flat surface. INSIGNIA CASTER SEAT-TO-FLOOR HEIGHT ANTI-TIPPER SIZE LENGTH/HEIGHT 6-inch and 16½, 17½, 18½, 19½ inches 13.5/3.8-inches 8 inch ™ Insignia Part No. 1163197...
-
Page 41: Section 11-Options
I.V. medication. Installing/Removing the I.V. Holder Installing NOTE: For this procedure, refer to FIGURE 11.1 on page 42. Remove the anti‐tipper from the wheelchair. Refer to Installing/Adjusting Anti‐tippers on page 38. Install the mounting tube of the I.V.holder onto the step tube (Detail “A”). Press the release button in and insert the anti‐tipper into the step tube until the release button locks in the hole on the bottom of the step tube (Detail “B”). Remove the top mounting screw that secures the back upholstery to the back cane (Detail “C”). Secure the I.V. holder and back upholstery to the back cane using the mounting screw removed in STEP 4 (Detail “C”). Removing Press the release button in and remove the anti‐tipper (Detail “B). Remove the mounting screw that secures the I.V. holder and back upholstery to the back cane (Detail “C”). Remove the mounting tube of the I.V. holder off of the step tube (Detail “A”). Install the anti‐ tipper. Refer to Installing/Adjusting Anti‐tippers on page 38 Secure the back upholstery to the back cane with the mounting screw removed in STEP 1 (Detail “C”). Adjusting the Height of the I.V. Holder NOTE: For this procedure, refer to FIGURE 11.1 on page 42. Loosen the height adjustment knob on the I.V. holder (Detail “D”). Adjust the I.V. pole to the desired height (Detail “D”). Retighten the height adjustment knob (Detail “D”). ™ Part No. 1163197 Insignia... -
Page 42: Installing/Removing The O2 Holder
O2 holder frame. Installation of the O2 holder on the right side cannot be achieved due to interference of the O2 holder with the back upholstery. NOTE: Right and left are determined by the sitting in the wheelchair. NOTE: For this procedure, refer to FIGURE 11.2 on page 43. Installing Remove the anti‐tipper from the wheelchair. Refer to Installing/Adjusting Anti‐tippers on page 38. Remove the top mounting screw that secures the back upholstery to the back cane (Detail “A”). Slide the mounting tube of the O2 holder onto the step tube (Detail “B”). ™ Insignia Part No. 1163197... - Page 43 Top Mounting Screw Step Tube Mounting Tube Mounting O2 Holder Bracket Back Upholstery O2 Holder DETAIL “C” - BOTTOM VIEW Anti-Tipper O2 Holder Release Button Mounting Tube Step Tube FIGURE 11.2 Installing/Removing the O2 Holder ™ Part No. 1163197 Insignia...
-
Page 44: Using The O2 Holder
The user and O2 cylinder MUST be removed from the wheelchair when cleaning the O2 holder. Otherwise, injury or damage may occur if cleaning agents come in contact with the O2 regulator. Remove the user and the O cylinder from the wheelchair. The O2 holder cleans easily with any household glass type cleaner. NOTE: After the cleaning solution has dried, it is safe for the user to re‐occupy the wheelchair. ™ Insignia Part No. 1163197... -
Page 45: Installing/Removing The Iv/O2 Holder
FIGURE 11.4 Installing Anti-Tipper into IV/O2 Holder Mounting Tube NOTE: When performing STEP 3, the IV/O2 holder mounting tube will slide over top of the step tube while the anti‐tipper will slide inside the step tube. Slide the IV/O2 holder and anti‐tipper assembly onto the step tube and, while pressing the release button, insert the anti‐tipper into the step tube (Detail “A” and “D” in FIGURE 11.5). Ensure the release button locks in the hole on the bottom of the step tube (Detail “A” and “D” in FIGURE 11.5). NOTE: Mounting bracket of IV/O2 holder should be positioned between the two axle mounting positions on vertical frame tube. Secure mounting bracket and support block against vertical frame tube with mounting screw (Detail “A” and “B” in FIGURE 11.5). Tighten securely. Remove the top mounting screw that secures the back upholstery to the back cane (Detail “A” in FIGURE 11.5). Secure the upper mounting bracket of the IV/O2 holder and back upholstery to the back cane with the mounting screw removed in STEP 6. Tighten securely (Detail “C” in FIGURE 11.5). Removing NOTE: For this procedure, refer to FIGURE 11.5. Press the release button in and remove the anti‐tipper (Detail “D”). Remove the mounting screw that secures the mounting bracket and support block against vertical frame tube (Detail “A” and “B”). Remove the top mounting screw that secures the IV/O2 holder and back upholstery to the back cane (Detail “C”). Remove the mounting tube of the IV/O2 holder off of the step tube (Detail “A”). Install the anti‐ tipper. Refer to Installing/Adjusting Anti‐tippers on page 37 of the owner’s manual, p/n 1163197. Secure the back upholstery to the back cane with the mounting screw removed in STEP 2 (Detail “C”). ™ Part No. 1163197 Insignia... -
Page 46: Using The Iv/O2 Holder
Only use O2 cylinders that are at least 24.9 inches in height and 4 inches in diameter. Smaller O2 cylinders will not properly secure in place which may result in injury and/or damage to the O2 cylinder. NOTE: For this procedure, refer to FIGURE 11.6. Slide the O2 cylinder through the upper and lower cylinder brackets (Detail “A”). Rotate the locking knob clockwise until the O2 cylinder is secured in place (Detail “B”). Hand tighten only. ™ Insignia Part No. 1163197... -
Page 47: Adjusting The Height Of The Iv Pole
The user and O2 cylinder MUST be removed from the wheelchair when cleaning the O2 holder. Otherwise, injury or damage may occur if cleaning agents come in contact with the O2 regulator. Remove the user, any I.V. medication and the O cylinder from the wheelchair. The telescoping I.V. pole/O2 holders clean easily with any household glass type cleaner. After the cleaning solution has dried, it is safe for the user to re‐occupy the wheelchair. ™ Part No. 1163197 Insignia... -
Page 48: Installing Crutch And Cane Carrier
Reinstall the back upholstery screw and washer and secure the strap to the wheelchair. The base cleans easily with any chrome or glass cleaner. The strap can be cleaned with mild soap and water. Step Tube FIGURE 11.8 Installing Crutch and Cane Carrier Installing/Removing the Seat Positioning Strap Installing NOTE: For this procedure, refer to FIGURE 11.9 on page 49. NOTE: Right and left is determined by sitting in the wheelchair. Remove the mounting screw and locknut that secure the back angle bracket to the wheelchair. Secure the buckle strap to the back angle bracket on the right side of the wheelchair with mounting screw and locknut. Tighten securely. Secure the tongue strap to the back angle bracket on the left side of the wheelchair with mounting screw and locknut. Tighten securely. Removing Remove the mounting screw and locknut that secures the buckle strap to the back angle bracket. Remove the buckle strap. Secure the back angle bracket to the wheelchair frame with the mounting screw and locknut. Tighten securely. Remove the mounting screw and locknut that secures the tongue strap to the back angle bracket. Remove the tongue strap. Secure the back angle bracket to the wheelchair frame with the mounting screw and locknut. Tighten securely. ™ Insignia Part No. 1163197... - Page 49 Tongue Strap Buckle Strap DETAIL “B” NOTE: Right side of wheelchair shown. Rear wheel removed for clarity. Buckle Strap Mounting Screw and Locknut DETAIL “C” Right Side of Wheelchair Left Side of Wheelchair Buckle and Tongue Connected FIGURE 11.9 Installing/Removing the Seat Positioning Strap ™ Part No. 1163197 Insignia...
- Page 50 SECTION 11—OPTIONS NOTES ™ Insignia Part No. 1163197...
-
Page 51: Limited Warranty
Invacare warrants the side frames and cross members of this product when purchased new and unused to be free from defects in materials and workmanship for a period of five years from the date of purchase from Invacare or a dealer, with a copy of the seller’s invoice required for coverage under this warranty. - Page 52 L4Z 4G4 Canada Trademarks are identified by ™ and ®. All trademarks are 800-333-6900 800-668-5324 owned by or licensed to Invacare Corporation or its subsidiaries unless otherwise noted. 3-in-1 oil is a registered trademark of American Home Products Corporation. Teflon is a registered trademark of E.I. Du Pont De Nemours and Company Part No.
