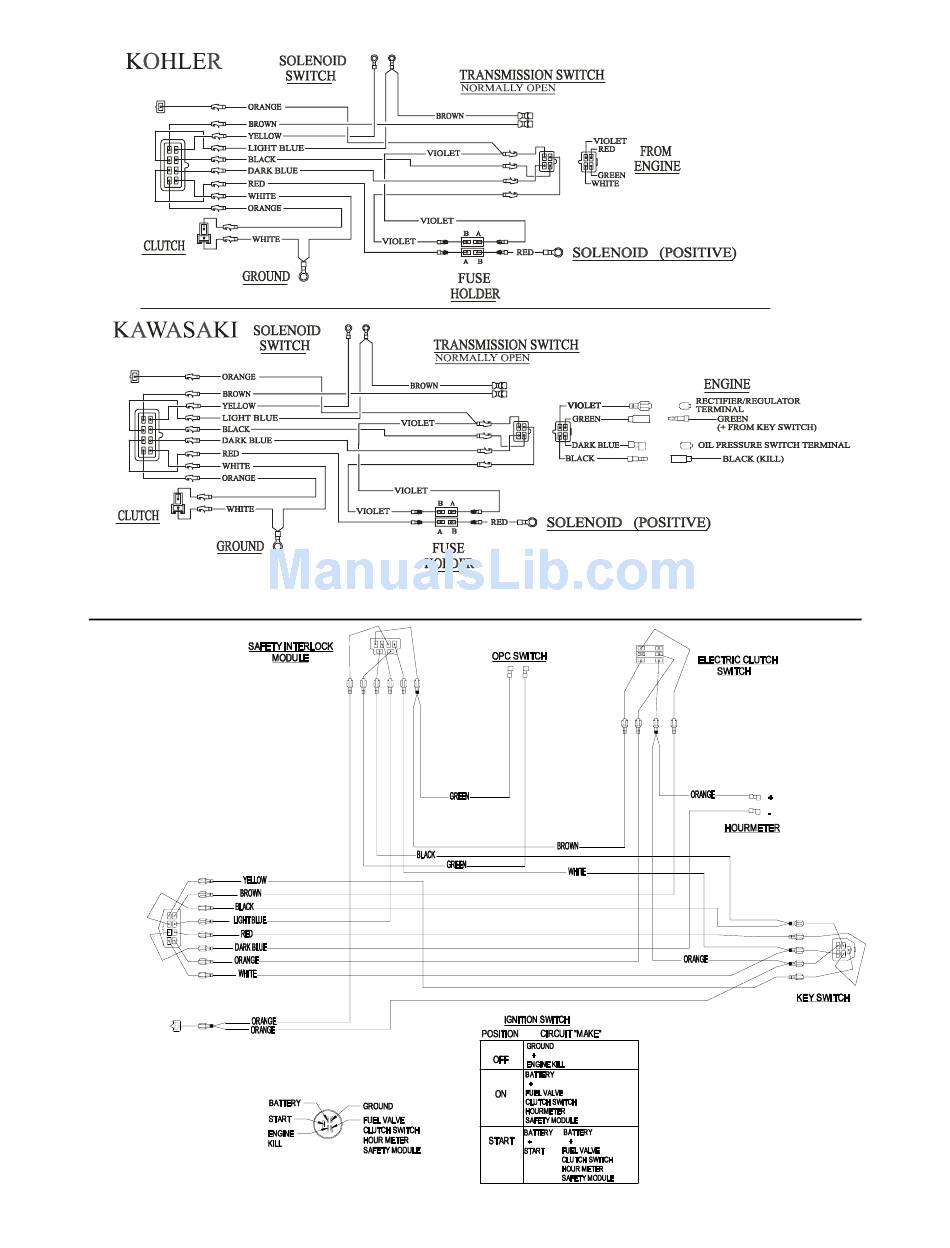

8. WIRING DIAGRAMS

Engine Deck Wiring Diagram
NOTE: All connectors are viewed from the wire input side of the connector.
Console Wiring Diagram
NOTE: All connectors are viewed from
the wire input side of the connector.
- 33 -
