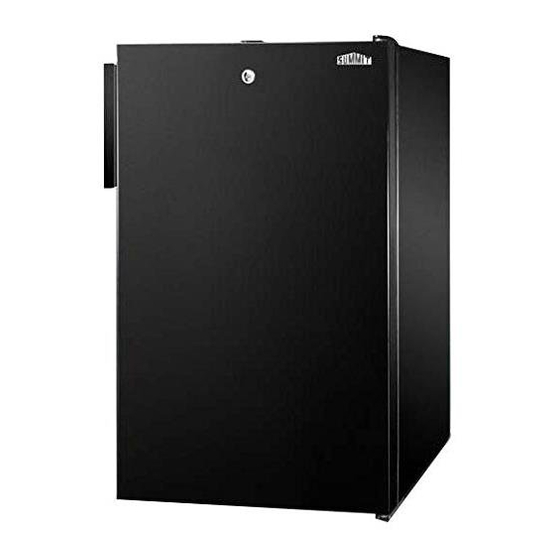

COMPACT BUILT-IN FREEZER
Models
CM405
FS407LBI
FS408BLBI
CM411L
CM421BL
Owner's Manual
BEFORE USE, PLEASE READ AND FOLLOW
ALL SAFETY RULES AND OPERATING INSTRUCTIONS
FELIX STORCH, INC.
Write the Serial Number here:
770 Garrison Avenue
_________________________
Bronx, NY 10474
www.summitappliance.com
Advertisement
Table of Contents
Related Manuals for Summit FS407LBI
Summary of Contents for Summit FS407LBI
- Page 1 COMPACT BUILT-IN FREEZER Models CM405 FS407LBI FS408BLBI CM411L CM421BL Owner's Manual BEFORE USE, PLEASE READ AND FOLLOW ALL SAFETY RULES AND OPERATING INSTRUCTIONS FELIX STORCH, INC. Write the Serial Number here: 770 Garrison Avenue _________________________ Bronx, NY 10474 www.summitappliance.com...
-
Page 2: Important Safeguards
IMPORTANT SAFEGUARDS Your safety and the safety of others are very important. We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages. This is the Safety Alert Symbol. This symbol alerts you to potential hazards that can kill or injure you and others. - Page 3 • NOTE: Models FS407LBI and FS408BLBI are designed to operate in enclosed spaces. However, when placing your unit, you should allow the following clearances to ensure proper ventilation for optimal performance: 1/4” on both sides, 2” at the rear and 1/16” at the top. Be sure that airflow beneath the unit is not restricted.
-
Page 4: Table Of Contents
Table of Contents Important Safeguards ......................1 - 2 Location of Parts ........................3 Technical Information ......................4 Installation Instructions ....................... 4 - 6 Before Using Your Freezer ..................4 Installing the Freezer ....................4 - 5 Electrical Connection / Extension Cord ............... 5 Reversing the Door Swing / Door Handle Installation .......... -
Page 5: Technical Information
To level your unit, adjust the leveling legs at the bottom. • Models FS407LBI and FS408BLBI are specifically designed to be built-in. • T hese built-in models are designed to be installed under the counter in a 21-inch opening. -
Page 6: Electrical Connection / Extension Cord
• Avoid locating the unit in moist areas. Too much moisture in the air will cause frost to form quickly on the evaporator, requiring more frequent defrosting of the freezer. • Plug the unit into an exclusive, properly installed and grounded wall outlet. Do not under any circumstances cut or remove the third (ground) prong from the power cord. -
Page 7: Reversing The Door Swing / Door Handle Installation
Reversing the Door Swing : Figure 1 (Default position) Figure 2 (After door reversal) 1. Upper hinge cover 6. Screws 2. Screws 7. Hole cover 3. Upper hinge 8. Cabinet 4. Door 9. Pin cap 5. Lower door hinge This freezer can be opened from either the right side or the left. By default, the door hinge is on the right side. -
Page 8: Operating Your Freezer
Operating Your Freezer Temperature Control • The temperature control is located at the rear bottom corner of the freezer. • When you turn the unit on for the first time, set the control to its maximum position, 6, using a coin or flathead screwdriver. •... -
Page 9: Care And Maintenance
If the key is lost, contact your dealer or SUMMIT APPLIANCE for a replacement. Always give the model and serial number of your appliance when requesting a replacement key. -
Page 10: Locking Your Freezer / Energy-Saving Tips
Energy-Saving Tips • The freezer should be located in the coolest area of the room, away from heat- producing appliances or heating ducts and out of direct sunlight. • Let hot foods cool to room temperature before placing in the freezer. Over- loading the unit forces the compressor to run longer. -
Page 11: Problems With Your Freezer? (Troubleshooting)
Problems with Your Freezer? You can easily solve many common problems with your freezer, saving you the cost of a possible service call. Try the suggestions below to see if you can correct the problem before calling the service provider. TROUBLESHOOTING GUIDE Problem Possible Cause... -
Page 12: Limited Warranty
Limited Warranty ONE-YEAR LIMITED WARRANTY Within the 48 contiguous United States, for one year from the date of purchase, when this appliance is operated and maintained according to instructions attached to or furnished with the product, warrantor will pay for factory-specified parts and repair labor to correct defects in materials or workmanship. Service must be provided by a designated service company.
