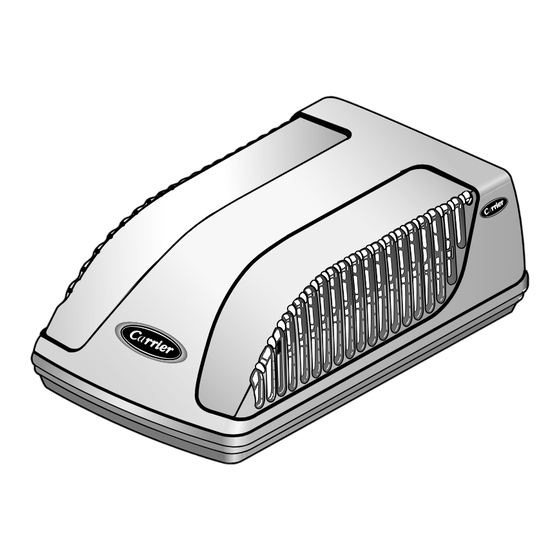

Recreational vehicle air conditioner, heat pump unit for ducted system
Hide thumbs Also See for Air V:
Table of Contents

Advertisement

Quick Links

See also: Instruction and Installation Manual
OWNER'S GUIDE
OPERATION & INSTALLATION
CARRIER RECREATIONAL VEHICLE
AIR CONDITIONER
HEAT PUMP UNIT FOR DUCTED SYSTEM
PRODUCT INFORMATION
Model Number
Date in Service
Unit Serial Number
Ceiling Assembly Serial Number
INSTALLER
Date of Installation
Name
Address
Phone

Advertisement

Table of Contents
loading

Related Manuals for Carrier Air V

Summary of Contents for Carrier Air V

  • Page 1 OWNER’S GUIDE OPERATION & INSTALLATION CARRIER RECREATIONAL VEHICLE AIR CONDITIONER HEAT PUMP UNIT FOR DUCTED SYSTEM PRODUCT INFORMATION Model Number Date in Service Unit Serial Number Ceiling Assembly Serial Number INSTALLER Date of Installation Name Address Phone...

  • Page 2: Table Of Contents

    “ Important!!! You must register your product either: www.airv.carrier.com Online at Mail in the completed paper form supplied with your product. “ CONTENTS A FEW WORDS ABOUT YOUR NEW AIR CONDITIONING UNIT ELECTRICAL DATA OPERATING INSTRUCTIONS CEILING UNIT DISPLAY REMOTE CONTROL DESCRIPTIONS...

  • Page 3: A Few Words About Your New Air Conditioning Unit

    In addition to cooling the room, your Carrier heat pump unit will also heat, filter and dehumidify the room’s air. In heating mode, the heat pump will shut down at conditions which would cause outdoor coil freeze up, generally near freezing temperatures.
  • Page 4 ’ S GUIDE - 3 OWNER SCHEMATIC DIAGRAM of Upper Unit Standard Unit (99-00468-06, -07) • Low Profile Unit (99-00468-13) • Schematic Diagram of Ceiling Unit...

  • Page 5: Operating Instructions

    ’ OWNER S GUIDE - OPERATING INSTRUCTIONS CEILING UNIT DISPLAY Room Air Thermistor <BOTTOM VIEW> TIMER(Orange): When the unit is in reservation on/off timer mode, an orange light will be displayed. UNIT ON(Green): When the unit is switched on by the remote control or the emergency button, a green light will be displayed.

  • Page 6: Remote Control Descriptions

    ’ S GUIDE - 5 OWNER NOTE If you want to stop the emergency operation, push the EMERGENCY button again or operate the remote control. * TEST MODE : Installer can operate the unit anytime regardless of temperature by pushing Emergency Button (COOL or HEAT) more than 5 seconds continuously after installing the unit.

  • Page 7: Remote Control Display

    ’ OWNER S GUIDE - ON TIMER BUTTON - When the unit is turned off, FAN SPEED SELECTOR BUTTON - Press this but- press the ON TIMER button to select the desired ton to select the desired fan speed of HIGH, LOW time, in hours, for the unit to turn on.

  • Page 8: Remote Control Preparation

    ’ OWNER S GUIDE - 7 REMOTE CONTROL PREPARATION Replacing Batteries Remove the cover of the battery compartment at the back of the remote control by sliding it out. Remove the old batteries and insert the new batteries. The remote control uses two alkaline batteries. (1.5V, LR03x2) Press the RST button with a sharp object to reset the remote control before closing the cover of the battery compartment.

  • Page 9: Unit Operation

    ’ OWNER S GUIDE - UNIT OPERATION GENERAL OPERATION PROCEDURE ON/OFF button Press button and the COOL operation is indicated. - Receiving beeps are heard. - The green UNIT ON lamp of the indoor unit display illuminates. MODE button Press this button to select the desired operation. FURN.

  • Page 10: Energy Saving Tips

    ’ OWNER S GUIDE - 9 ENERGY SAVING TIPS Select the temperature setting that suits your comfort needs and leave it at that chosen setting. Keep the unit’s air filters clean. (See the Normal Maintenance Procedures section of this manual on page 19.) During extreme outdoor temperatures, the heat gain of the vehicle may be reduced by: - parking the vehicle in a shaded area - keeping the windows and doors closed...

  • Page 11: Supply Ducting And Registers

    ’ OWNER S GUIDE - IMPORTANT Upon installation, the divider must be raised to and sealed with both the bottom of the roof top unit and the sides of the roof opening. The ceiling assembly frame has pin sockets ex- The 115 VAC service for the roof top unit must be tending from the front of the electrical box.
  • Page 12 ’ OWNER S GUIDE -11 Figure 1 Figure 2 IMPORTANT Insulating reduces cooling loss and helps prevent water staining of the vehicle ceiling due to moisture condensation. B. Registers Supply (cold air) registers should have a minimum discharge area of 48 square inches per system, or 24 square inches per duct.

  • Page 13: Preparation And Positioning The Roof Top Unit

    Figure 5 Air V level. A typical leveling shim is shown in Figure 5. * Height Varies To Make Unit Level Prepare the roof top unit for installation with the ceiling assembly.

  • Page 14: Ceiling Assembly Frame Preparation And Mounting

    ’ OWNER S GUIDE - Figure 6 CEILING ASSEMBLY FRAME PREPARATION AND MOUNTING A. Preparation Secure foam topped, three-sided, telescoping divider plate (which is predetermined according to the mea- sured thickness of the ceiling cavity, refer to p. 10) to the divider plate by tightening two screws, reference Figure 2 of page 11.
  • Page 15 ’ OWNER S GUIDE -14 NOTE Optional Drain System (for low profile unit : 99-00468-13) If you want to use the optional drain system for evaporator condensate, you should cut the thinner line of drain hole as shown Figure 6-1. Install the drain adaptor with 2 screws. And a 1/2” I.D. hose must be provided that runs from the 14”...
  • Page 16 ’ OWNER S GUIDE - Figure 7 Using the four bolts provided, secure the ceiling assembly frame to the roof top unit. The four mounting bolts are to be applied up through the bottom of the ceiling assembly frame and into the bottom of the roof top unit. NOTE Mounting bolts should be tightened evenly.
  • Page 17 ’ OWNER S GUIDE - Route copper, with ground, supply wiring with mini- mum #12 AWG from its power source to the side of the junction box. Do not attach them at this time. Take the roof top air conditioner electrical har- ness and plug it into the side of the electric con- trol box.

  • Page 18: Completing The Installation

    ’ OWNER S GUIDE - Connect the power line to the black, white and ground wires found in the junction box using three wire connectors. CAUTION - Connect black wire to black wire, white wire to white wire and ground wire to ground wire.

  • Page 19: Troubleshooting

    The air filter is dirty. Remove and clean the filter. The temperature setting is too high. Reset the Air V to a lower temperature THE UNIT IS NOT setting. C O O L I N G T H E...

  • Page 20: Normal Maintenance Procedures

    ’ OWNER S GUIDE - NORMAL MAINTENANCE PROCEDURES ACTIVITY FREQUENCY Remove cover and wash the condenser coil Twice a year Remove cover and clean the water drains Yearly Clean the filters* Once a month *Generally, filters should be cleaned every 30 days. The filters are very efficient in removing airborne particles.

  • Page 21: Part Diagram

    ’ OWNER S GUIDE - 20 PART DIAGRAM UPPER UNIT (Standard ; 99-00468-00, -01, -08, -09) PART NAME PART NAME PART NAME UPPER CONTROL ASSY BRACKET ASSY MOTOR WASHER CAP BOX, CONTROL CLIP, MOUNTING GROMMET CAPACITOR MOTOR, FAN GROMMET TUBE CLIP, THERMISTOR RING, COMPRESSION GROMMET TUBE...
  • Page 22 ’ OWNER S GUIDE - UPPER UNIT (Low Profile ; 99-00468-13) PART NAME PART NAME PART NAME PAN AS, BASE BRACKET AS 1, SUPPORT CAPACITOR, DUAL GASKET BRACKET AS 2, SUPPORT CAPACITOR, ID MOTOR INSU BASE 3 FIN AS, EVAP JOINT T/B COMPRESSOR FIN AS, COND...
  • Page 23 ’ OWNER S GUIDE - 22 CEILING UNIT FOR DUCTED SYSTEM PART NAME PART NAME PART NAME TELESCOPING DIVIDER ASSY 1 BOX ASSY, CONTROL WIRE ASSY, TELESCOPING DIVIDER ASSY 2 SUB BOX ASSY, CONTROL CORD PUSH TELESCOPING DIVIDER ASSY 3 STRAIN, RELIEF CONTROL BOX COVER ASSY DIVIDER ASSY...
  • Page 24 P/N:71LQ6A54010...
