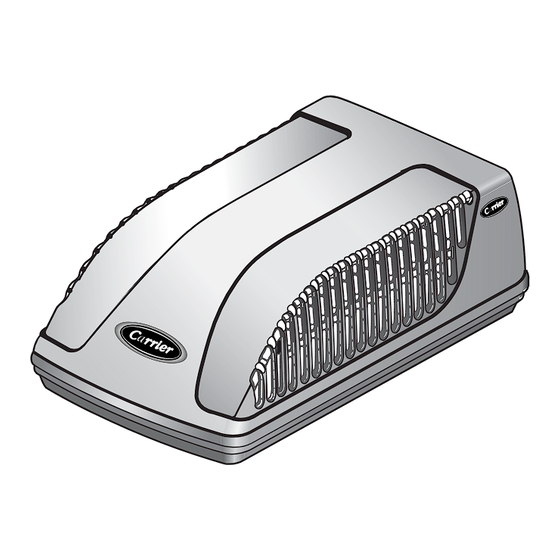

Recreational vehicle air conditioner
Hide thumbs Also See for Air V:
Table of Contents

Advertisement

Quick Links

See also: Owner's Manual , Instruction and Installation Manual
OWNER'S GUIDE
OPERATION & INSTALLATION
CARRIER RECREATIONAL VEHICLE

AIR CONDITIONER

PRODUCT INFORMATION
Model Number
Date in Service
Unit Serial Number
Ceiling Assembly Serial Number
INSTALLER
Date of Installation
Name
Address
Phone

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Air V and is the answer not in the manual?

Questions and answers

Related Manuals for Carrier Air V

Summary of Contents for Carrier Air V

  • Page 1: Air Conditioner

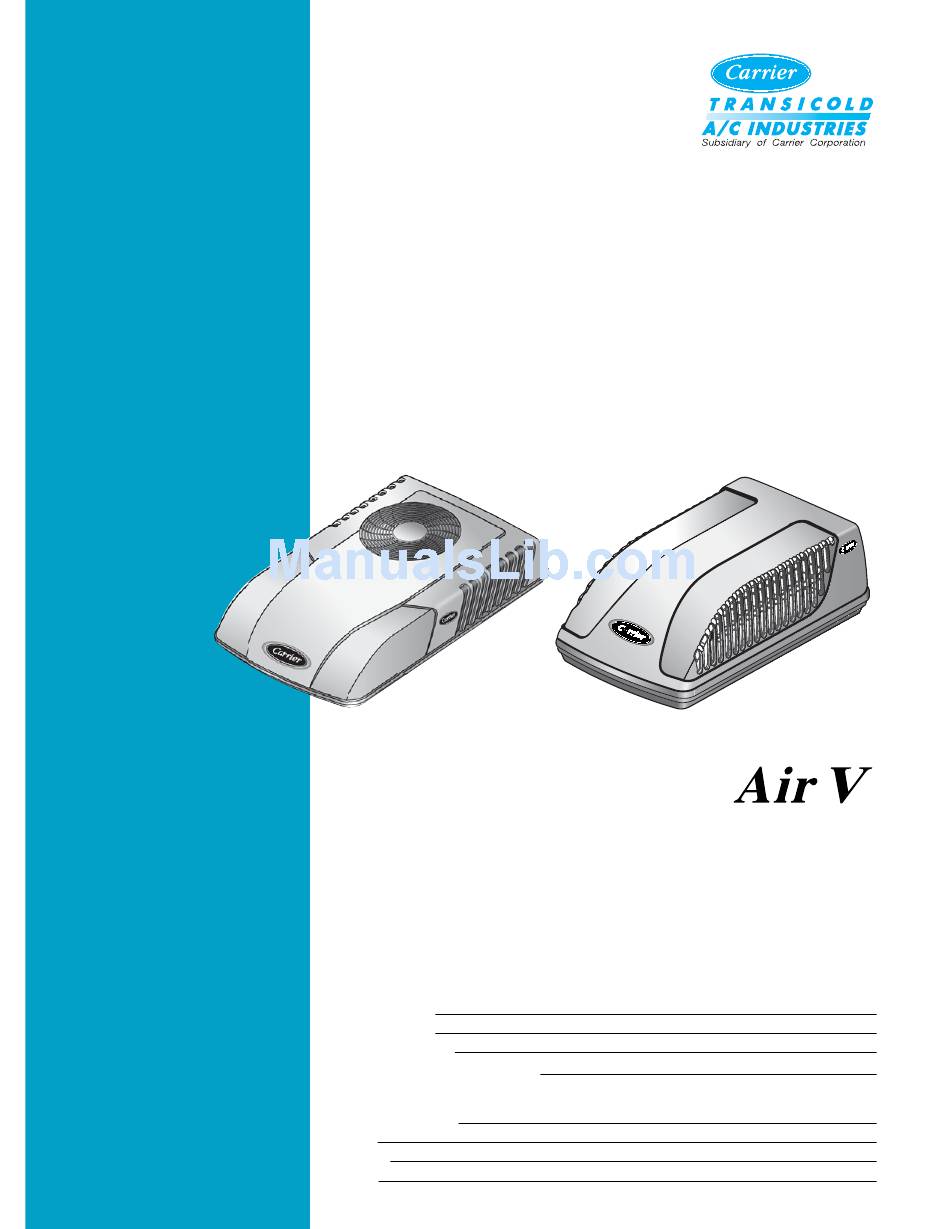

    OWNER’S GUIDE OPERATION & INSTALLATION CARRIER RECREATIONAL VEHICLE AIR CONDITIONER PRODUCT INFORMATION Model Number Date in Service Unit Serial Number Ceiling Assembly Serial Number INSTALLER Date of Installation Name Address Phone...

  • Page 2: Table Of Contents

    Important!!! You must register your product either: www.airv.carrier.com Online at Mail in the completed paper form supplied with your product. CONTENTS A FEW WORDS ABOUT YOUR NEW AIR CONDITIONING UNIT ELECTRICAL DATA OPERATING INSTRUCTIONS ENJOYING THE “AIR SHOWER “ ENERGY SAVING TIPS INSTALLATION INSTRUCTIONS Step 1.

  • Page 3: A Few Words About Your New Air Conditioning Unit

    In addition to cooling the room, your Carrier unit will also heat, filter and dehumidify the room’s air. The Air V air conditioners quietly give you maximum cooling comfort. Now you can “Feel Carrier’s Cool”! This manual will supply you with all the information you need for installing, operating and maintaining your new unit.
  • Page 4 ’ S GUIDE - 3 OWNER SCHEMATIC DIAGRAM of Upper Unit • Standard Unit (99-00468-00, -01, -08, -09) # OLP : OVERLOAD PROTECTOR # PTC : START THERMISTOR Low Profile Unit (99-00468-10,-12) • # OLP : OVERLOAD PROTECTOR # PTC : START THERMISTOR # JTB : JOINT TERMINAL BLOCK # FMC: INDOOR FAN MOTOR CAPACITOR SCHEMATIC DIAGRAM of Ceiling Unit...

  • Page 5: Operating Instructions

    ’ OWNER S GUIDE - 4 OPERATING INSTRUCTIONS GLOSSARY OF CONTROL SYMBOLS Automatic Thermostat Control Air Sweep Control Master Control When dial is turned to the OFF position the unit will NOT operate. When leaving your vehicle for any period of time, make sure the master control dial is set to the OFF position.

  • Page 6: Enjoying The "Air Shower

    ’ OWNER S GUIDE - HEAT HEAT will provide comfort heating. Choose the HEAT setting simply by rotating the dial to this position. The HEAT option is recommended for mildly chilly days. THERMOSTAT CONTROL Works much like the thermostat on a home heating system and has no effect on the fan speed.

  • Page 7: Installation Instructions

    STEP 1 - SELECTING AN INSTALLATION LOCATION & INSTALLING THE ROOF TOP AIR CONDITIONER Your Air V unit has been designed for use in recreational vehicles. Check the roof of the vehicle to determine if it supports both the roof top unit and the ceiling assembly without additional support.
  • Page 8 • The roof top air conditioner must be mounted on a level plane from front to rear and side to side when the vehicle is parked on a level plane. Figure 2 shows maximum allowable degrees that the Air V can be mounted above or...
  • Page 9 From inside the vehicle, pull the will need to be added to make the Air V level. electrical harness down from the roof air conditioner A typical leveling shim is shown in Figure 3.

  • Page 10: Step 2. Installing The Ceiling Assembly

    ’ OWNER S GUIDE - STEP 2 - INSTALLING THE CEILING ASSEMBLY Make sure that you have properly matched the roof top air conditioner and interior ceiling assembly. The following step by step instructions must be performed in the following sequence to insure proper installation. Secure the ceiling assembly frame to the roof top Carefully take the ceiling assembly out of the air conditioner with the mounting bolts (See...
  • Page 11 ’ OWNER S GUIDE -10 WARNING DO NOT USE DUCT TAPE ON OR AROUND FABRIC DUCT COLLAR. Fasten each side of the fabric duct with fitting Pull fabric tight. This will prevent the material from the duct plate to the ceiling assembly plate with gathering inside the discharge duct.

  • Page 12: Step 3. Installing The Heater Assembly

    ’ OWNER S GUIDE -11 STEP 3 - INSTALLING THE HEATER ASSEMBLY Place the heater assembly wire (See , Figure 5) into the hole located on the ceiling assembly. Insert the two existing ceiling assembly screws into the heater assembly guides then slide the heater assembly to the rear direction.
  • Page 13 ’ S GUIDE - 12 OWNER After the interior ceiling assembly frame is properly secured to the roof top air conditioner, the following electrical connections must be performed. Route a copper, with ground, supply wiring with minimum, #12 A WG from its power source to the junction box.

  • Page 14: Step 5. Completing The Installation

    Make sure that the mounting of the air conditioner is correct and level. Reset the Air V to a lower temperature The temperature setting is too high. setting. The air filter is dirty.

  • Page 15: Normal Maintenance Procedures

    ’ OWNER S GUIDE - NORMAL MAINTENANCE PROCEDURES ACTIVITY FREQUENCY Remove cover and wash the condenser coil Twice a year Remove cover and clean the water drains Yearly Once a month Clean the filters* *Generally, filters should be cleaned every 30 days. The filters are very efficient in removing airborne particles.

  • Page 16: Part Diagram

    ’ OWNER S GUIDE -15 PART DIAGRAM UPPER UNIT (Standard ; 99-00468-00, -01, -08, -09) PART NAME PART NAME PART NAME UPPER CONTROL ASSY FAN MOTOR SEAL OVERLOAD PROTECTOR BOX, CONTROL BRACKET ASSY MOTOR NUT LOCK CAPACITOR CLIP, MOUNTING WASHER CAP CLIP, THERMISTOR MOTOR, FAN GROMMET...
  • Page 17 ’ OWNER S GUIDE - UPPER UNIT (Low Profile ; 99-00468-10,-12) PART NAME PART NAME PART NAME PAN AS, BASE STUD, BOLT BOX, CONTROL GASKET SCROLL AS, LOWER CAPACITOR, DUAL INSU BASE 3 BRACKET AS 1, SUPPORT CAPACITOR, ID MOTOR COMPRESSOR BRACKET AS 2, SUPPORT JOINT T/B...
  • Page 18 ’ OWNER S GUIDE -17 PART NAME PART NAME PART NAME PANEL ASSY, CEILING GRILLE ASSY, CEILING DUCT ASSY, FLEXIBLE CONTROL ASSY, CEILING BRACKET, DOOR DUCT PLATE CONTROL BOX 2 DIFFUSER DOOR ASSY MOUNTING BOLT ROTARY SWITCH (MASTER CONTROL) SPRING, DOOR HEATER ASSY THERMOSTAT BLADE HORIZONTAL, FRONT...
  • Page 19 P/N:71LH6A5407A...
