DVD DRIVE (ODD)
1

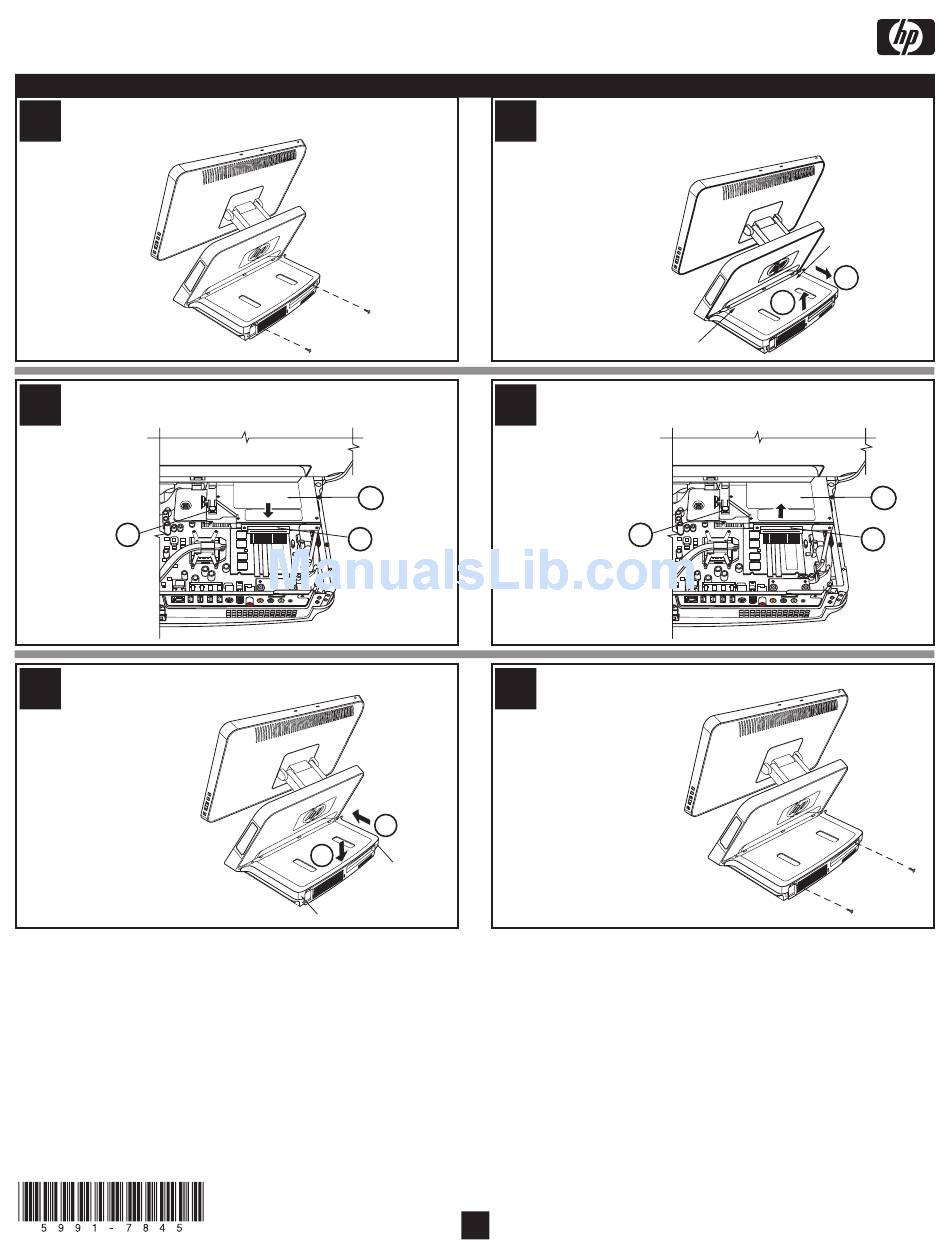

Remove the two screws from the horizontal cover.
Remove the cable from the DVD drive (J), lift the tab
3
(K) and slide the DVD drive (L) out of the chassis.
K
Place the horizontal cover (I) in position on the
5
chassis with about
1/2 inch (1.27 cm)
gap, and then slide
the horizontal cover
(H) toward the front of
the computer chassis
to close the gap; the
cover should fit flush
with the connectors.
Copyright © 2007 Hewlett-Packard Development Company, L.P.
The information contained herein is subject to change without notice.
The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services.
Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions
contained herein.
No part of this document may be photocopied, reproduced, or translated to another language without prior written consent of HP.
L
J
H
I
Push here
Push here
Printed in
2
Press down on the horizontal cover (H) and pull
it out about 1/2 inch (1.27 cm), and then lift the
horizontal cover (I)
from the chassis.
Press down
Insert the new DVD drive (L) into the chassis, slide
4
the drive in until the tab (K) catches, and then
reconnect
the DVD
drive cable (J).
K
Insert the two screws
6
and tighten them.
2
Press down
H
I
L
J
