HP Compaq Microtower Business PC dx2300 Quickspecs

Microtower business pc
Hide thumbs Also See for Compaq Microtower Business PC dx2300:
Table of Contents

Advertisement

Quick Links

QuickSpecs

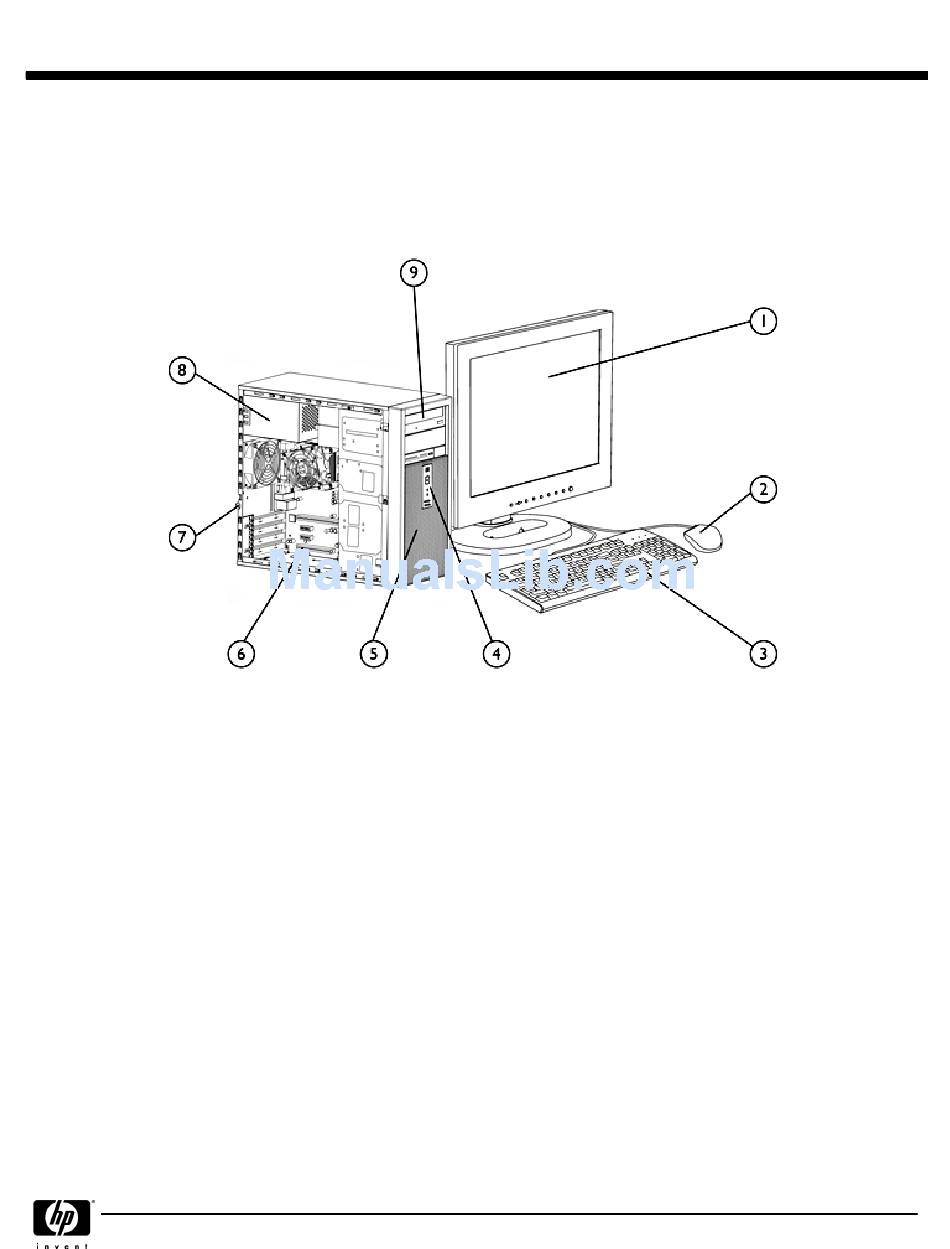

Overview
1. Monitor (sold separately)
2. PS/2 Scroll Mouse
3. HP Standard Keyboard
4. (2) USB 2.0 ports, audio ports
5. (2) internal 3.5" drive bays
Microtower
DA - 12668 Worldwide — Version 2 — March 21, 2007
HP Compaq dx2300 Microtower Business PC
HP recommends Windows®
Vista™ Business
6. (1) full-height PCI 2.3 slot, (2) PCIe x1 slots,
(1) PCIe x16 slot
7. (4) USB 2.0 ports, (1) serial port, (1) optional second
serial port, (1) parallel port, (2) PS/2, (1) RJ-45, (1) VGA,
(1) audio in – (1) audio out – (1) MIC
8. 250-watt max power supply
9. (2) external 5.25" drive bays for optional optical drives; (1)
external 3.5" drive bay for optional media reader or
diskette drive
Page 1

Advertisement

Table of Contents
loading

Related Manuals for HP Compaq Microtower Business PC dx2300

Summary of Contents for HP Compaq Microtower Business PC dx2300

  • Page 1 2. PS/2 Scroll Mouse 3. HP Standard Keyboard 4. (2) USB 2.0 ports, audio ports 5. (2) internal 3.5" drive bays HP Compaq dx2300 Microtower Business PC Microtower 6. (1) full-height PCI 2.3 slot, (2) PCIe x1 slots, (1) PCIe x16 slot 7.
  • Page 2 Choice of hard drives and optical drives DDR2 SDRAM system memory Protected by HP Services. Terms and conditions vary by country. Certain restrictions and exclusions apply. HP Compaq dx2300 Microtower Business PC DA - 12668 Worldwide — Version 2 — March 21, 2007...

  • Page 3: Standard Features And Configurable Components

    To download the tool, visit http://www.windowsvista.com/upgradeadvisor. Microsoft Office 2007 Basic Microsoft Office 2007 Small Business Microsoft Office 2007 Professional Microsoft Works 8.5 HP Compaq dx2300 Microtower Business PC DA - 12668 Worldwide — Version 2 — March 21, 2007 for details. Windows Vista Page 3...
  • Page 4 1.44-MB Diskette Drive following (see Storage Media Reader section below) HP 16-in-1 Media Reader and additional USB 2.0 port Optical Drives (Serial ATA) SATA CD-ROM drive (available in APJ only; not supported by Windows Vista) SATA DVD-ROM Drive SATA CD-RW/DVD-ROM Combo Drive (not supported by Windows Vista) SATA DVD+/-RW (DL/DF) LightScribe Drive Keyboard –...
  • Page 5 ATI Radeon X1300 (256MB SH) PCIe Graphics ATI Radeon X1300 Pro (256MB DH) PCIe Graphics Miscellaneous HP FireWire / IEEE 1394 PCI Card (full height) HP Compaq dx2300 Microtower Business PC DA - 12668 Worldwide — Version 2 — March 21, 2007...

  • Page 6: System Details

    (L x W x H) System Weight Shipping Weight HP Compaq dx2300 Microtower Business PC One (1) full-height PCI 2.3 slot on PCA Two (2) full-height PCI Express x1 slots on PCA One (1) full-height PCI Express x16 slot on PCA (for graphic cards) Two (2) DDR2 SDRAM DIMM slots (2 GB maximum memory support) Two (2) 3.5”...
  • Page 7 Maximum rate of change is 10 deg C/Hr. The upper limit may be limited by the type and number of options installed. System Board Processor HP Compaq dx2300 Microtower Business PC PC2-5300 DDR2 SDRAM (667-MHz) non-ECC 2 GB maximum system memory Serial ATA...

  • Page 8: Ddr2 Sdram

    Industrial Standard Rear Side I/O Ports On Board I/O Interfaces Board Size HP Compaq dx2300 Microtower Business PC Support single Intel Core 2 Duo, Pentium D, Pentium 4 or Celeron Intersil 6312 3 phase Intel 946GZ Express Intel I/O Controller Hub 7 (ICH7)
  • Page 9 System Idle mode ~2 watt power consumption in ES mode – suspend to RAM (S3) (instantly available PC) Processor/Cache memory power-down (S3) HP Compaq dx2300 Microtower Business PC Bootable without keyboard, mouse or monitor Keyboard/mouse/USB wake up Support S1, S3, S4 and S5...
  • Page 10 Values are subject to change without notification and are for reference only. Specs Performance of system, options, and ancillary equipment will vary depending on the system configuration. Levels presented do not account for non-HP/Compaq installed hardware. Ambient Air Temperature Humidity...

  • Page 11: Fixed Disk

    NOTE 1: Terms and conditions may vary by country. Certain restrictions and exclusions apply. Other warranty variations may be offered in your region. NOTE 2: On-site service may be provided pursuant to a service contract between HP and an authorized HP third-party provider, and is not available in certain countries. Global service response times are based on commercially reasonable best effort and may vary by country.

  • Page 12: After-Market Options

    Memory HP 1-GB PC2-5300 (DDR2-667 MHz) DIMM HP 512-MB PC2-5300 (DDR2-667 MHz) DIMM HP 256-MB PC2-5300 (DDR2-667 MHz) DIMM NOTE: The HP Compaq dx2300 Microtower memory frequency is clocked at 630 MHz. Audio HP Satellite Speakers Graphics ATI Radeon X1300 Pro (256MB DH) PCIe Graphics...
  • Page 13 QuickSpecs After-Market Options Optical Drives HP SATA CD-ROM Drive (available in Asia Pacific and Japan only) HP SATA CD-RW/DVD-ROM Combo Drive HP SATA DVD-ROM Drive HP SATA DVD+/-RW (DL/DF) LightScribe Drive Security HP Business PC Security Lock Kit Miscellaneous HP FireWire / IEEE 1394 PCI Card...

  • Page 14: Maximum Memory

    AC outlet. Adding or removing memory modules while voltage is present may cause irreparable damage to the memory modules or system board. HP recommends dual-channel symmetric configurations for maximum performance. For best performance, add the same amount of total memory to each channel and do not mix speeds. For dual-channel symmetric performance, the total amount of memory in each channel must be equal.
  • Page 15 QuickSpecs Storage HP Compaq dx2300 Microtower Business PC Drive Support Diskette Drives Media Reader CD-ROM Drives DVD-ROM Drives CD-RW/Combo Drives DVD+/-RW Drives 3.5” Serial ATA Hard Drives HP Compaq dx2300 Microtower Business PC Maximum Quantity Supported DA - 12668 Worldwide — Version 2 — March 21, 2007...

  • Page 16: Technical Specifications - Audio

    Type ALC888 Audio HD Audio compatible codec Sampling Audio Jacks Power Support Other HP Compaq dx2300 Microtower Business PC Integrated Supports 48/96 KHz Mic-In Line-In Line-Out / Headphone Out Digital: 3.3V Analog: 5V Meets performance requirements for audio on PC99/2001 systems...

  • Page 17: Technical Specifications - Communications

    Power consumption Output power (approximately) Receive sensitivity Data transfer rate HP Compaq dx2300 Microtower Business PC RJ-45 Intel 82572EI Gigabit Ethernet Controller Integrated Dual 48K configurable transmit receive FIFO Buffers 10/100/1000 Mbps IEEE 802.1P, 802,1Q, 802.2, 802.3, 802.3AB and 802.3u compliant, 802.3x flow control...
  • Page 18 Video Other Operating Temperature 32° to 158° F (0° to 70° C) Operating Humidity Power HP Compaq dx2300 Microtower Business PC DSSS (Direct Sequence Spread Spectrum) 64(40h) bit, 128(104h) bit, WPA, IEEE802.1X, AES-OCB, AES-CCM, Microsoft PEAP,TKIP, WEP External 5dBi antenna...
  • Page 19 Safety Telecom Health Other HP Compaq dx2300 Microtower Business PC Agere Systems SV92PL – Integrated PCI interface with 5-V tolerant buffers and CardBus support Complies with PCI low profile specifications-6.7 x 2.3 in (17.0 x 5.8 cm) and supports high- and low-profile brackets...

  • Page 20: Technical Specifications - Graphics

    NOTE: Other resolutions and refresh rates may be selectable but are not recommended. HP Compaq dx2300 Microtower Business PC Microsoft DirectX® 9 based with support for Pixel Shader 2.0, 4:1 anisotropic filtering, Gaussian texture filtering, shadow maps, volumetric textures, double-sided stencil buffers, and 4 pixel pipes.
  • Page 21 Board configuration Languages supported 24 languages: English, Arabic, Chinese Simplified, Chinese Traditional, Core power Option kit contents Compliance standards EMC Emissions: HP Compaq dx2300 Microtower Business PC PCI Express (x16 lanes) 85 Hz Integrated 400 MHz RAMDAC DVI-I + TV...
  • Page 22 ATI Radeon X1300 Pro (256MB DH) PCIe Graphics Card with full height bracket attached DMS-59 Dual VGA NOTE: The Optional DMS-59 DVI cable can be ordered with HP Option Kit #DL139A Software CD with graphics drivers Low profile bracket to convert the card for using in a low profile...

  • Page 23: Technical Specifications - Input Devices

    Mechanical Environmental Approvals Ergonomic compliance ANSI HFS 100, ISO 9241-4, and TUVGS HP Compaq dx2300 Microtower Business PC Keys Dimensions (L x W x H) 18.0 x 6.4 x 0.98 in (45.8 x 16.3 x 2.5 cm) Weight Operating voltage Power consumption EMI –...
  • Page 24 Switch Type Switch Life Mechanical Life Environmental Electrical Mechanical Regulatory Approvals HP Compaq dx2300 Microtower Business PC 8 mm 30 mm/s Light force micro-switch 1 million operations Minimum 200,000 revolutions Operating Temperature 50° to 122° F (10° to 50° C)

  • Page 25: Technical Specifications - Hard Drives

    QuickSpecs Technical Specifications - Hard Drives Serial ATA Hard Drives 80 GB (7200 rpm) 160 GB HP Compaq dx2300 Microtower Business PC Capacity 80,026,361,856 bytes Height 1 in (2.6 cm) Width Media diameter: 3.5 in (8.9 cm) Physical size: 4 in (10.2 cm)
  • Page 26 QuickSpecs Technical Specifications - Hard Drives 250 GB HP Compaq dx2300 Microtower Business PC Capacity 250,059,350,016 bytes Height 1 in (2.6 cm) Width Media diameter: 3.5 in (8.9 cm) Physical size: 4 in (10.2 cm) Interface Serial ATA Synchronous Transfer 1.5 Gb/s...

  • Page 27: Technical Specifications - Optical Storage

    Power Environmental (all conditions non-condensing) HP Compaq dx2300 Microtower Business PC 5.25-inch, half-height, tray-load Either horizontal or vertical SATA/ATAPI Single layer: Up to 4.7 GB (6 times capacity of CD-ROM) Double layer: Up to 8.5 GB (12 times capacity of CD-ROM) 2.6 lb (1.2 kg)
  • Page 28 Power Environmental (all conditions non-condensing) HP Compaq dx2300 Microtower Business PC 5.25-inch, half-height, tray-load Either horizontal or vertical SATA/ATAPI Single layer: Up to 4.7 GB (6 times capacity of CD-ROM) Double layer: Up to 8.5 GB (12 times capacity of CD-ROM) 2.6 lb (1.2 kg)
  • Page 29 Power Environmental (all conditions non-condensing) HP Compaq dx2300 Microtower Business PC 5.25-inch, half-height, tray-load Either horizontal or vertical SATA/ATAPI Single layer: Up to 4.7 GB (6 times capacity of CD-ROM) Double layer: Up to 8.5 GB (12 times capacity of CD-ROM) 2.6 lb (1.2 kg)

  • Page 30: Technical Specifications - Removable Storage

    Read/Write Heads HP 16-in-1 Media Card USB interface Reader Advance protocol support Supported media types Mechanical HP Compaq dx2300 Microtower Business PC 3.5 in (8.89 cm) Green 1.44 MB/720 KB One-third 300 rpm 80/80 Track-to-Track (high/low) 3/6 ms Average (high/low)
  • Page 31 QuickSpecs Technical Specifications - Removable Storage Environmental Approvals HP Compaq dx2300 Microtower Business PC Operational environmental extremes Storage environmental extremes USB-IF, WHQL, Compliant with USB Mass Storage Class Bulk only Transport Specification Rev. 1.0, Compliant Intel Front Panel I/O Connectivity Design Guide V. 1.2 FCC, CE, BSMI, C-Tick, VCCI, MIC, cUL, TUV-T DA - 12668 Worldwide —...

  • Page 32: Technical Specifications - Environmental Data

    Mercury greater the 5ppm by weight Cadmium greater than 10ppm by weight Lead greater than 4000ppm by weight. Battery size: CR2032 (coin cell) Battery type: Lithium HP Compaq dx2300 Microtower Business PC DA - 12668 Worldwide — Version 2 — March 21, 2007 Page 32...
  • Page 33 European Union Restriction of Hazardous Substances (RoHS) Directive. HP's goal is to exceed compliance obligations by meeting the requirements of the RoHS Directive on a worldwide basis. By July 1, 2006, RoHS substances will be virtually eliminated (virtually = to...
  • Page 34 Intel and Pentium are U.S. registered trademarks of Intel Corporation. Microsoft and Windows are U.S. registered trademarks of Microsoft Corporation. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.
