RTR Management

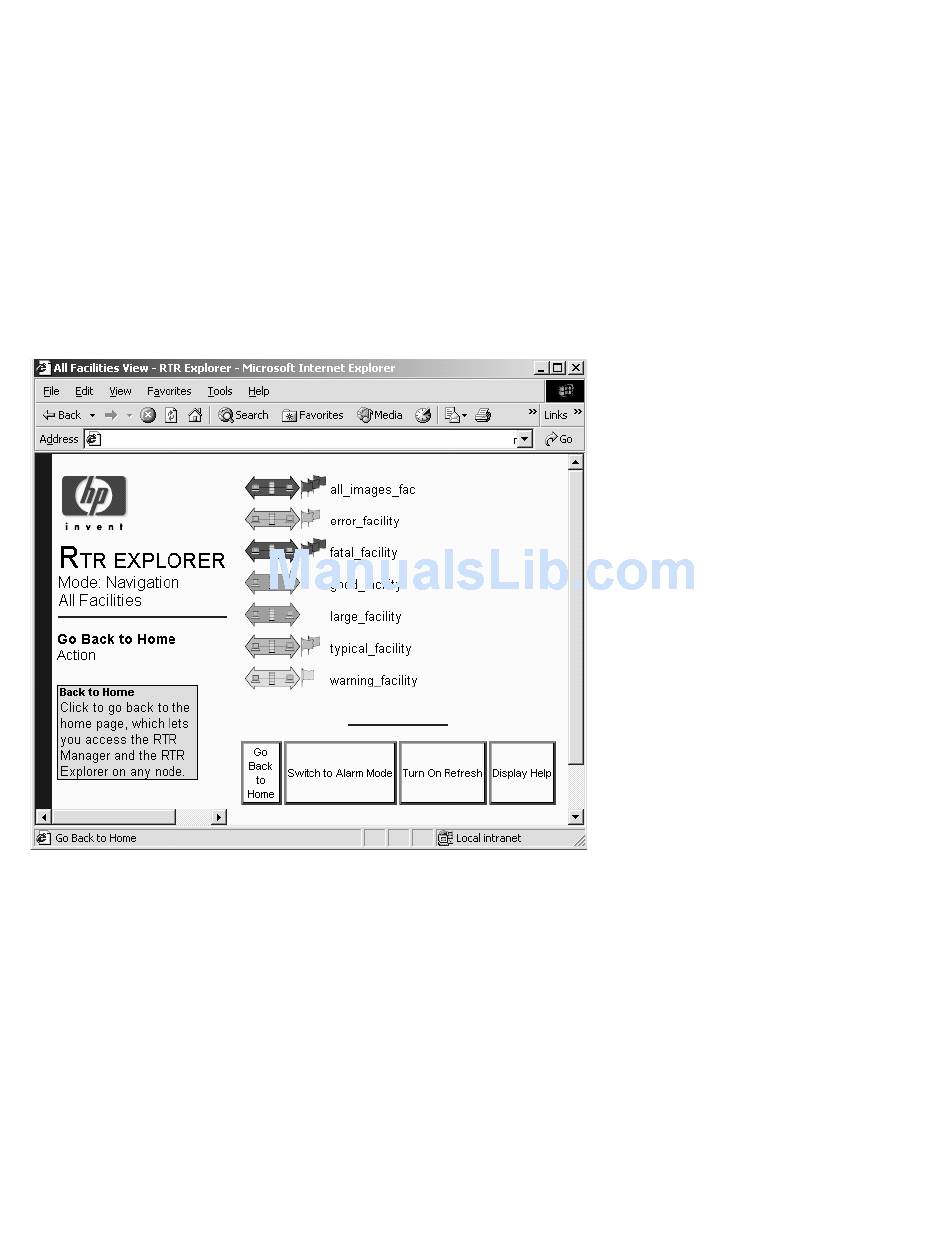

Figure 4–4 RTR Explorer: View of All Facilities
Information available for each facility includes the facility name,
the alerts associated with nodes participating in the facility, and
the state of the facility. Information for each node includes its
name, role, cluster name, partition names, partition states, node
state, and alerts.
Additional views either by facility or by node enable the
administrator to zoom, with a simple point-and-click, to
the facility or node of interest. From the node view, the
administrator can open the RTR Manager for the node. Hence,
RTR Explorer enables the administrator to both view and
manage the state of every facility and node.
4–8 RTR Interfaces
vm-1155A-AI
