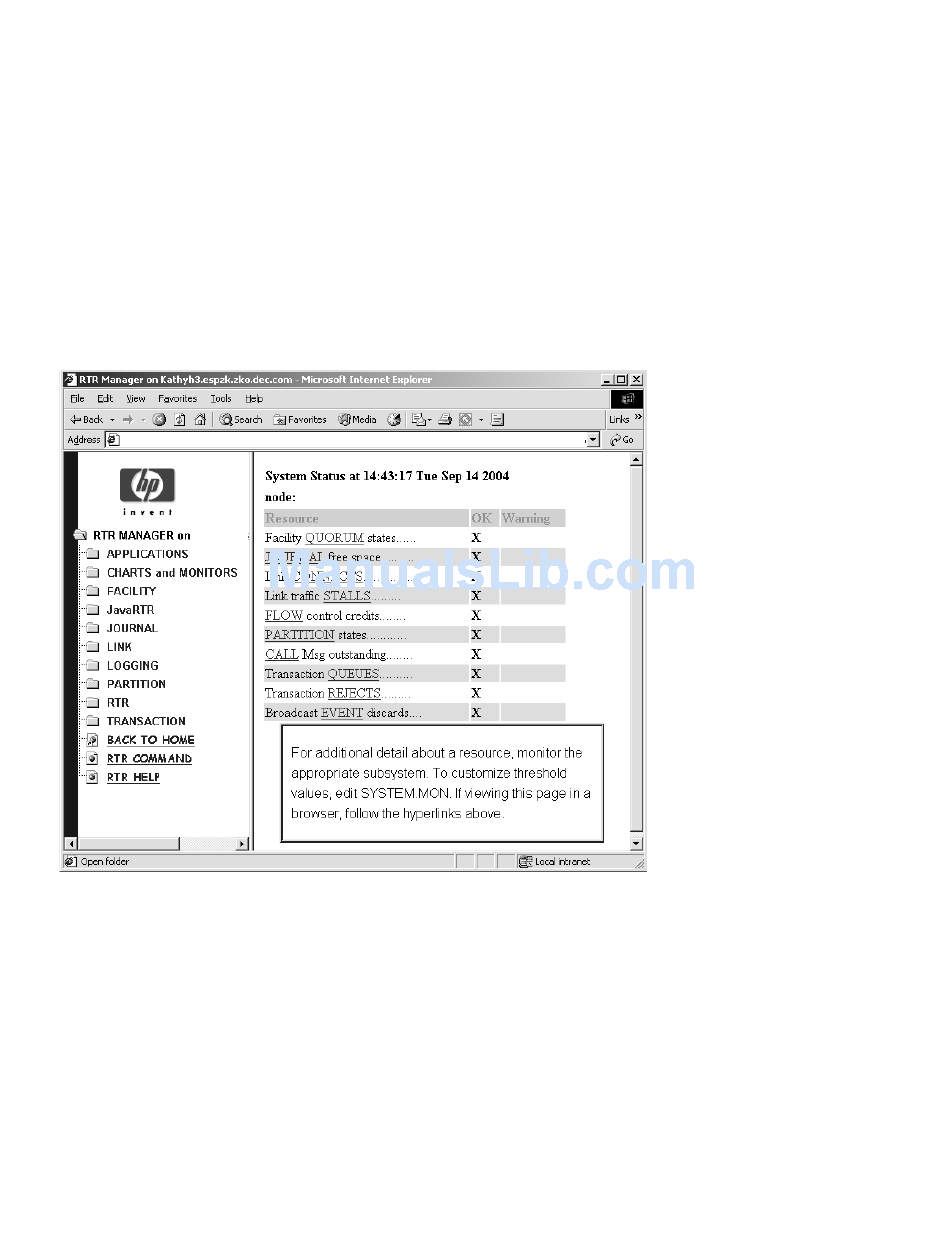

Figure 4–3 RTR Manager
http://nodename
nodename
Figure 4–4 shows a sample screen of the RTR Explorer with
RTR Explorer
several defined facilities. The RTR Explorer lets the system
manager or administrator view the entire RTR configuration by
facility and by node, and assess the state of the RTR network
and the state of any individual node or facility in the network.
The All Facilities View (Figure 4–4) shows all facilities by
name, with icons showing status of normal or one of three levels
of alert (warning, error, or fatal). Additional views either by
facility or node enable the manager to drill down, with a simple
point-and-click, to the facility or node of interest.
nodename
RTR Management
