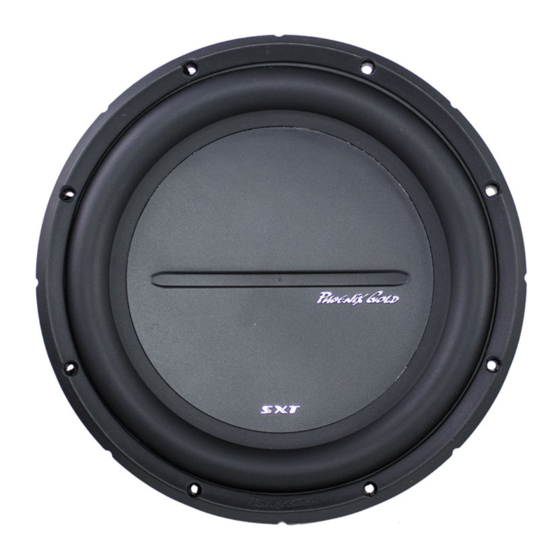

Phoenix Gold SXT12D4 User Manual

Phoenix Gold SXT12D4 User Manual

Subwoofer

Advertisement

Quick Links

Features
• One Piece Polypropylene Dustcap
• High Temperature 2.0 Inch OFC Voice Coils
• Die Cast Aluminum Heatsink Spider Spacer
• Optimized for Sealed or Vented Enclosures
• Rigid Powder Coated Steel Frame
• Nickel Plated 12 Gauge Speaker Terminals
• High Excursion Motor Design
Subwoofer Manual
Manuel de subwoofer
Models: SXt10d2, SXt10d4, SXt12d2, SXt12d4
Caractéristiques
• Pare-poussière monopièce
• Aluminium moulé dissipateur thermique spider spacer
• Bobines acoustiques en cuivre exempt d'oxygène à
haute température
• Panier rigide en acier
• Bornes d'enceinte nickelées de calibre 12
• Modèle de moteur à grand battement

Advertisement

loading
Need help?

Need help?

Do you have a question about the SXT12D4 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Phoenix Gold SXT12D4

  • Page 1 Subwoofer Manual Manuel de subwoofer Models: SXt10d2, SXt10d4, SXt12d2, SXt12d4 Features Caractéristiques • One Piece Polypropylene Dustcap • Pare-poussière monopièce • High Temperature 2.0 Inch OFC Voice Coils • Aluminium moulé dissipateur thermique spider spacer • Die Cast Aluminum Heatsink Spider Spacer • Bobines acoustiques en cuivre exempt d’oxygène à • Optimized for Sealed or Vented Enclosures haute température • Rigid Powder Coated Steel Frame • Panier rigide en acier • Nickel Plated 12 Gauge Speaker Terminals • Bornes d’enceinte nickelées de calibre 12 • High Excursion Motor Design • Modèle de moteur à grand battement...
  • Page 2 ENCLOSURE INFORMATION Phoenix Gold subwoofers are overbuilt in virtually every way conceivable. It is important that the subwoofer’s enclosure is built to these same exacting standards. The enclosure must be constructed of at least .75 inch MDF for 10 and 12 inch subwoofers or .625 MDF for 8 inch subwoofers. Screws or air staples are excellent construction fasteners when used with a strong bonding “yellow”...
  • Page 3 SXt10d2 SXt12d2 SXt10d4 SXt12d4 Volume(cu.ft.) Vent Opening(in.) 2 x 8 2 x 10 Vent Length (in.) 22.75 21.5 Tuning Freq 38Hz 35Hz SYSTEM EXAMPLES SXt12d4 or SXt10d4 Dual 4 ohm Subwoofer (wired in parallel) SINGLE SUBWOOFER SYSTEM RX250.1 Terminal All voice coils are wired in parallel for 2 ohm load. RX250.1 makes maximum power into a 2 ohm load. Toutes les bobines mobiles sont câblées en parallèle de 2 Ohms. RX250.1 faire puissance maximale en 2 Ohms. SXt12d4 or SXt10d4 Dual 4 ohm Subwoofers (wired in parallel) DUAL SUBWOOFER SYSTEM SX600.1 Terminal All voice coils are wired in parallel for 1 ohm load. SX600.1 makes maximum power into 1 ohm load.
  • Page 4 LIMITED WARRANTY Phoenix Gold warrants this product to be free of defects in materials and workmanship for a period of one (1) year from the original date of purchase. This warranty is not transferable and applies only to the original purchaser from an authorized Phoenix Gold dealer in the United States of America only. Should service be necessary under this warranty for any reason due to manufacturing defect or malfunction, Phoenix Gold will (at its discretion), repair or replace the defective product with new or remanufactured product at no charge.
