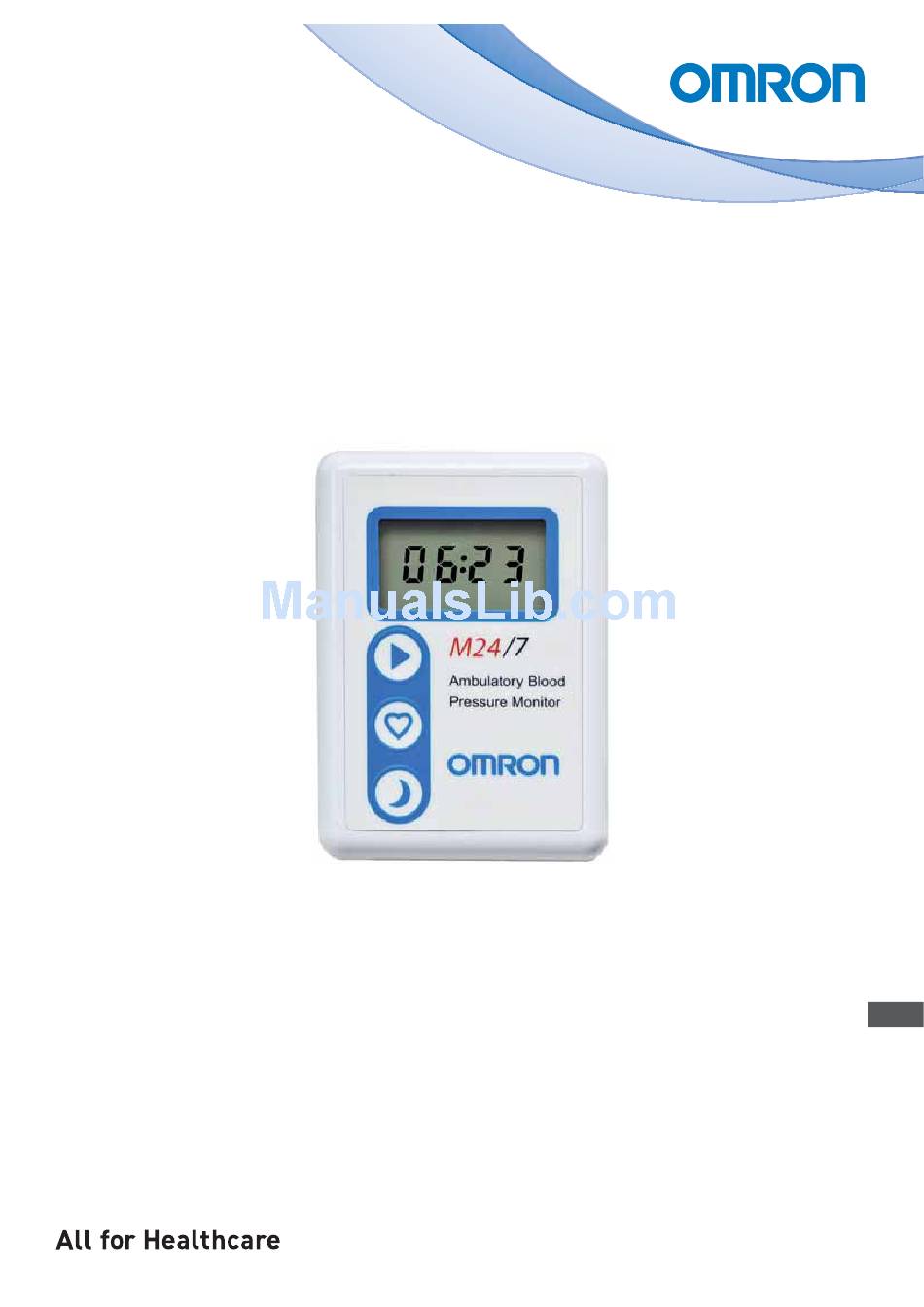

- Page 1 Instruction Manual M24/7 Ambulatory Blood Pressure Monitor www.omron-healthcare.com...
-
Page 2: Introduction
Introduction Thank you for purchasing the OMRON M24/7 ambulatory blood pressure monitor. The OMRON M24/7 is a silent, compact and very reliable ambulatory blood pressure monitor. A large LCD screen insures easy readability and its lightweight design provides for maximum patient comfort. -
Page 3: Table Of Contents
1.2. Arm Cuffs ..................... 7 1.3. Display ......................8 1.4. Package Contents ..................8 Operating Instructions ................9 2.1. Working with the OMRON M24/7 Unit ............9 2.2. Using the Buttons ..................9 2.3. Overview Display ..................11 2.4. Rules of Monitoring ..................12 2.5. -
Page 4: Important Safety Information
Important Safety Information Important Safety Information This symbol on the Omron M24/7 monitor is a warning that you should read the accompanying documentation (this manual). Warning: Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury. - Page 5 (General Usage) No user serviceable parts inside. The OMRON M24/7 monitor contains high complexity electronic and ¿ ne mechanical components. If you have any problems, please refer your monitor to quali¿...
-
Page 6: Recommended Use Of Ambulatory Blood Pressure Monitoring
• Children without supervision; children younger than 8 years • Though the blood pressure measurement algorithm used in the OMRON M24/7 has been found to function properly on patients with atrial ¿ brillation or other common arrhythmias, the oscillometric blood pressure measurement method is generally recommended for use only with special caution in patients with arrhythmias, Parkinson’s disease, or... -
Page 7: Overview
1. Overview 1.1. Main Unit Front side Back side START button EVENT button DAY/NIGHT Interface CUFF button connection connection CUFF connection 1.2. Arm Cuffs The set contains 2 adult cuffs: normal size (24-32cm) and large size (32-42cm) A. Arm Cuff B. -
Page 8: Display
M24/7 Instruction Manual incl. template for patient diary BP Tracker Software Instruction Manual Important Note: Doctor’s Quick Guide and Patient’s Quick Guide ONLY available on the CD-Rom Declaration of Conformity – to obtain a copy please contact your local OMRON Distributor. -
Page 9: Operating Instructions
2.1. Working with the OMRON M24/7 Unit The OMRON M24/7 device is a compact, lightweight monitoring unit typically worn by the patient for 24 hours. The OMRON M24/7 operates with two AA size batteries. The memory is capable of storing more than 600 measurements. - Page 10 Press and hold the START button for more than 10 seconds then release it when two horizontal segments appear on the LCD, this way the OMRON M24/7 will be switched off. If you do not release the button in 2 seconds after the two horizontal segments appeared, the monitor will return to normal operation.
-
Page 11: Overview Display
LCD. These codes are stored together with recorded data and listed in the OMRON BP Tracker Software. This helps service personnel in case of support issues. -
Page 12: Rules Of Monitoring
8. Patients may start extra blood pressure measurements with the START button of the OMRON M24/7 monitor, marked with a triangle. They should mark events such as taking medication with the EVENT button, marked with a heart. - Page 13 2. The other side of the optical USB interface cable, which is a two-point plastic connection, should be connected to the socket of the OMRON M24/7, in a way that the red plastic ring is directed to the lower side of the device.
-
Page 14: Manual Programming
2.6. Manual Programming The OMRON M24/7 can be programmed with using its buttons, without using a Programming Options There are three different measurement plans which may be selected in case of manual programming. These plans are stored in the device’s inside memory and they cannot be changed. -
Page 15: Batteries
A set of new, high capacity batteries will enable the OMRON M24/7 monitor to perform 250 blood pressure measurements during a 24-48 hours long monitoring session. -
Page 16: Cuffs And Their Application
Connect the rubber tube of the cuff into the air plug connector, which you can ¿ nd on the long edge closer to the buttons of the OMRON M24/7 monitor. Connect the cuff turning it clockwise with slight pressure. -
Page 17: Care And Maintenance
Such occurrence should be reported to the physician at once after the monitoring session. OMRON M24/7 recognizes and functions with three different cuff sizes. Please set the appropriate cuff size to be used during the programming of the device. -
Page 18: Protection, Cleaning And Washing
3.2. Protection, cleaning and washing OMRON M24/7 ambulatory blood pressure monitors are not specially protected against spills or ingression of water or other liquids. Do not immerse the monitor in water or any cleaning À uid, and protect it from spills and splashes. Do not expose it to heavy rain or steam, and do not wear it in a wet environment e.g: shower, bath, or swimming pool. -
Page 19: Maintenance And Storage Conditions
Contact OMRON or your distributor for service information. 3.4. Correct Disposal of this Product OMRON M24/7 should be disposed of according to your local regulations for disposal of hazardous waste. 3.5. Accessories Art. -
Page 20: Technical Data
DeÀ ation and rapid air release: automatic pressure release valve Please note that the OMRON M24/7 might not meet its performance speci¿ cations if stored or used outside the speci¿ ed environmental conditions. *Measuring and LCD displaying in kPa values is an option which can be selected in the OMRON BP Tracker Software. -
Page 21: Safety Concerns
Electric shock hazard protection OMRON M24/7 monitors meet relevant shock hazard protection standards. OMRON M24/7 monitors operate with two 1.5V AA batteries or two 1.2V AA rechargeable batteries. This excludes all electric shock hazards, even in the unlikely case of multiple device errors. Use only standard long-life (alkaline) batteries, or standard NiCd or NiMH rechargeable batteries of the proper size. -
Page 22: Emc Information
Directive and declaration of manufacturer – Electromagnetic Emission The OMRON M24/7 is suitable for use in the speci¿ ed electromagnetic environment. The purchaser or user of the OMRON M24/7 should assure that it is used in an electromagnetic environment as described below... - Page 23 Directive and declaration of manufacturer – Electromagnetic immunity OMRON M24/7 is suitable for use in the speci¿ ed electromagnetic environment. The purchaser or user of OMRON M24/7 should assure that it is used in an electromagnetic environment as described below.
- Page 24 Directive and declaration of manufacturer – Electromagnetic immunity OMRON M24/7 is suitable for use in the speci¿ ed electromagnetic environment. The purchaser or user of OMRON M24/7 should assure that it is used in an electromagnetic environment as described below.
- Page 25 Recommended separation distance OMRON M24/7 is intended to be used in electromagnetic environment with controlled RF disturbances. The purchaser or user of M24/7may help to reduce electromagnetic disturbances by de¿ ning the separation distance between the transportable or mobile RF telecommunication equipment (transmitters) and OMRON M24/7, depending on the highest output power of the telecommunication equipment.
-
Page 26: Patient Diary
AMBULATORY BLOOD PRESSURE MONITORING PATIENT DIARY Name: Date of birth: Monitoring date: 8:00-8:30 20:00-20:30 8:30-9:00 20:30-21:00 9:00-9:30 21:00-21:30 9:30-10:00 21:30-22:00 10:00-10:30 22:00-22:30 10:30-11:00 22:30-23:00 11:00-11:30 23:00-23:30 11:30-12:00 23:30-24:00 12:00-12:30 0:00-0:30 12:30-13:00 0:30-1:00 13:00-13:30 1:00-1:30 13:30-14:00 1:30-2:00 14:00-14:30 2:00-2:30 14:30-15:00 2:30-3:00 15:00-15:30 3:00-3:30 15:30-16:00... -
Page 27: Product Warranty Information
OMRON BP Tracker Software, even if OMRON has been advised of the possibility of such damages. - Page 28 Remarks 2010. All rights reserved Made in Hungary Meditech Ltd. H-1184 Budapest, Mikszáth Kálmán utca 24, Hungary Scorpius 33 2132 LR Hoofddorp IM-ABPM-BP5-EN-04-06/2012...
