Chapter 2. Hardware Installation

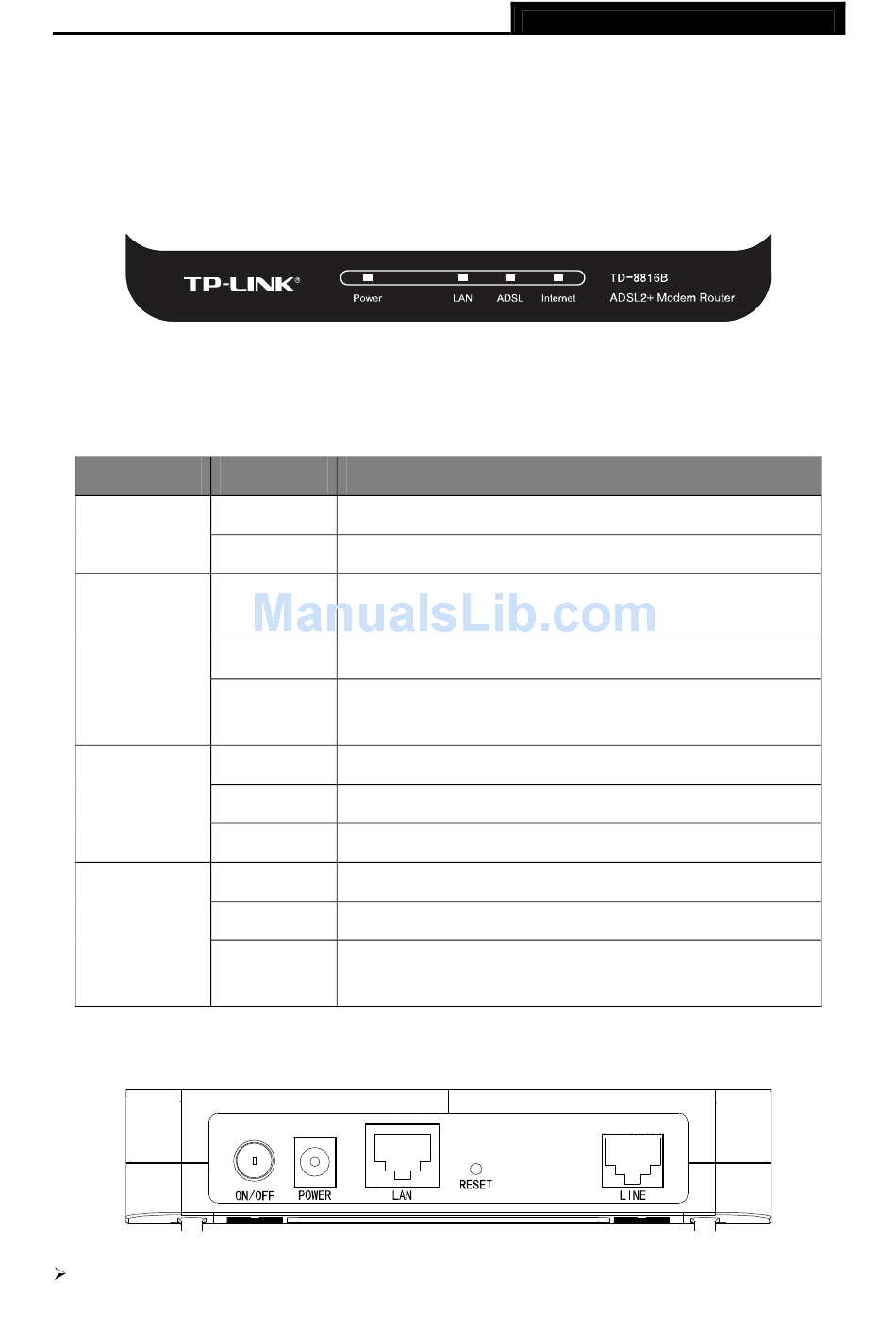

2.1 The Front Panel
The LEDs locate on the front panel, which indicate the device's working status. For details, please
refer to LED Explanation.
LED Explanation:
LED
Status
On
Power
Off
On
LAN
Flash
Off
On
ADSL
Flash
Off
On
Flash
Internet
Off
2.2 The Back Panel
ON/OFF: The switch for the power.
TD-8816B
Figure 2-1
Indication
Power is on.
Power is off.
There is a successful connection on LAN port but no
activity.
Data is being transferred over LAN port.
There is no connection on LAN port or the connection is
abnormal.
The LINE port is linked up.
The ADSL negotiation is in progress.
The LINE port is linked down.
A successful PPP connection has been built.
Data is being transferred over the Internet on PPP mode.
There is no successful PPP connection or the Router
works on Bridge mode.
Figure 2-2
4
ADSL2+ Modem Router User Guide
